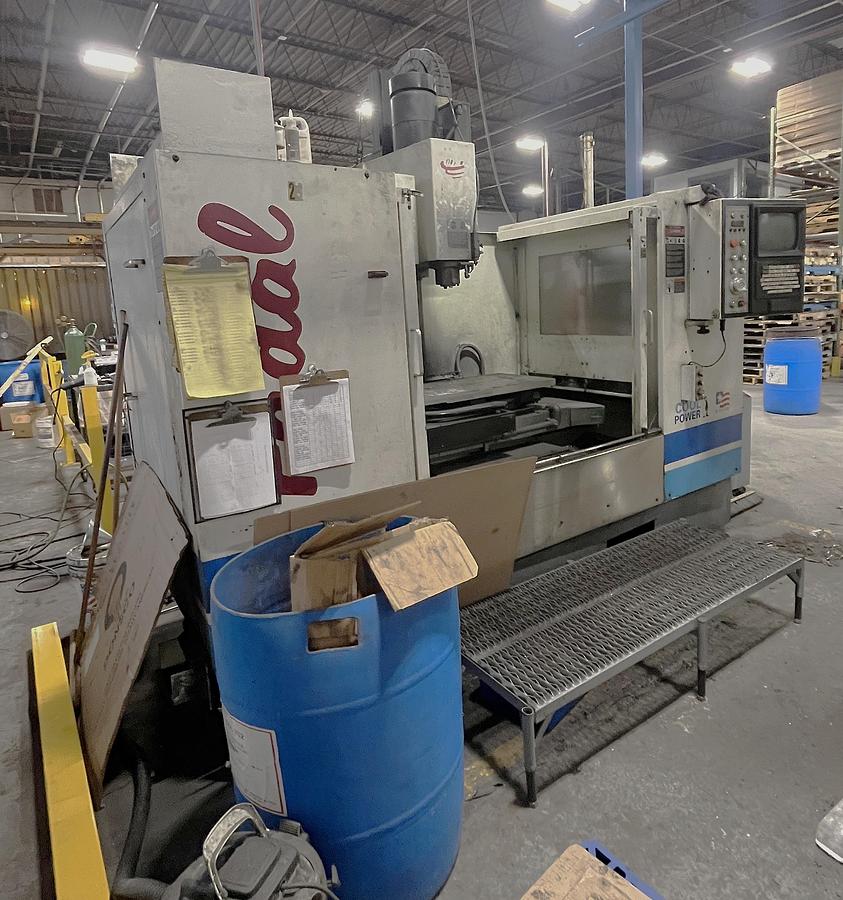

1998 Fadal VMC4020HT, Boxed Ways, High Torque 22HP Motor, 21 Station ATC, 10,000 RPM
No longer available
1998 Fadal VMC4020HT, Boxed Ways, High Torque 22HP Motor, 21 Station ATC, 10,000 RPM
$8,900 (USD)
Location:New York, NY
Description
21 Station Tool Changer
10,000 RPM Spindle
Boxed Ways
High Torque Spindle Motor 2 Speed Spindle Drive RS 232 Port Interface
Multi Processor Control
Coolant System with Tank & Pump
Wired 230V-440V Electrics
**Was formally a 2 pallet machine, now used solely as a single table machine**
Specifications

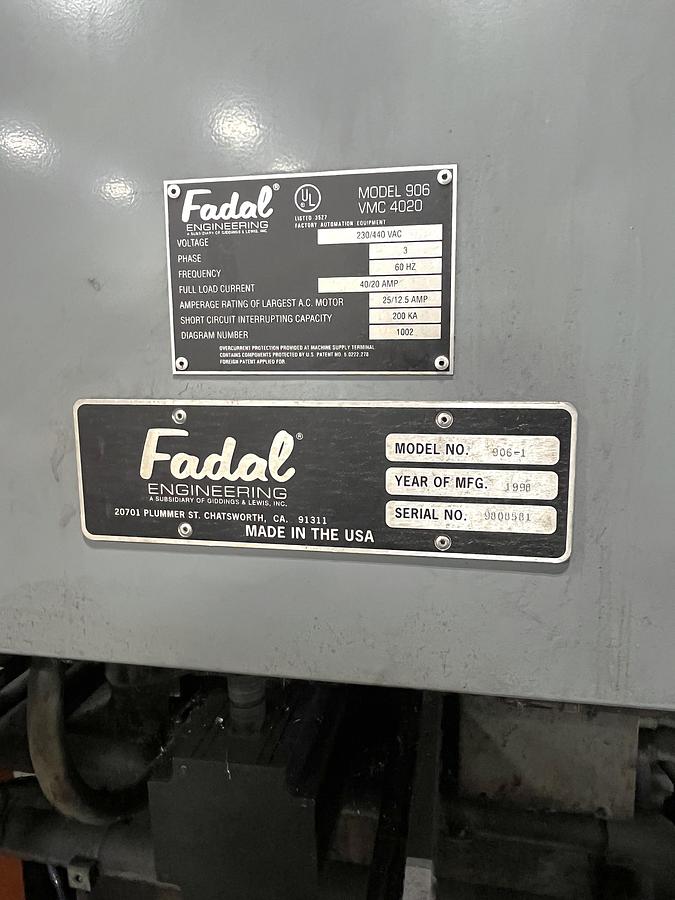

| Manufacturer | Fadal |
| Model | VMC4020HT |
| Year | 1998 |
| Condition | Used |
| Stock Number | 120536 |
| Control | Fadal CNC88HS |
| Table Size | 48" x 20" |
| Maximum Table Load | 3,000 lbs. |
| Distance Spindle Nose to Table Top | 4" - 24" |
| X-Axis Travel | 40" |
| Y-Axis Travel | 20" |
| Z-Axis Travel | 20" |
| Spindle Taper | CAT 40 |
| Spindle Speeds | 10,000 rpm |
| Spindle Motor | 22.5 HP |
| Tool Magazine Capacity | 21 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 4.5" / 15" / 15 lbs |
| Rapid Traverse Rates (X, Y, Z) | 800 IPM |
| Machine Dimensions LxWxH | 116" x 87" x 104" |
| Machine Weight | 11,550 lbs. |
