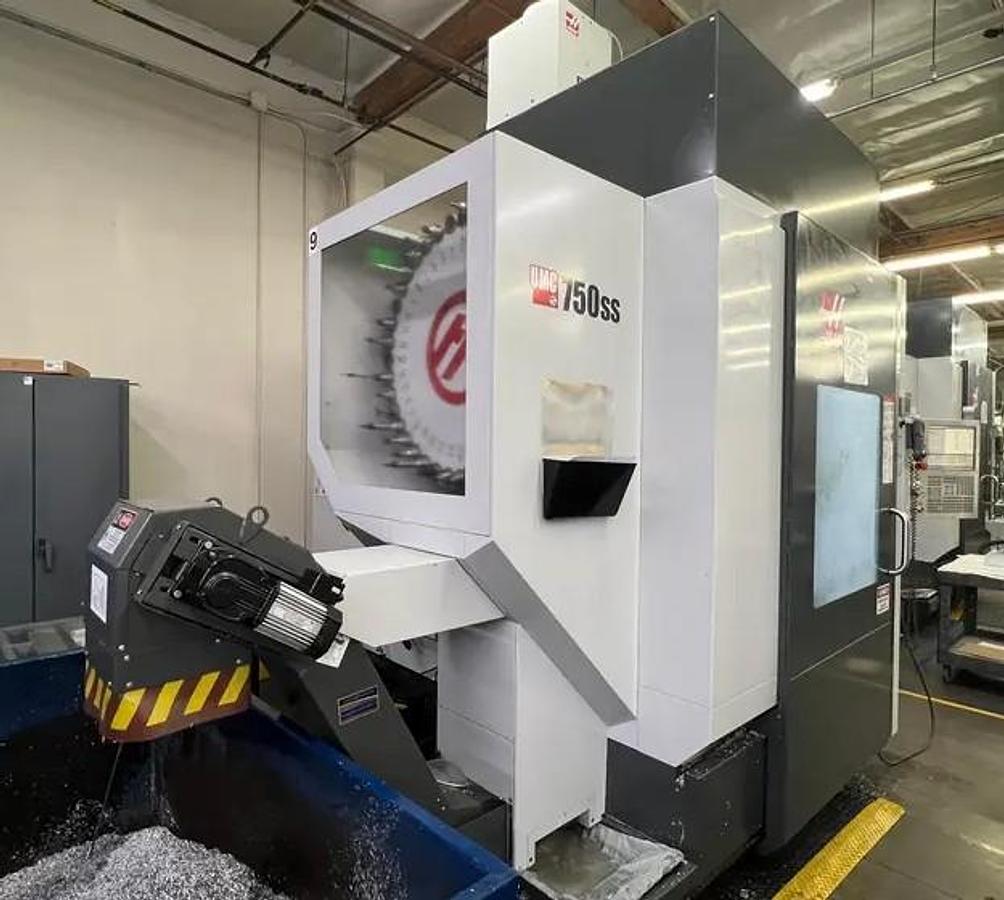

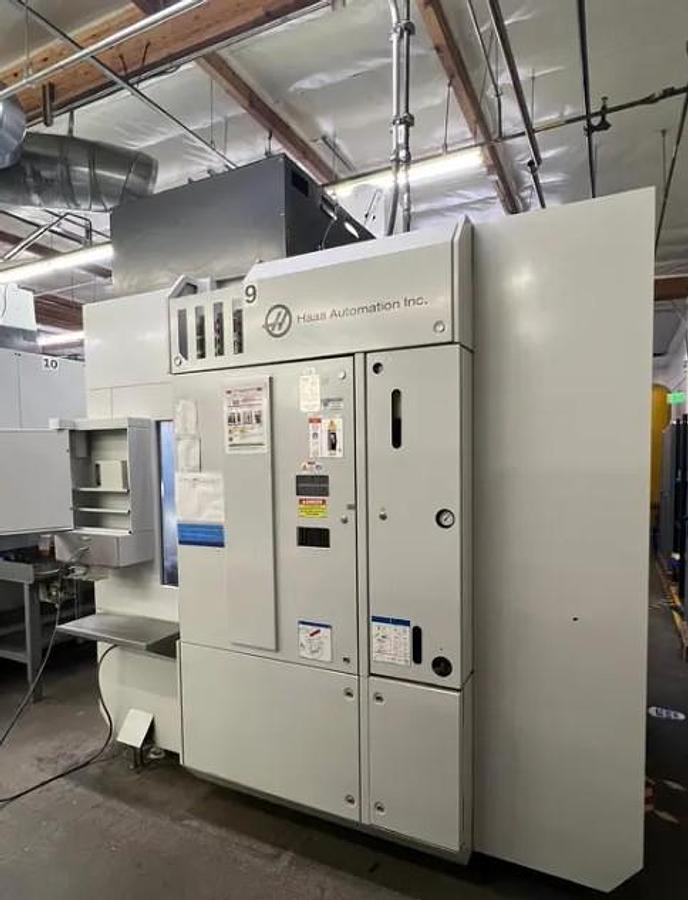

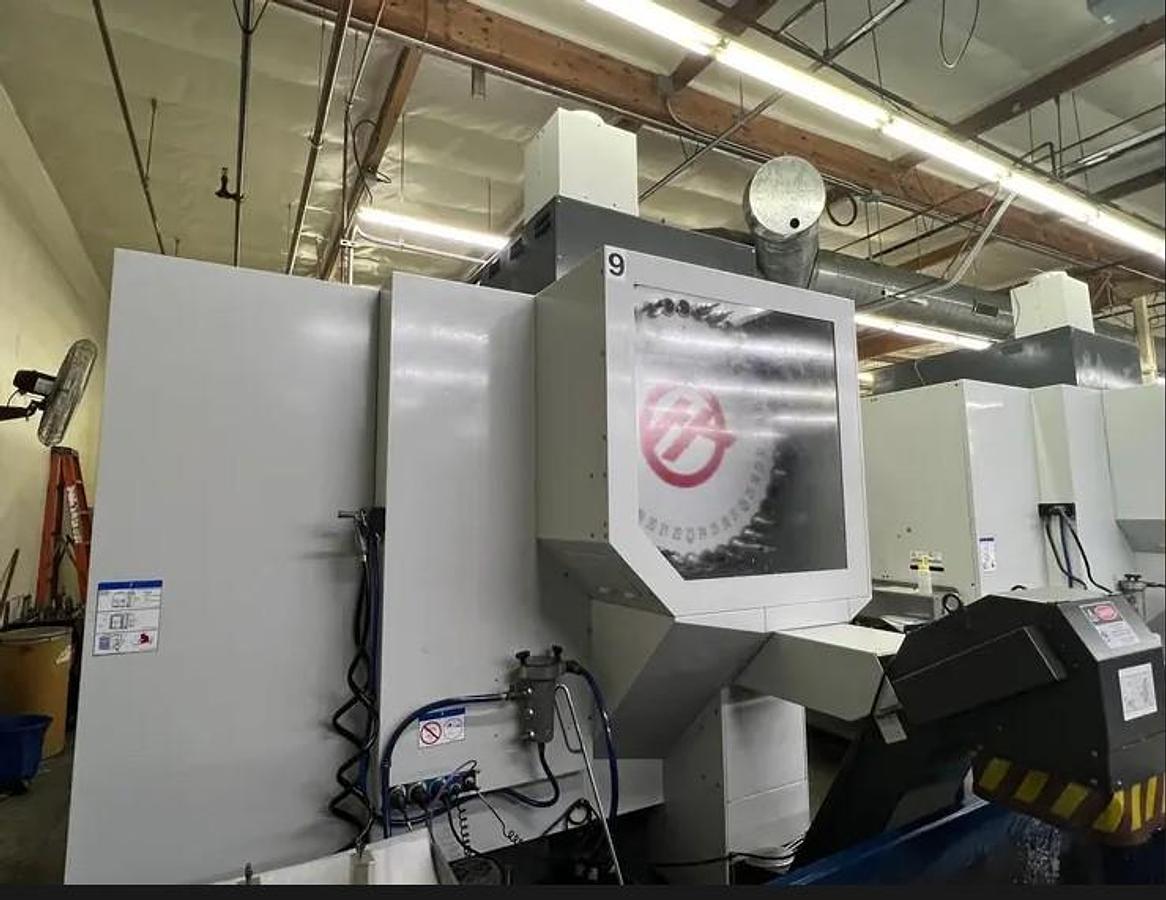

2017 Haas UMC-750SS WIPS Renishaw Tool & Part Probe, High-Speed Machining, Rigid Tapping, Coolant Thru the Spindle, Programmable Coolant, 1GB Memory
2017 Haas UMC-750SS WIPS Renishaw Tool & Part Probe, High-Speed Machining, Rigid Tapping, Coolant Thru the Spindle, Programmable Coolant, 1GB Memory
Contact us for price
Location:California
or
Call (863) 439-6066
Description
Trunnion Style 5th Axis Table
Coolant Through the Spindle
WIPS Renishaw Tool & Part Probe
High-Speed Machining
Macros
Coordinate Rotation & Scaling
Second Home Button
Color Remote Jog Handle
Power Failure Detection Module
1 GB Expanded Memory

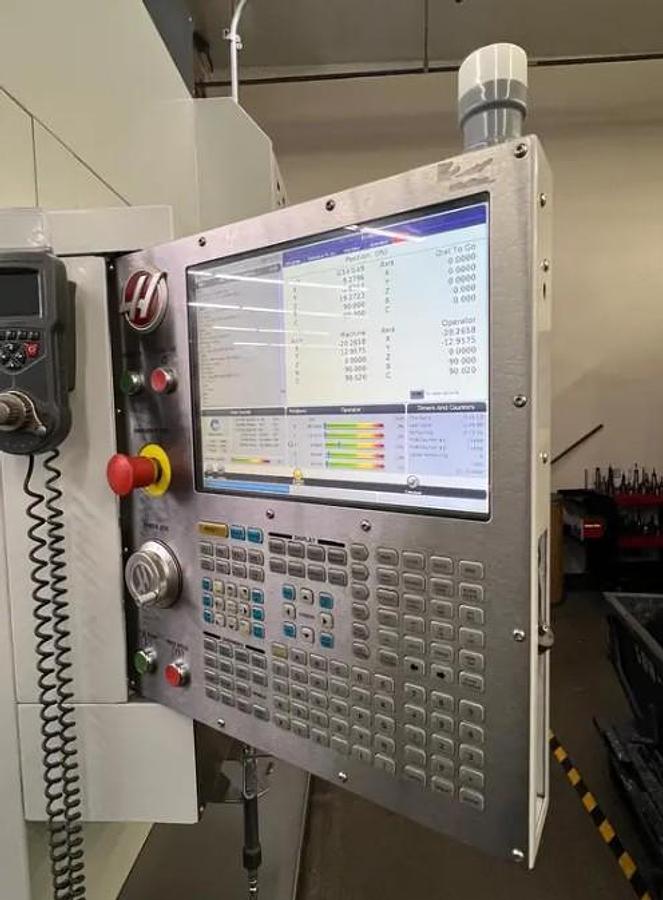

1511A Color LCD Monitor
Rigid Tapping
75 Galon Flood Coolant System
Chip Conveyor
Programmable Coolant Nozzle
Chip Conveyor
40 Station Tool Changer
All Available Manuals
Specifications
| Manufacturer | Haas |
| Model | UMC-750SS WIPS Renishaw Tool & Part Probe, High-Speed Machining, Rigid Tapping, Coolant Thru the Spindle, Programmable Coolant, 1GB Memory |
| Year | 2017 |
| Condition | Used |
| Stock Number | 120529 |
| Table size | 19.7" Diameter |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157"x108"x124" |
| Machine weight | 19,100 lbs |
