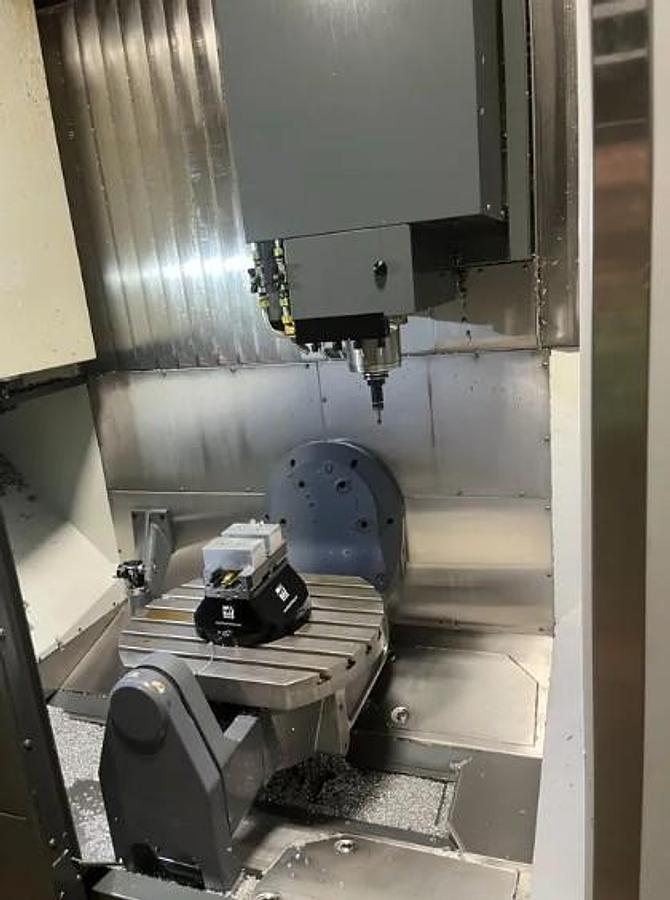

2015 Haas UMC-750
2015 Haas UMC-750
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description
Trunnion Style 5th Axis Table

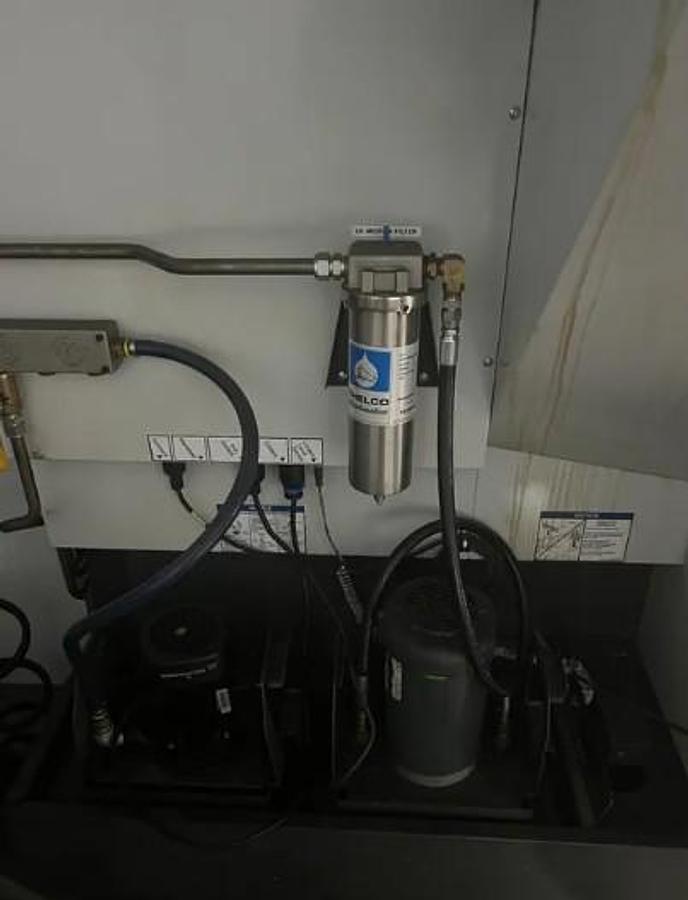

Coolant Through the Spindle - 300 PSI
12,000 RPM Spindle

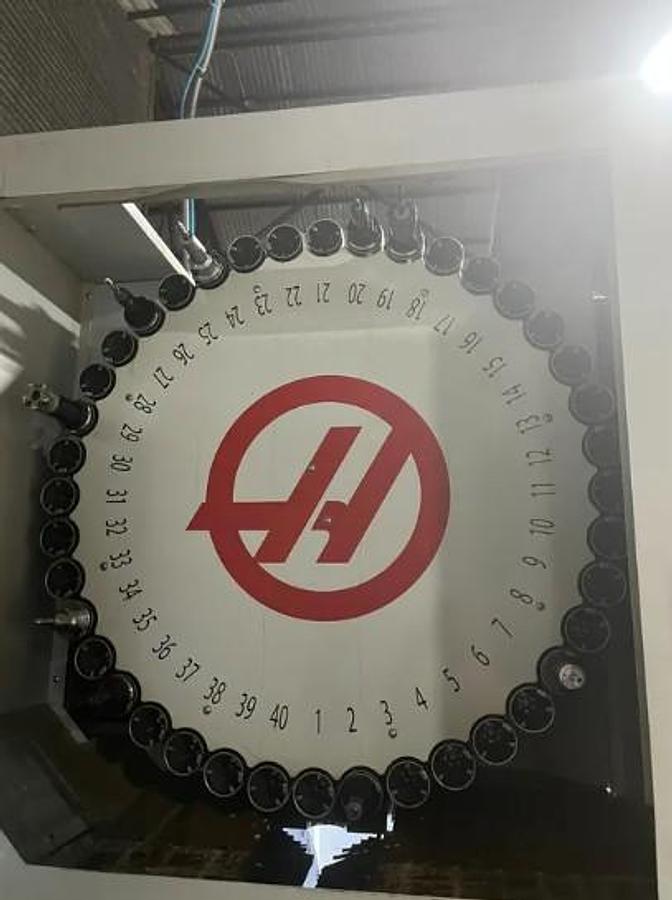

40 Station Side Mounted Tool Changer
WIPS Renishaw Tool & Part Probe
Rotational Scaling
Spindle Orientation
User Definable Macros
Coordinate Rotation & Scaling
High Speed Machining

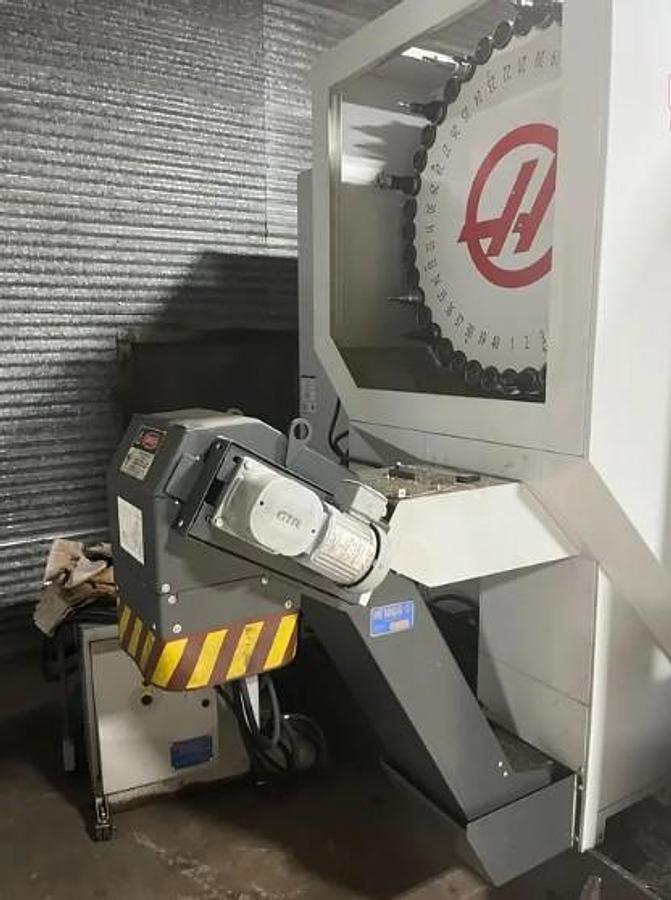

Chip Conveyor - Belt Style
Rigid Tapping

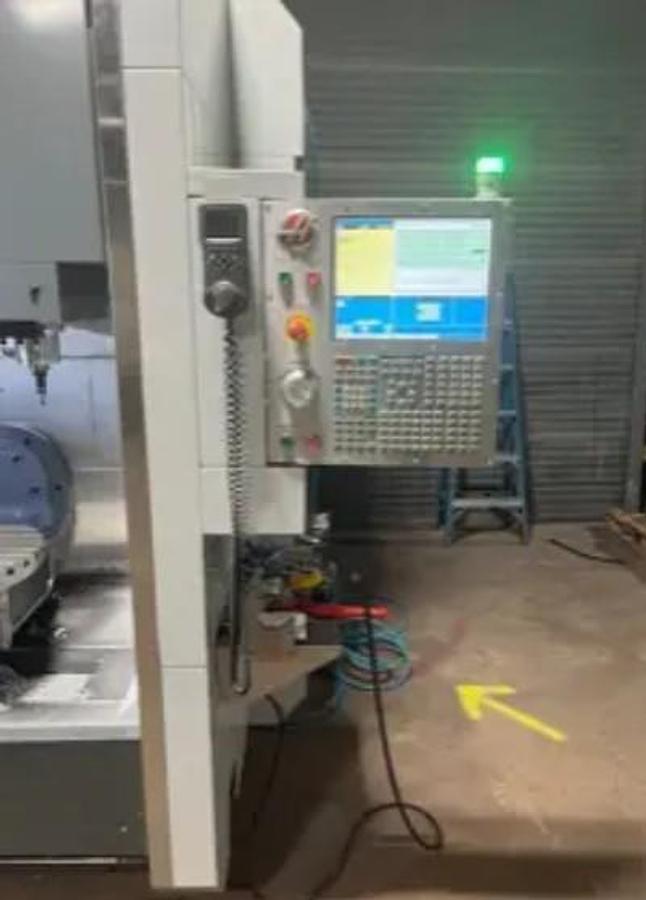

Remote Jog Handle
Early Power Failure Detection Module
Ethernet Interface
USB Port Interface
RS 232 Port Interface

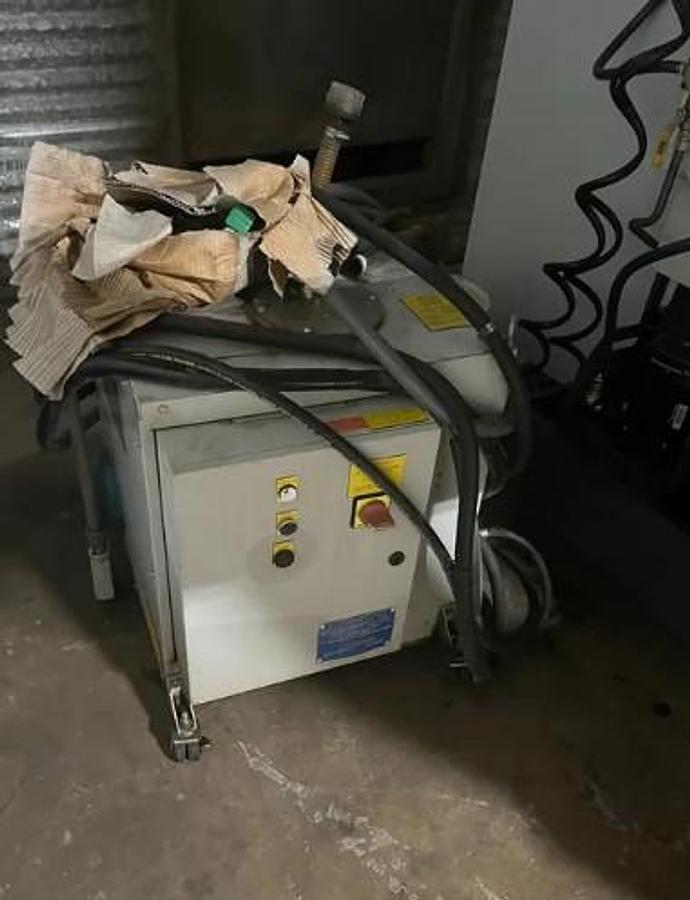

Coolant System with Tank & Pump
Some Tooling
Ball Bar Test done six months ago

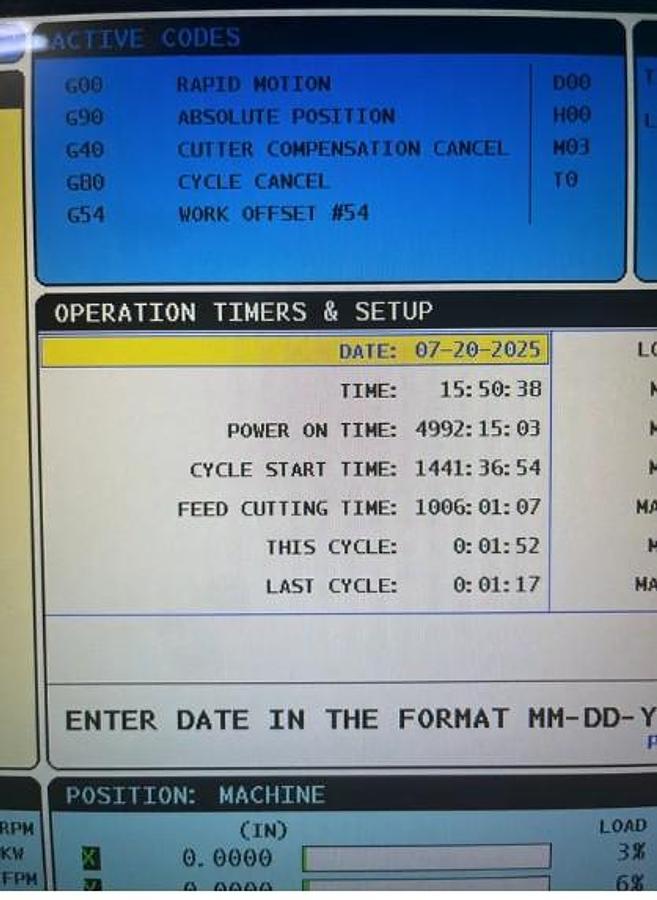

**Only 1,006 total Feed Cutting Time**
Specifications
| Manufacturer | Haas |
| Model | UMC-750 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 120518 |
| Table size | 19.7" Diameter |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
