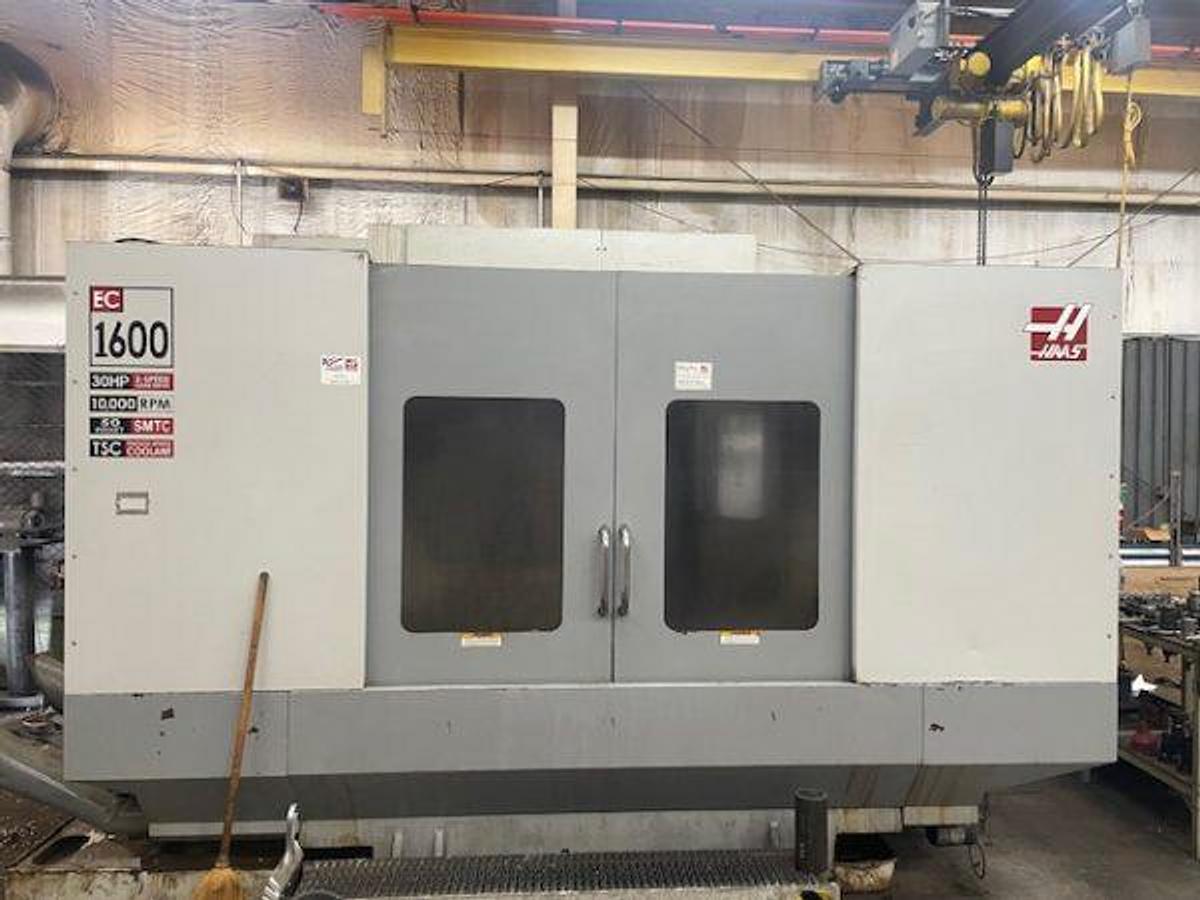

2006 Haas EC-1600-4X
2006 Haas EC-1600-4X
Contact us for price
Location:Oklahoma
or
Call (863) 439-6066
Description
Coolant Thru the Spindle
15" Color LCD Monitor
USB Port
Rigid Tapping
Linear Scales

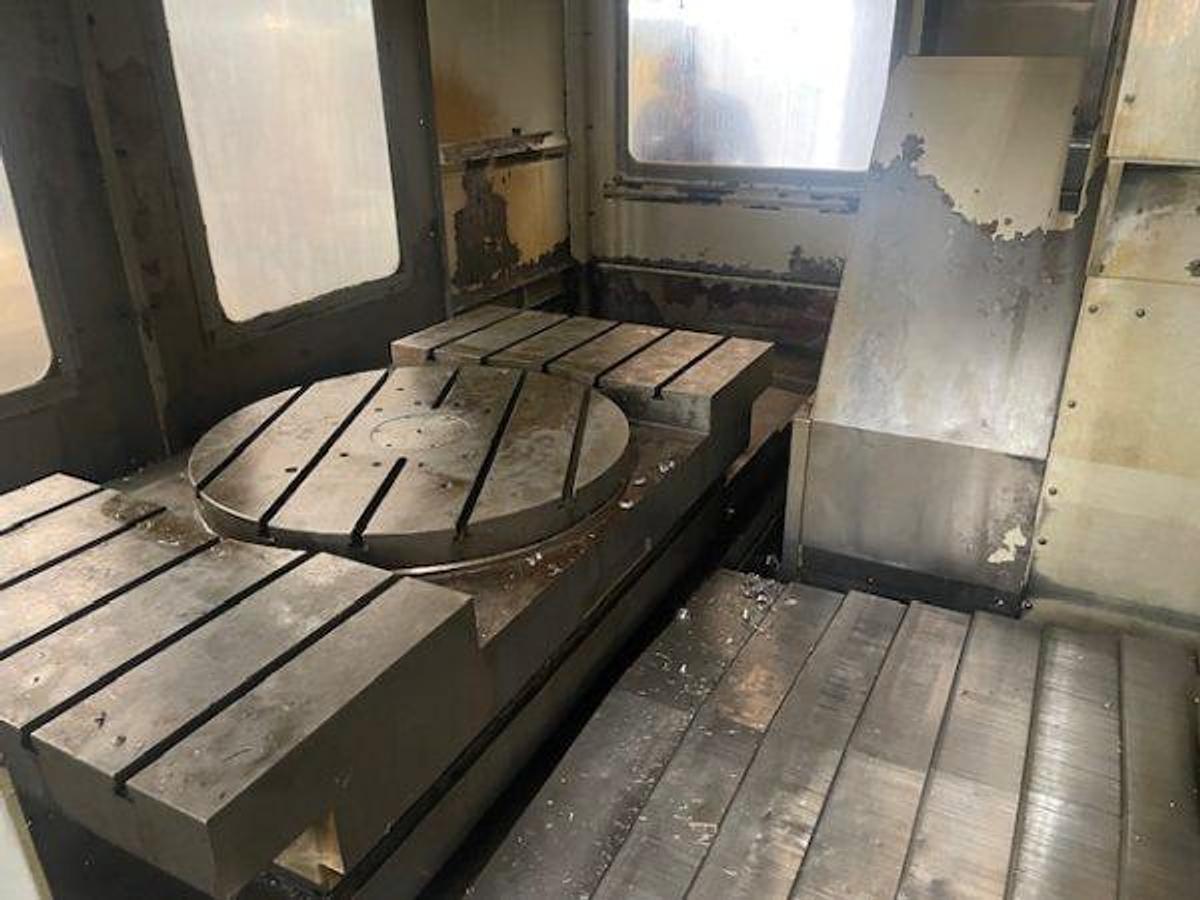

Full 4th Built-in Rotary Platter
Power Failure Detection Module
Memory Lock Keyswitch
Dual Augers
Hard Disk Drive & Ethernet Interface

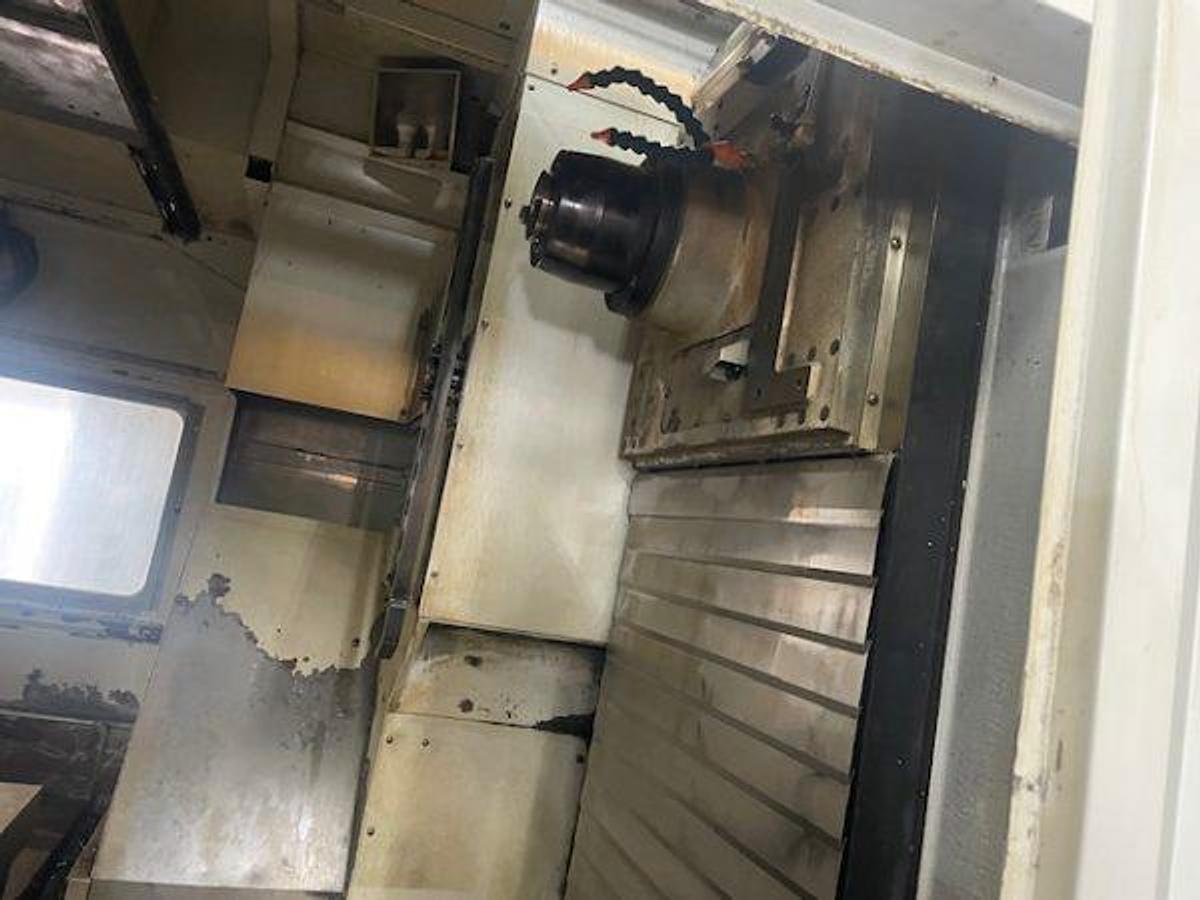

Spindle Orientation
Visual Quick Code Programming System
Coordinate Rotation & Scaling
Specifications
| Manufacturer | Haas |
| Model | EC-1600-4X |
| Year | 2006 |
| Condition | Used |
| Stock Number | 120512 |
| Table Size | 64"x36" |
| Maximum Table Load | 10,000 lbs |
| X-axis travel | 64" |
| Y-Axis Travel | 40" |
| Z-Axis Travel | 32" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 30 Hp 2-Speed Geared Head |
| Tool Magazine Capacity | 30 atc |
| Rapid Traverse Rates | 540 IPM |
| Maximum Tool Diameter / Length / Weight | 10" / 20" / 30 lbs |
| Machine Dimensions LxWxH | 190"x144"x135" |
| Machine Weight | 30,000 lbs |
| Electrics | 208/230V 3-ph / 80 amps |
