2004 Milltronics RH33

Color LCD w/ 3D Graphics

234 Station Tool Changer

Boxed Ways

Auto Lube

Fixed Head Design

All Available Manuals

220V 3 Phase

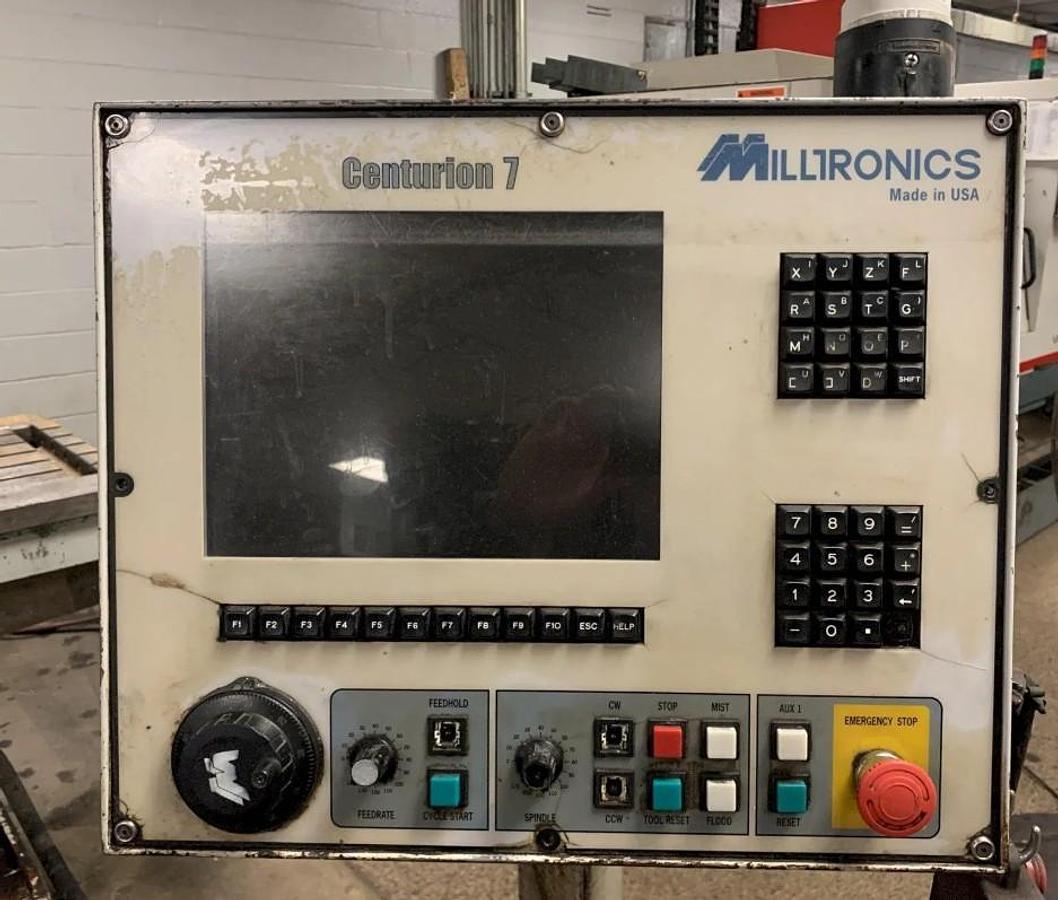

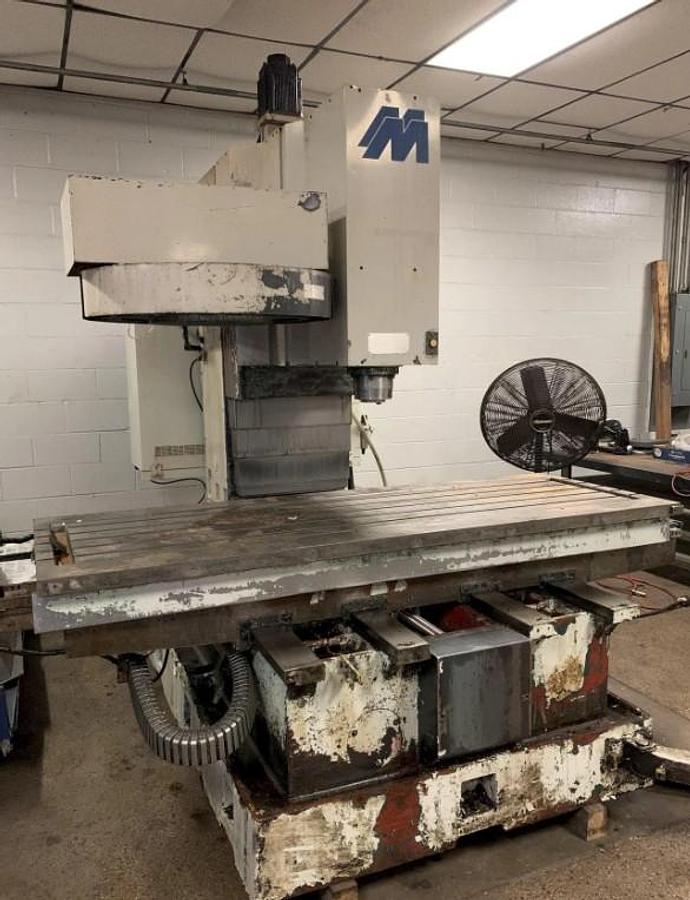

The 2004 Milltronics RH33 is a reliable and robust CNC vertical machining center, ideal for various machining tasks. It features a Centurion 7 Conversational and G-Code Programming control system, allowing for flexibility in operation. With a table size of 86" x 32", it can handle a maximum table load of 3,960 lbs, which makes it suitable for heavy-duty workpieces. The machining center offers substantial travel distances with X-axis at 78", Y-axis at 33", and Z-axis at 28". The spindle operates at speeds up to 8,000 RPM and is equipped with a CAT 40 taper, driven by a 24/15 HP motor, delivering torque of 155 ft-lbs. The machine is capable of high precision and efficiency, thanks to its 24-station automatic tool changer and ability to manage tools with a maximum diameter of 3.46", length of 11.85", and weight of 15 lbs. Overall, the Milltronics RH33 spans a floor space of 222" x 130" and weighs 15,000 lbs, ensuring stability during operations. This machine is an excellent choice for those seeking a used CNC vertical machining center with substantial capacity and versatility.
