2020 Haas TL-1 with Big Bore 3" Bar Capacity, Tailstock, A2-6" Spindle Nose, 10" 3 Jaw Chk, Tool Post, 1800 RPM, Tool Post
2020 Haas TL-1 with Big Bore 3" Bar Capacity, Tailstock, A2-6" Spindle Nose, 10" 3 Jaw Chk, Tool Post, 1800 RPM, Tool Post
$28,950 (USD)
Location:Illinois
or
Call (863) 439-6066

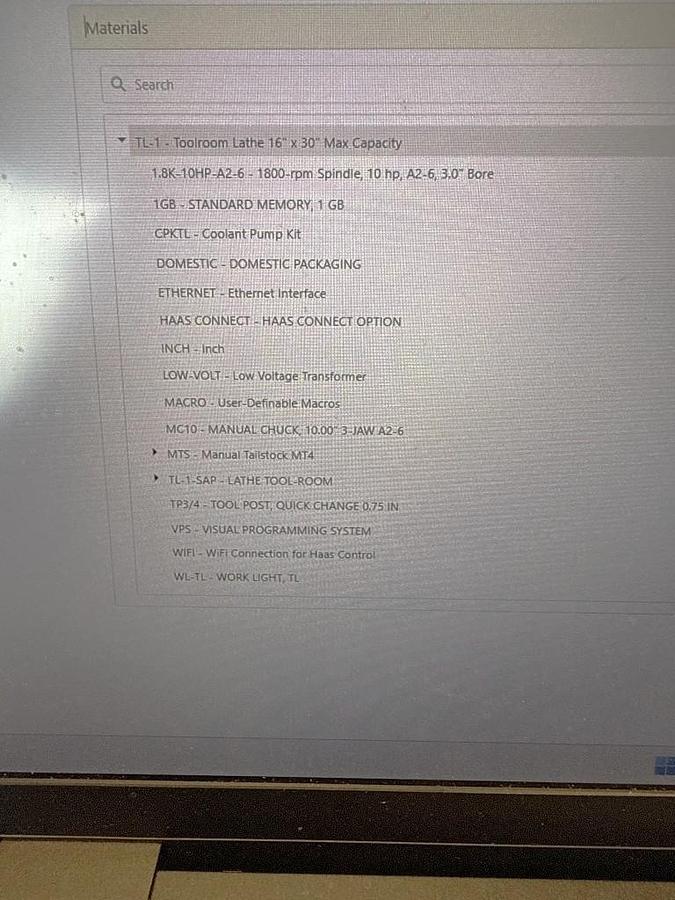

Description
Big Bore 3" Bar Capacity with A2-6" Spindle Nose
10" 3 Jaw Manual Chuck
Tool Post
Tailstock Haas Visual Part Programming Software
User Definable Macros Coolant System with Tank & Pump Integral Chip-Flow Channel Full Enclosure Doors
Ethernet Port Interface
USB Port Interface RS 232 Port Interface
1 GB Programming Memory
Haas WiFi Connect
Work Light
Low Voltage Transformer
Wired 220V Three Phase Power

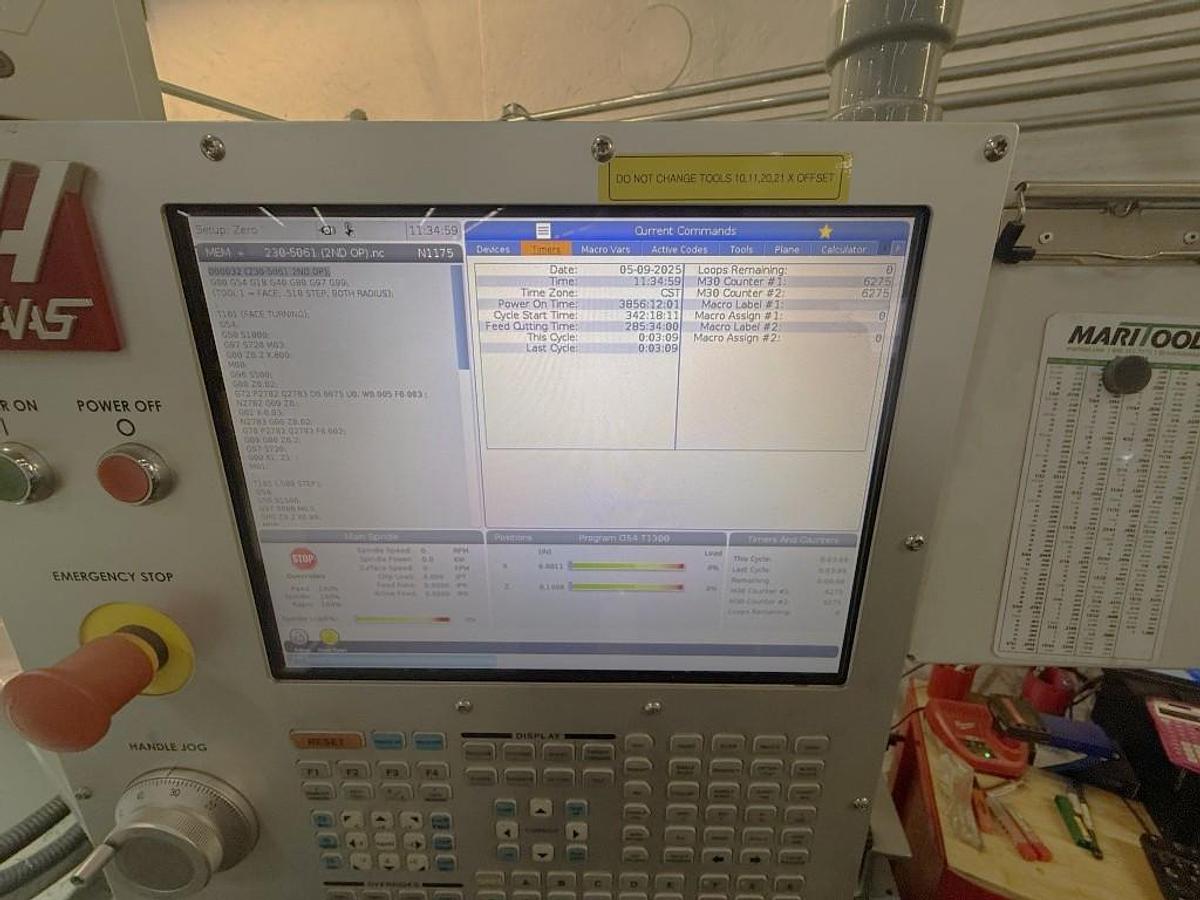

**Power On Hours 3,856**
**Cycle Start Hours 342**
**Feed Cutting Hours 285**
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 120509 |
| Control | Haas NextGen Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 1,800 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | Tool Post |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 88" x 56" x 75" |
| Machine Weight | 4,100 lbs. |
