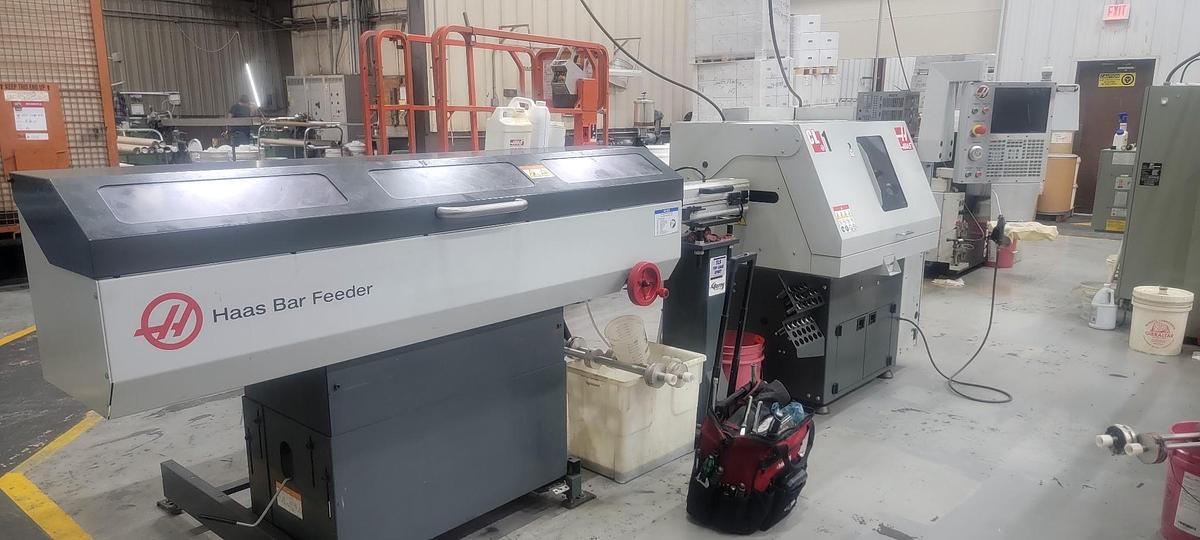

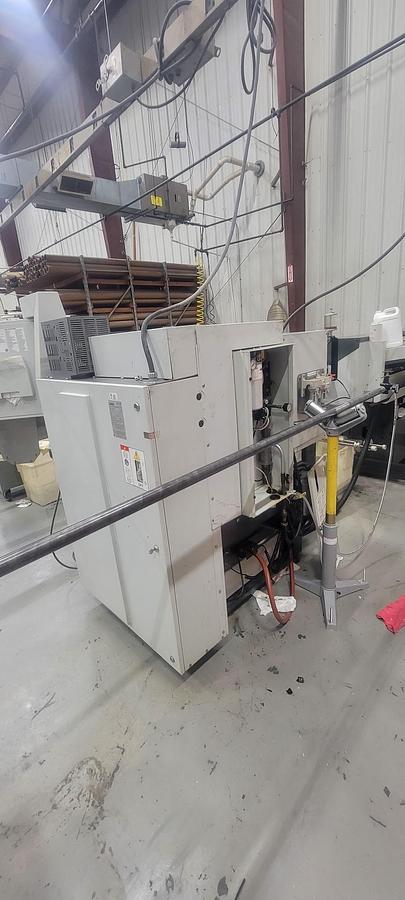

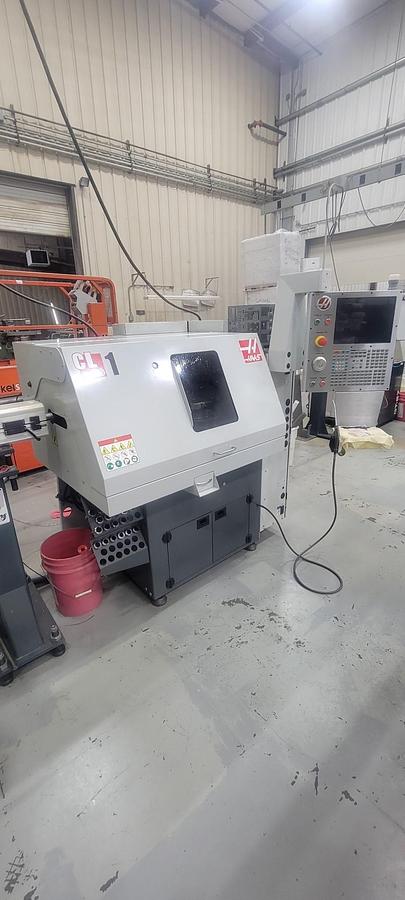

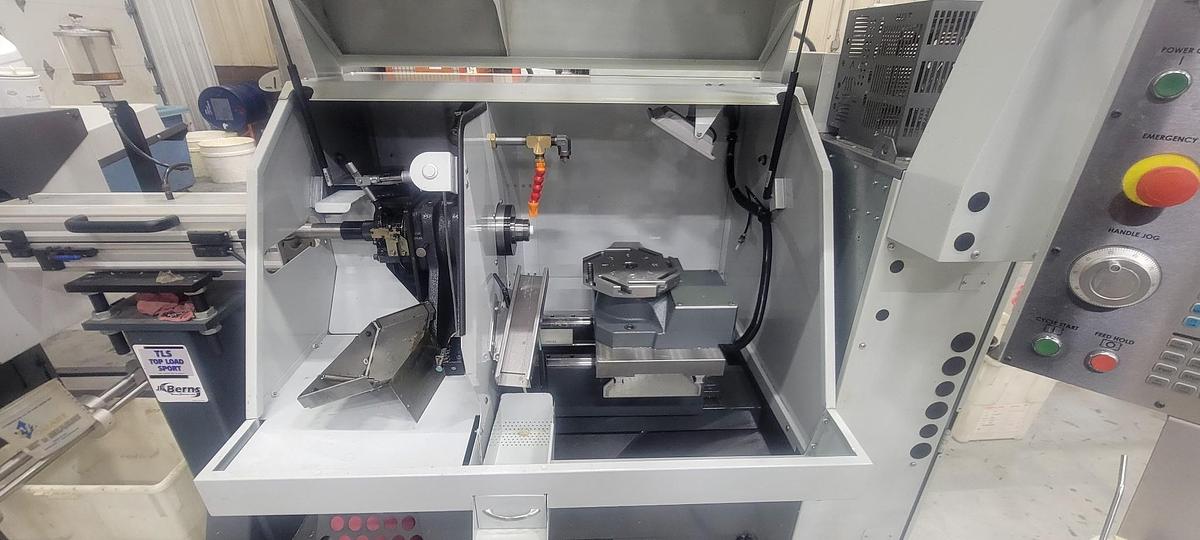

2017 Haas CL-1 Chucker Lathe with 8 Station Turret, Haas Autoload Barfeed, 5C Spindle Nose, 1" Bar Cap., Parts Catcher
2017 Haas CL-1 Chucker Lathe with 8 Station Turret, Haas Autoload Barfeed, 5C Spindle Nose, 1" Bar Cap., Parts Catcher
$34,500 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description
Haas Auto Load Barfeed
Parts Catcher
5C Collet Nose
8 Station Turret
Early Power Failure Detection Module
Memory Lock Key Switch
Spindle Orientation
Coolant System with Pump and 13 Gallon Tank
Rigid Tapping
1 GB Program Storage
Touch Screen Interface for Control
Media Display
Haas Drop
Haas Connect
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Can Run on Either Single or Three Phase Power
**New Price as Equipped at over $70,000**
Specifications
| Manufacturer | Haas |
| Model | CL-1 |
| Year | 2017 |
| Condition | Used |
| Stock Number | 120505 |
| Chuck Size | 5C Collet Nose |
| Maximum Swing Over Cross Slide | 11" |
| Maximum Machining Diameter | 5" |
| Maximum Machining Length | 8" |
| X-Axis Travel | 12" |
| Z-Axis Travel | 8" |
| Spindle Speed | 6,000 RPM |
| Spindle Nose / Spindle Bore / Bar Capacity | 5C / 1.25" / 1" |
| Spindle Motor | 5 HP |
| Turret Type | 8 Station Turret |
| Machine Dimensions LxWxH | 78"x62"x70" |
| Machine Weight | 2,000 lbs |
