2007 Haas Mini Mill with 10 Station Tool Changer, Coolant, Can Use Either Single or Three Phase Power, 6794 Run Time Hours
2007 Haas Mini Mill with 10 Station Tool Changer, Coolant, Can Use Either Single or Three Phase Power, 6794 Run Time Hours
$18,500 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description

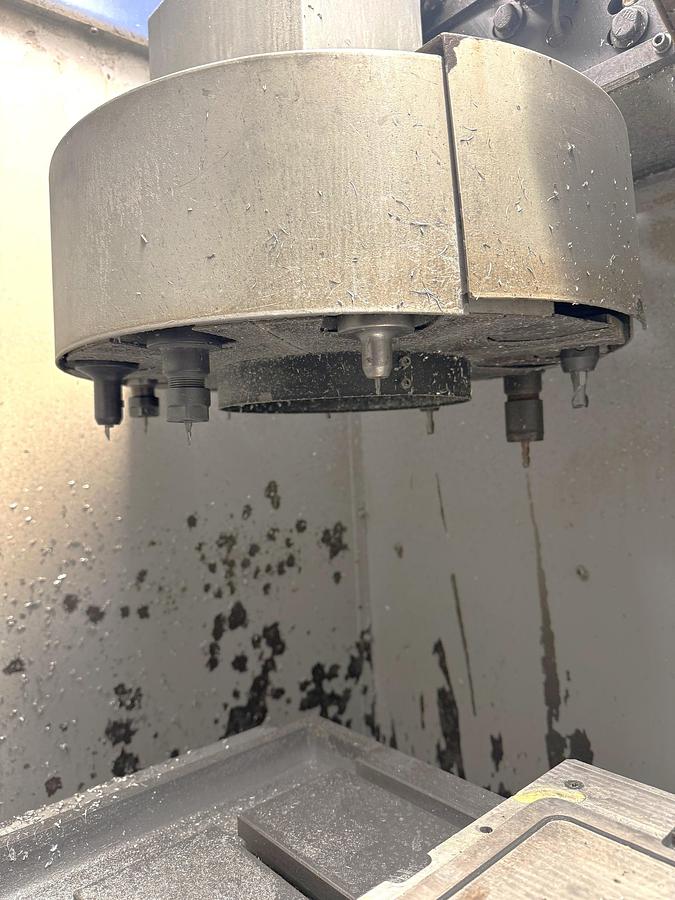

10 Station Tool Changer
Direct Belt Drive
RS 232 Port Interface
Coolant System with Tank & Pump
Accepts Both Single or Three Phase Power

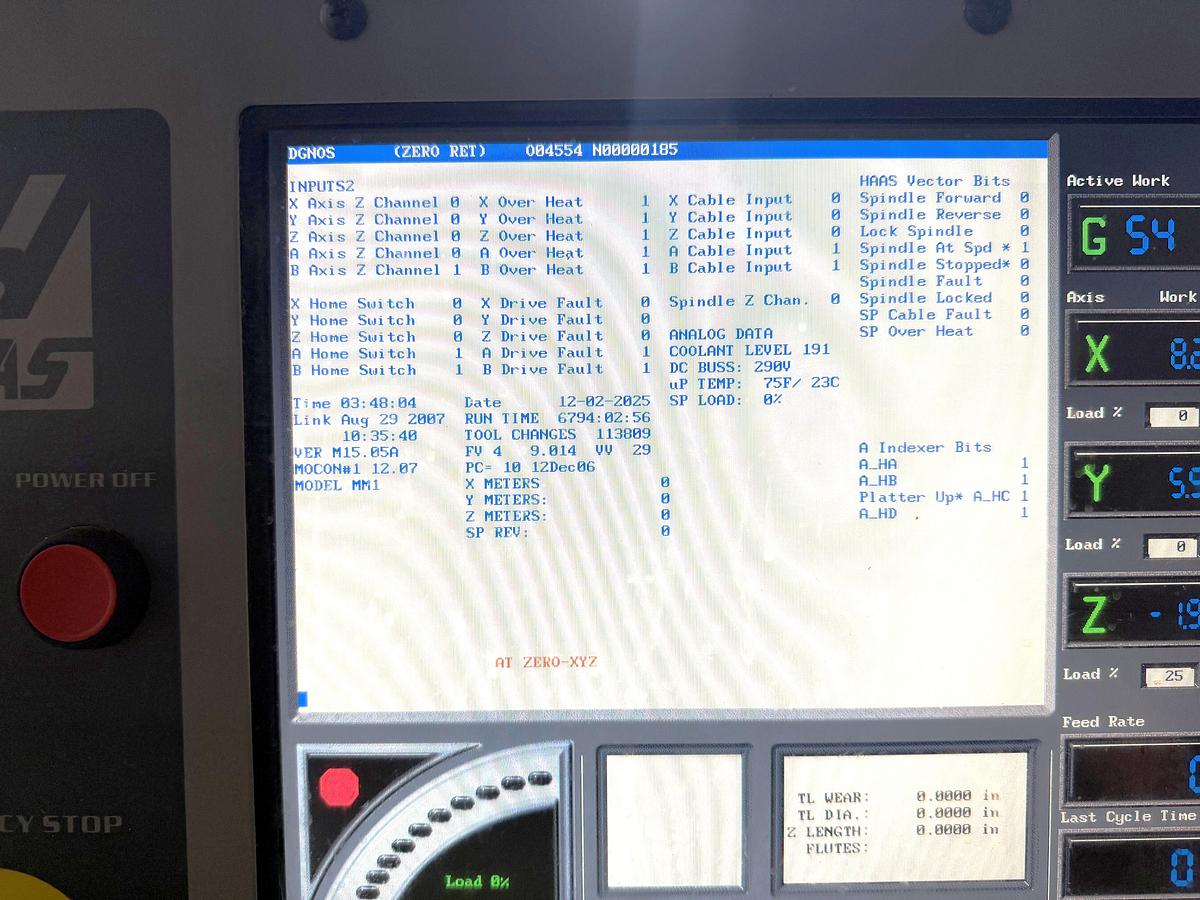

**Run Hours 6,794**
Specifications
| Manufacturer | Haas |
| Model | Mini Mill |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120504 |
| Table Size | 36" x 12" |
| Maximum Table Load | 500 lbs |
| X-axis travel | 16" |
| Y-Axis Travel | 12" |
| Z-Axis Travel | 10" |
| Spindle Taper | CAT #40 |
| Spindle Speed | 7,500 RPM |
| Spindle Motor | 7.5 HP |
| Distance Spindle Nose to Table Top | 4" - 14" |
| Tool Magazine Capacity | 10 Position ATC |
| Tool Change Time Tool to Tool | 2.5 Seconds |
| Maximum Tool Diameter / Length / Weight | 3.5" / Na / Na |
| Rapid Traverse Rates | 650 IPM |
| Cutting Feedrates | 500 IPM |
| Electrical Requirements | Either 208V Three Ph or 240V Single Phase |
| Machine Dimensions LxWxH | 78" x 80" x 98" |
| Machine Weight | 3,400 lbs |
