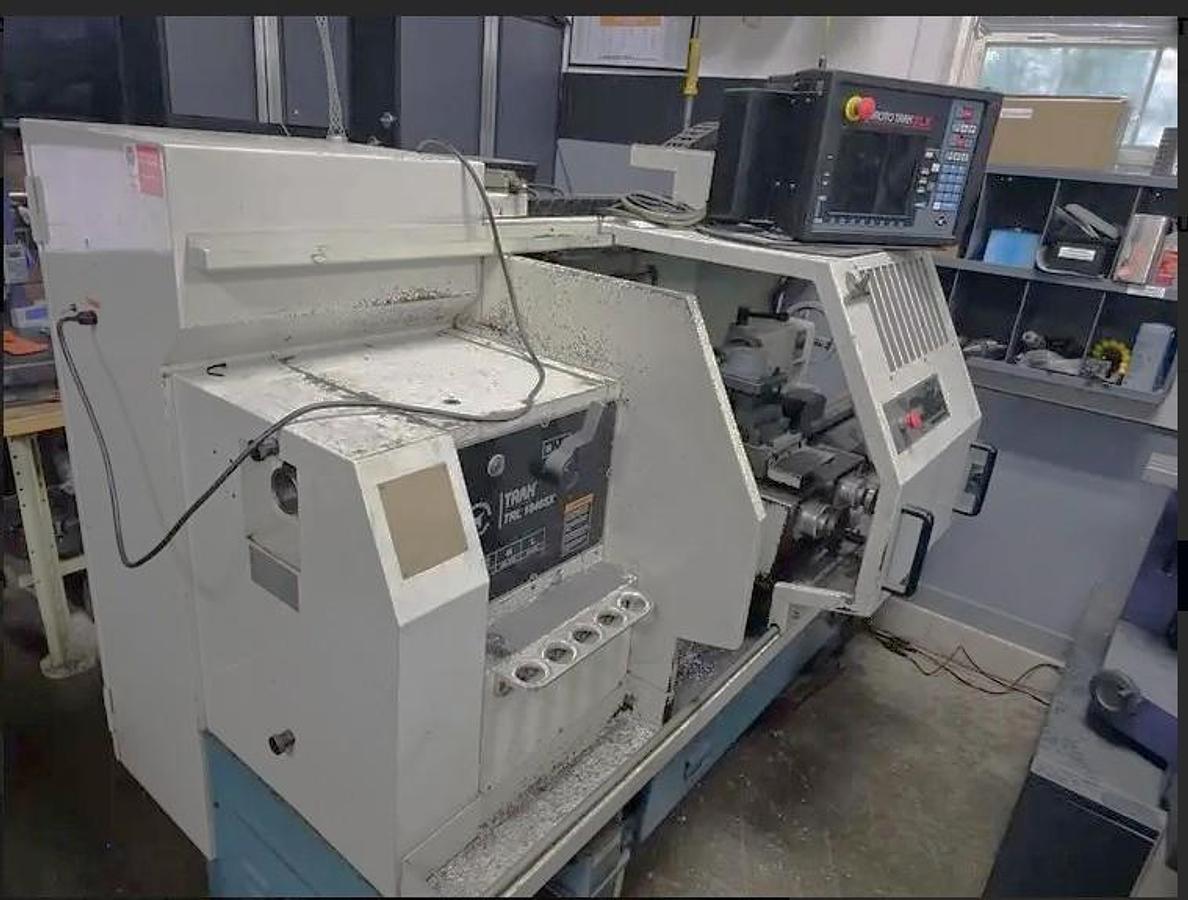

2007 Southwestern Industries TRAK TRL 1840SX with 10" Chuck, 4 Pos. Indexable Turret, Steady Rest, 3 Speeds, SLX Control
2007 Southwestern Industries TRAK TRL 1840SX with 10" Chuck, 4 Pos. Indexable Turret, Steady Rest, 3 Speeds, SLX Control
$24,950 (USD)
Location:Connecticut
or
Call (863) 439-6066
Description

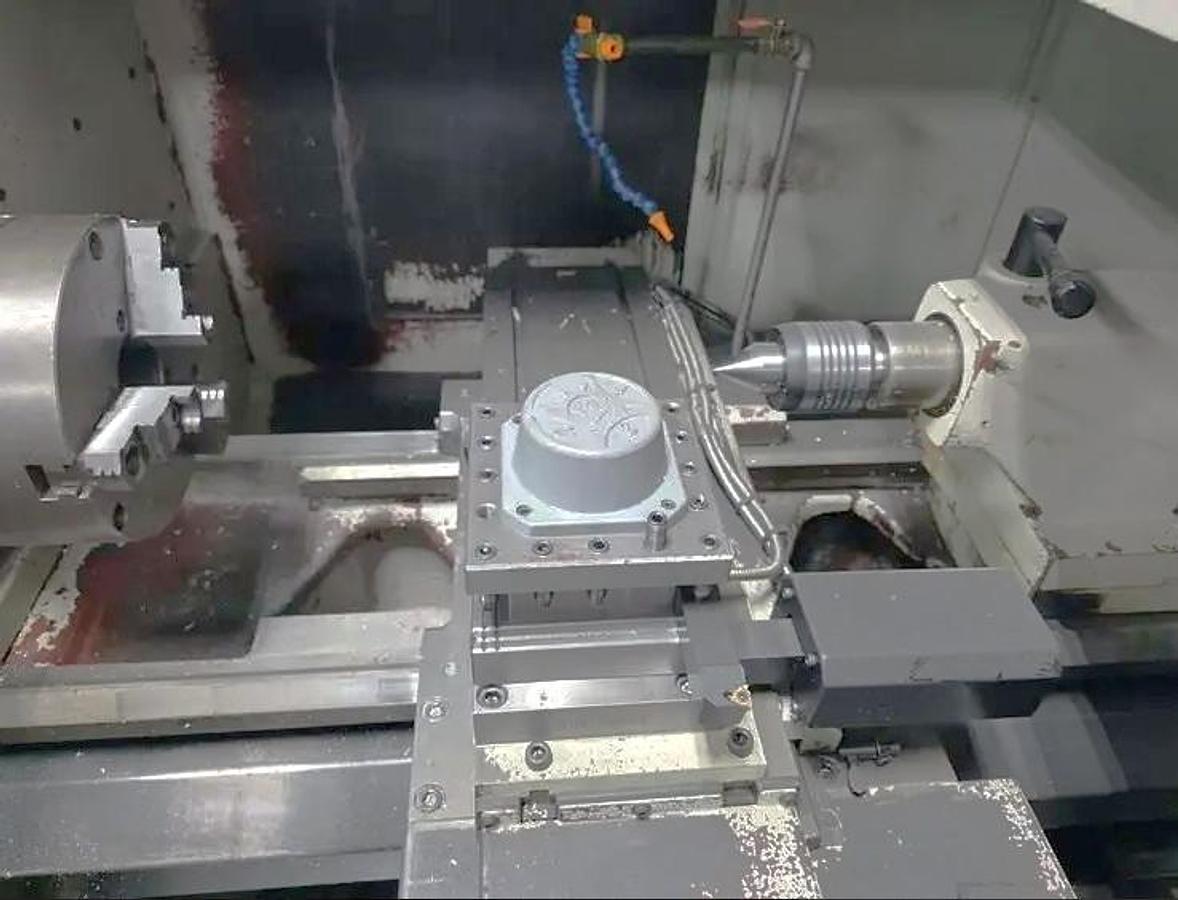

4 Station Indexable Turret
Tailstock
Steady Rest
Electronic Handwheels and Joystick
2 Speed Geared

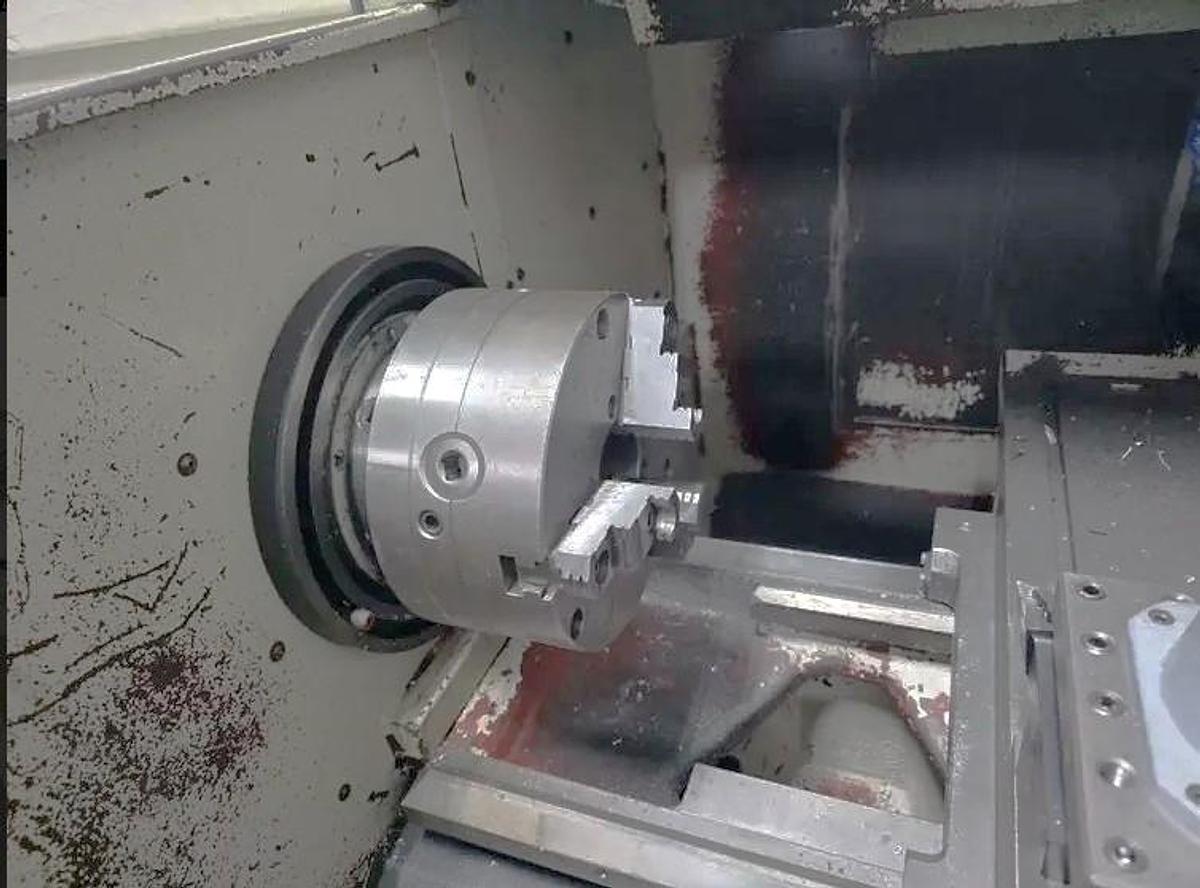

10" 3 Jaw Chuck

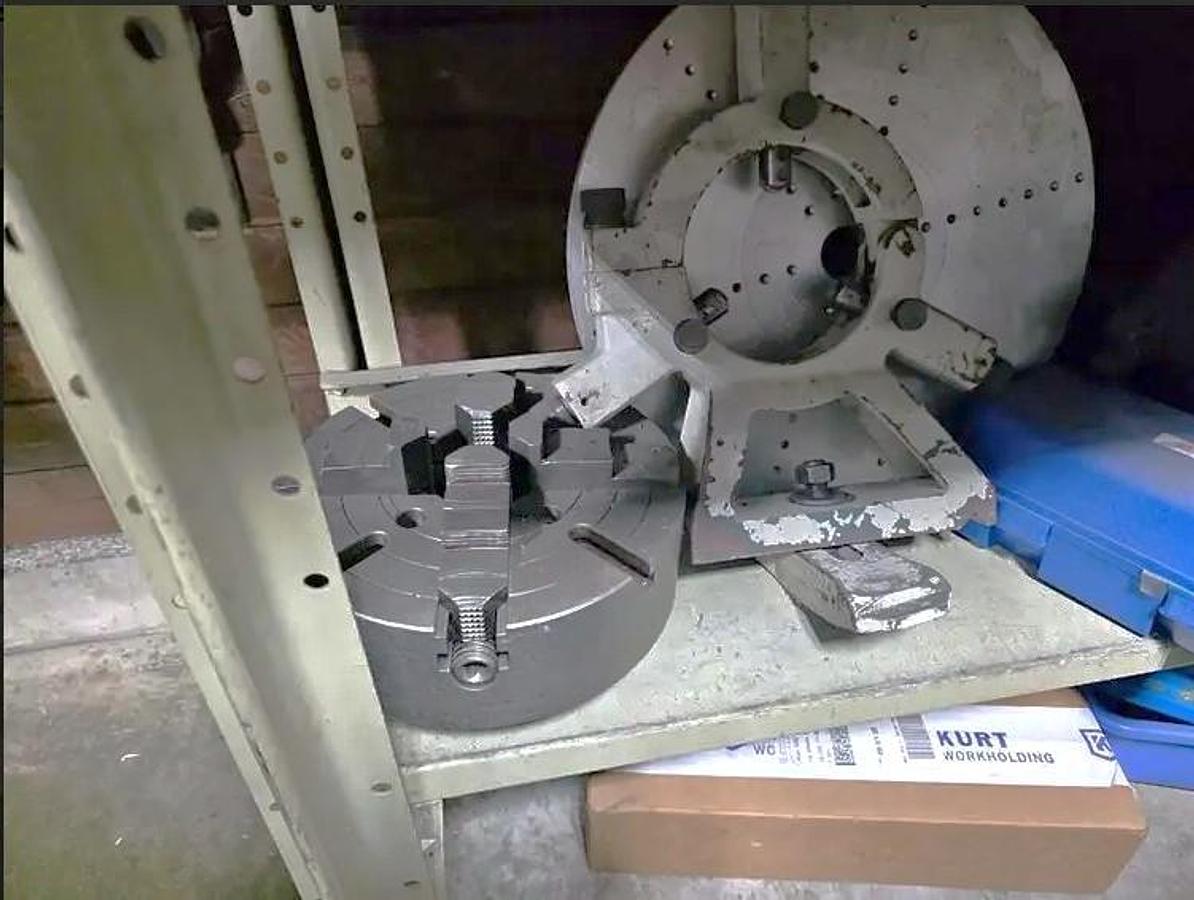

10" 4 Jaw Chuck
New Pendant from Southwestern Industries in July 2024
Some Tooling Included
10.4" Color Active Matrix Screen
USB Port Interface
RS232 Port Interface
Advanced Features
Tracking
Coolant System with Pump
Specifications
| Manufacturer | Southwestern Industries |
| Model | TRAK TRL 1840SX |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120499 |

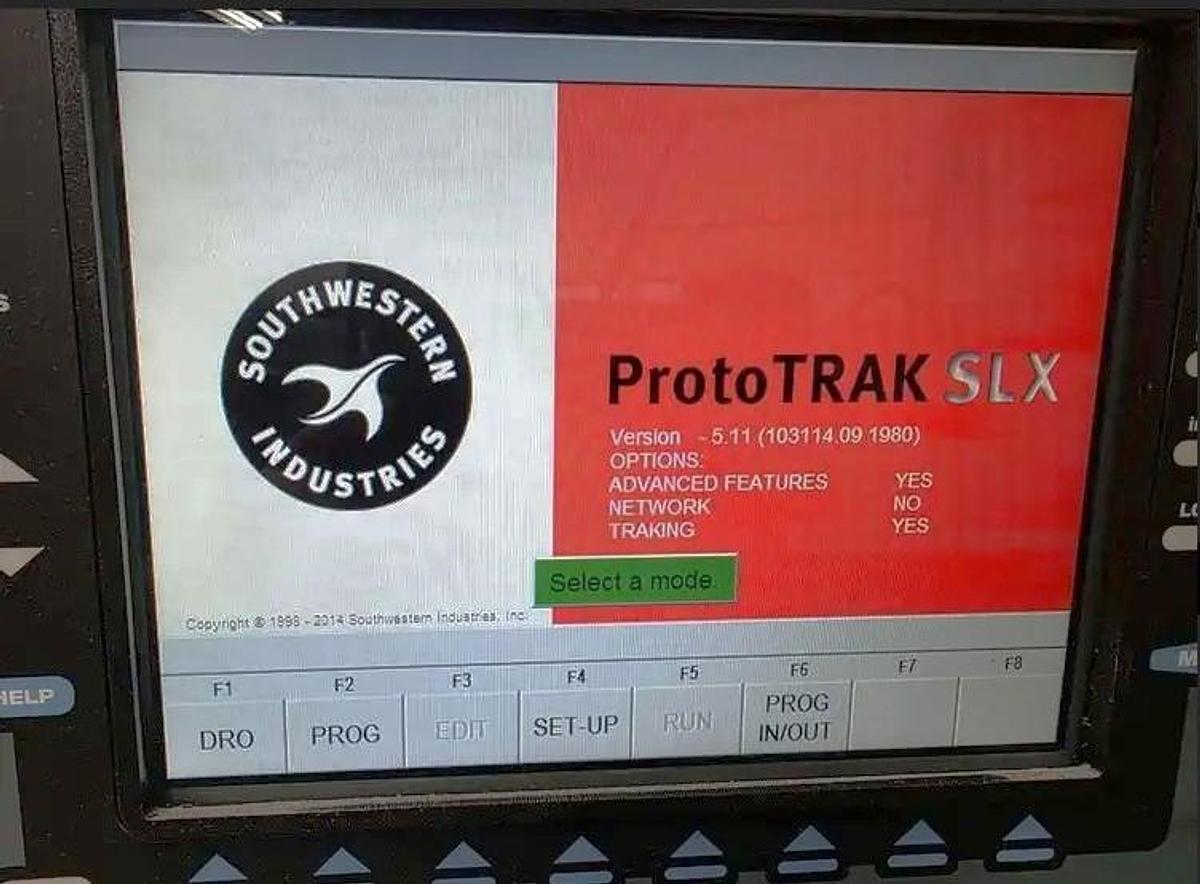

| Machine Control | Prototrak SLX Control |
| Chuck Size | 10" 3-Jaw Manual |
| Maximum Swing over Bed | 18.5" |
| Maximum Swing Over Cross Slide | 9" |
| Distance Between Centers | 40.25" |
| Spindle Nose / Spindle Bore | D1-6" / 2.36" |

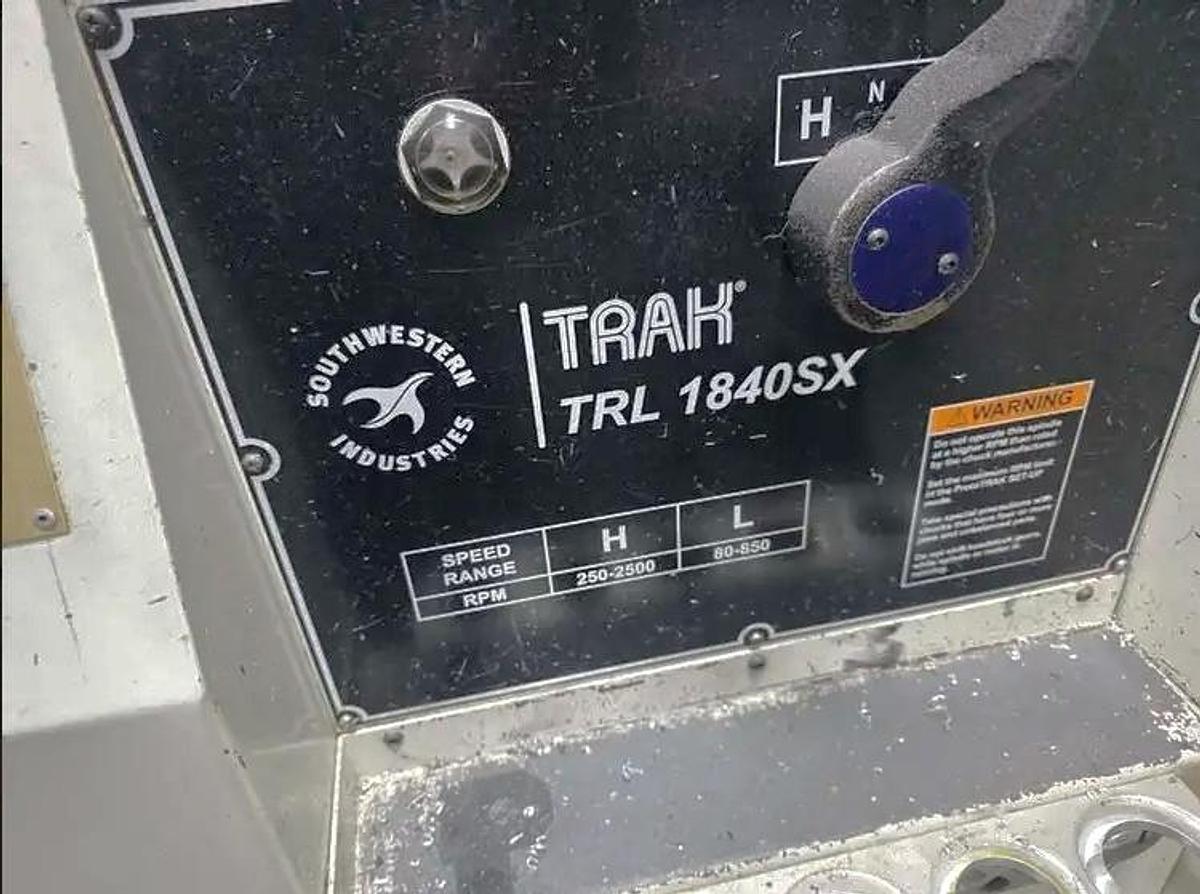

| Spindle Speeds | 80 - 2,500 RPM - 2 Ranges 80-850 / 250-2500 |
| Number of Tool Positions | 4 Station Indexable Turret |
| Spindle Motor | 10 HP |
| Rapid Traverse Rates X/Z | 100 IPM / 150 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.96" / 7.125" / #5MT |
| Power Requirements | 220V / 3 Phase / 60Hz |
| Machine Dimensions LxWxH | 91"x53"x70" |
| Machine Weight | 4,500 lbs |
