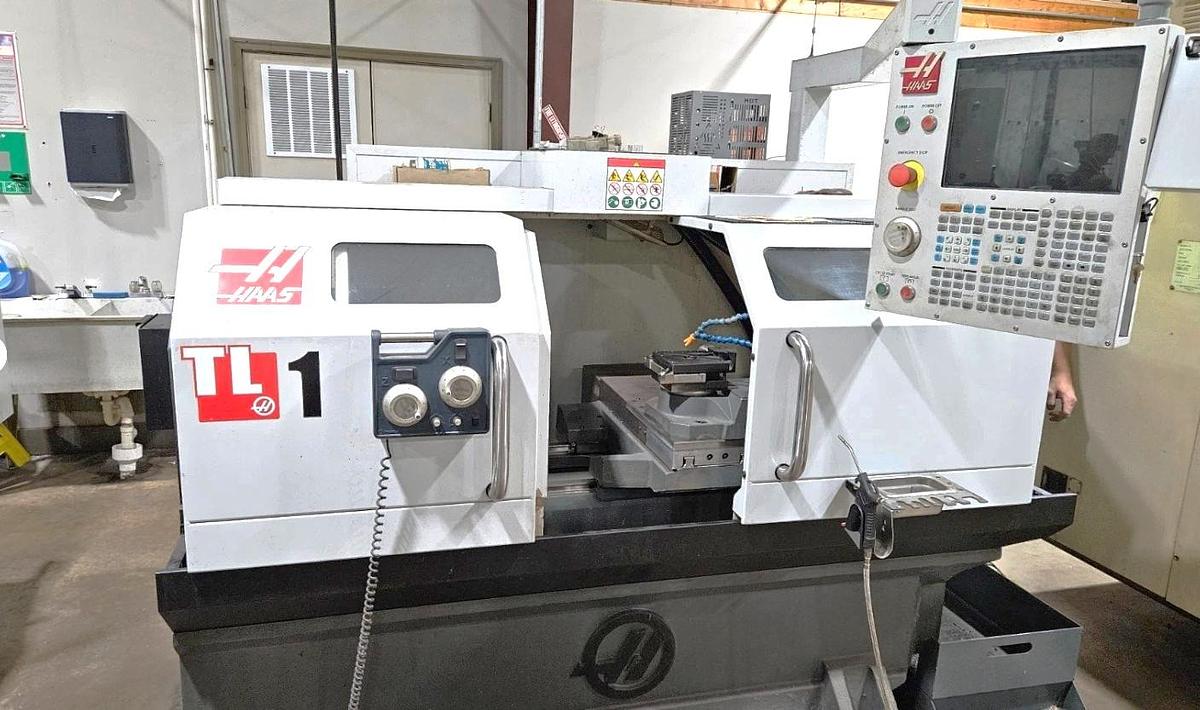

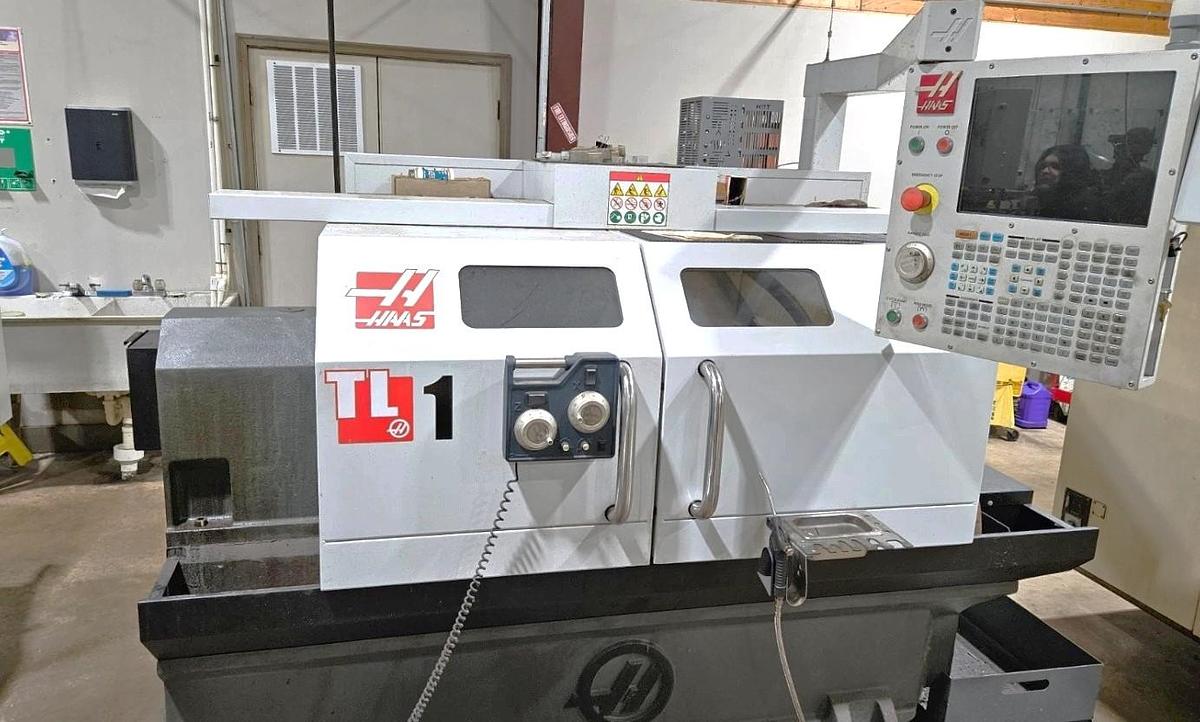

2019 Haas TL-1 Chucker with 4 Station Turret, Coolant System, Haas Visual Part Prog. System, 8" Chuck, Manual Pulse Generator
2019 Haas TL-1 Chucker with 4 Station Turret, Coolant System, Haas Visual Part Prog. System, 8" Chuck, Manual Pulse Generator
$32,500 (USD)
Location:Illinois
or
Call (863) 439-6066
Description

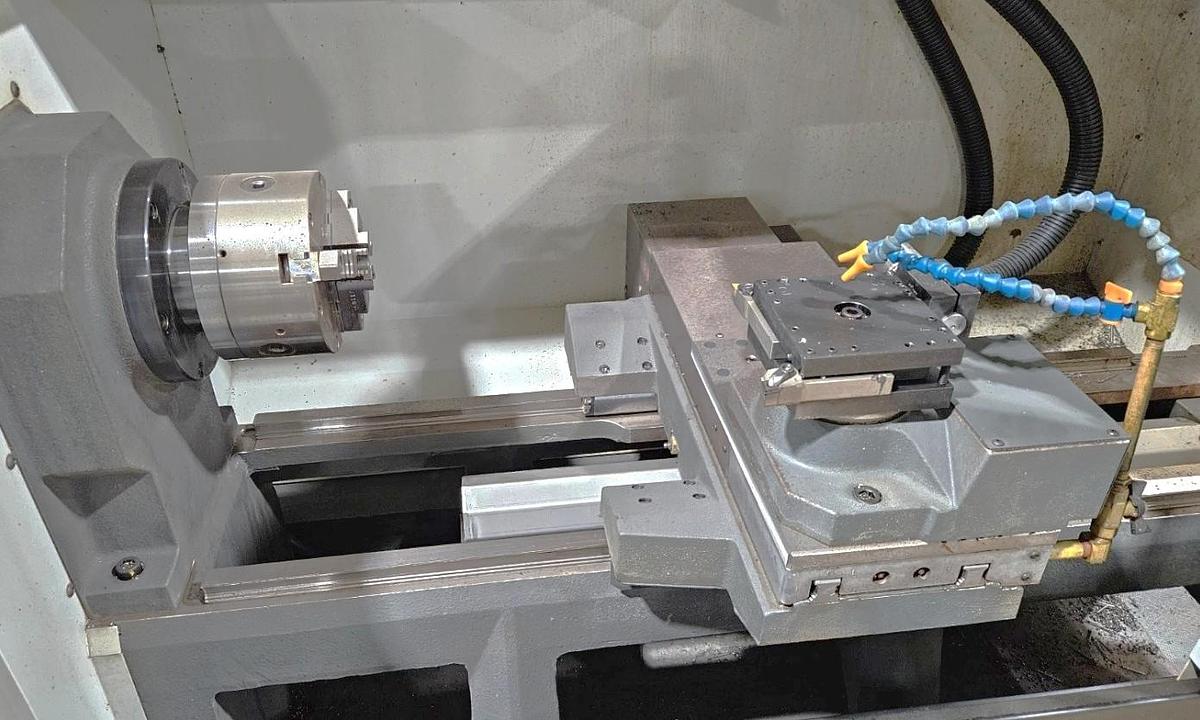

4 Way Indexable Turret

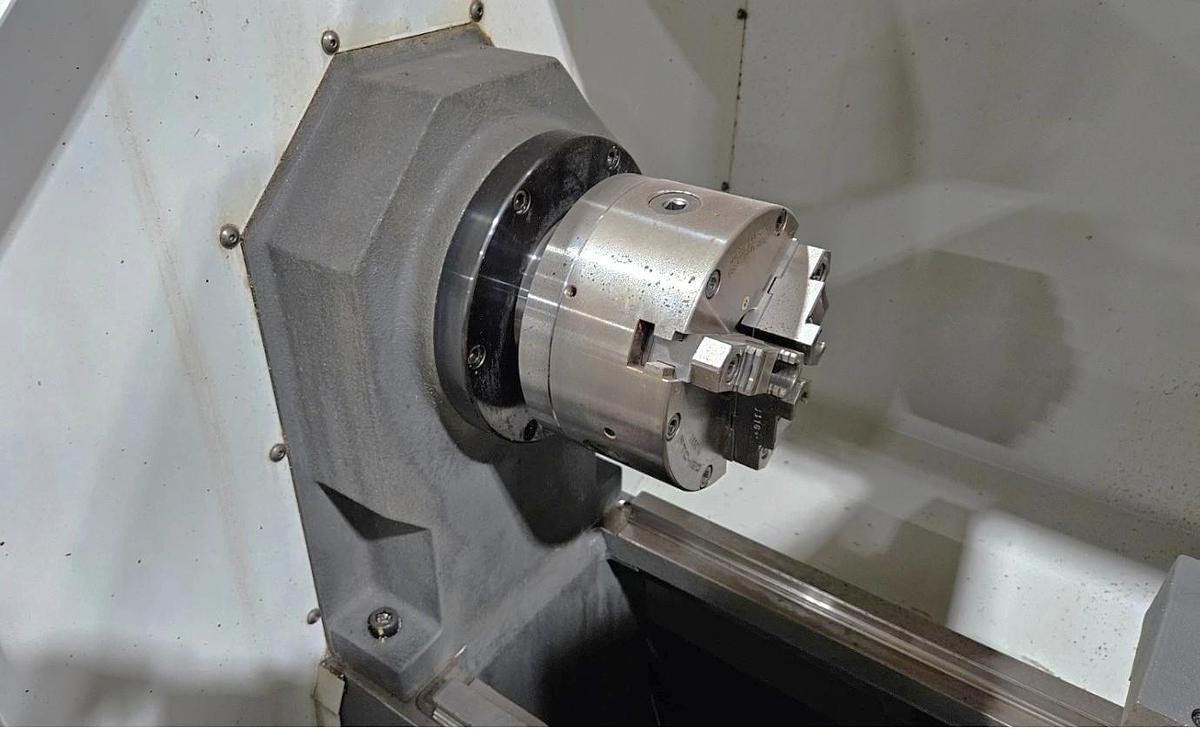

8" 3 Jaw Manual Chuck
Electronic Handwheels

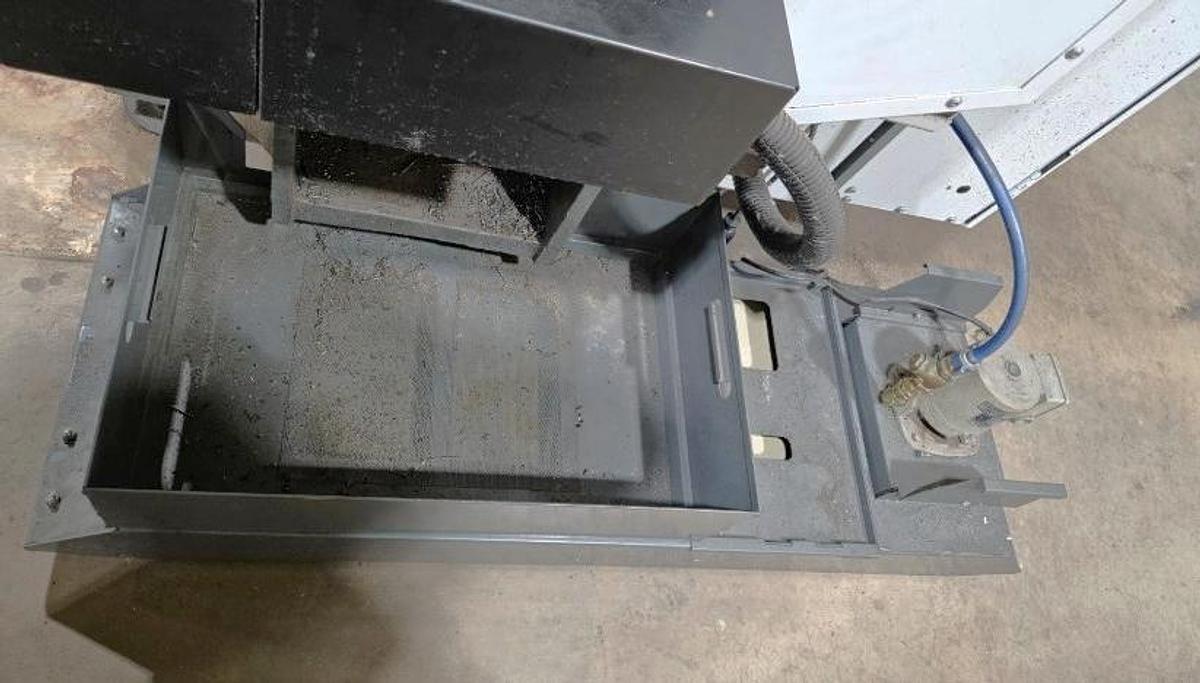

Haas Visual Part Programming Software Coolant System with Tank & Pump Integral Chip-Flow Channel Full Enclosure Doors
Advanced Tool Management
Remote Monitoring
Haas Connect
Ethernet Port Interface
USB Port Interface RS 232 Port Interface
1 GB Programming Memory
Haas WiFi Connect
Work Light

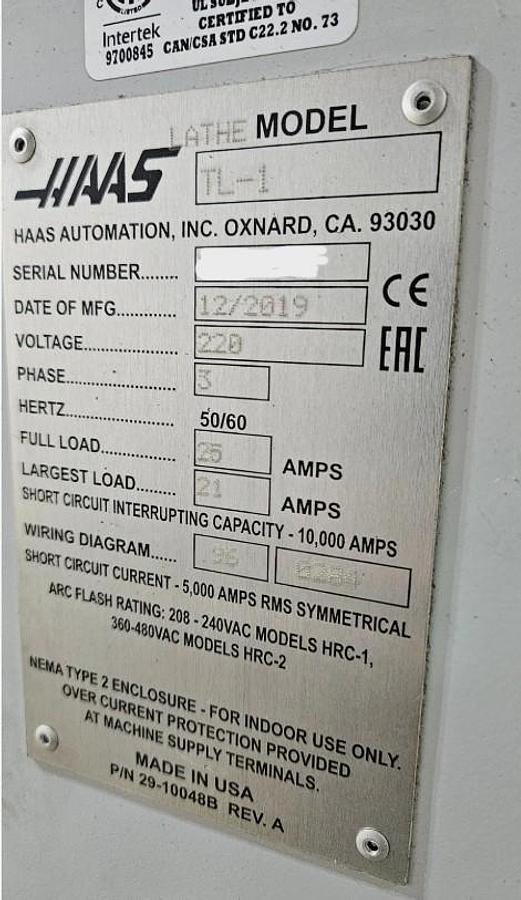

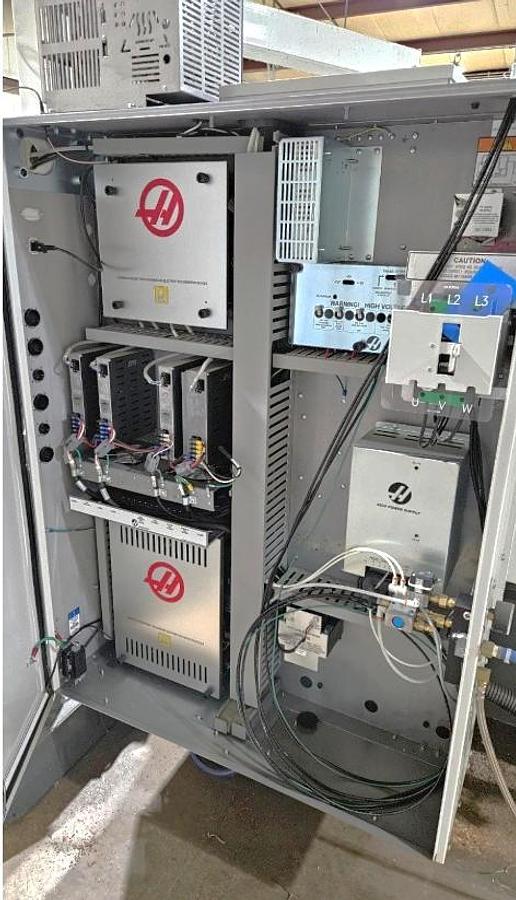

Machine is wired 220V / 3 Phase Electrics

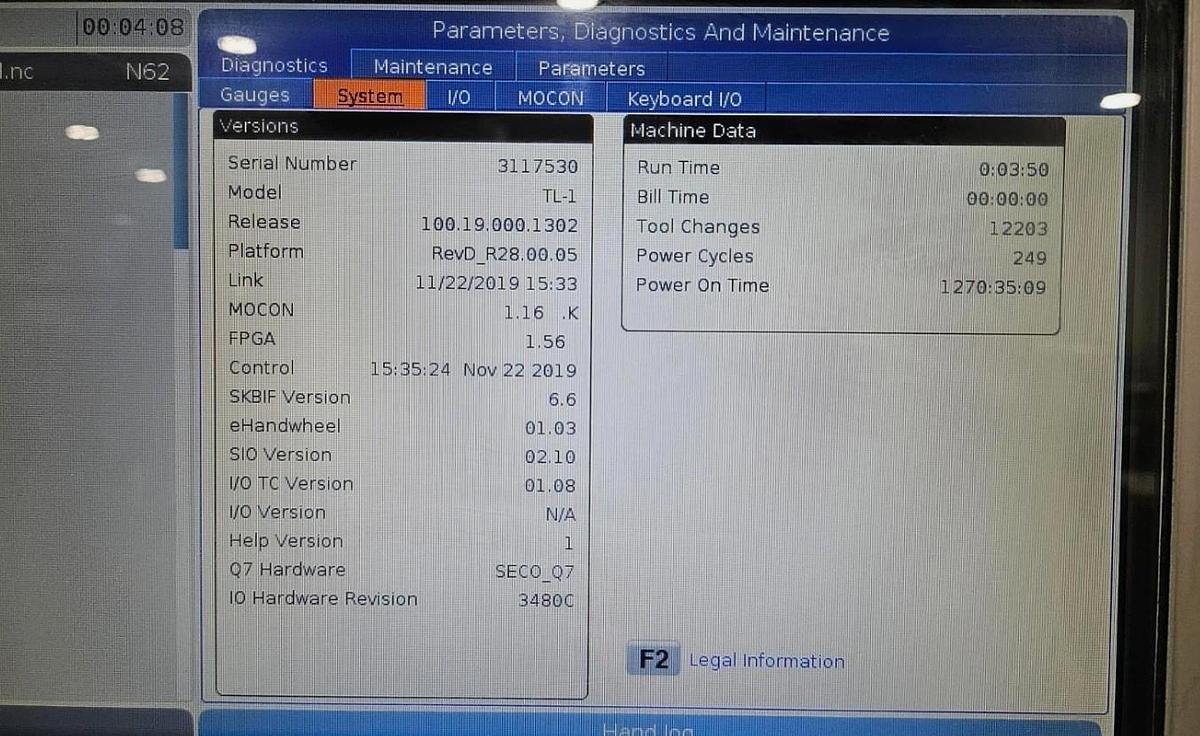

**ONLY 1270 Power On Hours**
**ONLY 3.5 Run Hours**

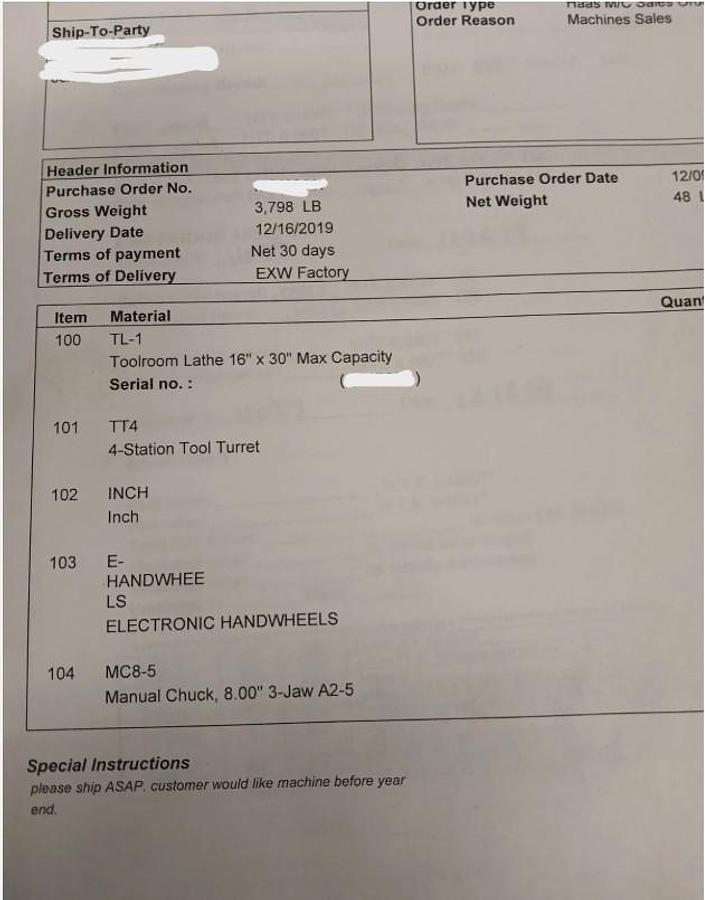

**Manufactured New in December of 2019**
**Price New Today as equipped at just under $50,000**
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 120496 |

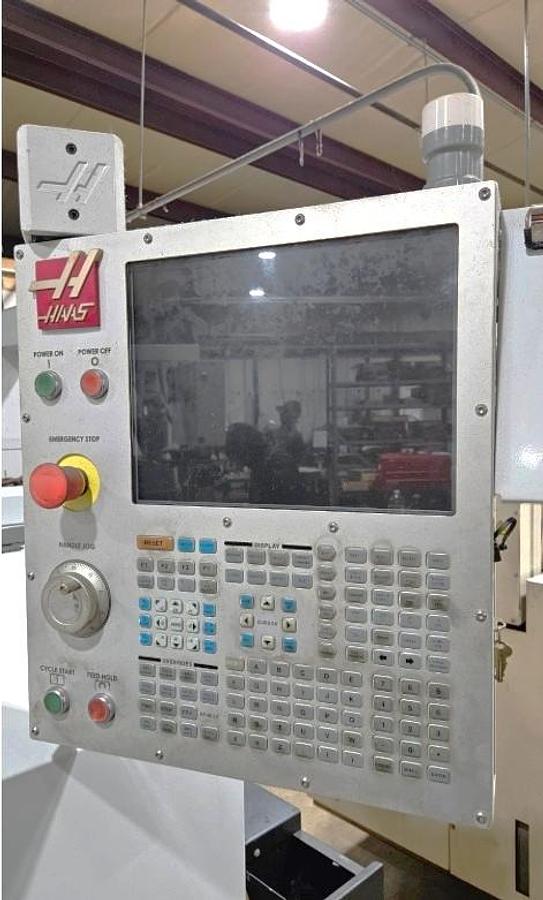

| Control | Haas NextGen Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 1,800 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | 4 Station Turret |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 88" x 56" x 75" |
| Machine Weight | 4,100 lbs. |
