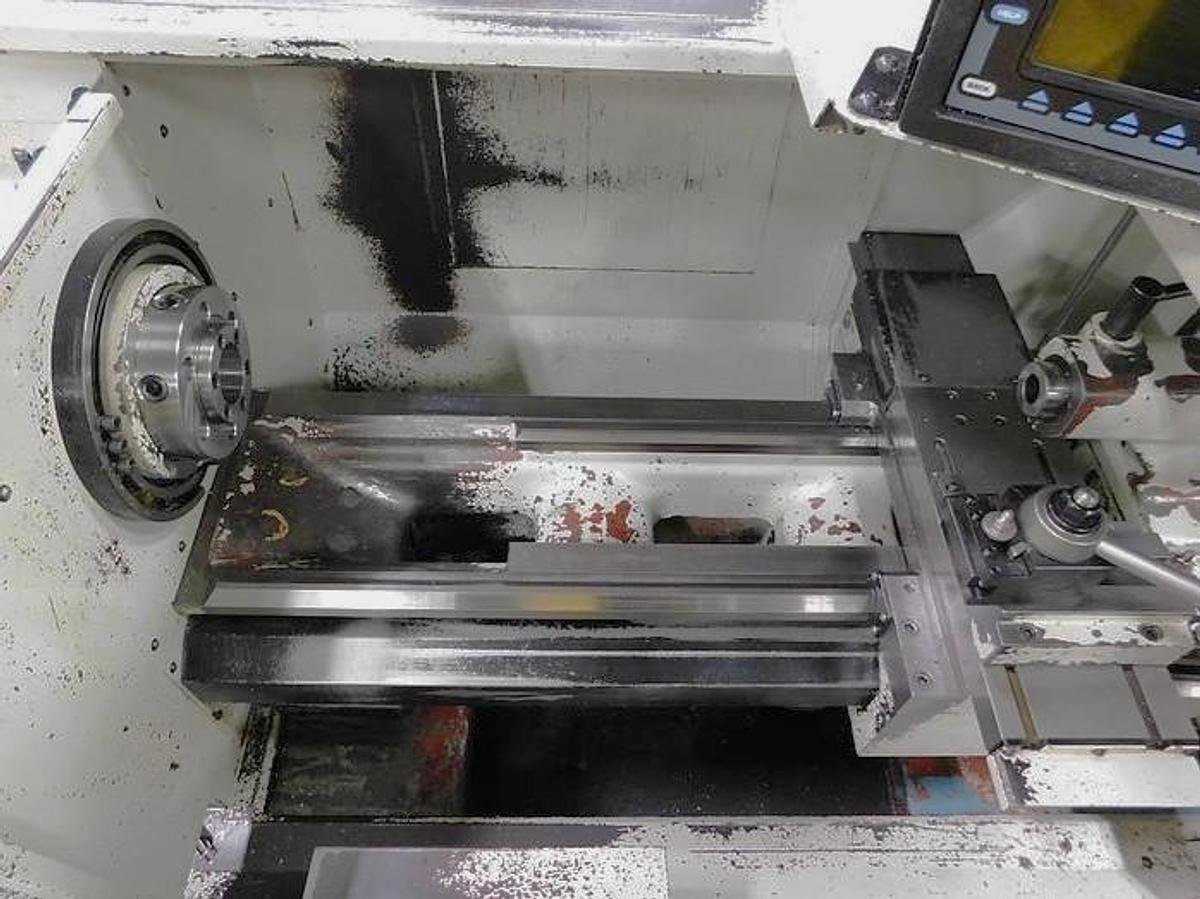

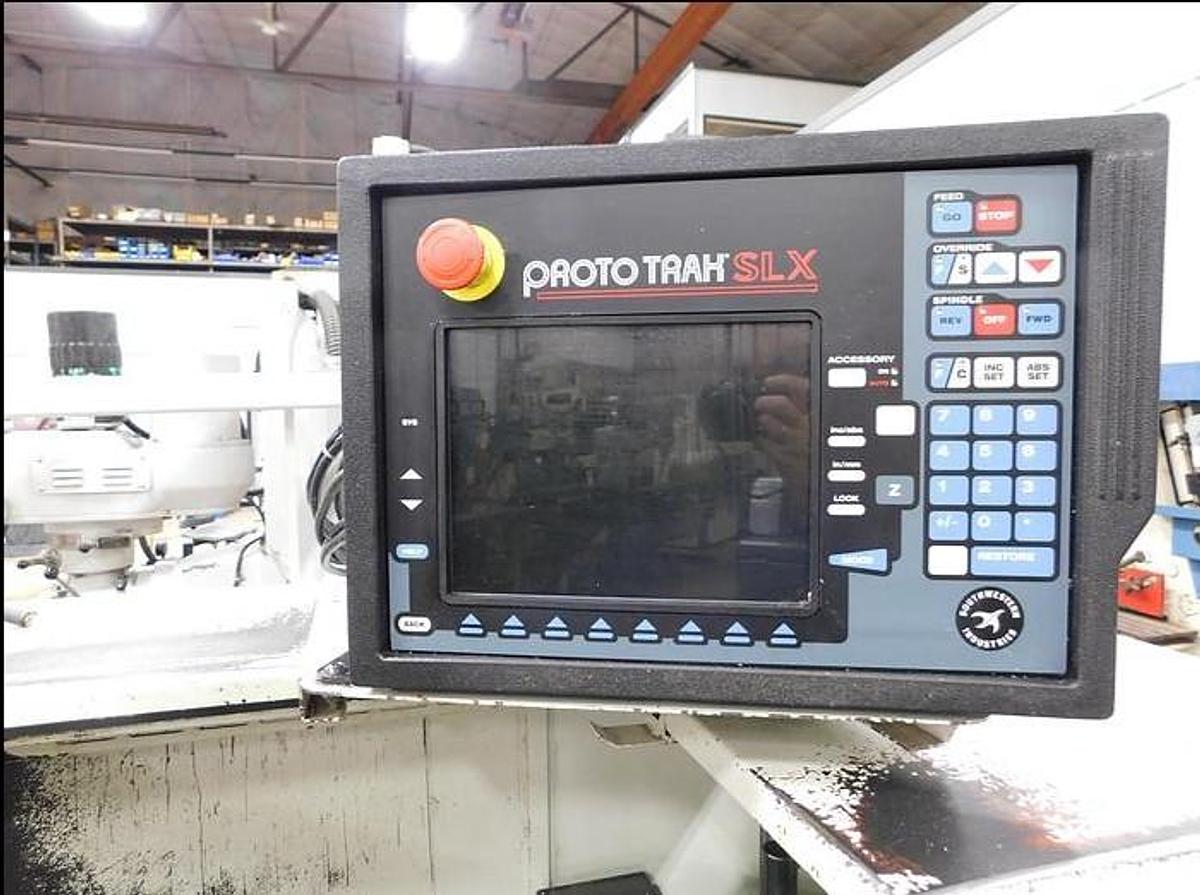

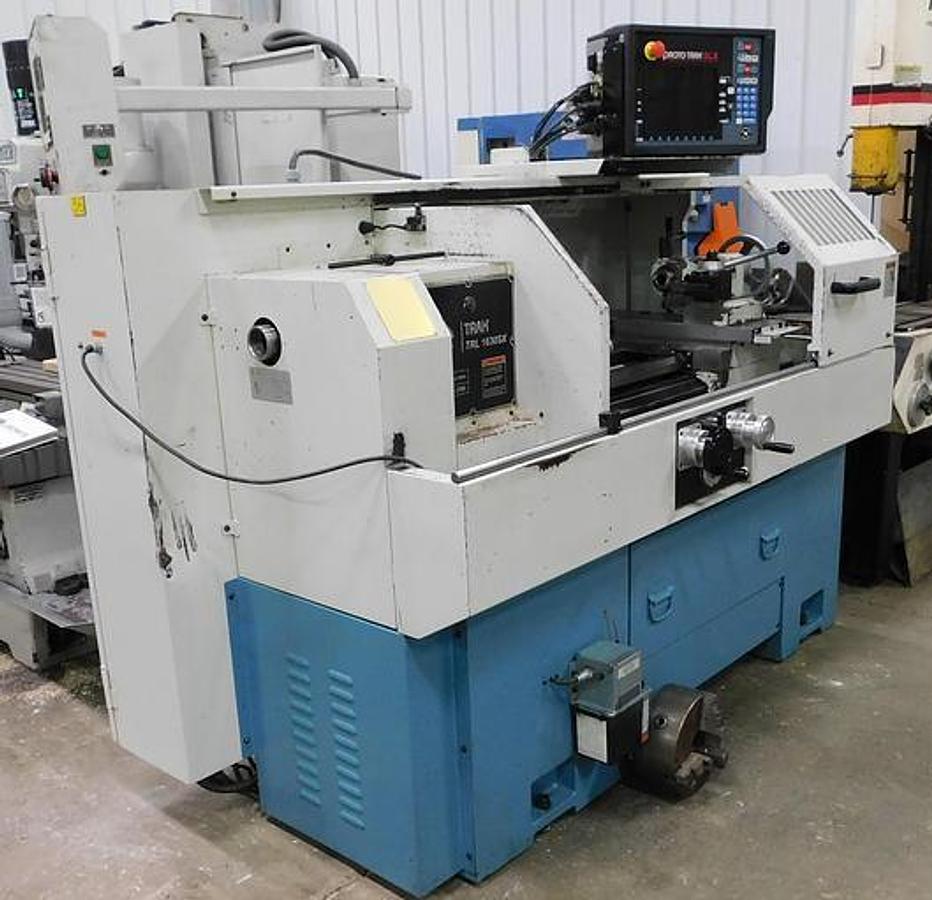

2013 Southwestern Industries Trak TRL 1630SX with Prototrak SLX Control, Tailstock, Tool Post, 10" 3 Jaw Chuck, Coolant

10" 3-Jaw Adjust Through Chuck

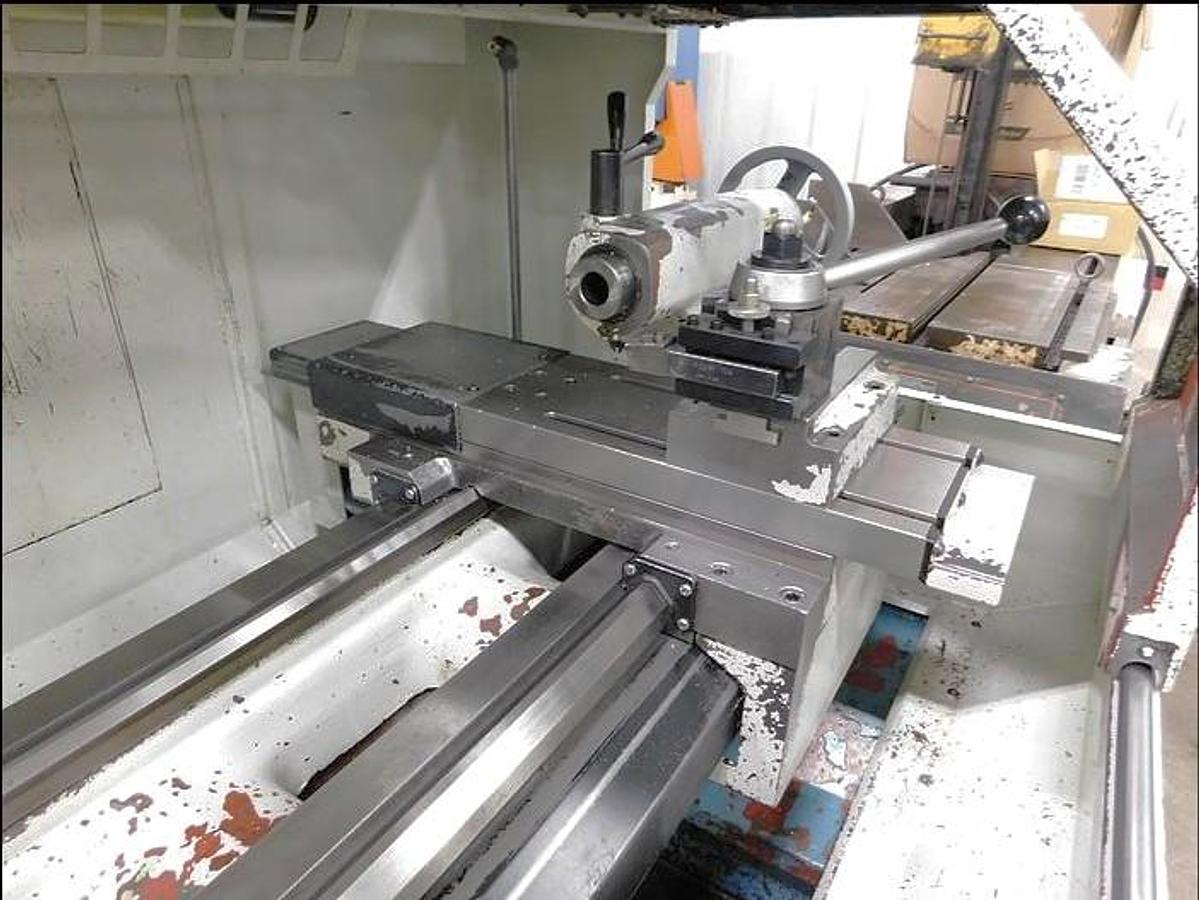

Aloris Tool Post

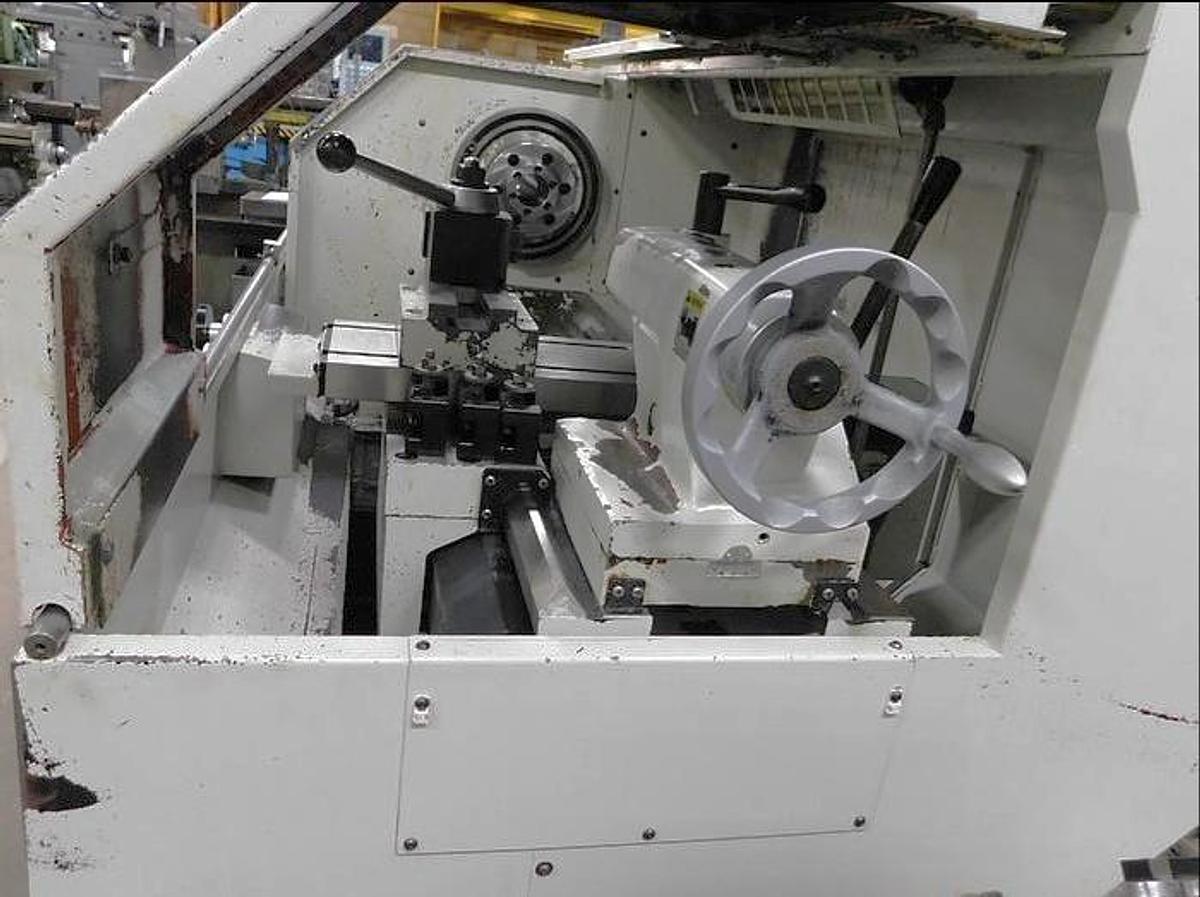

Tailstock

Tracking

Electronic Hand Wheels & Jog Handle

Manual or CNC Operation

Coolant System with Tank & Pump

Auto Lube System

RS 232 Port Interface

Brushless Servos

Constant Surface Speed Programming

Inch Per Revolution Programming

Wired 220V 3 Phase Electrics

Miscellaneous Tool Holders

The 2013 Southwestern Industries Trak TRL 1630SX is a versatile CNC lathe equipped with the ProtoTrak SLX Control for efficient operation. This used machine features an 8-inch 3-jaw chuck for secure workpiece clamping and supports a maximum swing of 16 inches, with a turning diameter of up to 8.6 inches and a machining length of 30 inches. The center distance of 40 inches accommodates various workpiece sizes, while the X-axis and Z-axis travels are 8.5 inches and 30 inches, respectively, offering ample movement for intricate machining tasks. The machine is powered by a 7.5 HP spindle motor, providing a spindle speed range of 150 to 2,500 RPM. This lathe comes with a D1-6 spindle nose and a 2.12-inch bore, enhancing its versatility and capacity. The tailstock features a quill diameter of 2.36 inches and a travel of 6.3 inches, complemented by an MT #5 taper for added support during machining. With rapid traverse rates of 100 IPM on the X-axis and 150 IPM on the Z-axis, the machine is designed for quick operations and reduced cycle times. Weighing approximately 2,875 lbs and measuring 52 inches in length, 46 inches in width, and 67 inches in height, the Trak TRL 1630SX is compact yet robust. This model also includes a tailstock, tool post, and coolant system to facilitate seamless machining processes, making it a valuable addition to any workshop focused on precision and efficiency.
