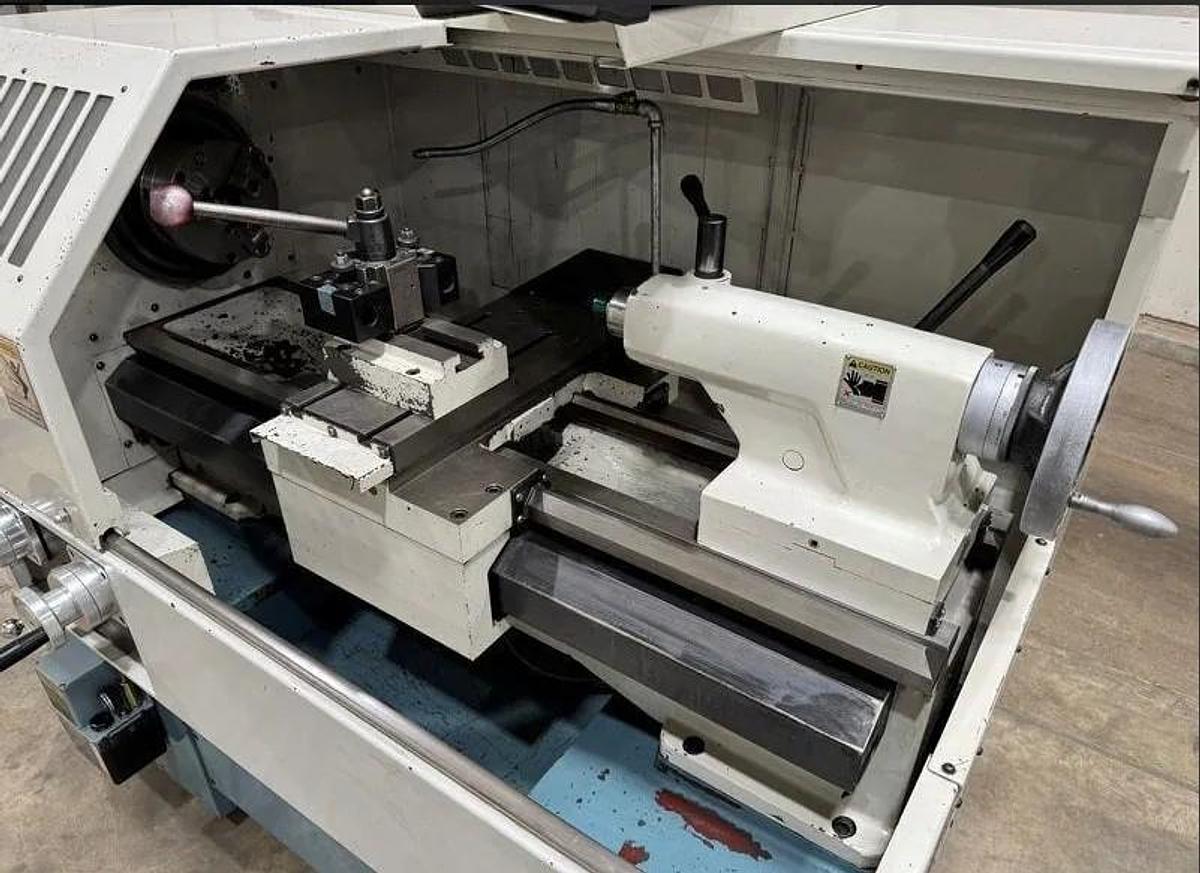

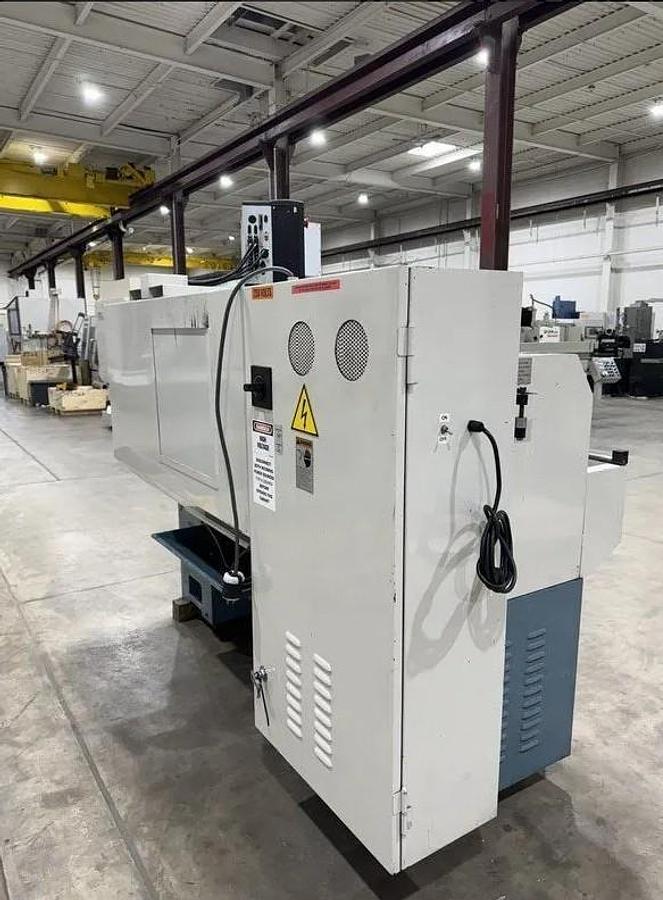

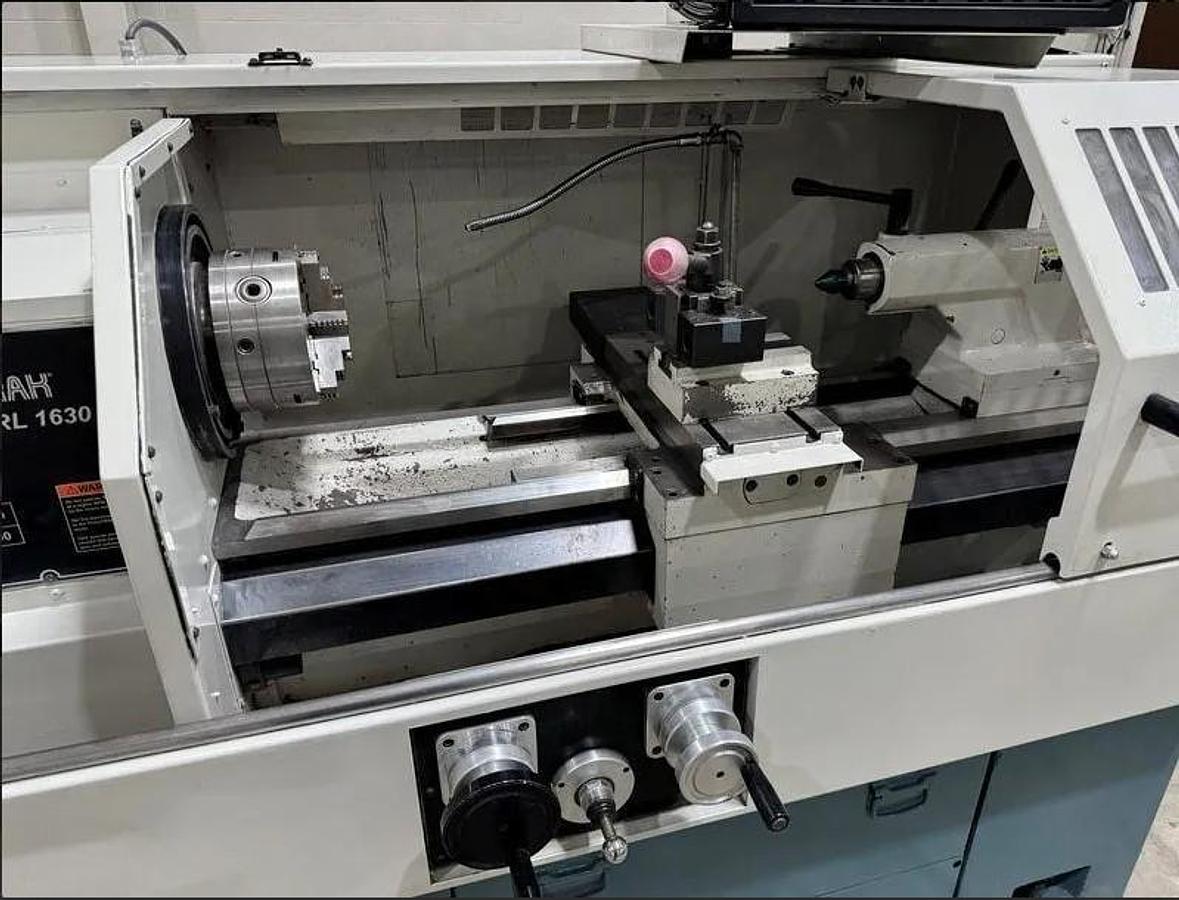

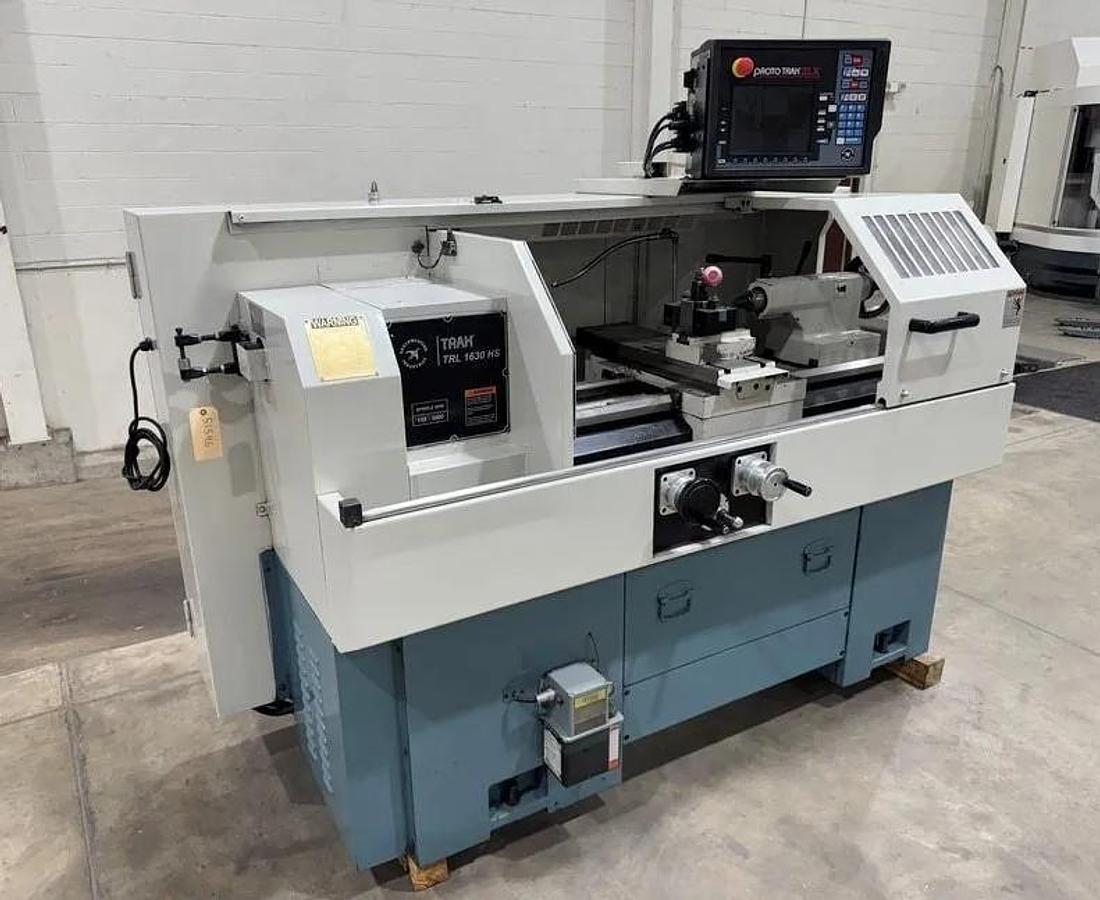

2015 Southwestern Industries Trak TRL 1630HS-SX with 4000 RPM High Speed Spindle, Tailstock, Tool Post, 8" Chuck
2015 Southwestern Industries Trak TRL 1630HS-SX with 4000 RPM High Speed Spindle, Tailstock, Tool Post, 8" Chuck
$23,950 (USD)
Location:Illinois
or
Call (863) 439-6066
Description

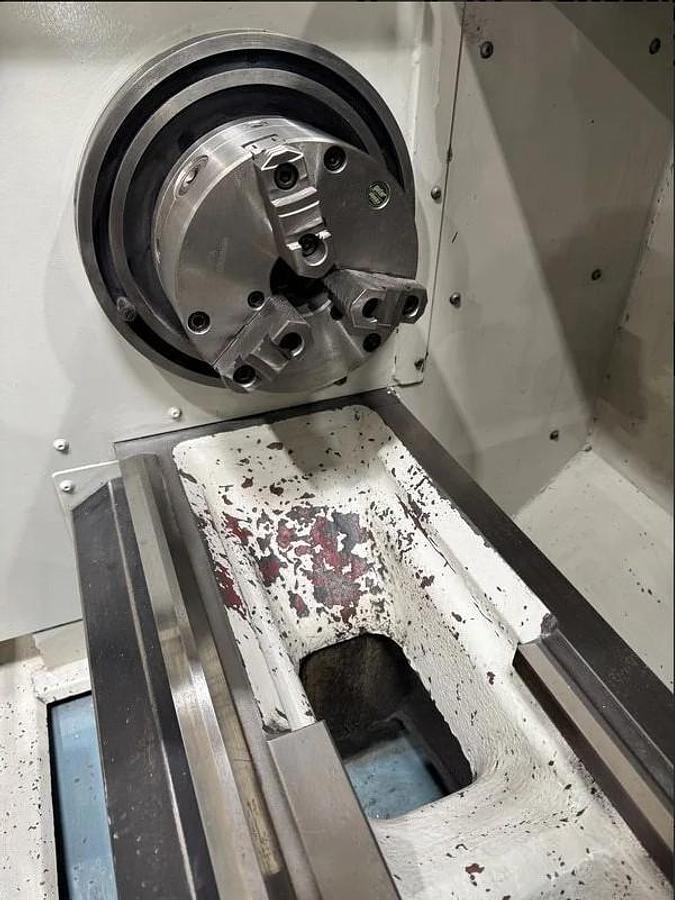

8" 3-Jaw Forged Steel Adjustable Scroll Chuck
Aloris Quick Change Tool Post

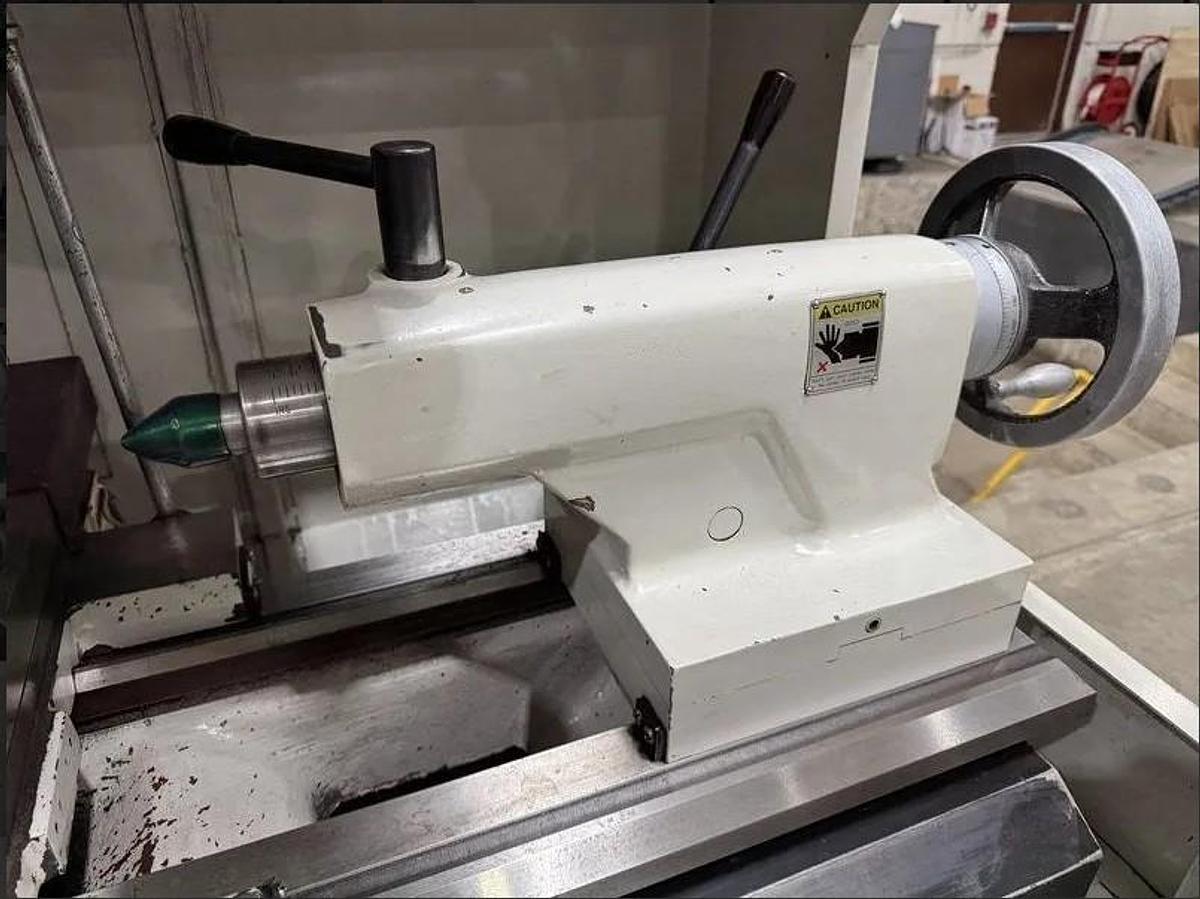

Tailstock
Electronic Hand Wheels & Jog Handle
Manual or CNC Operation
Coolant System with Tank & Pump
Coolant Filtration System

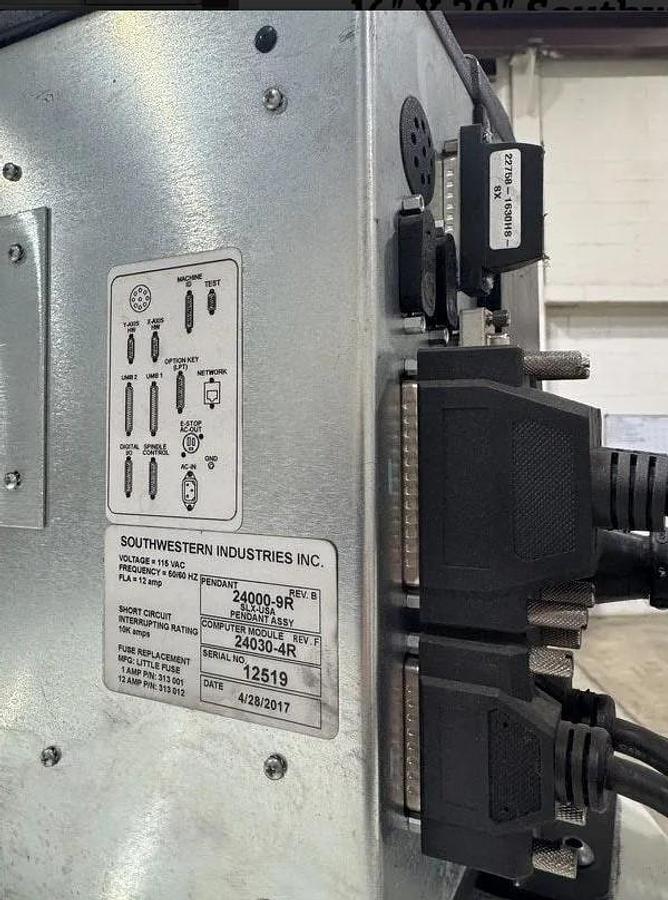

Wired 220V Electrics/3 Phase
RS 232 Port Interface
Brushless Servos
Constant Surface Speed Programming
Inch Per Revolution Programming
AC Spindle Drive
Unlimited Number of Thread Pitches & Up to 10 Leads

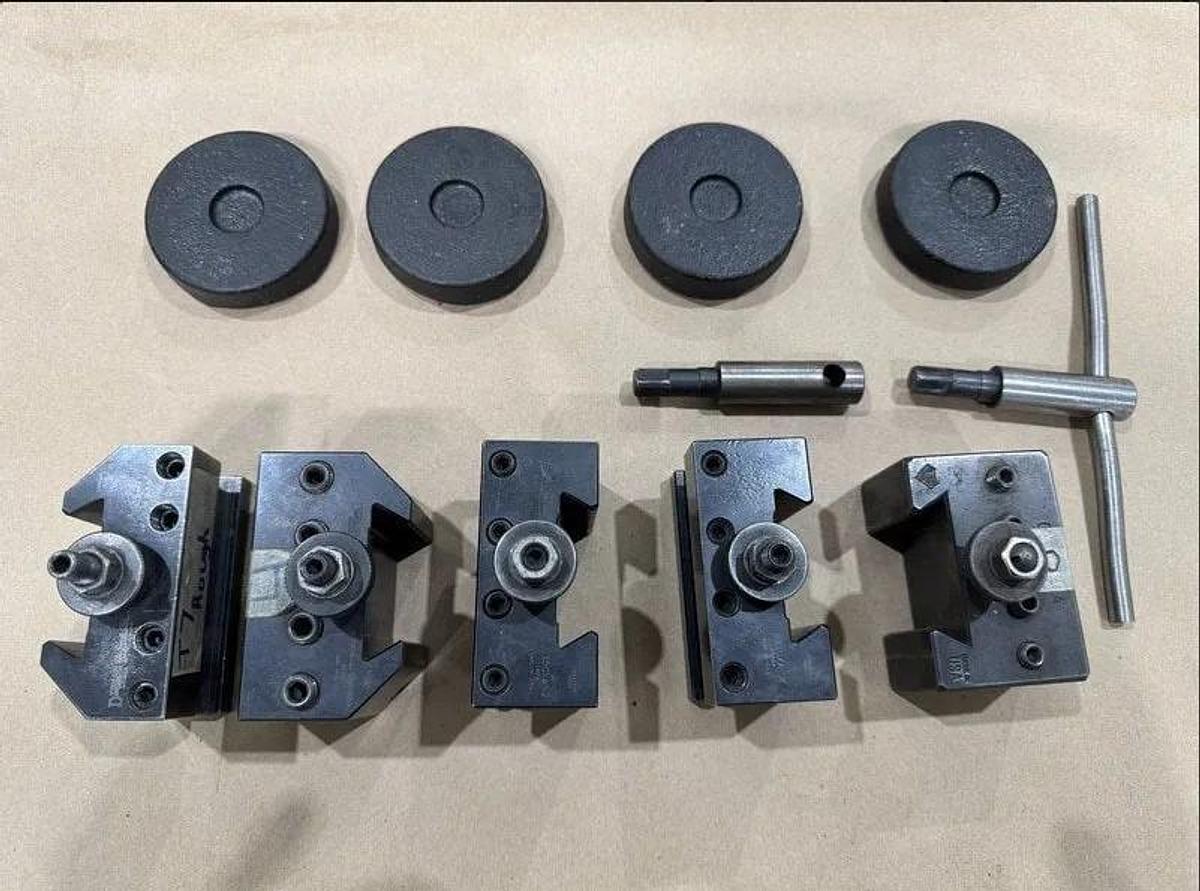

Miscellaneous Tool Holders
Specifications
| Manufacturer | Southwestern Industries Trak |
| Model | TRL 1630HS-SX |
| Year | 2015 |
| Condition | Used |
| Stock Number | 120493 |

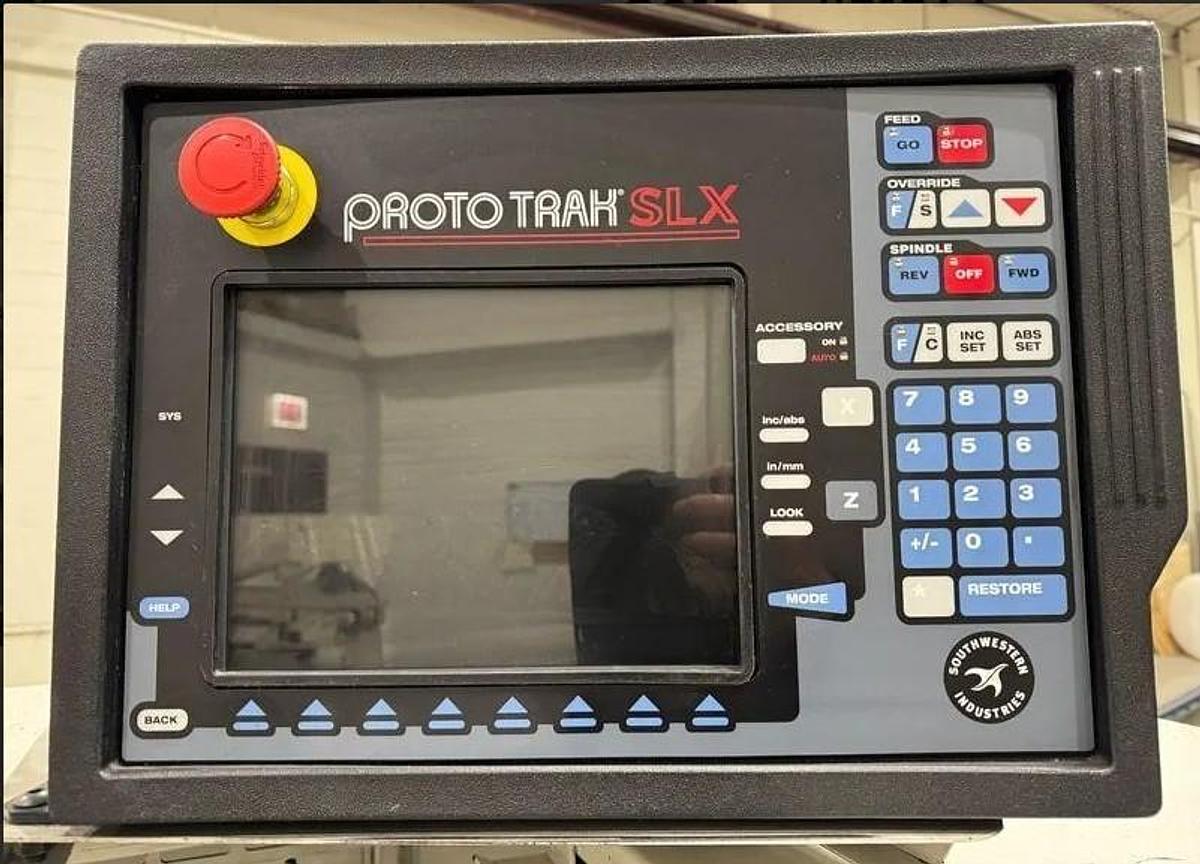

| Machine Control | ProtoTrak SLX Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing | 16" |
| Maximum Turning Diameter | 8.6" |
| Maximum Machining Length | 30" |
| Center distance | 40" |
| X-Axis Travel | 8.6" |
| Z-Axis Travel | 30" |
| Spindle Nose / Bore / Bar Capacity | A2-4" / 1.57" / 1.57" |
| Spindle Speed | 150-4,000 RPM |
| Spindle Motor | 7.5 HP |
| Number of Tool Positions | Tool Post |
| Rapid Traverse Rates X / Z | 100 IPM / 150 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.36" / 6.3" / MT #5 |
| Machine Dimensions LxWxH | 82" x 46" x 67" |
| Machine Weight | 2,875 lbs. |
