2014 Southwestern Industries Trak TRL 1630SX with Prototrak SLX Control, Tailstock, Toolpost, 8" 3 Jaw Chuck, Coolant System
2014 Southwestern Industries Trak TRL 1630SX with Prototrak SLX Control, Tailstock, Toolpost, 8" 3 Jaw Chuck, Coolant System
$28,950 (USD)
Location:Iowa
or
Call (863) 439-6066
Description

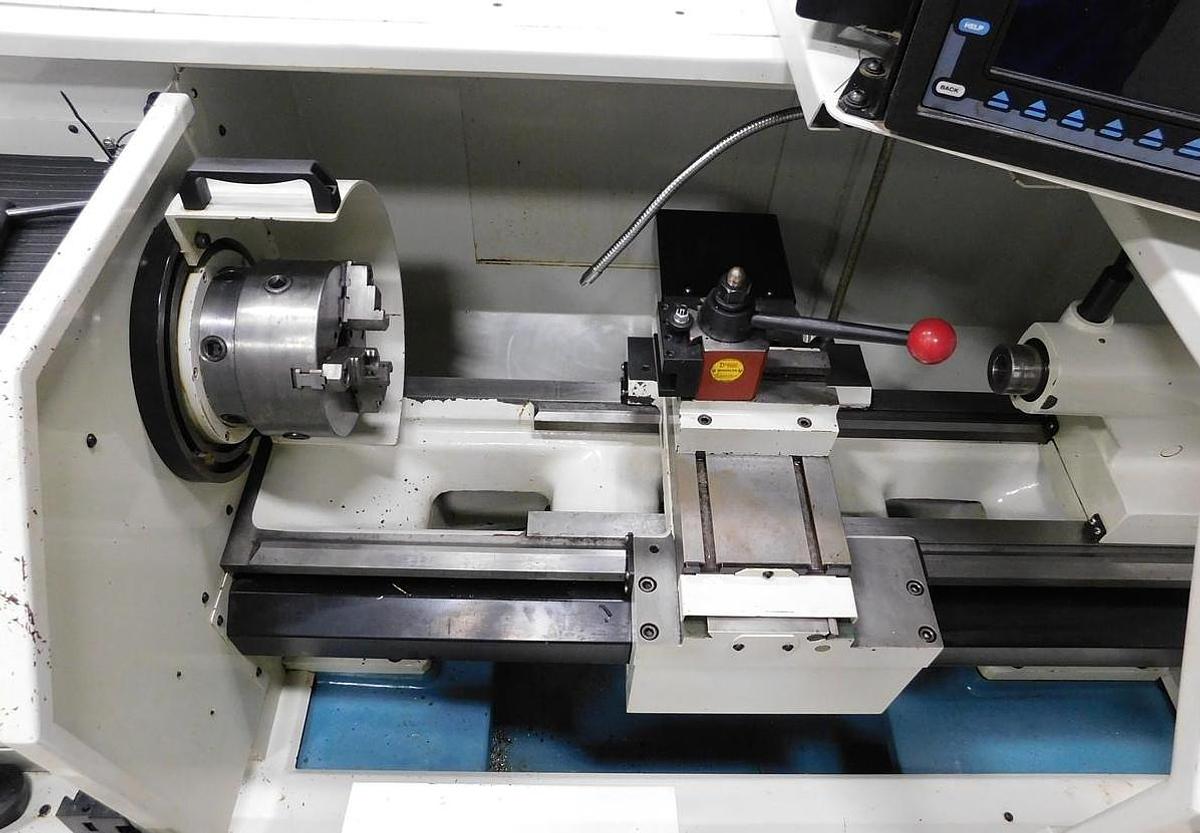

8" 3-Jaw Chuck
Aloriz Tool Post

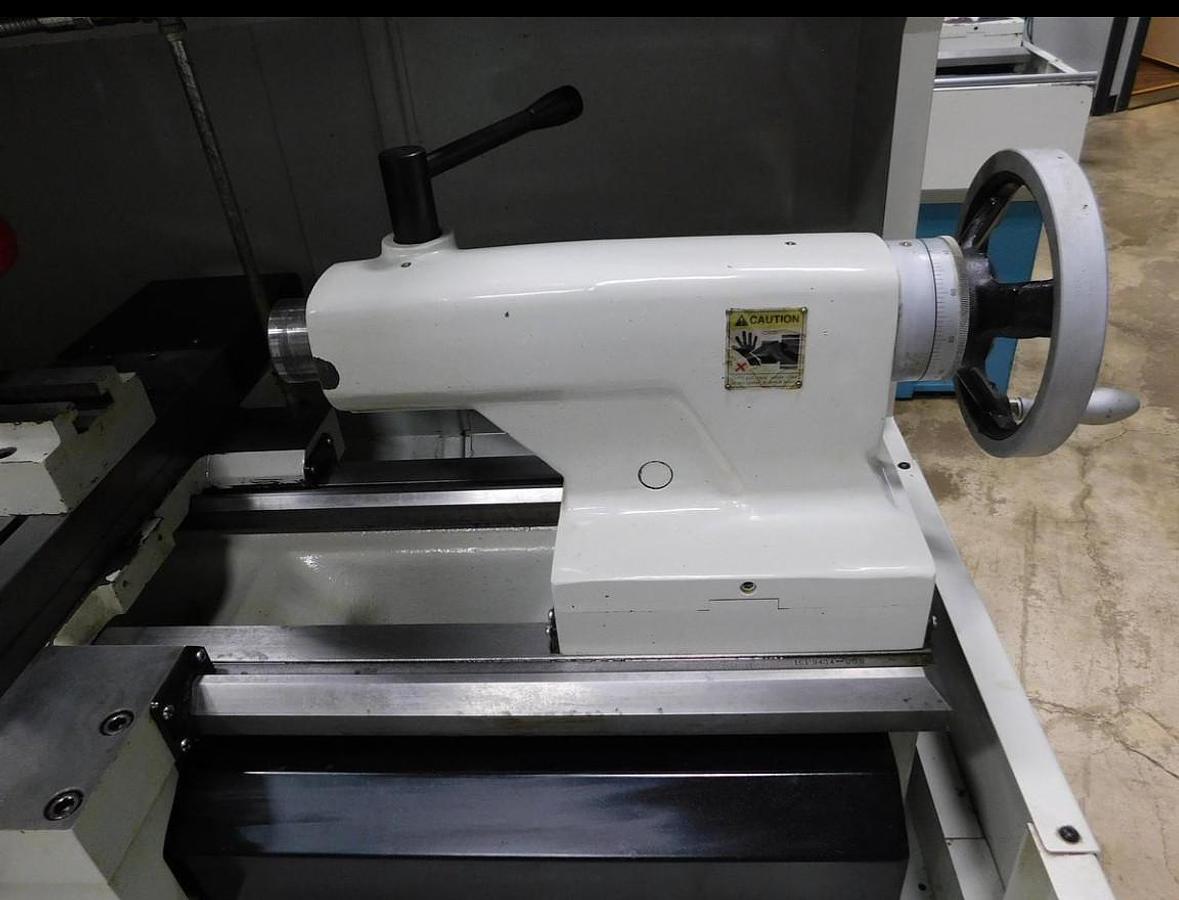

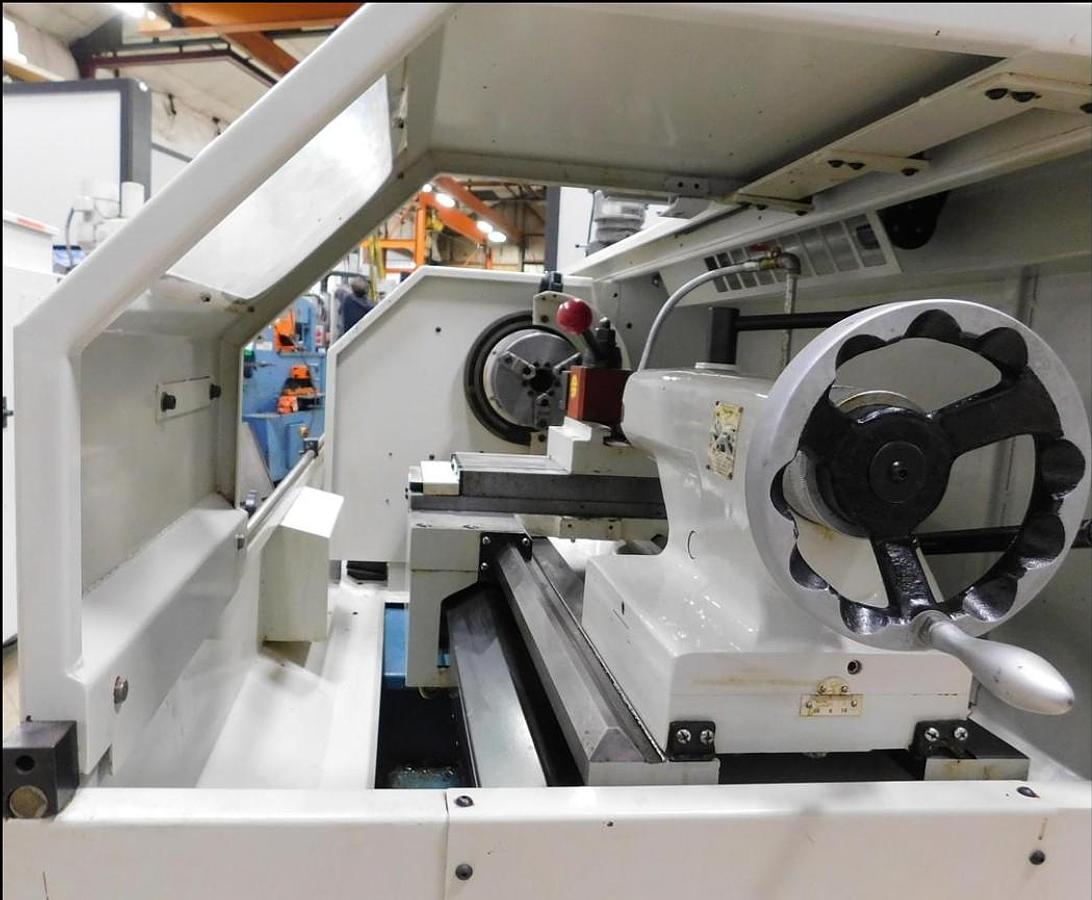

Tailstock

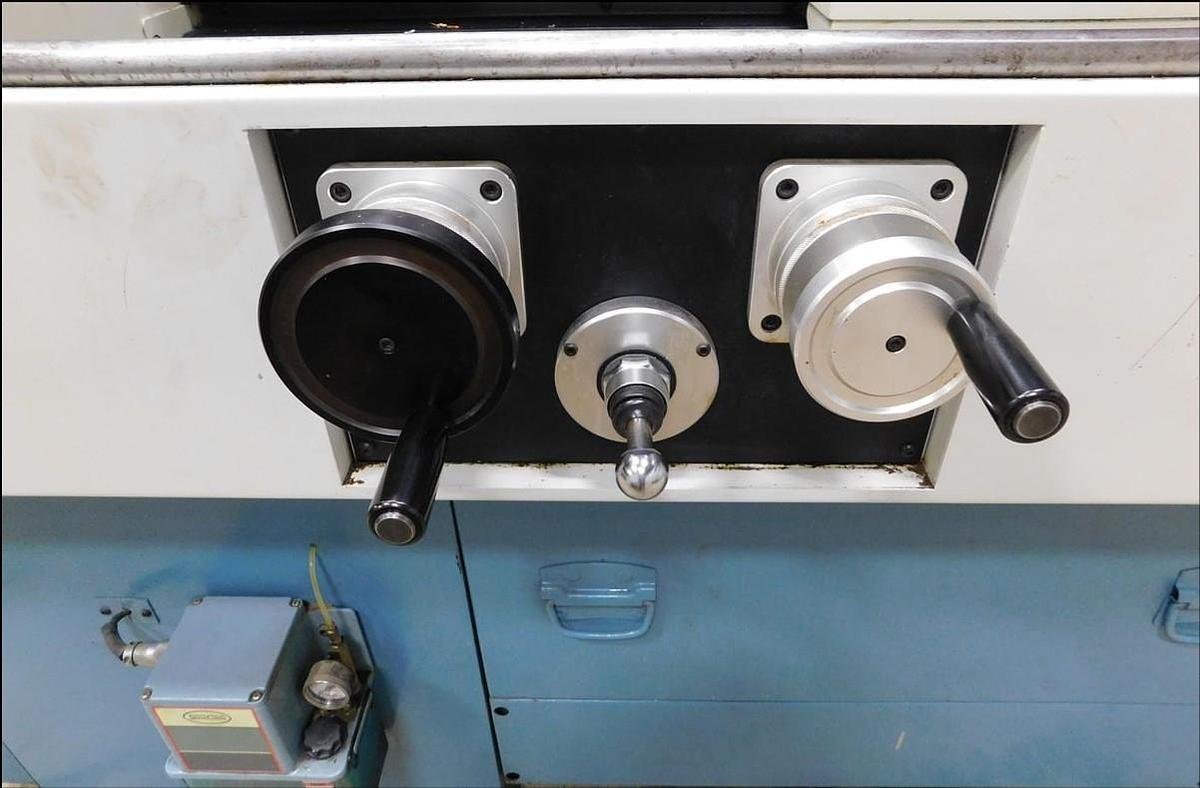

Electronic Hand Wheels & Jog Handle
Manual or CNC Operation
Coolant System with Tank & Pump
Auto Lube System
RS 232 Port Interface
Brushless Servos
Constant Surface Speed Programming
Inch Per Revolution Programming
Wired 220V 3 Phase Electrics
Specifications
| Manufacturer | Southwestern Industries Trak |
| Model | TRL 1630SX |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120492 |

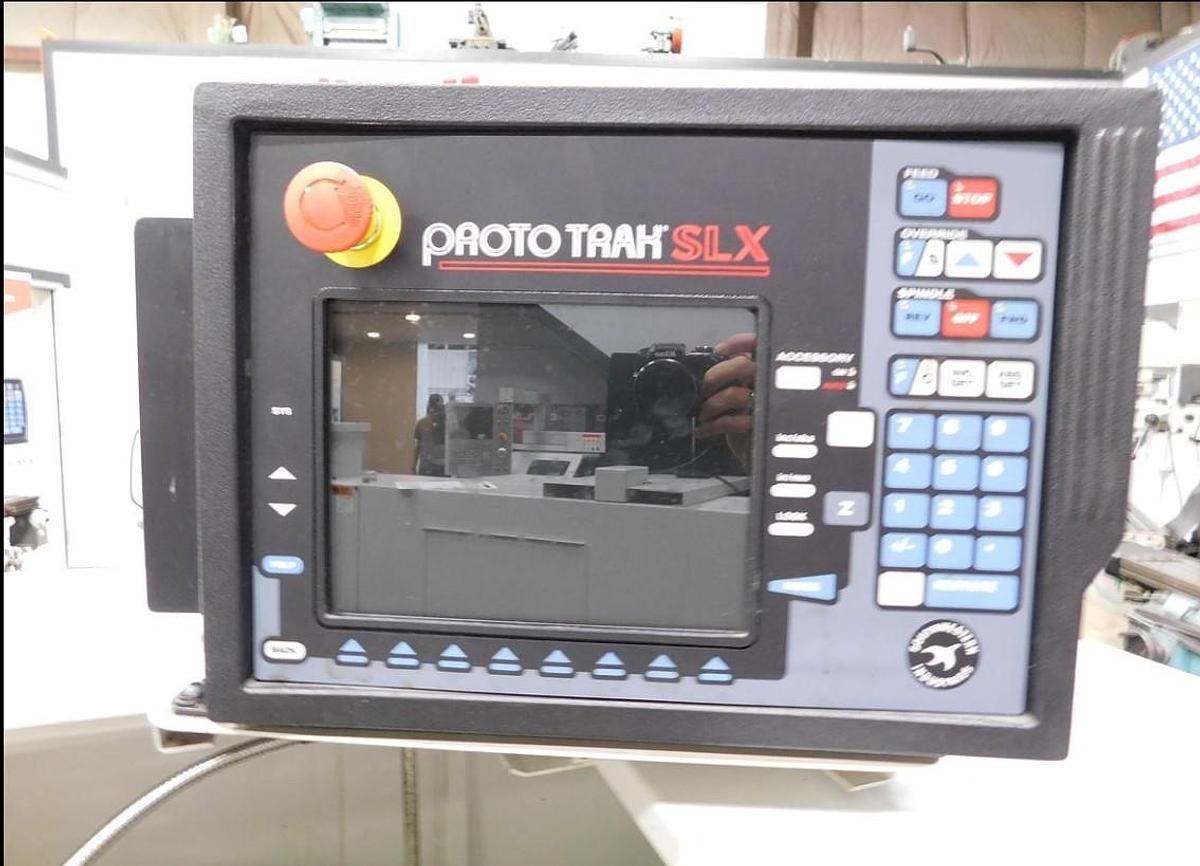

| Machine Control | ProtoTrak SLX Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing | 16" |
| Maximum Turning Diameter | 8.6" |
| Maximum Machining Length | 30" |
| Center distance | 40" |
| X-Axis Travel | 8.5" |
| Z-Axis Travel | 30" |
| Spindle Nose / Bore / Bar Capacity | D1-6" / 2.12" / 2.12" |
| Spindle Speed | 150 - 2,500 RPM |
| Spindle Motor | 7.5 HP |
| Number of Tool Positions | Tool Post |
| Rapid Traverse Rates X / Z | 100 IPM / 150 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 2.36" / 6.3" / MT #5 |
| Machine Dimensions LxWxH | 52" x 46" x 67" |
| Machine Weight | 2,875 lbs. |
