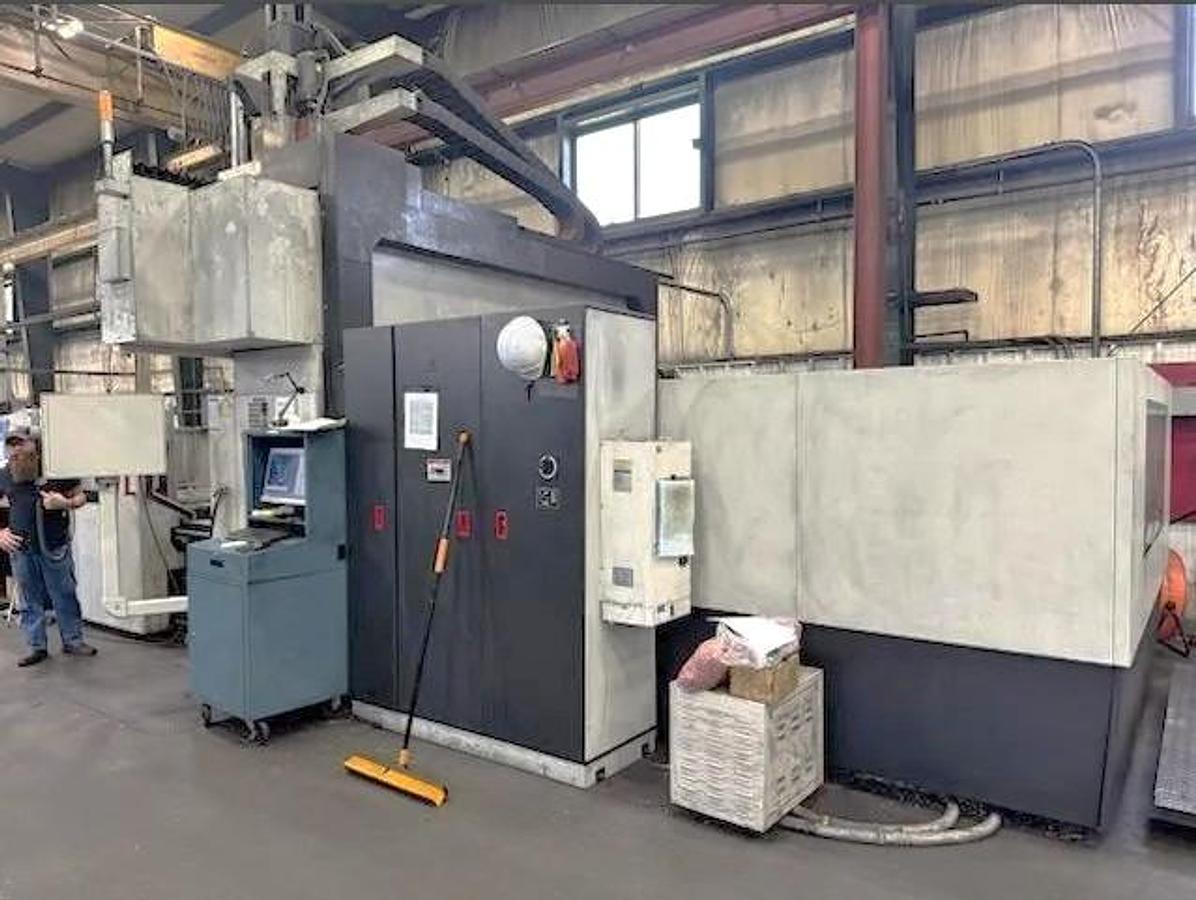

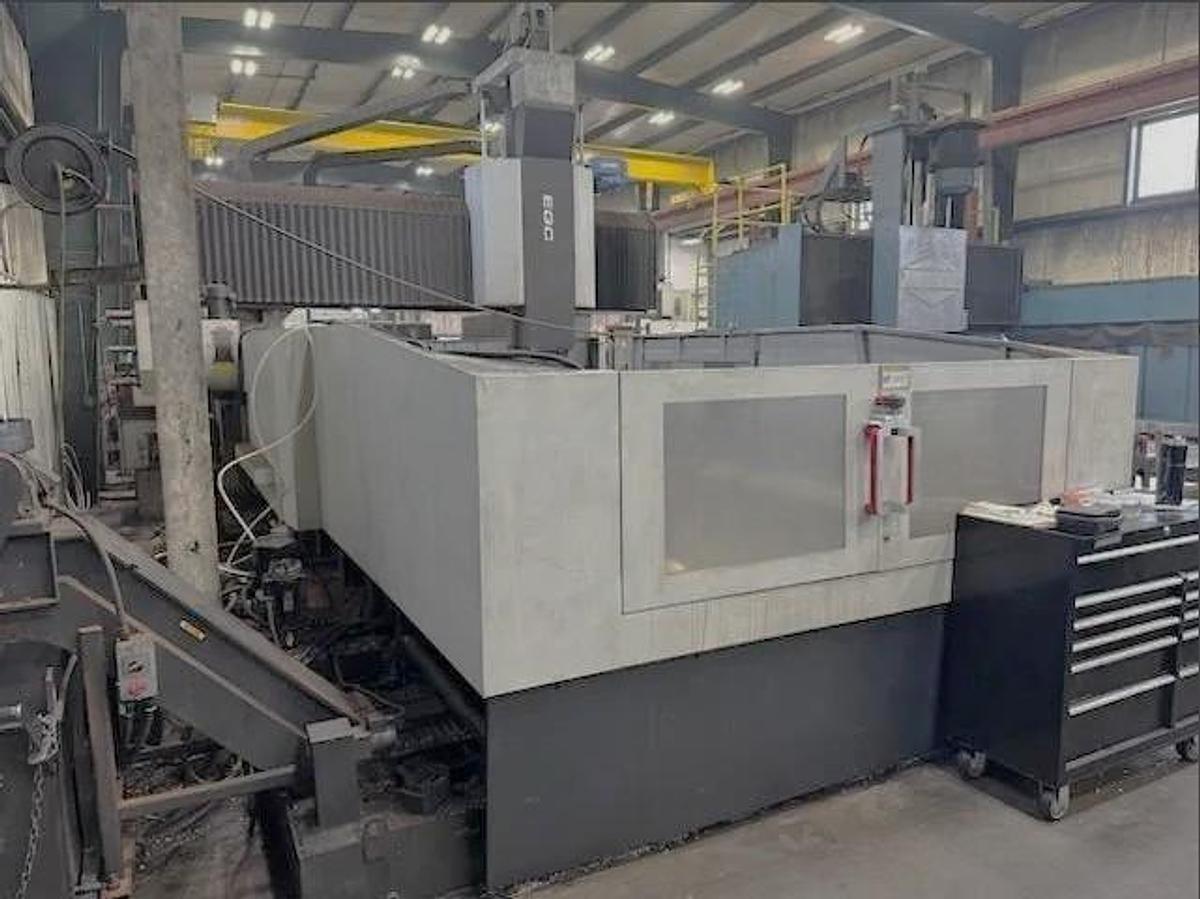

2014 SMTCL EGC 2040 Bridge Style with 157"x78"x39" Travels, 50 Taper, 6000 RPM, 40 ATC, Fanuc 0i-MD Control
2014 SMTCL EGC 2040 Bridge Style with 157"x78"x39" Travels, 50 Taper, 6000 RPM, 40 ATC, Fanuc 0i-MD Control
Contact us for price
Location:Michigan
or
Call (863) 439-6066
Description

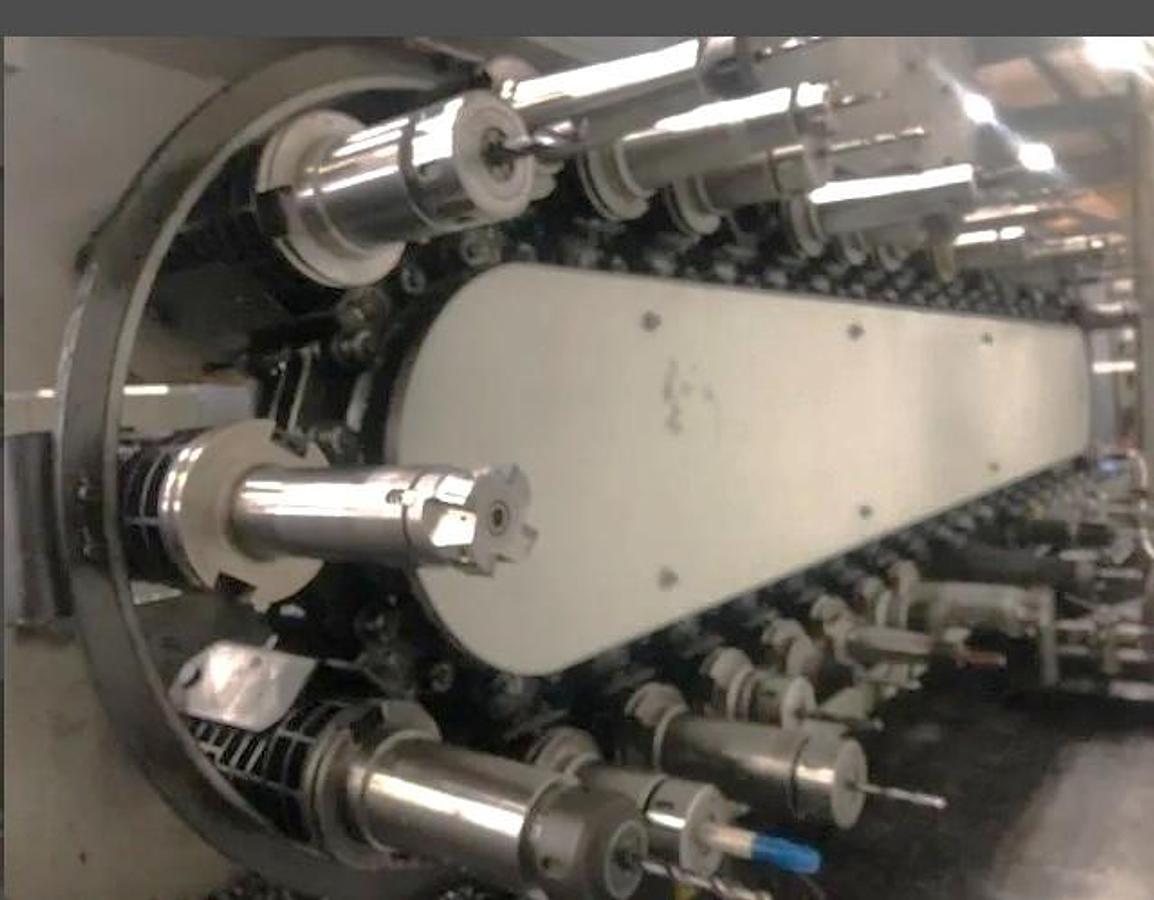

40 Station Side Mounted Tool Changer
90 Degree Head with 5 Degree Index and 3,000 RPM
Chip Conveyor
Chip Augers that feed to Conveyor
Complete Coolant System with Tank & Pump
Rigid Tapping
Flood Coolant
RS 232 Port Interface
All Available Manuals

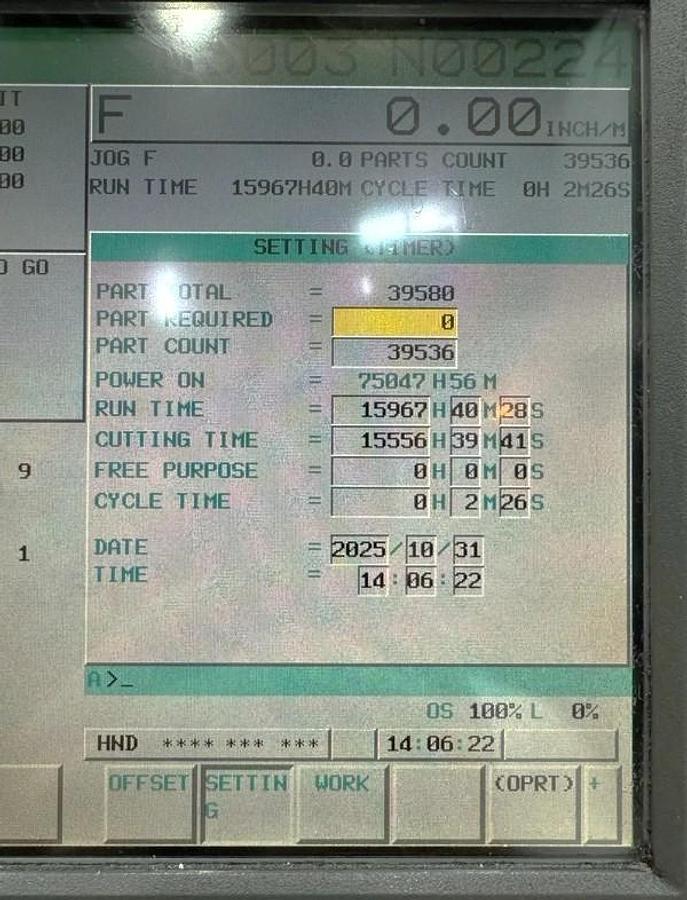

**Cutting Time of 15,556 Hours**
Specifications
| Manufacturer | SMTCL |
| Model | EGC 2040 Bridge Style Mill |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120489 |

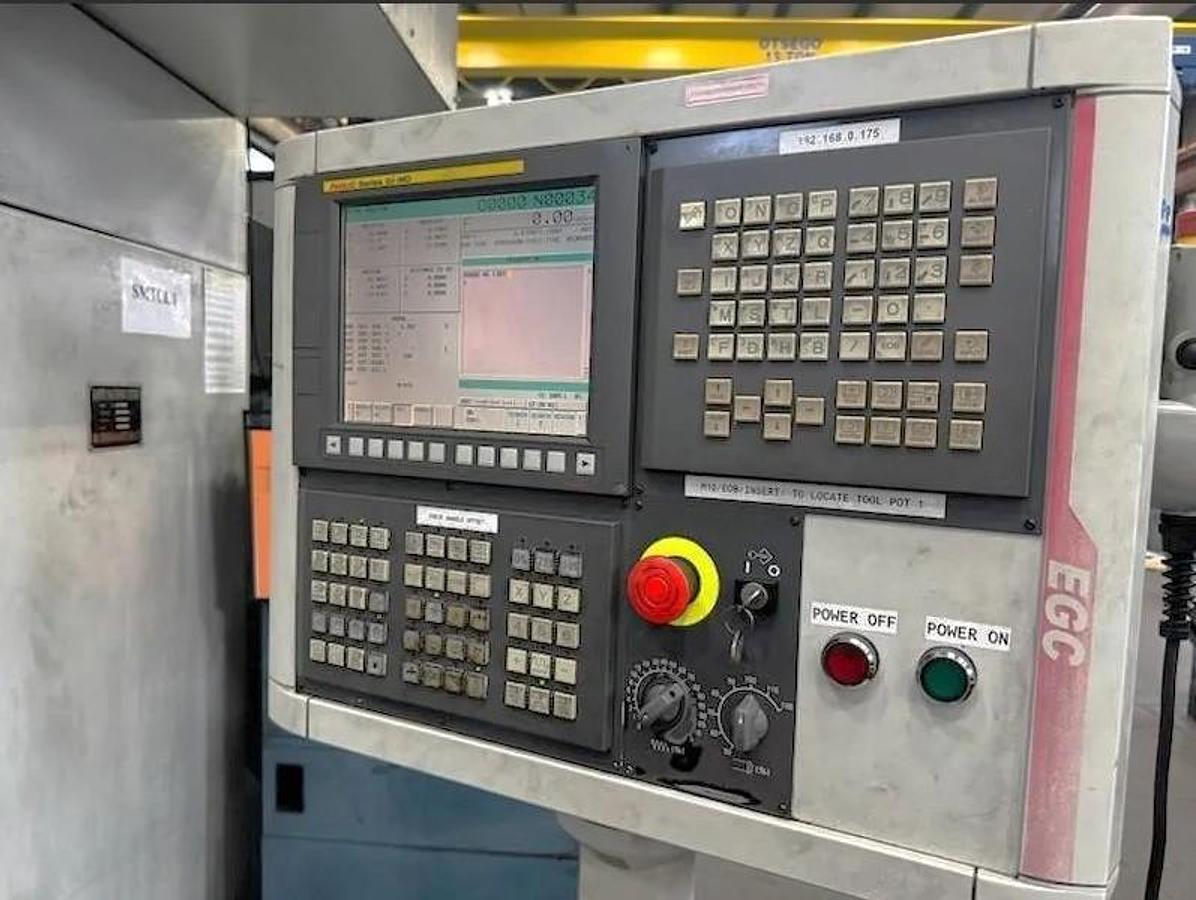

| Machine Control | Fanuc 0i-MD CNC Control |

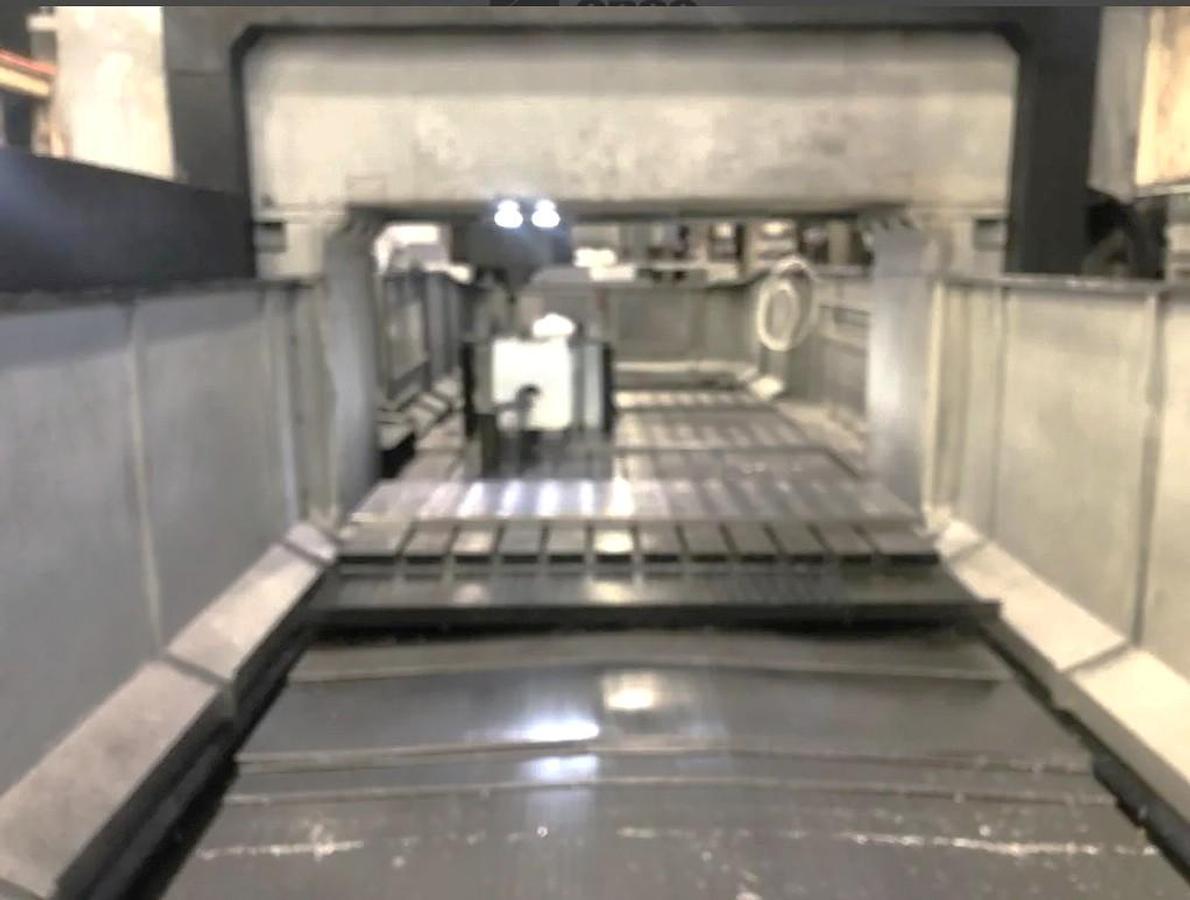

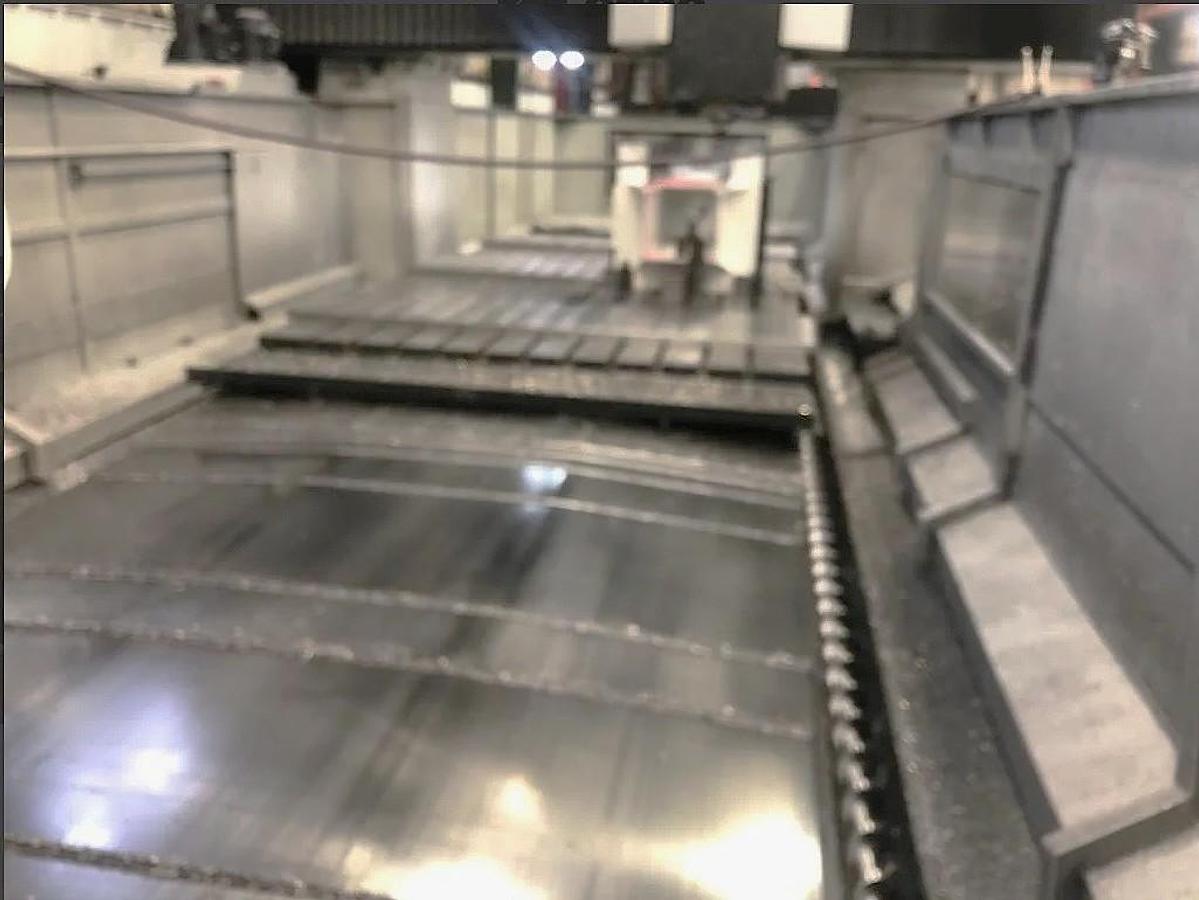

| Table size | 157" x 78" |
| Maximum Load on Table | 30,800 lbs. |
| X axis travel | 157" |
| Y axis travel | 78" |
| Z axis travel | 39.03" |
| Spindle taper | #50 Taper |
| Spindle motor | 40 HP |
| Spindle speed | 6,000 RPM - 2 Ranges |
| Spindle Nose to Table Top | 9.8" - 49.21" |
| Distance Between Columns | 110" |
| Number of Tool Positions | 40 Station Side Mounted ATC |
| Machine weight | 101,000 lbs |
| Machine Dimensions | 452" x 244" x 267" |
