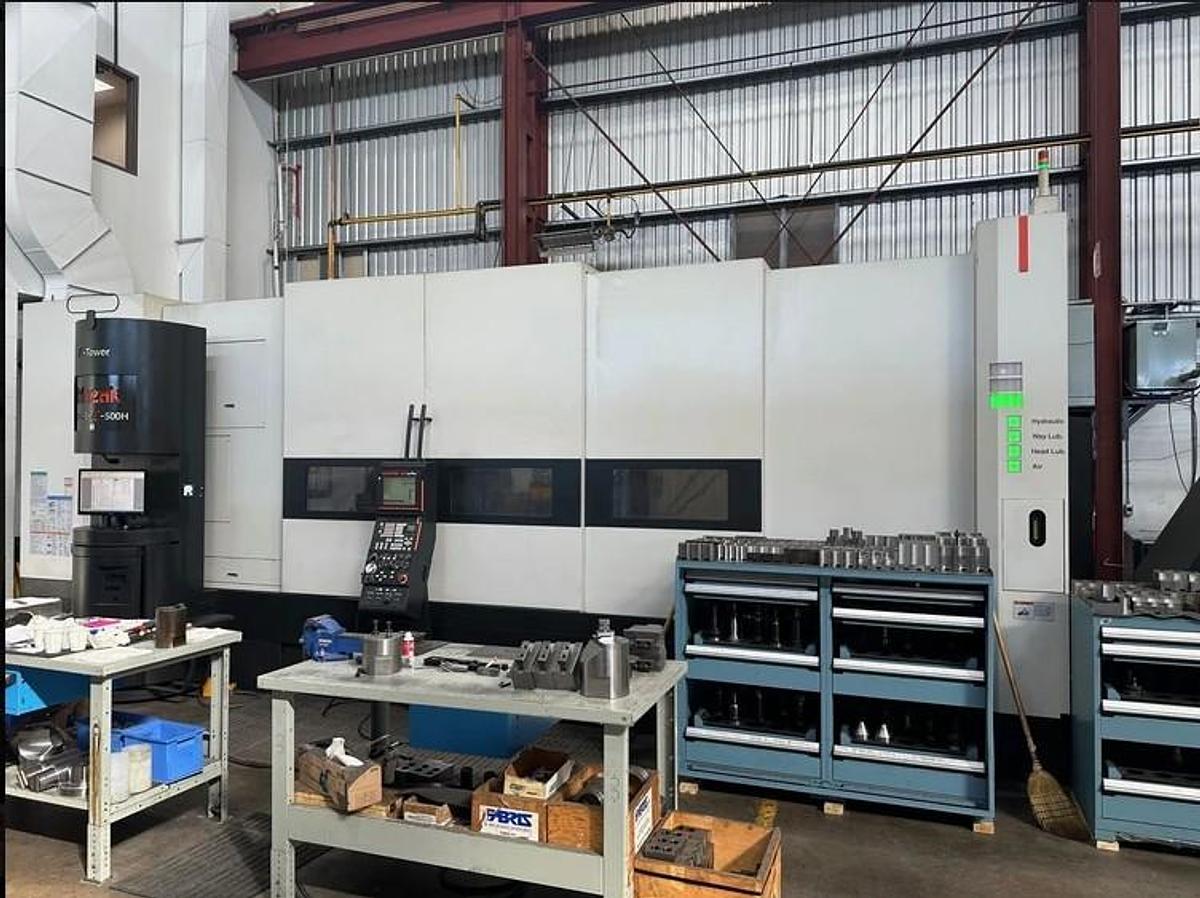

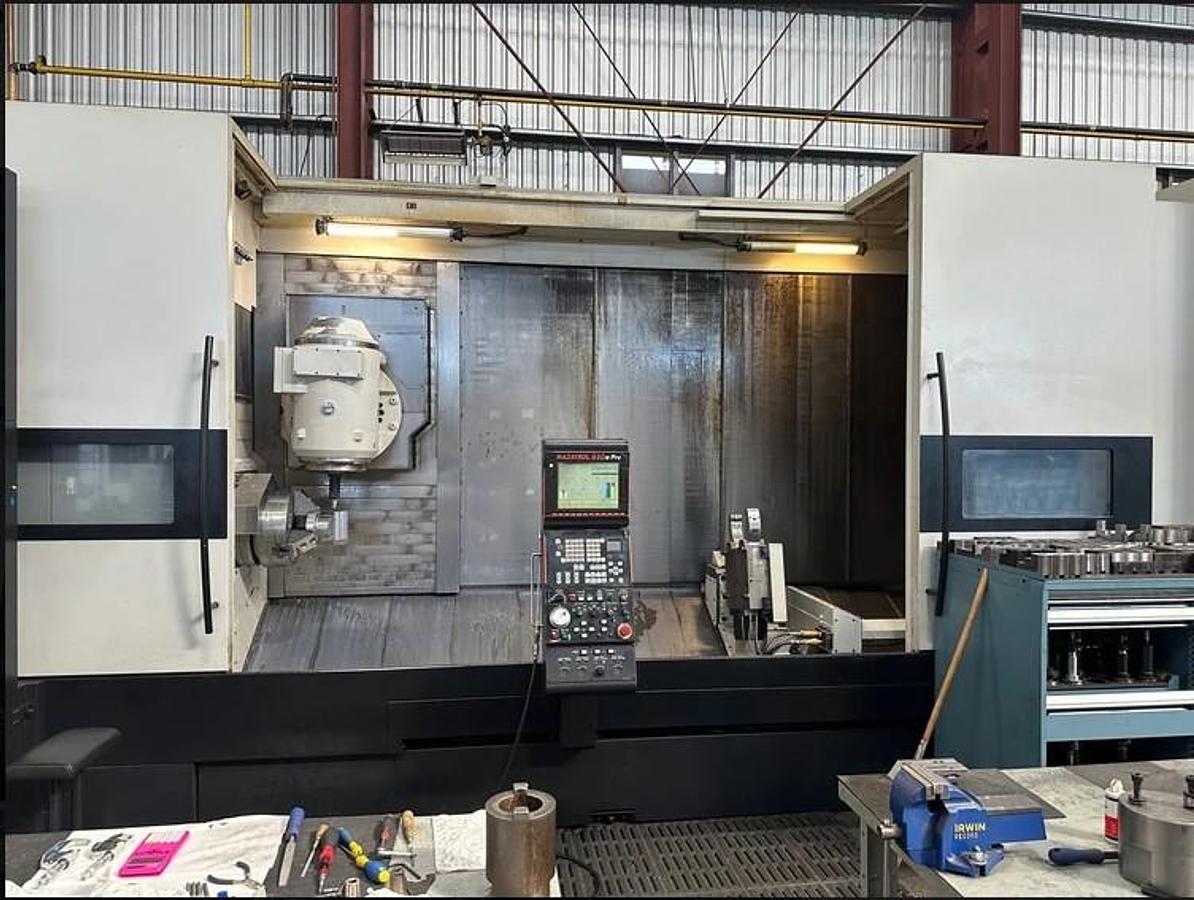

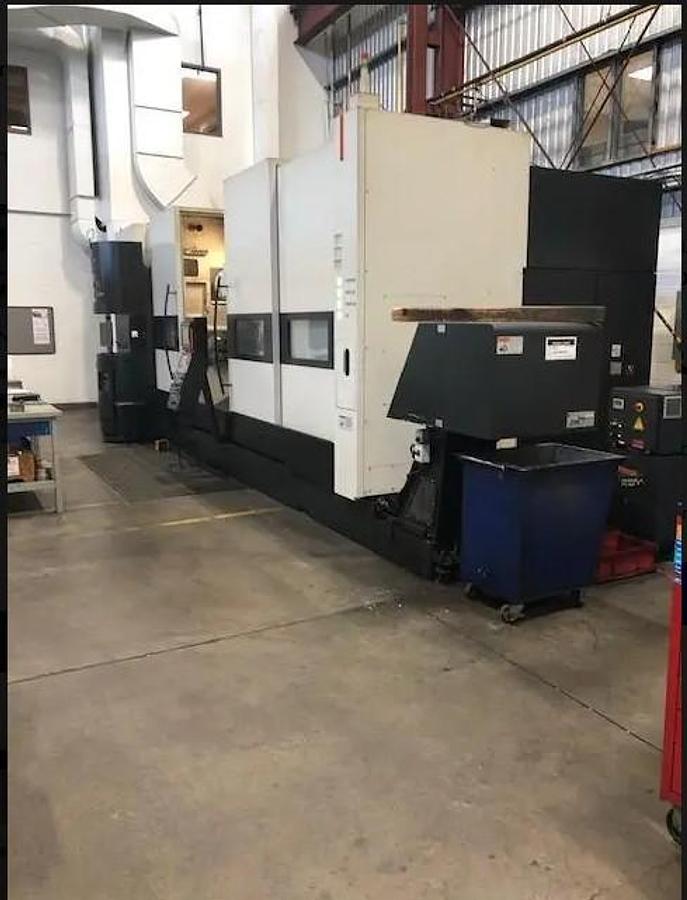

2007 Mazak Integrex e-500H/3000 with Tailstock, 80 Tool ATC, Milling, Y Axis, B Axis, Steady Rest, High Press. Coolant, 120" Centers
2007 Mazak Integrex e-500H/3000 with Tailstock, 80 Tool ATC, Milling, Y Axis, B Axis, Steady Rest, High Press. Coolant, 120" Centers
$229,000 (USD)
Location:North Carolina
or
Call (863) 439-6066
Description
Y Axis Capability Full C Axis Spindle Rotation Live Milling/Drilling Capability

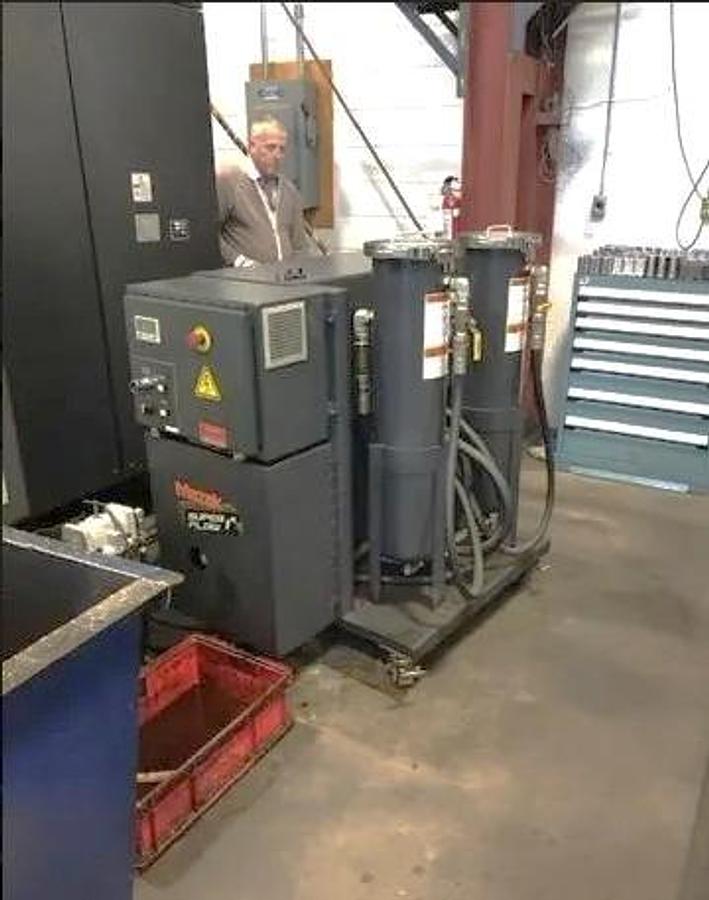

Mazak Super Flow 1000 PSI High Pressure Coolant

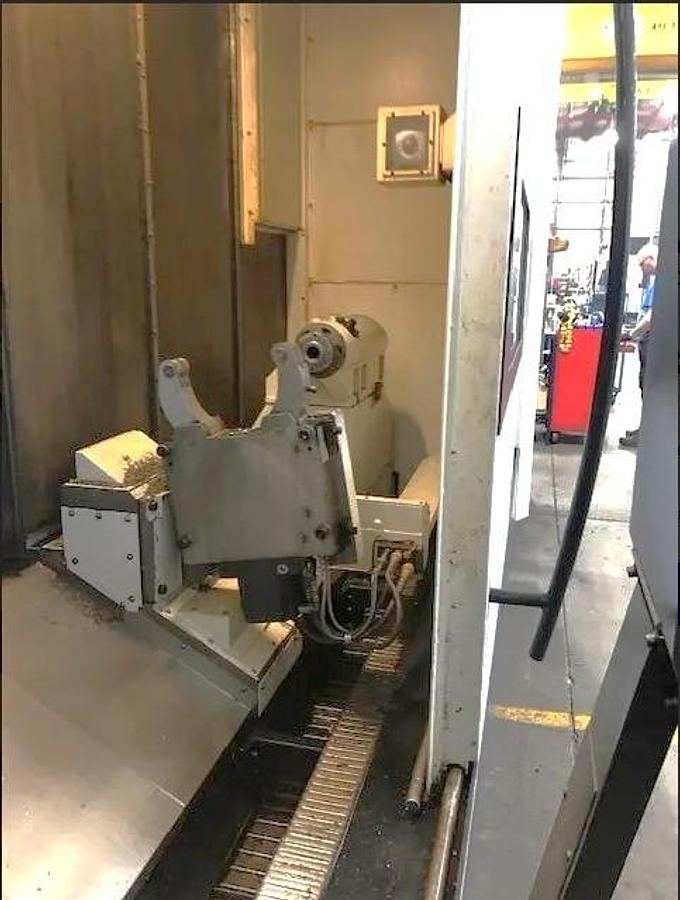

SMW SLUZ4 Programmable Hydraulic Steady Rest with 1.38" - 9.65" Capacity
Programmable Tailstock
80 Station Tool Changer Chip Conveyor

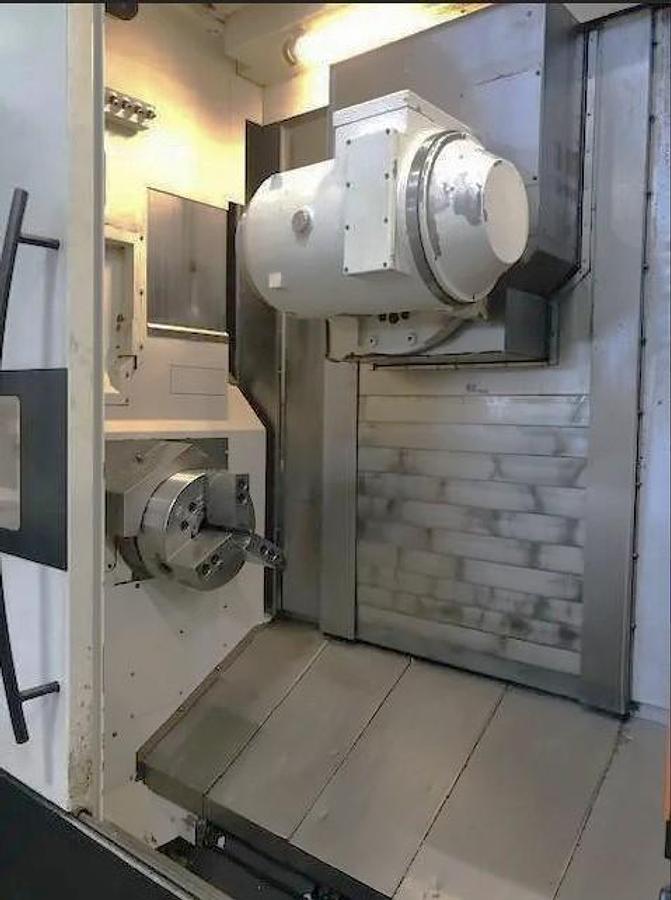

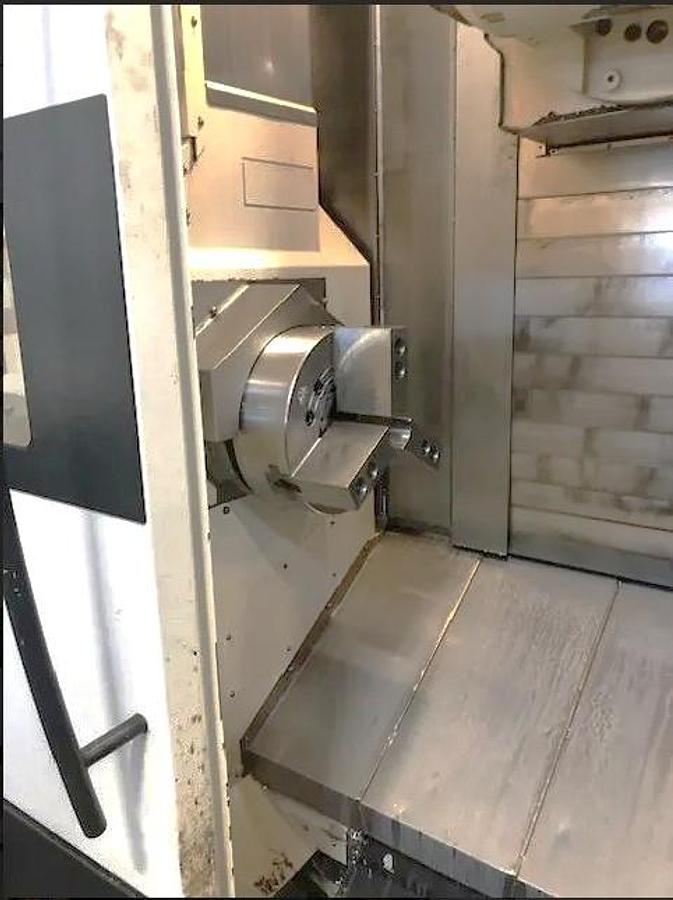

15" 3 Jaw Hydraulic Chuck
Rigid Tapping
Auto Pecking Cycle
Auto Power Off
Simultaneous 5 Axis Machining
High/Low Chucking Pressure
Laser Measurement
EIA/ISO Input Function
Ethernet Interface
PCMCIA Interface - 2 Slots
RS-232 Port Interface
Multi-Tap Transformer
Some Tooling
All Available Manuals

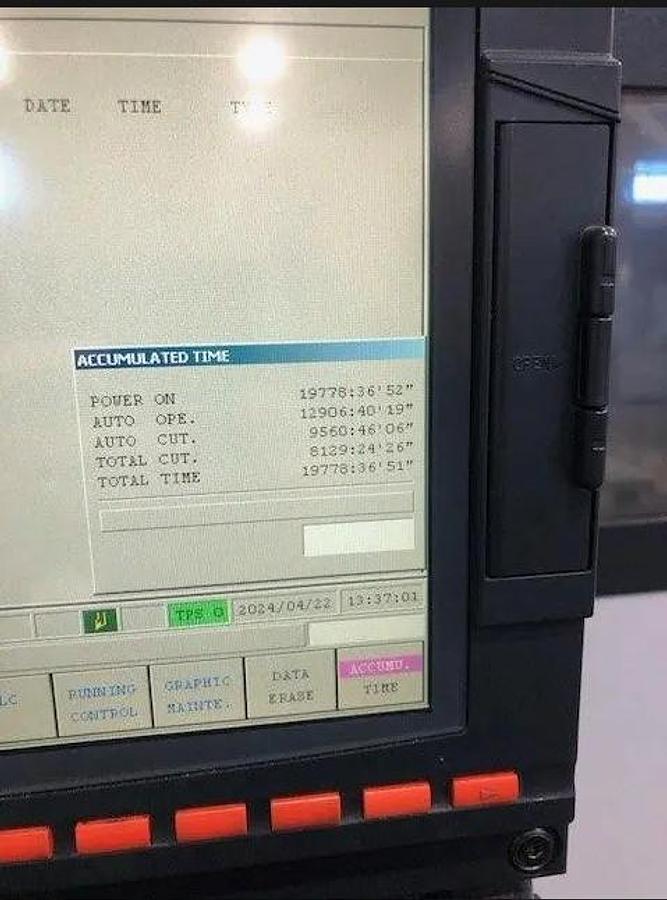

**Total Cutting Hours 8,129**
Specifications
| Manufacturer | Mazak |
| Model | Integrex e-500H/3000 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120485 |

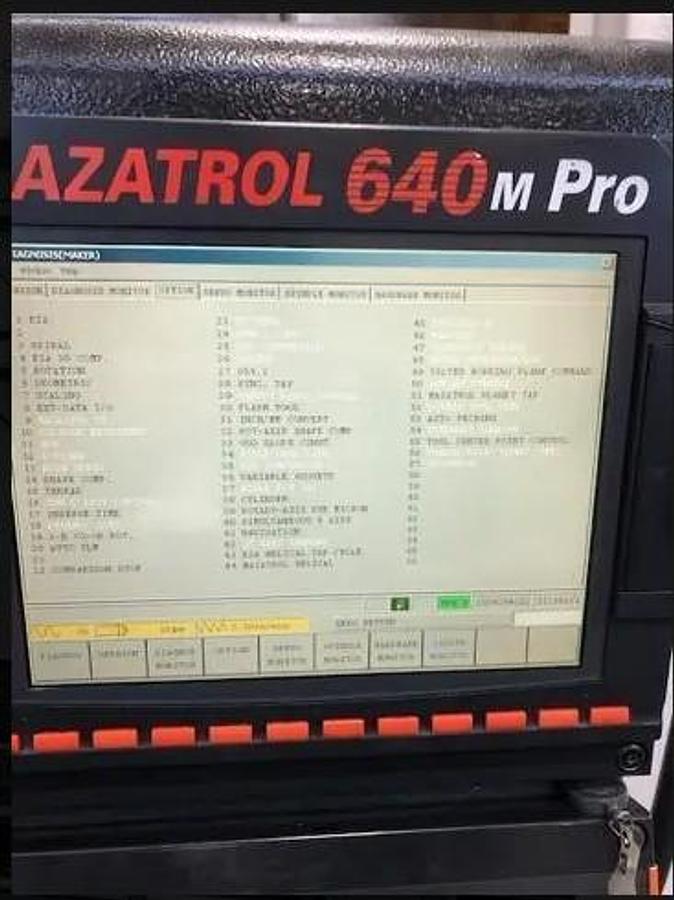

| Control | Mazatrol Fusion 640M Pro |
| Chuck Size | 15" 3 Jaw Hyd. Chuck |
| Maximum Swing | 32.28" |
| Maximum Cutting Diameter - Chucking | 32.28" |
| Maximum Cutting Length | 120" |
| X-Axis Travel | 34.25" |
| Y-Axis Travel | 19.69" |
| Z-Axis Travel | 122.91" |
| B-Axis Tilt Movement | 240 Degrees (-30 Deg to + 210 Deg) |
| C-Axis Rotation | .001 Degree |
| Spindle Nose / Spindle Bore | A2-11" / 4.09" |
| Spindle speed | 3,300 RPM |
| Spindle Motor | 40 HP |

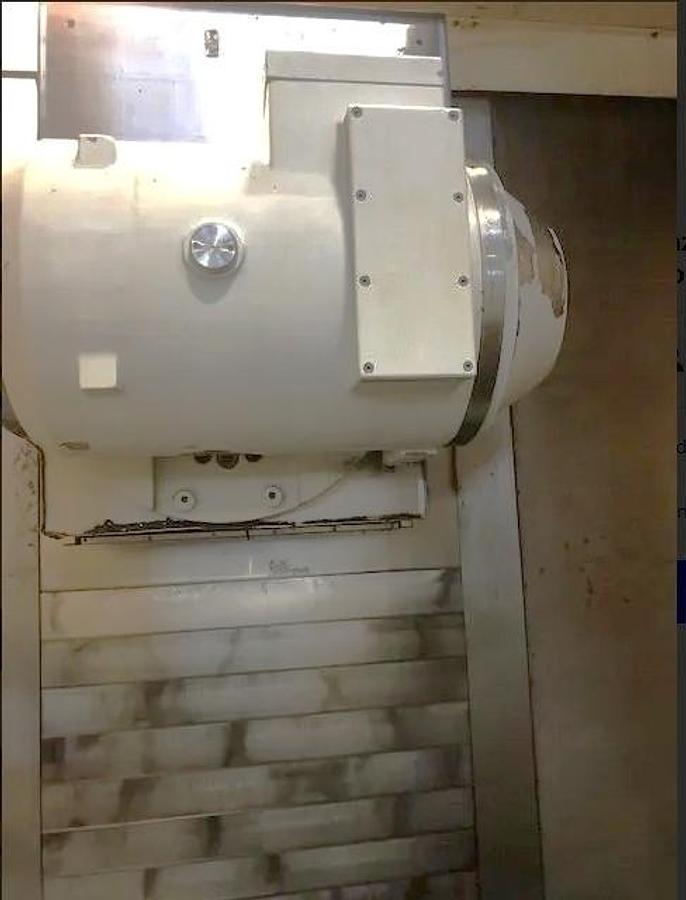

| Mill Spindle Speed / Mill Spindle Motor | 10,000 RPM / 25 HP |
| Turret Type | 1 Position with ATC |
| Number of Tool Positions | 80 Station Tool Changer |
| Maximum Tool Diameter / Length / Weight | 10.23" / 19.68" / 66 lbs. |
| Rapid Traverse Rates X, Y, Z / W | 1575 IPM / 472 IPM |
| Machine Dimensions | 312"x147"x129" |
| Machine Weight | 63,051 lbs. |
