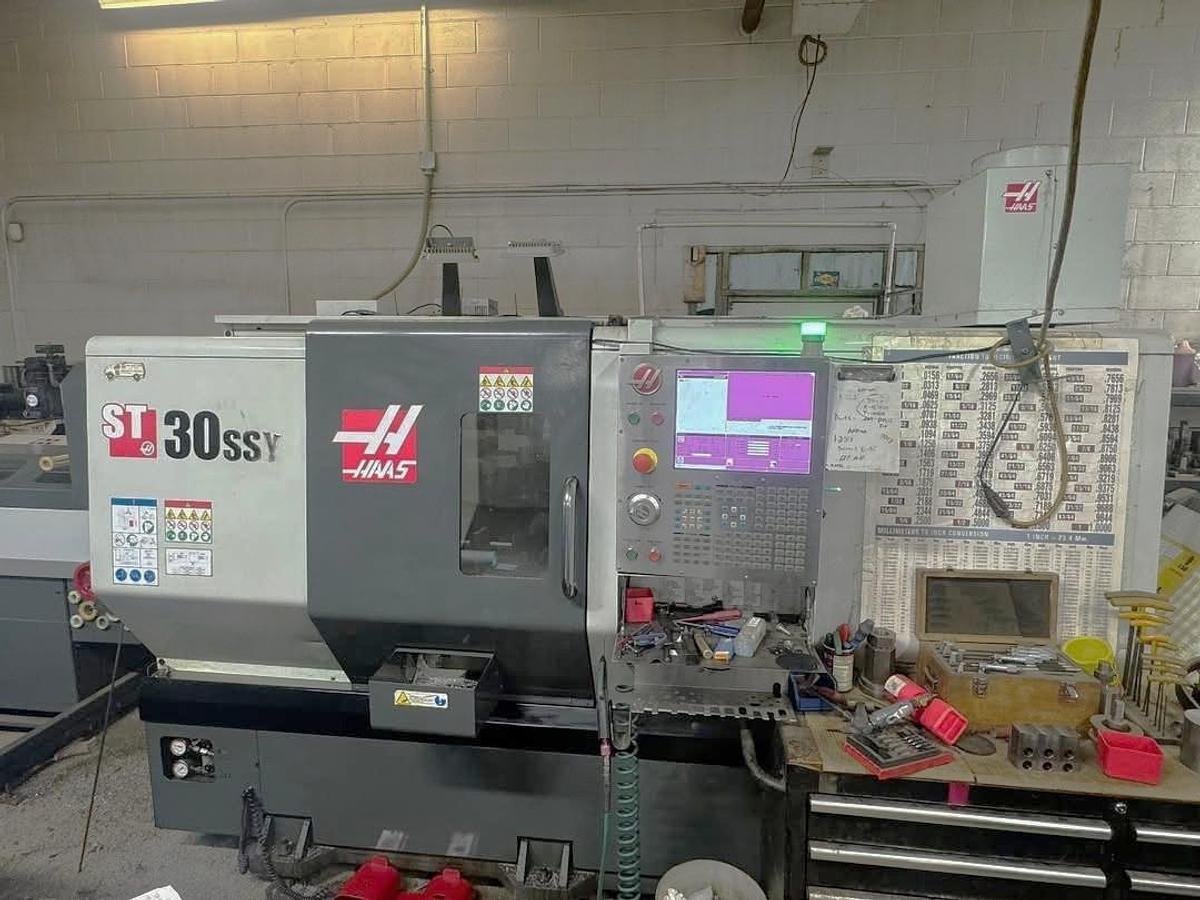

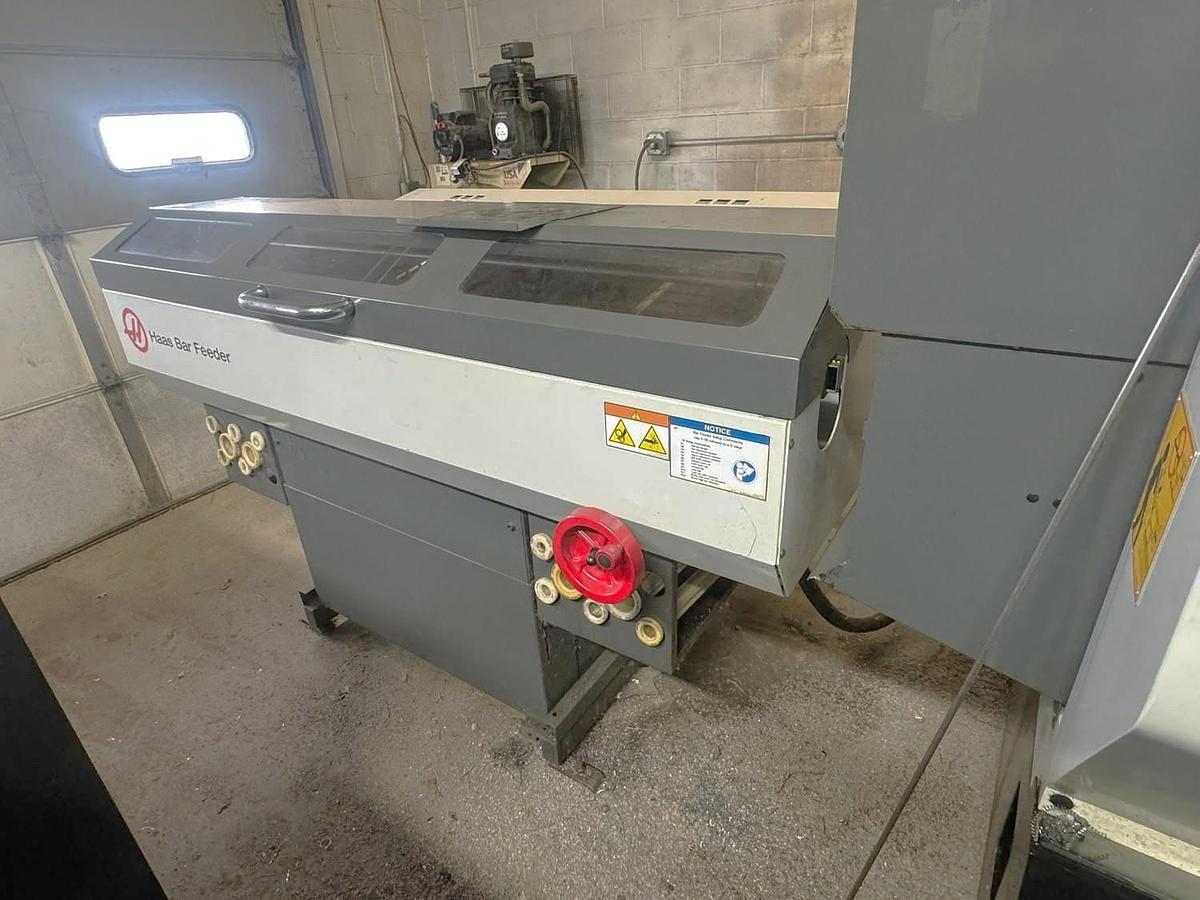

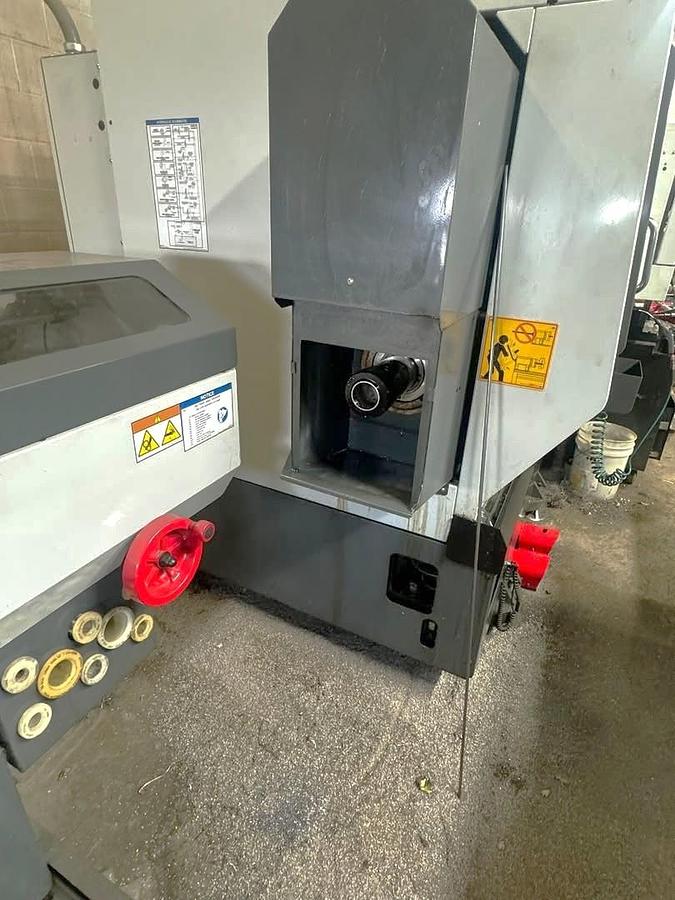

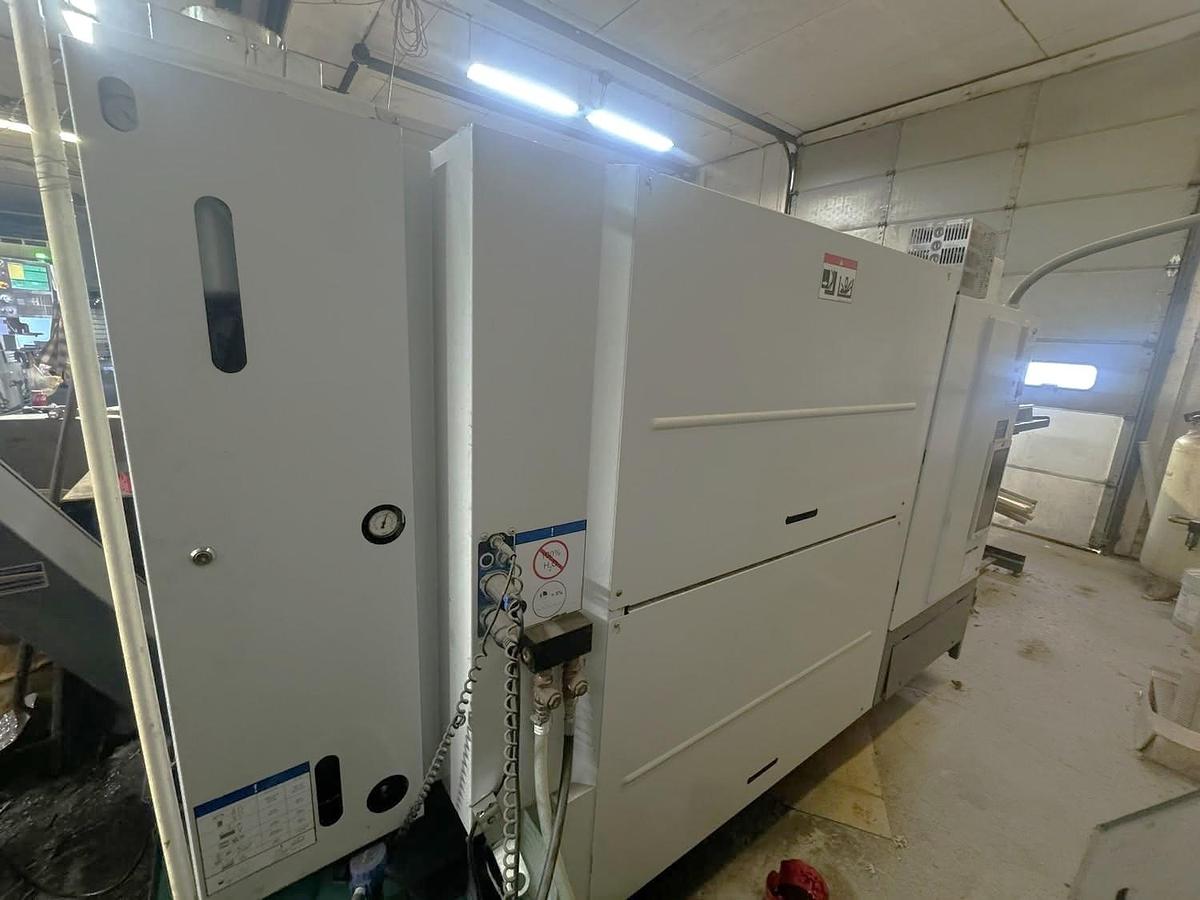

2016 Haas ST-30SSY with Live Milling/Drilling Cap, C Axis, Y Axis, Barfeed, Parts Catch, Chip Conv., Tailstock, C Axis, Tool Setter
2016 Haas ST-30SSY with Live Milling/Drilling Cap, C Axis, Y Axis, Barfeed, Parts Catch, Chip Conv., Tailstock, C Axis, Tool Setter
$89,500 (USD)
Location:Ohio
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability

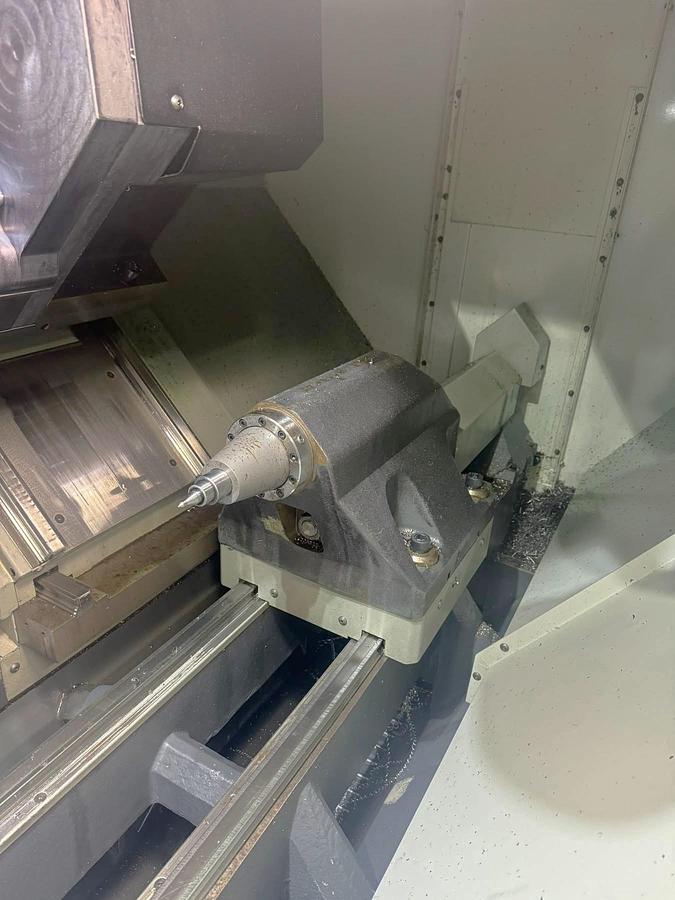

Programmable Tailstock

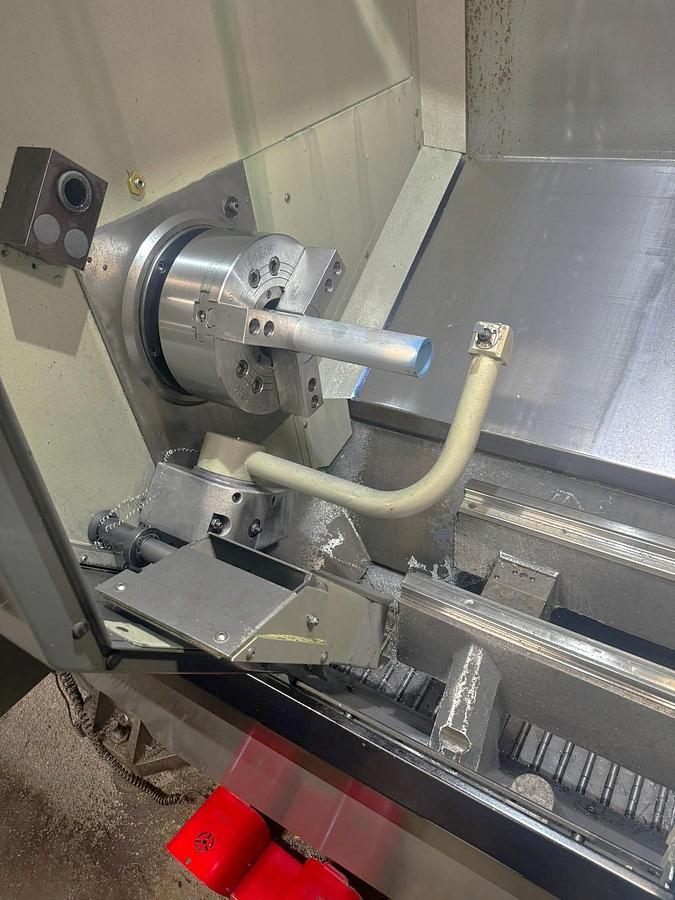

10" 3 Jaw Hydraulic Chuck

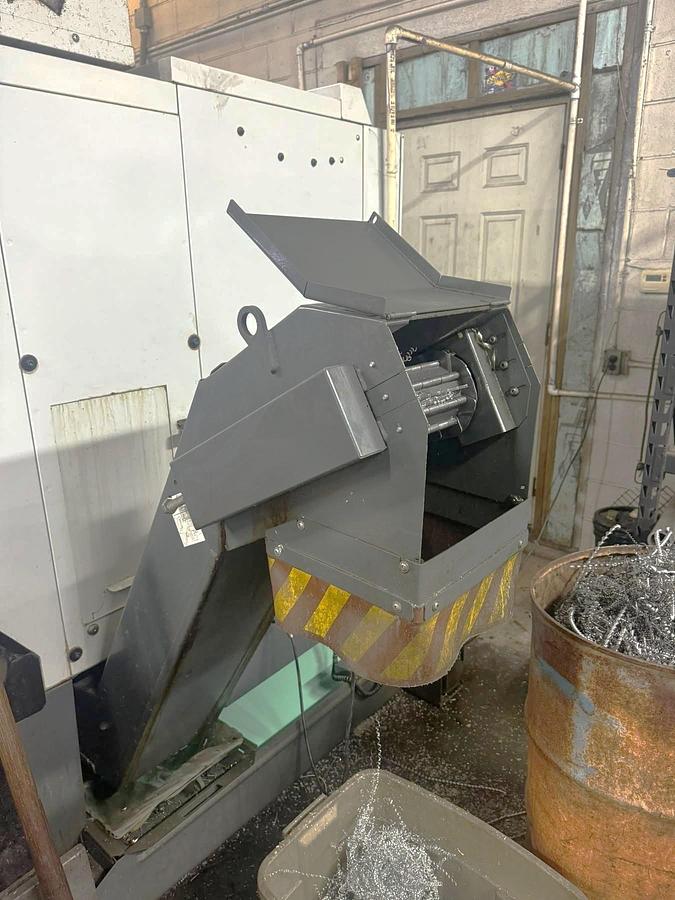

Chip Conveyor
Tool Presetter
Mist Collector

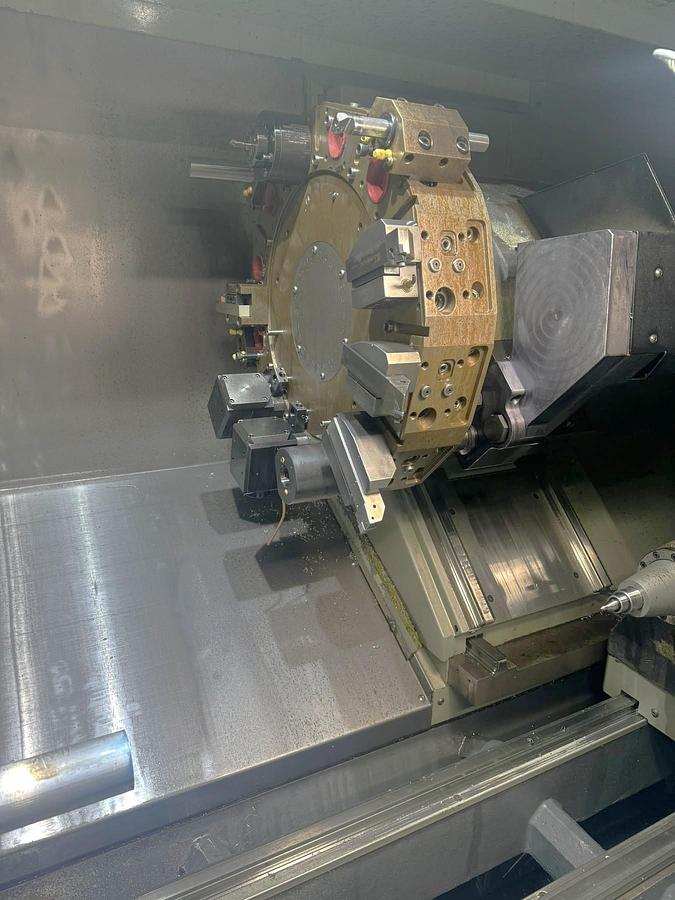

24 Station BOT/VDI Style Turret
Visual Quick Code Programming
Spindle Orientation
Rigid Tapping
Coolant System with Tank & 2 Stage Coolant Pump
Adjustable Chuck Pressure and Tailstock Pressure
High Intensity Lighting
USB Port Interface
RS 232 Port Interface
(3) Live Tool Holders
Assortment of Static Tool Blocks
Spindle Liners

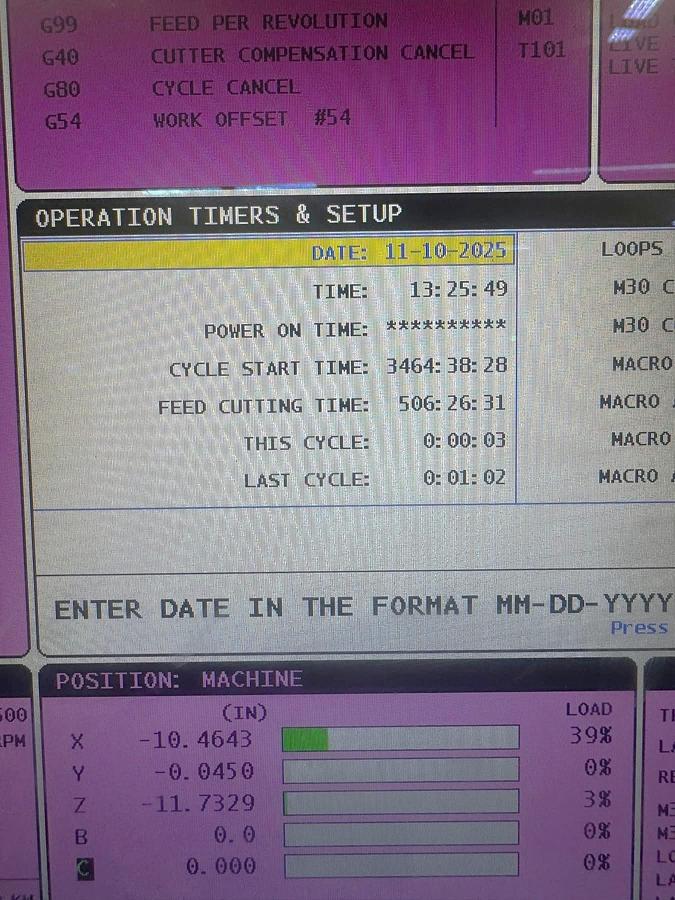

**Cycle Start Hours 3,464**
*Replacement Cost as Equipped $182,150**
Specifications
| Manufacturer | Haas |
| Model | ST-30SSY |
| Year | 2016 |
| Condition | Used |
| Stock Number | 120480 |
| Machine Control | Haas CNC Control |
| Chuck Type | 10" 3 Jaw Hydraulic |
| Maximum Swing | 31.75" |
| Maximum Turning Diameter | 16" |
| Maximum Machining Length | 23" |
| Maximum Bar Capacity | 3" |
| X-Axis Travel | 12.5" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 23" |
| C Axis Spindle Rotation | .001 Full C Axis Rotation |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 30 - 4,800 RPM |
| Spindle Motor | 30 HP |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 24 Station BOT/VDI Type |
| Rapid Traverse Rates X / Y / Z | 945 IPM / 500 IPM / 1200 IPM |
| Tailstock Body Travel / Taper | 20" / MT #4 |
| Machine Dimensions | 171" x 90" x 83" |
| Machine Weight | 13,540 lbs. |
