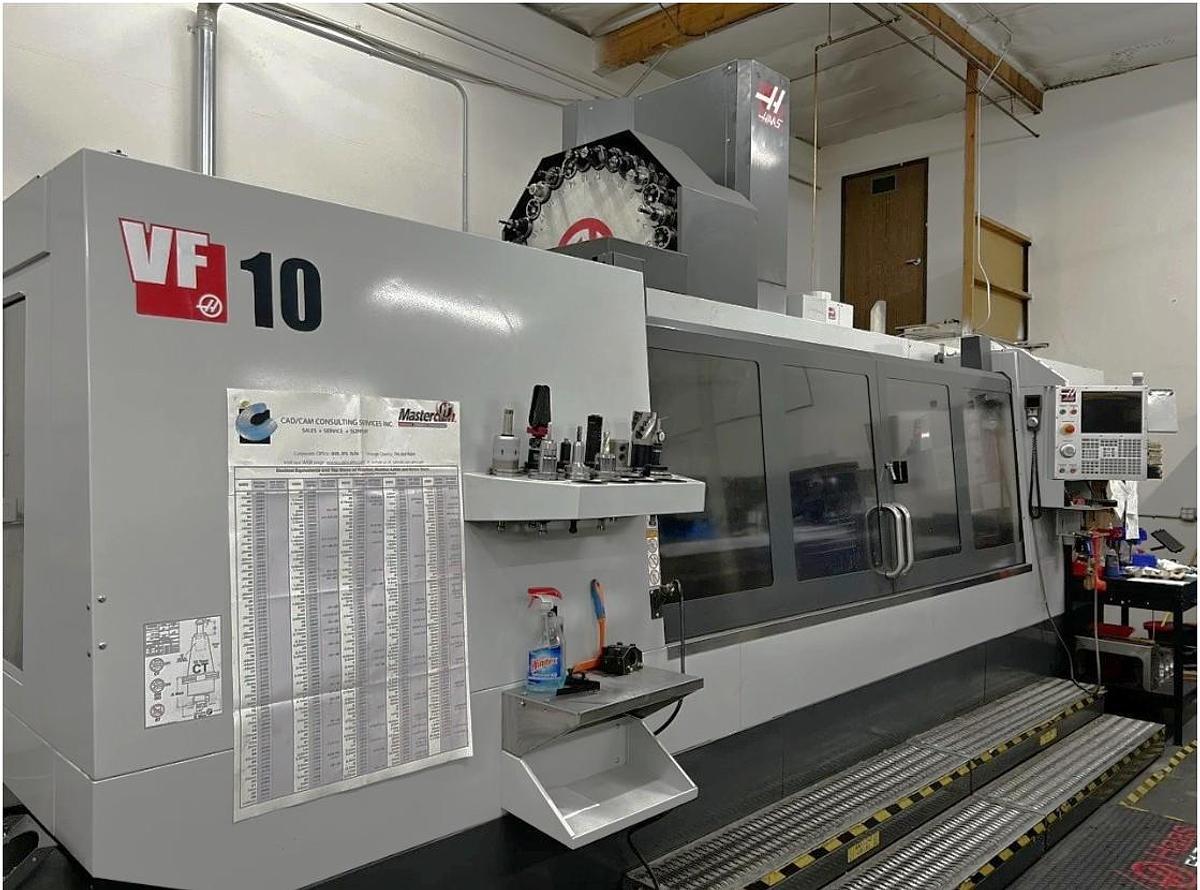

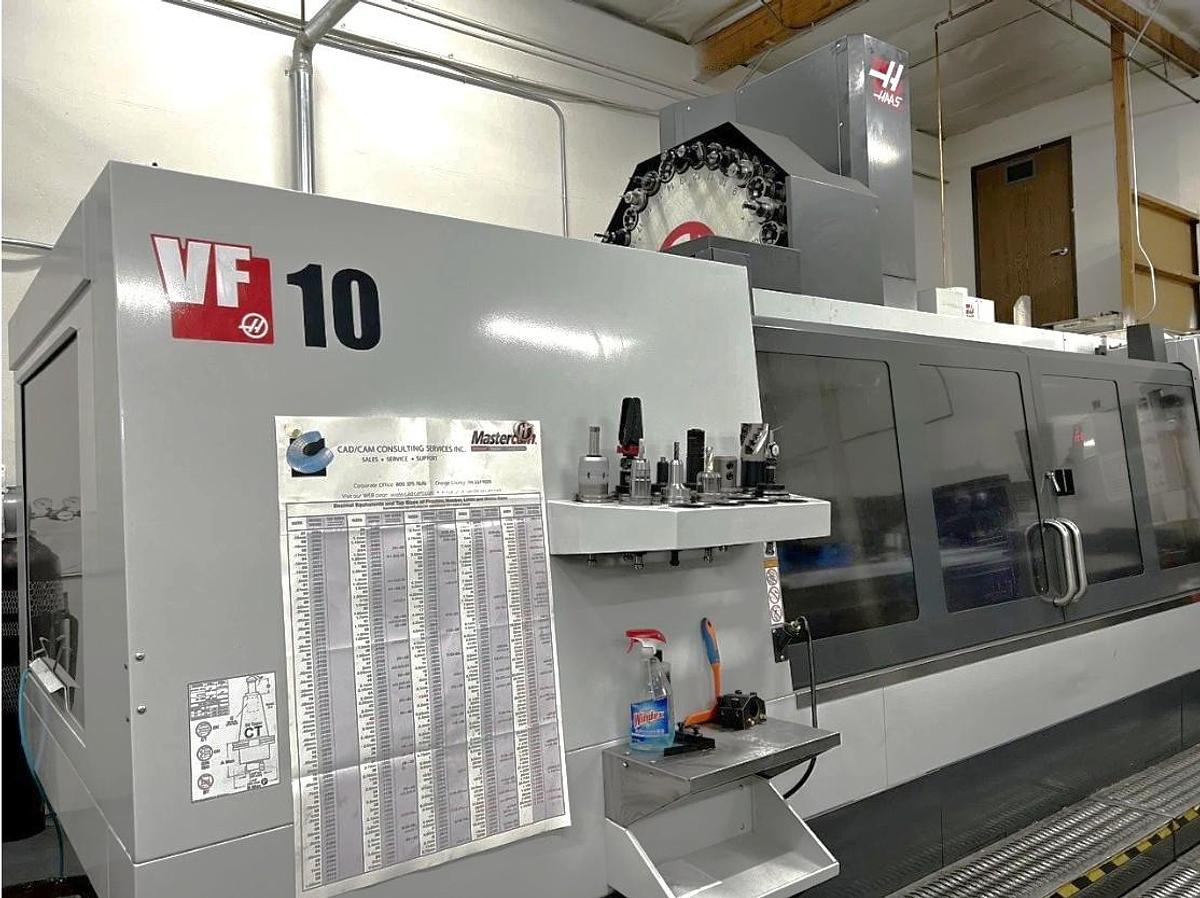

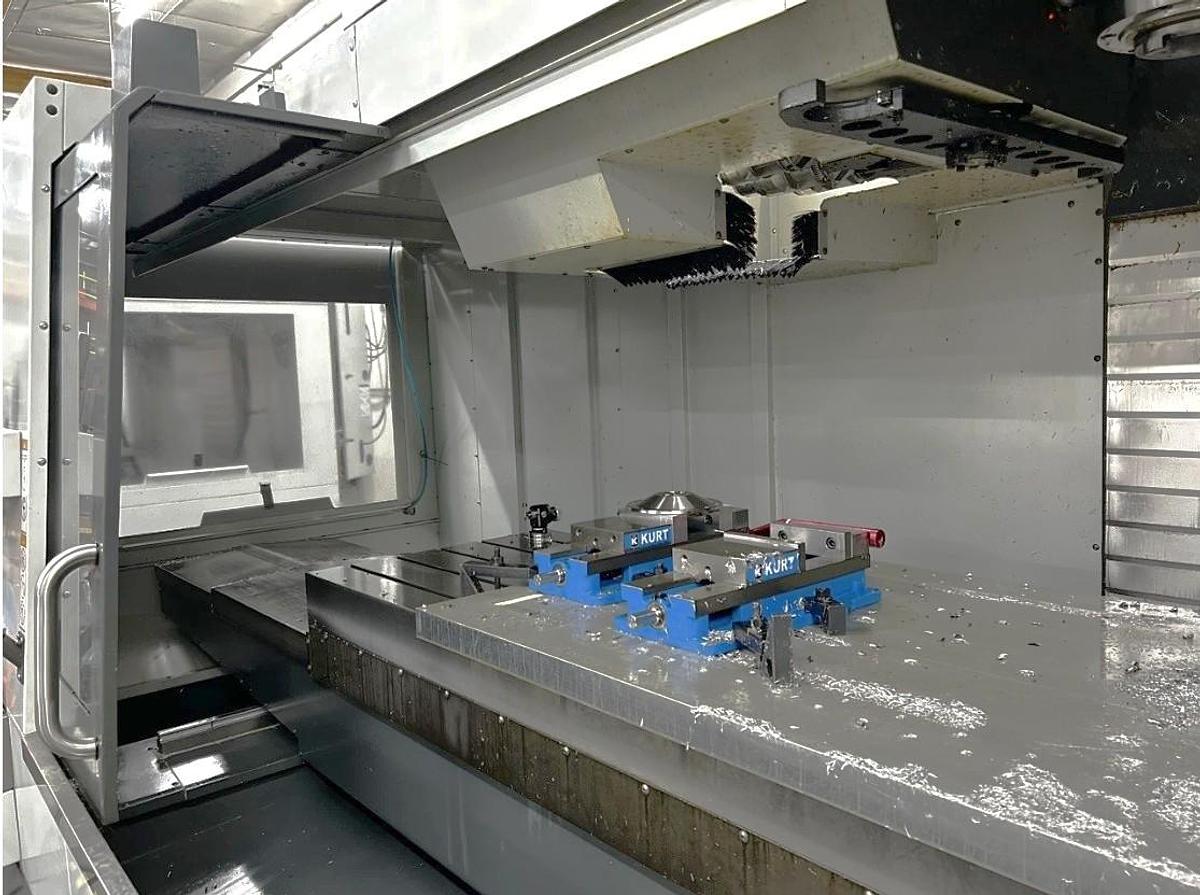

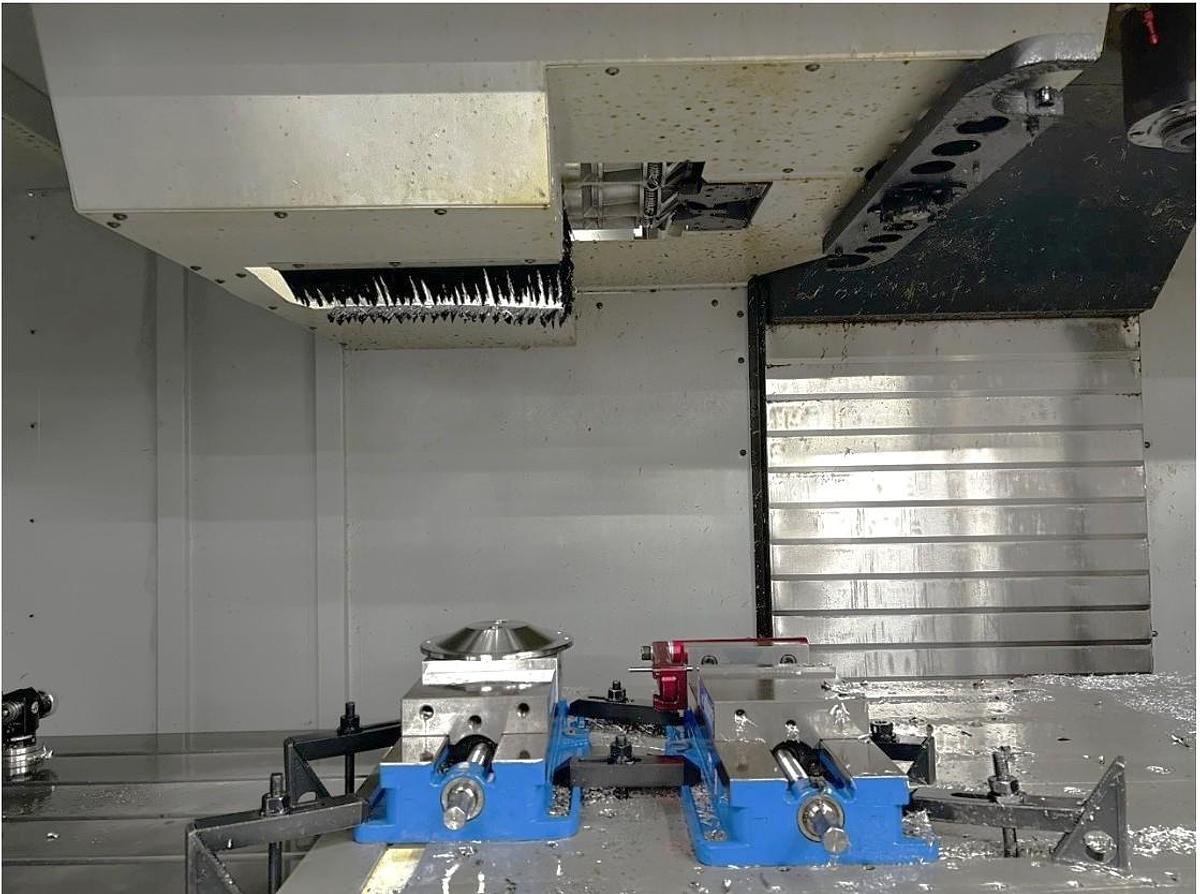

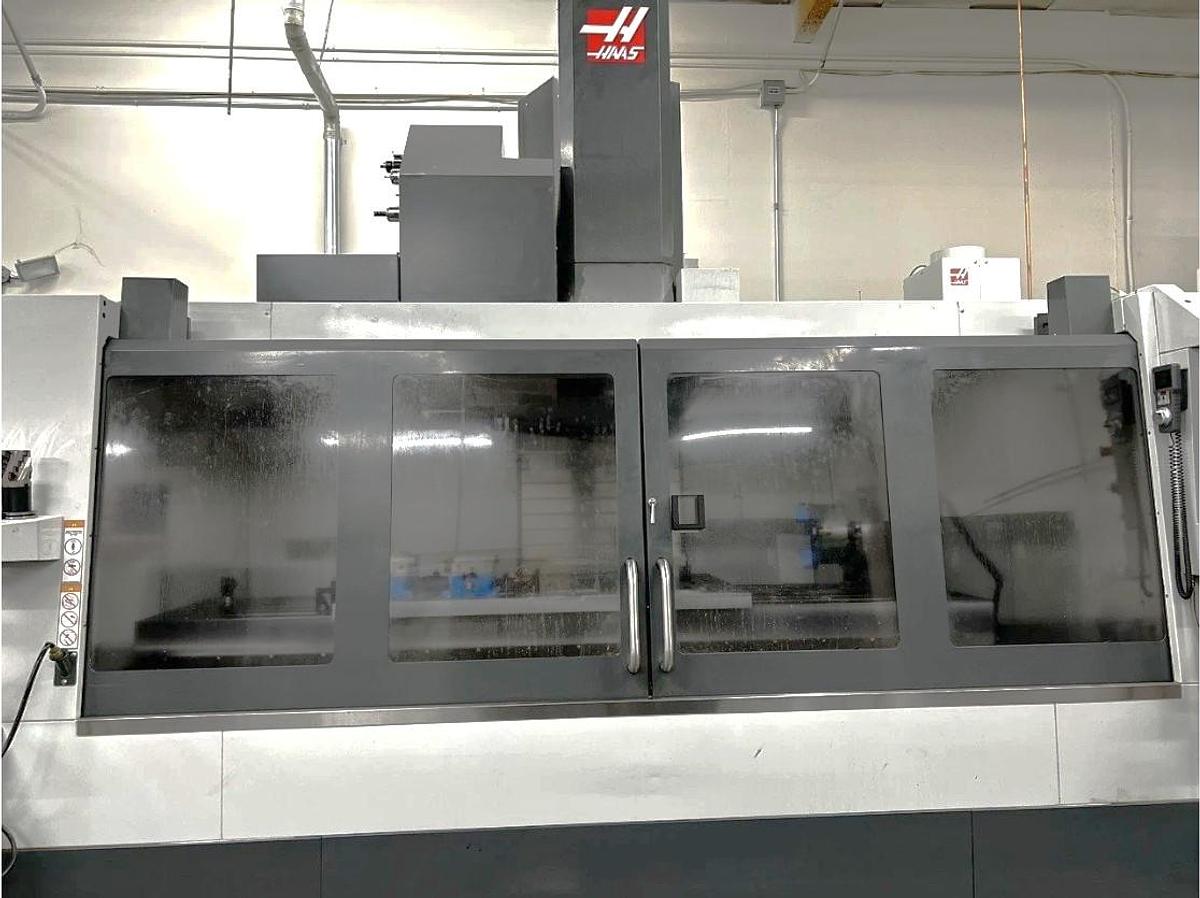

2020 Haas VF-10/50 with Haas HRT310 4th Axis Tbl, Probing, Through Spindle Coolant, 7500 RPM, CAT 50
2020 Haas VF-10/50 with Haas HRT310 4th Axis Tbl, Probing, Through Spindle Coolant, 7500 RPM, CAT 50
$199,500 (USD)
Location:California
Description
Coolant Through the Spindle
4th Axis Drive & Wiring

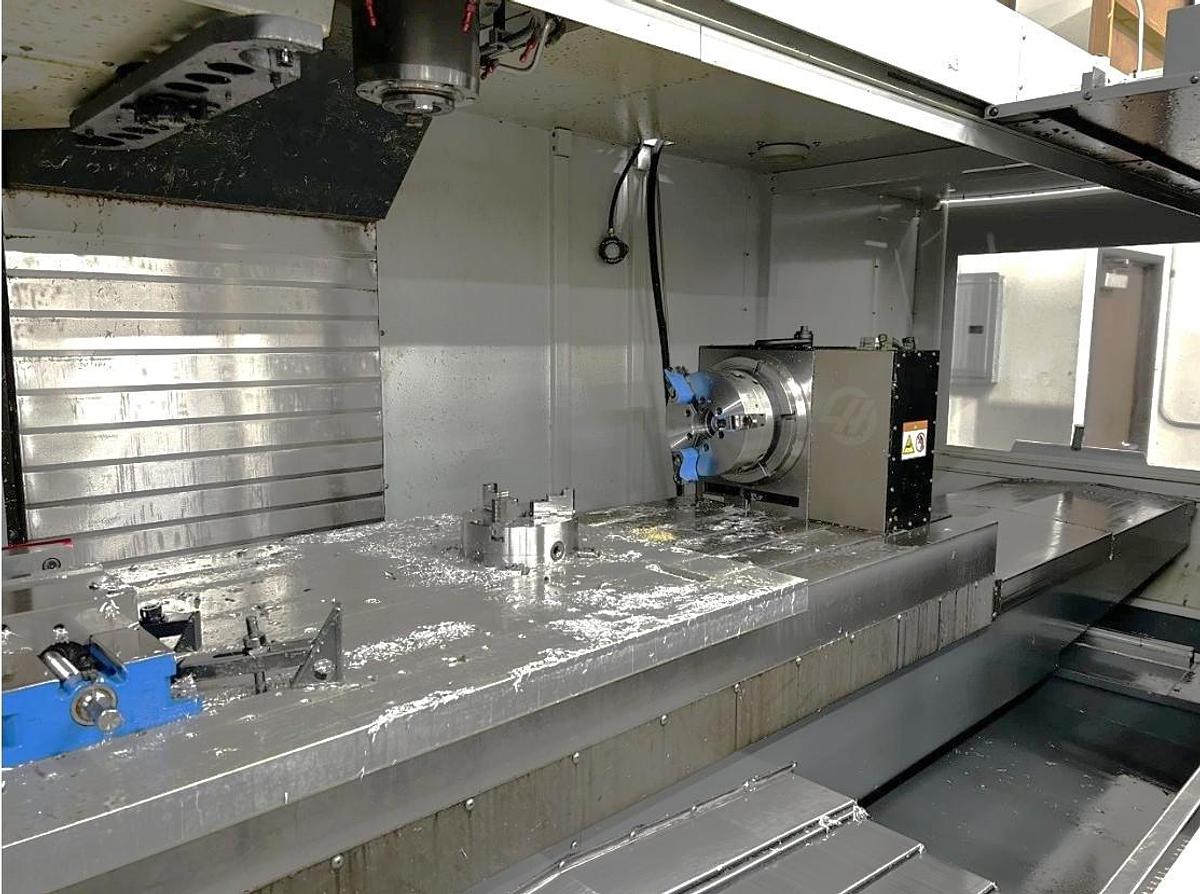

Haas HRT-310 4th Axis Rotary Table
Auger Style Chip Conveyor
Haas Intuitive Probing System
Remote Jog Handle
CNC Cabinet Cooler
Enclosure Exhaust System
High Pressure Flood Coolant
Through Tool Air Blast
High Speed Machining
Auxiliary Coolant Filter
Window Air Blast
Programmable Coolant Nozzle

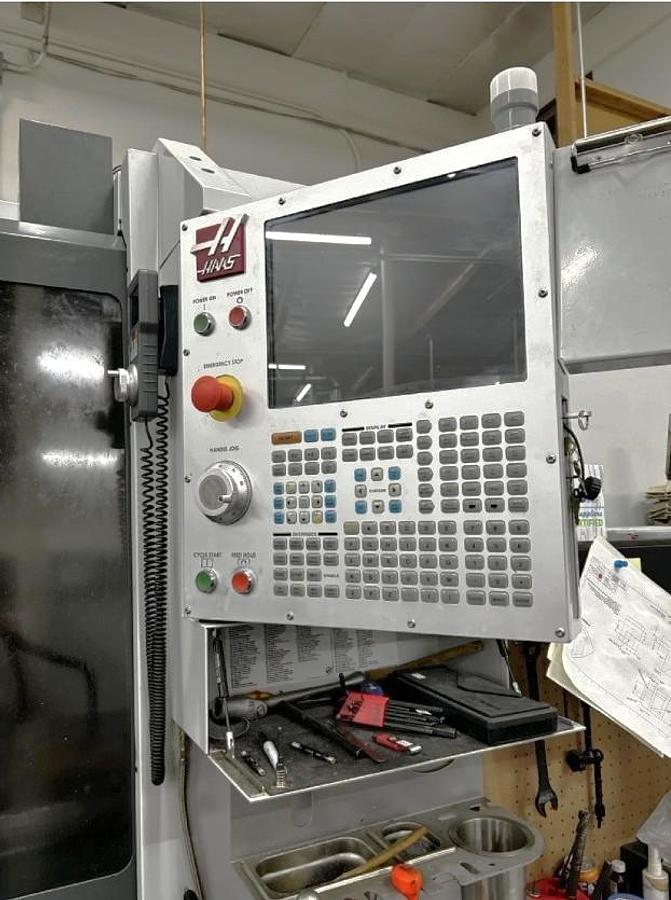

Haas Intuitive Programming System
User Definable Macros
Coordinate Rotation & Scaling
Spindle Orientation
Chip Tray Filter Kit
2 Speed Gearbox
CAT 50 Spindle Taper
1GB Programming Memory
Rigid Tapping
Media Display M-Code; M130
Lifting Provision
HaasDrop
HaasConnect: Remote Monitoring
Ethernet Interface
WiFi Connection for Haas Control
Early Power Failure Detection Module
USB Port Interface
RS 232 Port Interface
95 Gallon Coolant System with Tank & Pump
Brushless Servos

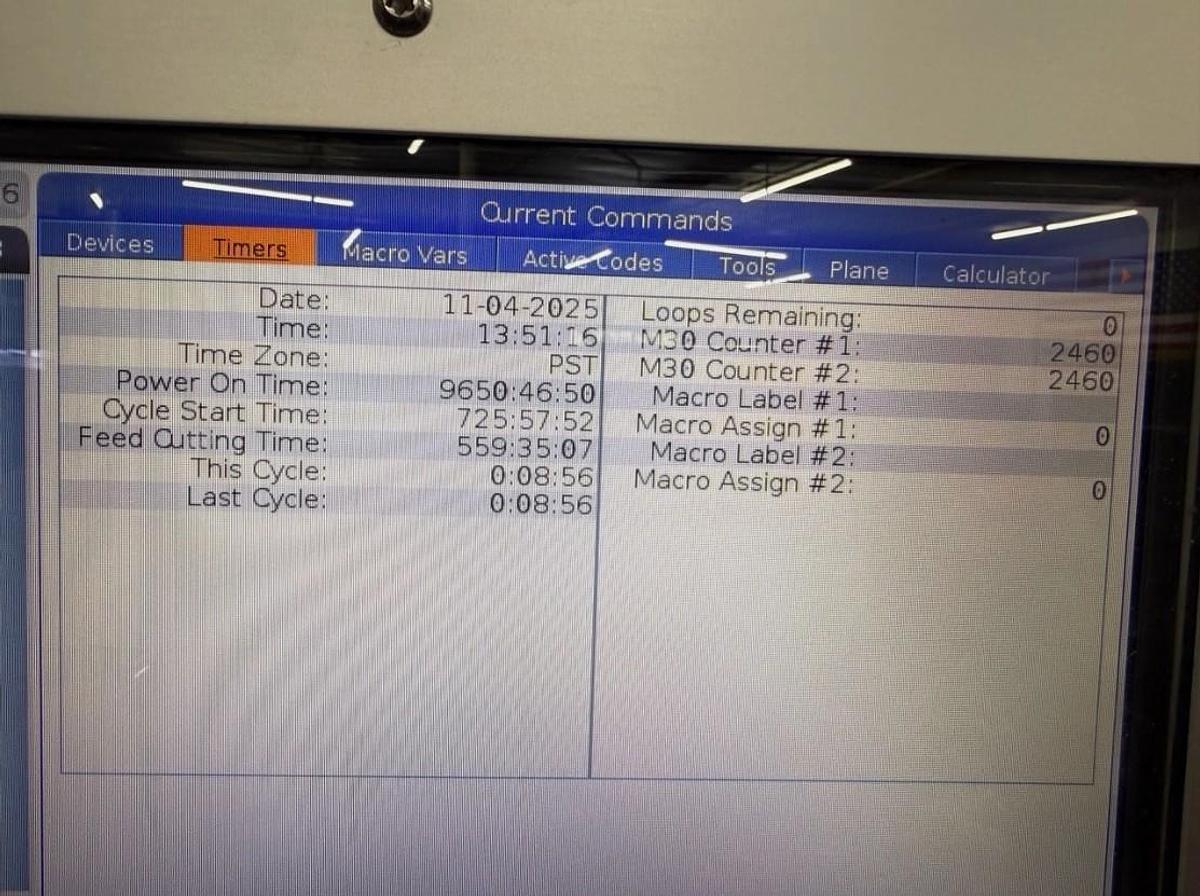

**Machine Power On Hours 9,650**
**Cycle Start Hours 725**
**Feed Cutting Hours 559**
Specifications
| Manufacturer | Haas |
| Model | VF-10/50 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 120443 |
| Machine Control | Haas CNC Control |
| Table Size | 120" x 28" |
| Maximum Table Load | 4,000 lbs |
| X-Axis Travel | 120" |
| Y-Axis Travel | 32" |
| Z-Axis Travel | 30" |
| Distance Spindle Nose to Table Top | 4" to 34" |
| Spindle Taper | CAT 50 |
| Spindle speed | 7,500 RPM - 2 Speed Gearbox |
| Spindle Motor | 30 HP |
| Tool Magazine Capacity | 30 Station Side Mounted ATC |
| Rapid Traverse Rates | 600 IPM |
| Cutting Feedrates | 500 IPM |
| Machine Dimensions LxWxH | 260"x101"x128" |
| Machine Weight | 39,000 lbs |
