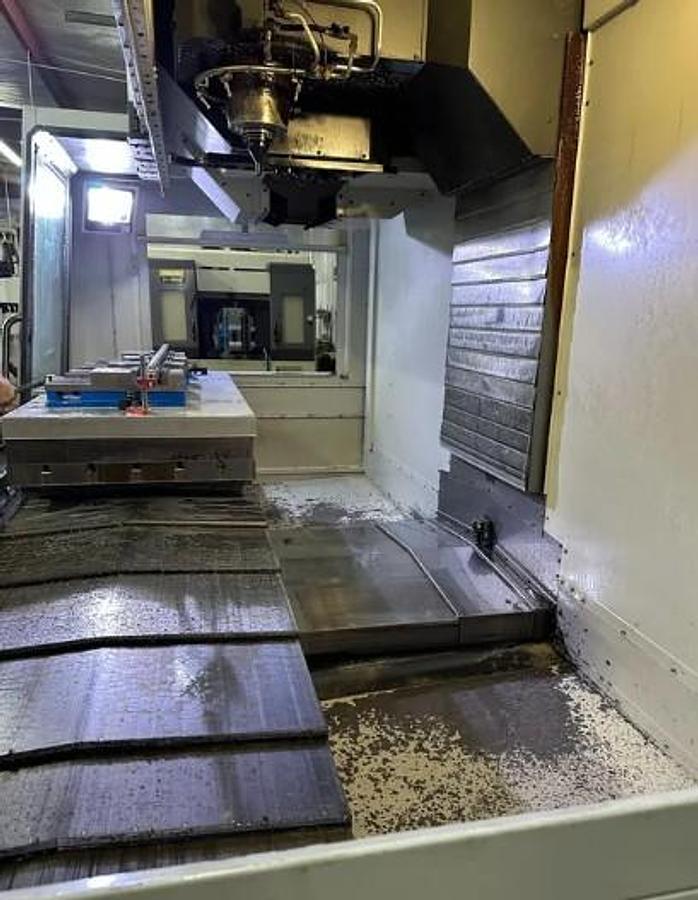

2017 Haas VF-6/50 8" Extended Z-Axis

2017 Haas VF-6/50 8" Extended Z-Axis

Contact us for price

Location:Illinois

or
Call (863) 439-6066

Description

8" Extended Z-Axis Column

Pre-wired for 4th/5th Axis

Haas HRT-310 4th Axis Rotary Table

30 Station Side Mounted Tool Changer

Auger Style Chip Conveyor

Remote Jog Handle

Programmable Coolant Nozzle

2 Speed Gear Box

USB Port Interface

RS 232 Port Interface

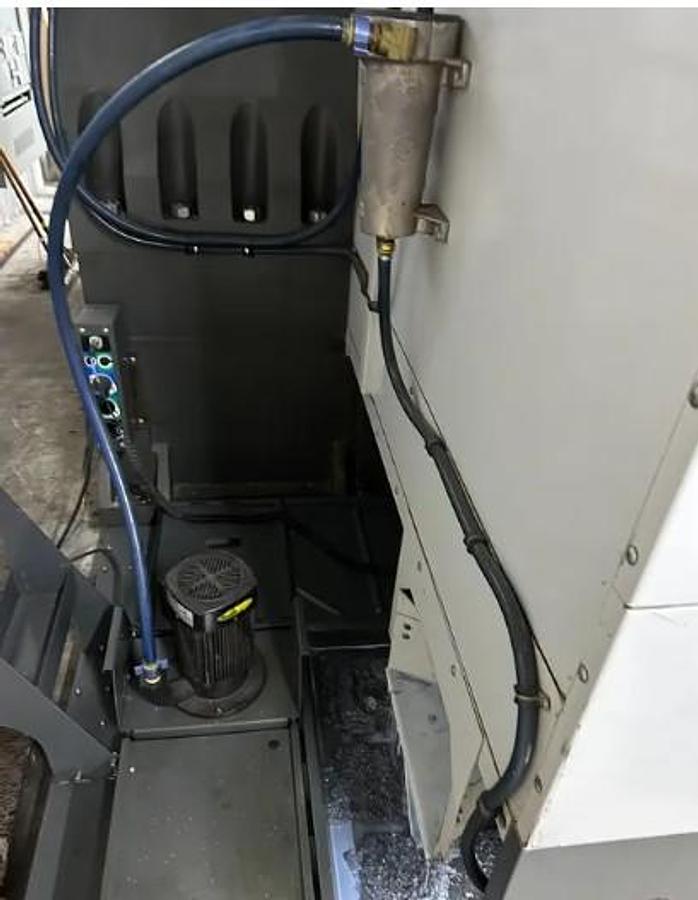

Coolant System with Tank & Pump

(100) CAT 50 Tool Holders

Show All

Specifications

ManufacturerHaas
ModelVF-6/50 8" Extended Z-Axis
Year2017
ConditionUsed
Stock Number120441
Machine ControlHaas CNC Control
Table size64"x28"
Maximum Table Load4,000 lbs
X-Axis Travel64"
Y-Axis Travel32"
Z-Axis Travel30"
Spindle TaperCAT 50
Spindle Motor30 hp
Spindle Speeds7,500 RPM - 2 Speed Gearbox
Distance Spindle Nose to Table Top5"-35" (standard) This one is 13"-43"
Tool Magazine Capacity30 Position Side Mounted ATC
Rapid Traverse Rates X, Y / Z540 ipm, 540 ipm / 600 ipm
Machine Dimensions LxWxH195"x102"x131.5"
Machine Weight25,800 lbs
