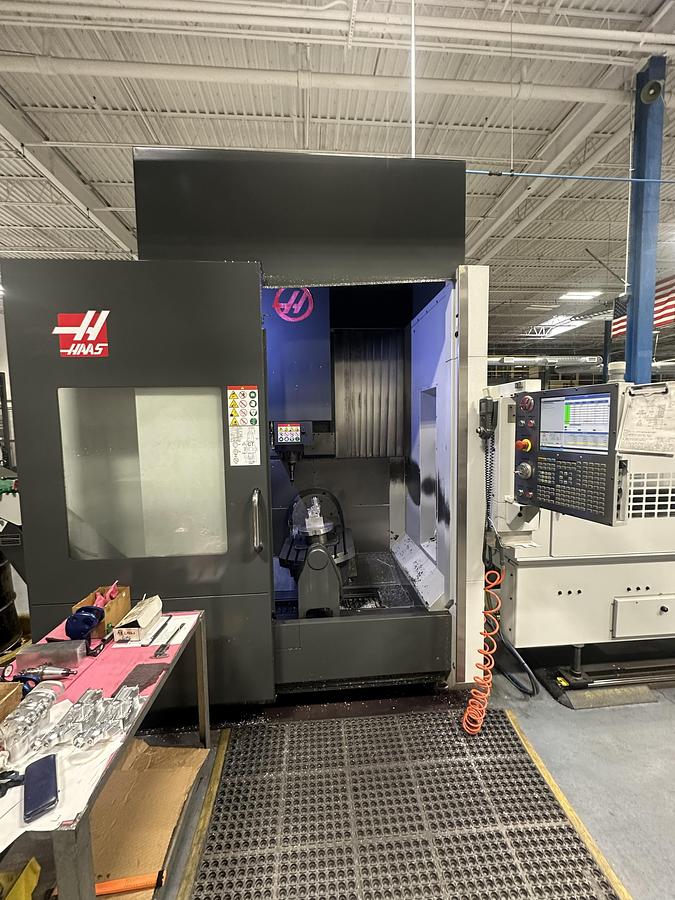

2016 Haas UMC-750SS with Midaco 19 Pallet Changer System, Coolant Through Spindle, 15,000 RPM, Probing, 40 Position ATC
2016 Haas UMC-750SS with Midaco 19 Pallet Changer System, Coolant Through Spindle, 15,000 RPM, Probing, 40 Position ATC
$150,000 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description

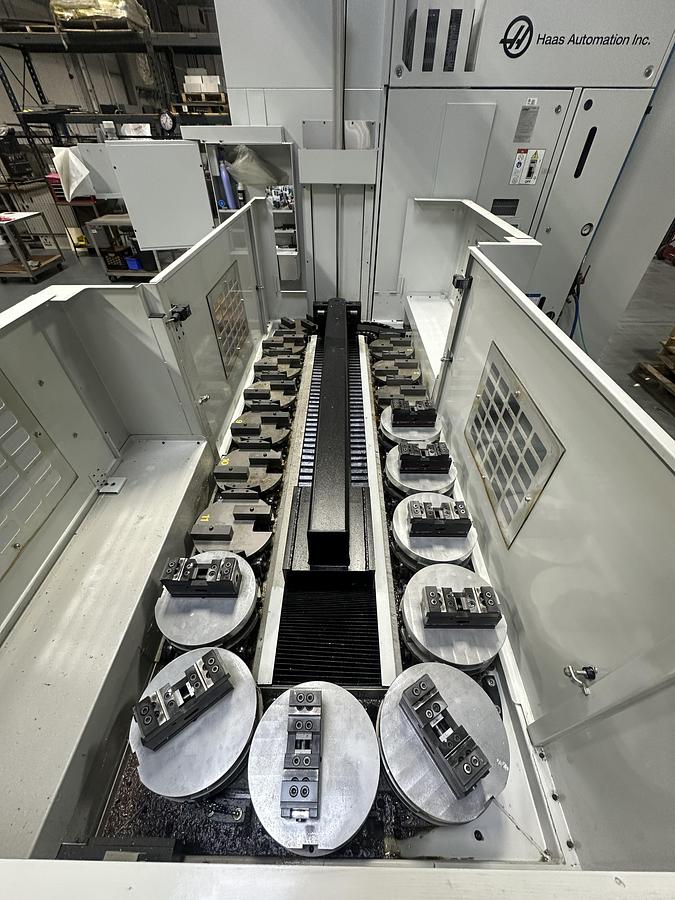

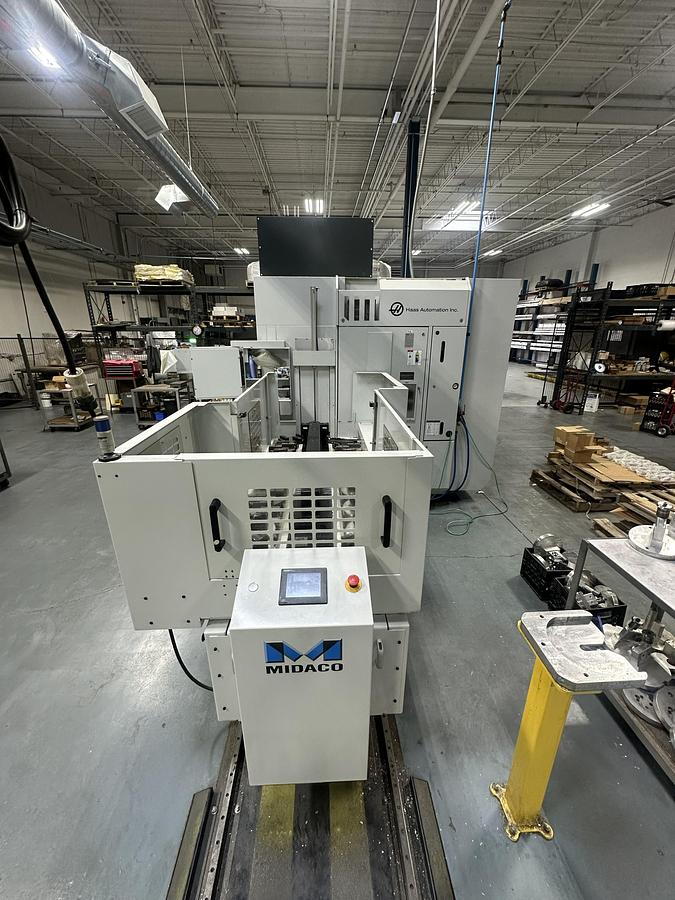

Midaco 19 Pallet Changer System - $125,000 Option

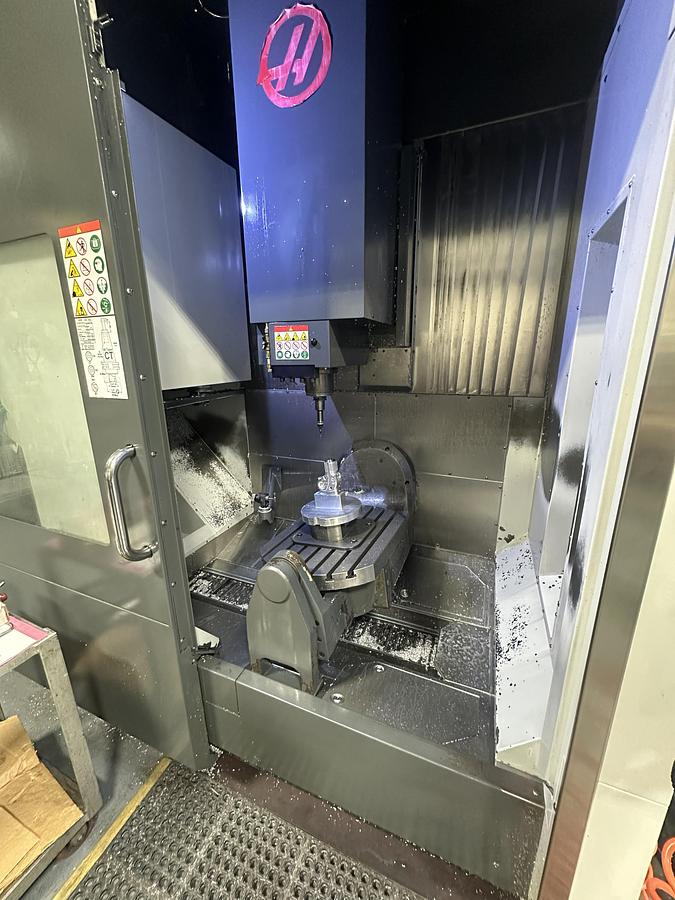

Trunnion Style 4th/5th Axis Table
Coolant Through the Spindle
15,000 RPM Spindle
Haas Wireless Intuitive Probing Package
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Intuitive Programming System
Belt Chip Conveyor-Hennig
40 Station Tool Changer
High Speed Machining
Rigid Tapping
Remote Jog Handle
TCPC and DWO
VPS Editing Capability
Media Display
Compensation Tables
1 GB Programming Storage
USB Port Interface
RS 232 Port Interface
Coolant System with Tank & Pump
Wired 220V Electrics
**Manufactured New in December of 2016**
**Used to manufacture parts for military contractor and aerospace industries**
Specifications
| Manufacturer | Haas |
| Model | UMC-750SS |
| Year | 2016 |
| Condition | Used |
| Stock Number | 120437 |
| Table Size / Number of Pallets | 19.7" x 24.8" / 19 Pallets |
| Table load capacity | 660 lbs |
| X axis travel | 30" |
| Y axis travel | 20" |
| Z axis travel | 20" |
| B axis rotate of trunnion | -35 Degrees to 110 Degrees |
| C axis table rotation | .001 Degree Positioning |
| Spindle taper | CAT #40 |
| Spindle speed | 15,000 RPM |
| Spindle motor | 30 HP |
| Distance Spindle Nose to Table Top | 4" - 24" |
| Tool magazine | 40 + 1 Position Toolchanger |
| Maximum Tool Diameter / Length / Weight | 5" / 12" / 12 lbs. |
| Rapid traverse rates | 1200 IPM |
| Maximum feed rates | 650 IPM |
| Machine dimensions | 157" x 94" x 101" |
| Machine weight | 19,100 lbs |
