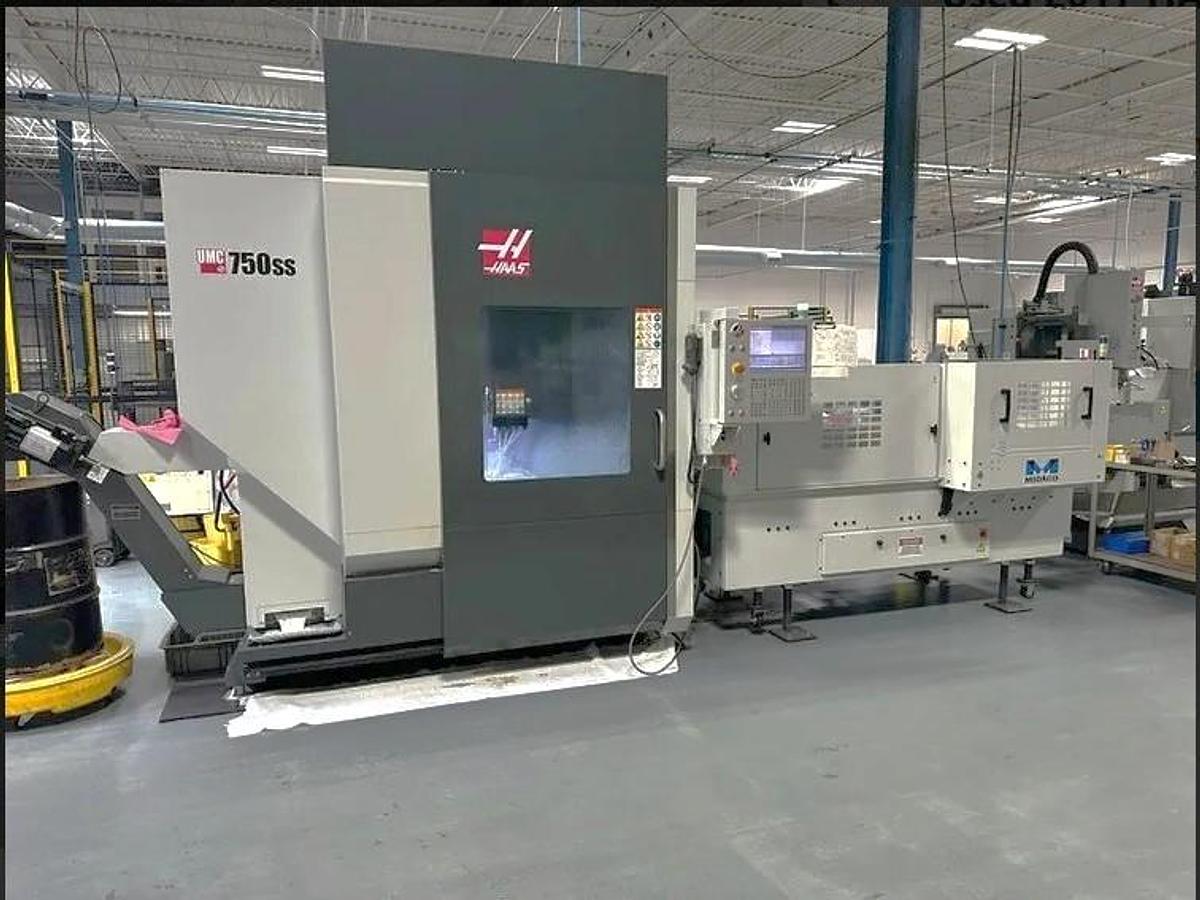

2016 Haas UMC-750SS with Midaco 19 Pallet Changer System, Coolant Through Spindle, 15,000 RPM, Probing, 30 Position ATC

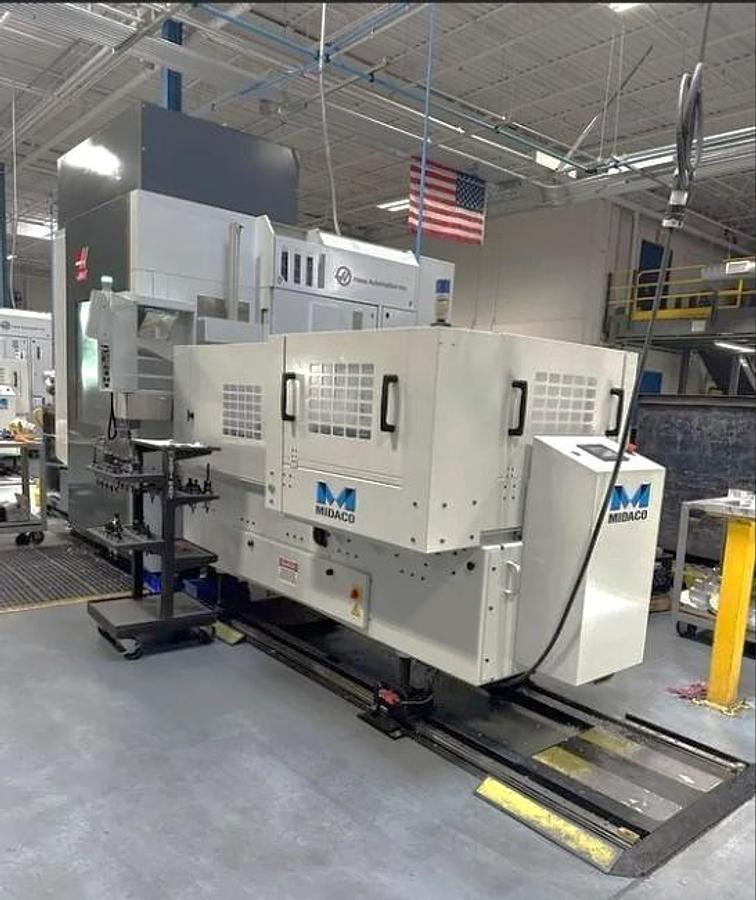

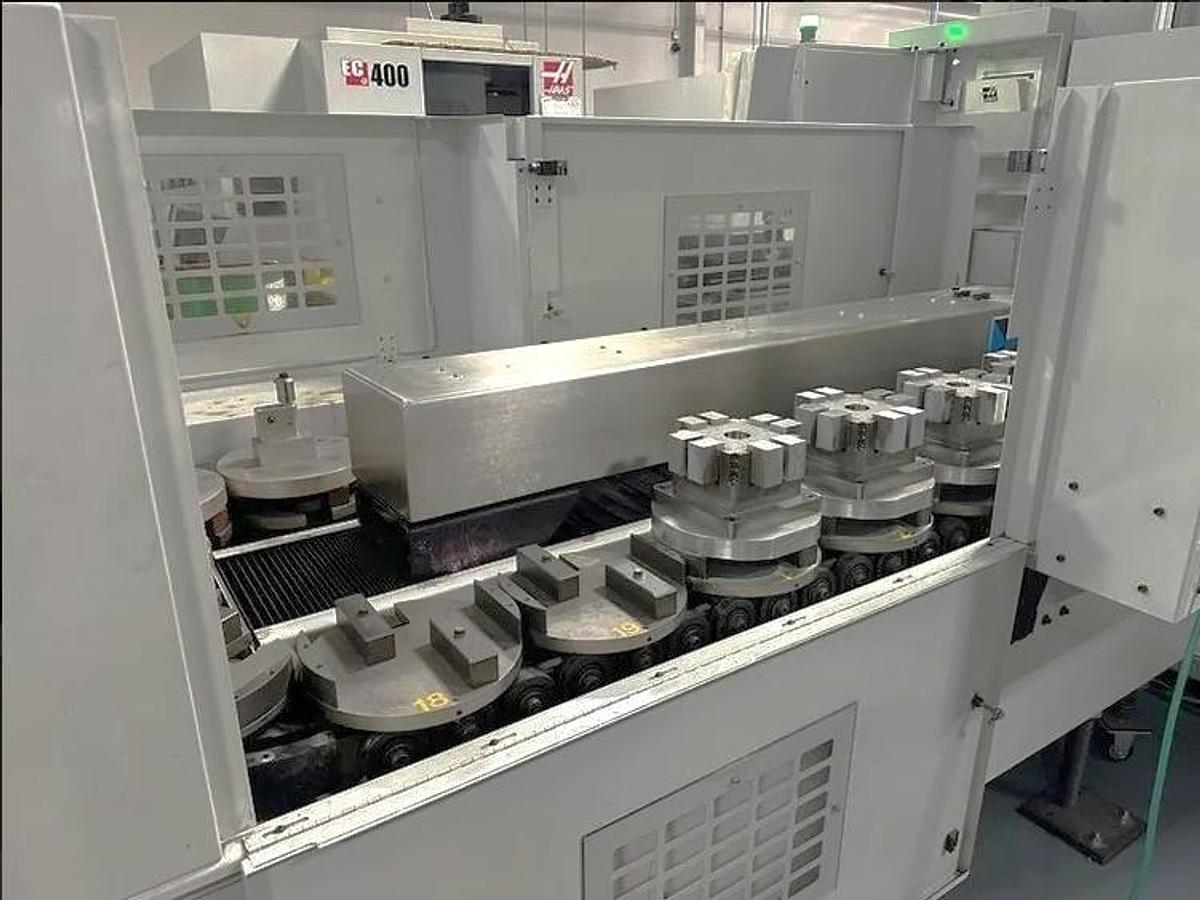

Midaco 19 Pallet Changer System - $125,000 Option

Trunnion Style 4th/5th Axis Table

Coolant Through the Spindle

15,000 RPM Spindle

Haas Wireless Intuitive Probing Package

Spindle Orientation

Coordinate Rotation & Scaling

User Definable Macros

Haas Intuitive Programming System

Belt Chip Conveyor-Hennig

30 Station Tool Changer

High Speed Machining

Rigid Tapping

Remote Jog Handle

TCPC and DWO

VPS Editing Capability

Media Display

Compensation Tables

1 GB Programming Storage

USB Port Interface

RS 232 Port Interface

Coolant System with Tank & Pump

Wired 220V Electrics

**Manufactured New in December of 2016**

**Used to manufacture parts for military contractor and aerospace industries**

The 2016 Haas UMC-750SS is a high-performance 5-axis CNC vertical machining center equipped with a Midaco 19 pallet changer system. This versatile machine features a 15,000 RPM spindle with coolant-through capability and a powerful 30 HP motor, making it ideal for high-speed, precise machining tasks. The CAT #40 spindle taper supports a wide range of tooling, and the 30 + 1 position tool changer allows for efficient operations and reduced downtime. The UMC-750SS provides comprehensive travel across its axes, with 30 inches on the X-axis, 20 inches on both the Y and Z axes, and advanced positioning with a B-axis trunnion rotate from -35 to 110 degrees, and C-axis table rotation with .001-degree precision. The machine’s table measures 19.7" x 24.8" and can accommodate a load of up to 200 lbs. Rapid travels are achieved at rates of up to 1200 IPM and feed rates up to 650 IPM, ensuring swift and accurate machining. This CNC machining center, constructed with robust dimensions of 240" x 132" x 110" and a weight of 23,000 lbs, is built for durability and stability. Featuring probing capabilities, it offers precise setup and quality verification, making it a valuable asset for complex machining projects that demand precision and efficiency.
