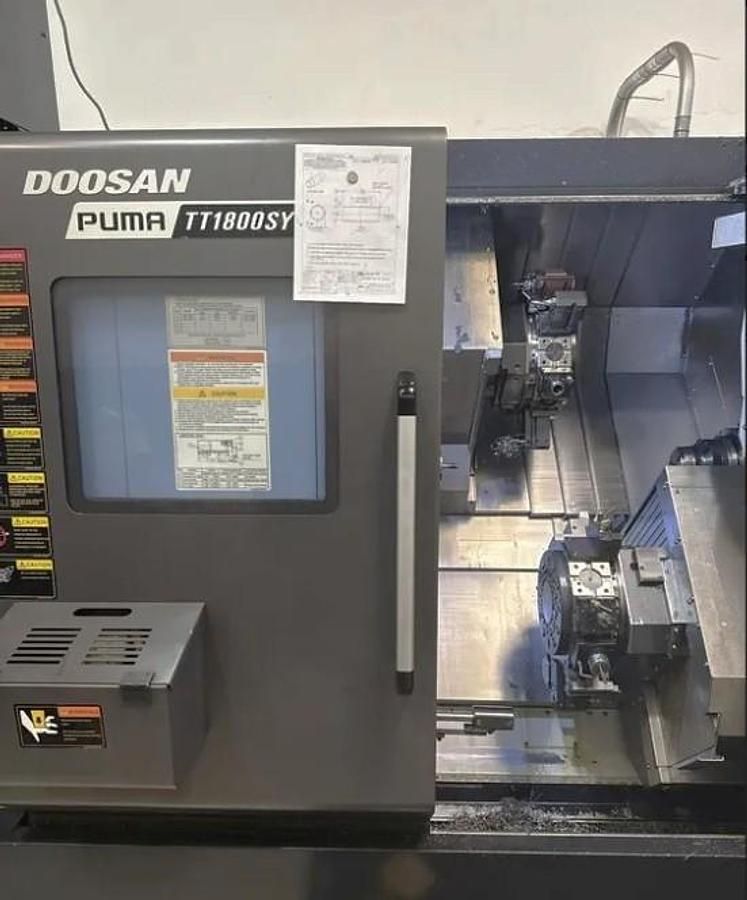

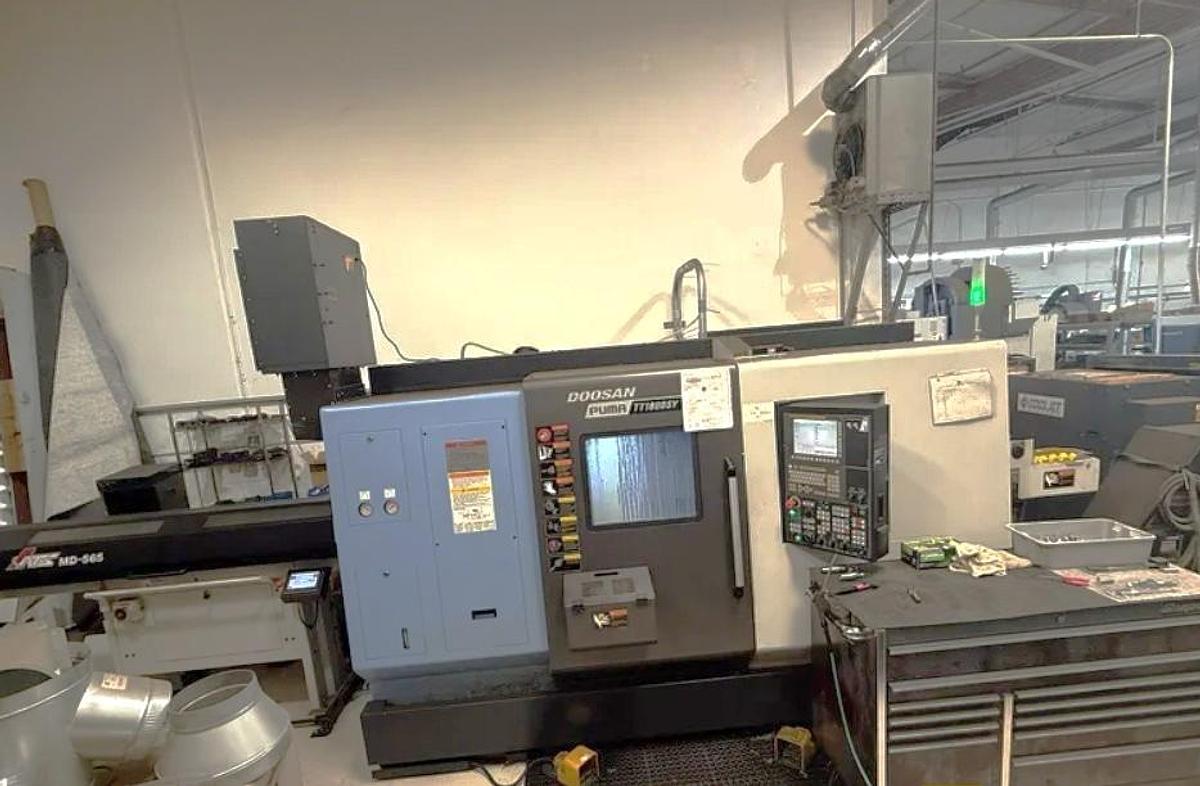

2016 Doosan Puma TT1800SY with Twin Spindle/Twin Turret, Y Axis Mill Turn Lathe, ATS MD-565 Barfeed, Chip Conv., Parts Catcher
2016 Doosan Puma TT1800SY with Twin Spindle/Twin Turret, Y Axis Mill Turn Lathe, ATS MD-565 Barfeed, Chip Conv., Parts Catcher
$139,500 (USD)
Location:California
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation - Both Spindles

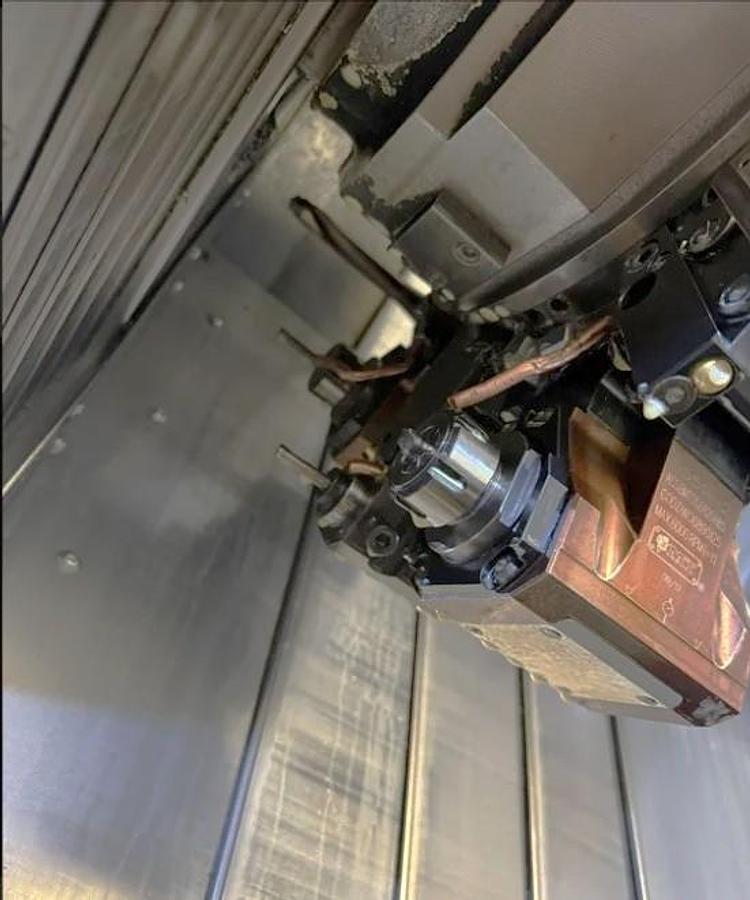

Live Milling/Drilling Capability - Both Turrets Y Axis Capability on Upper Turret

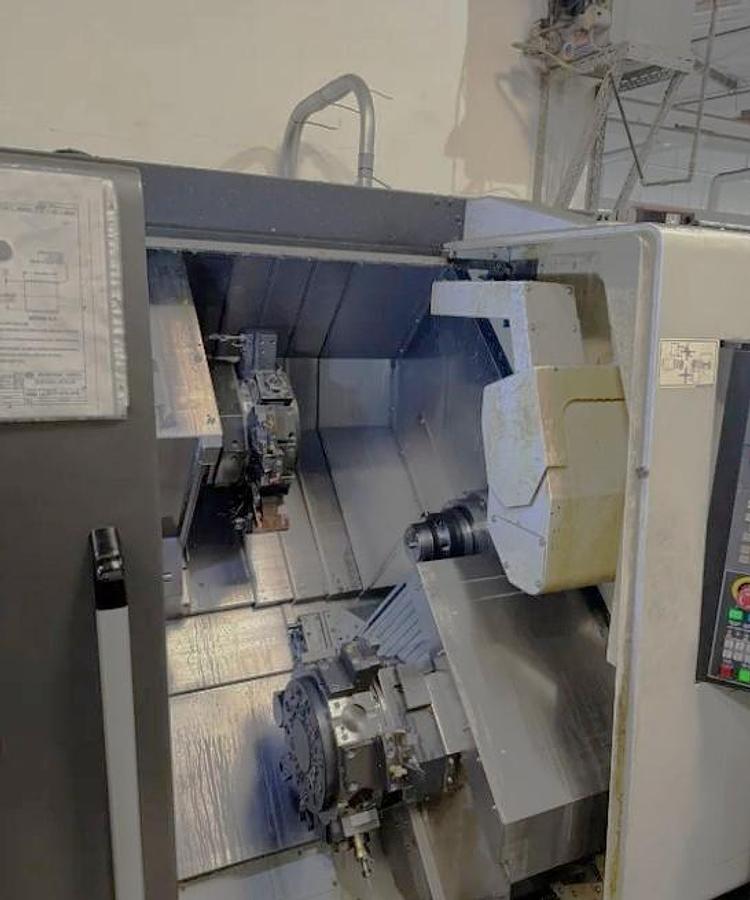

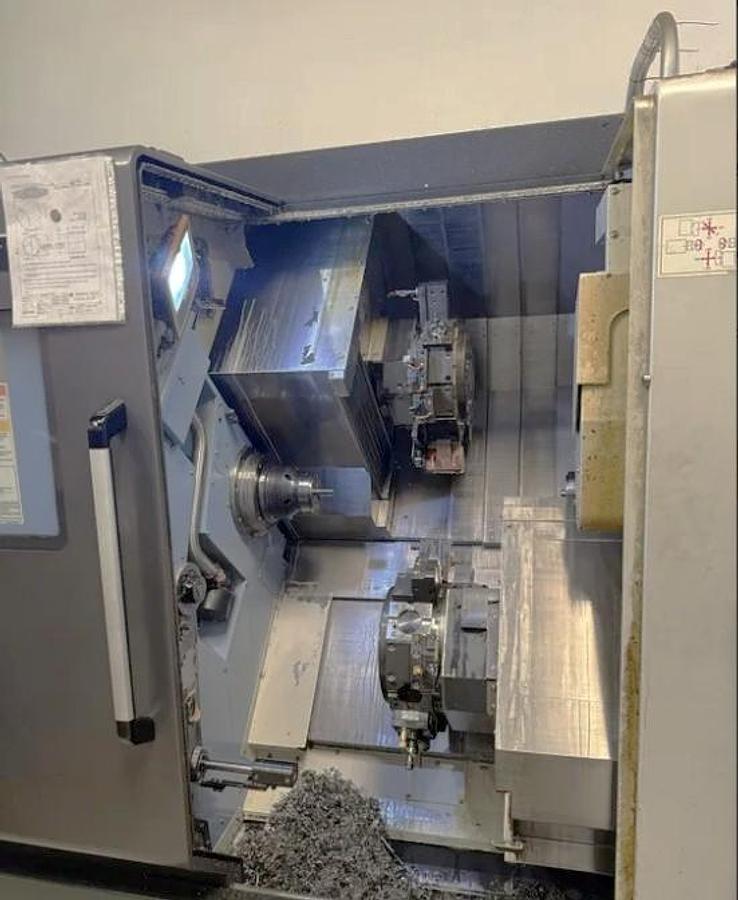

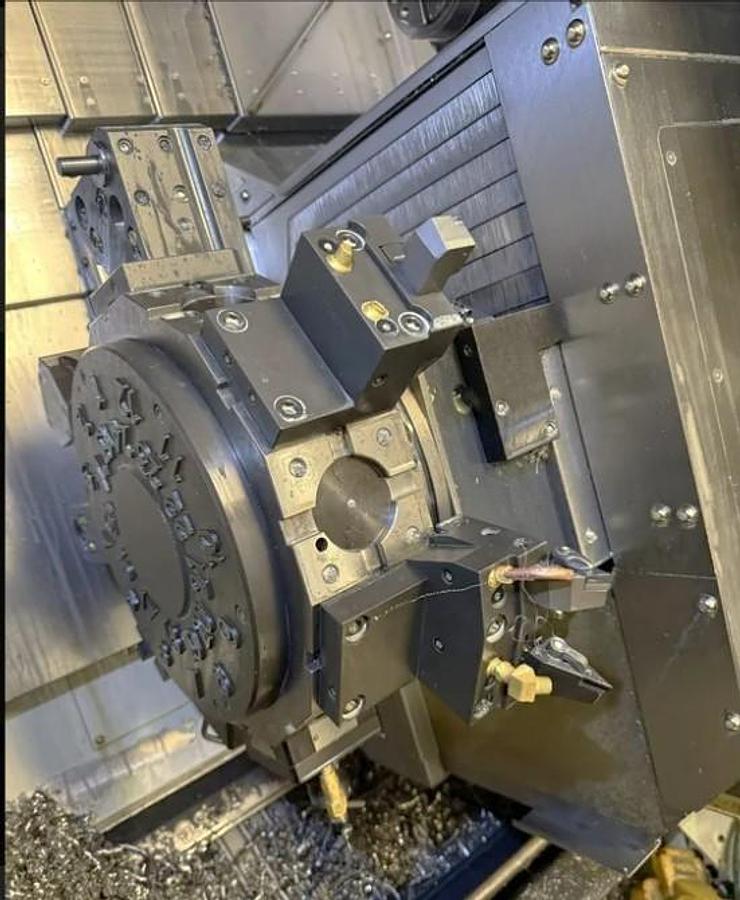

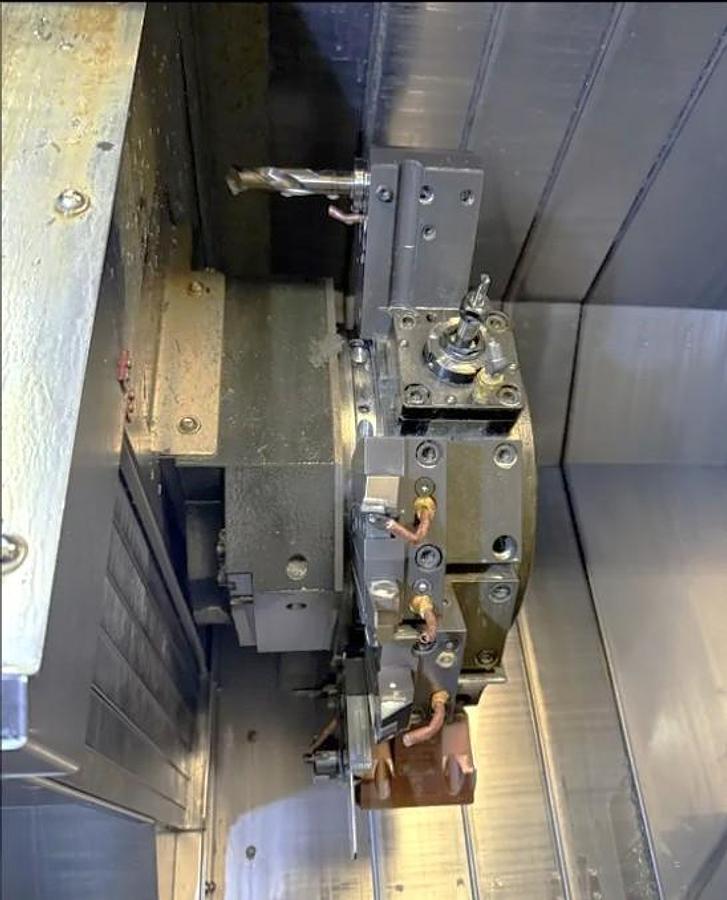

Twin Turret Design with Upper and Lower Turrets
Dual Spindle Design

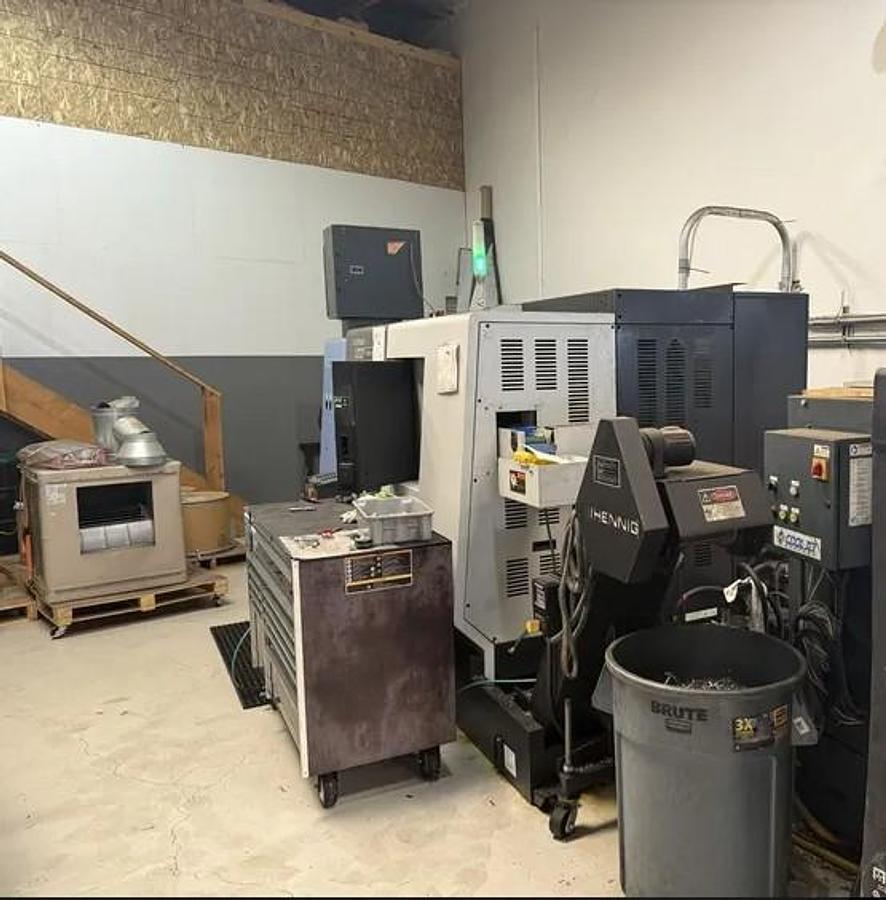

ATS MD-565 Short Load Barfeeder
CoolJet High Pressure Coolant System

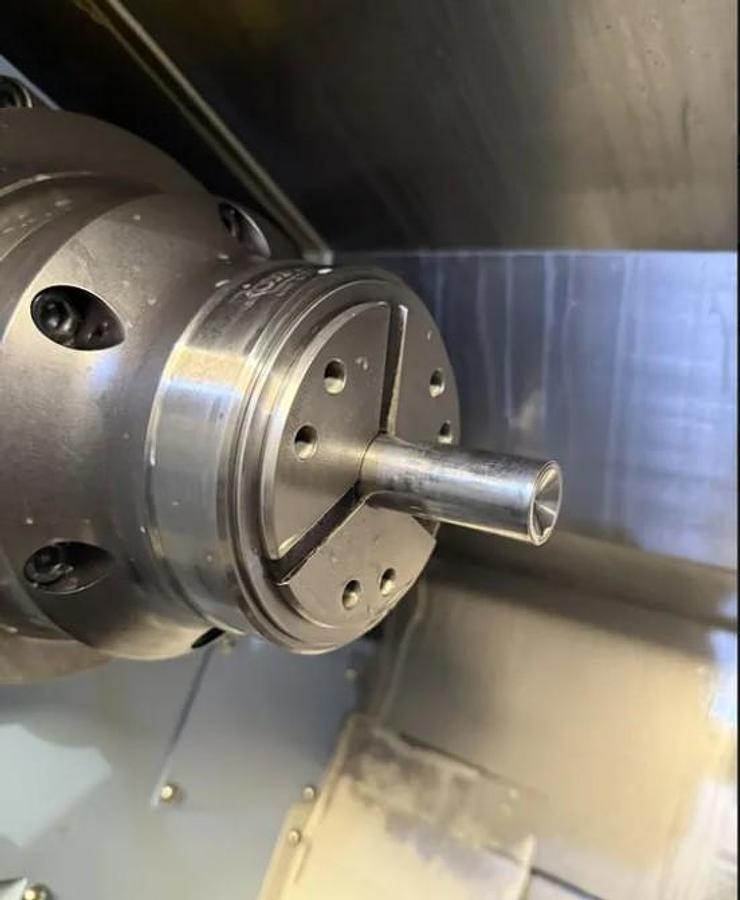

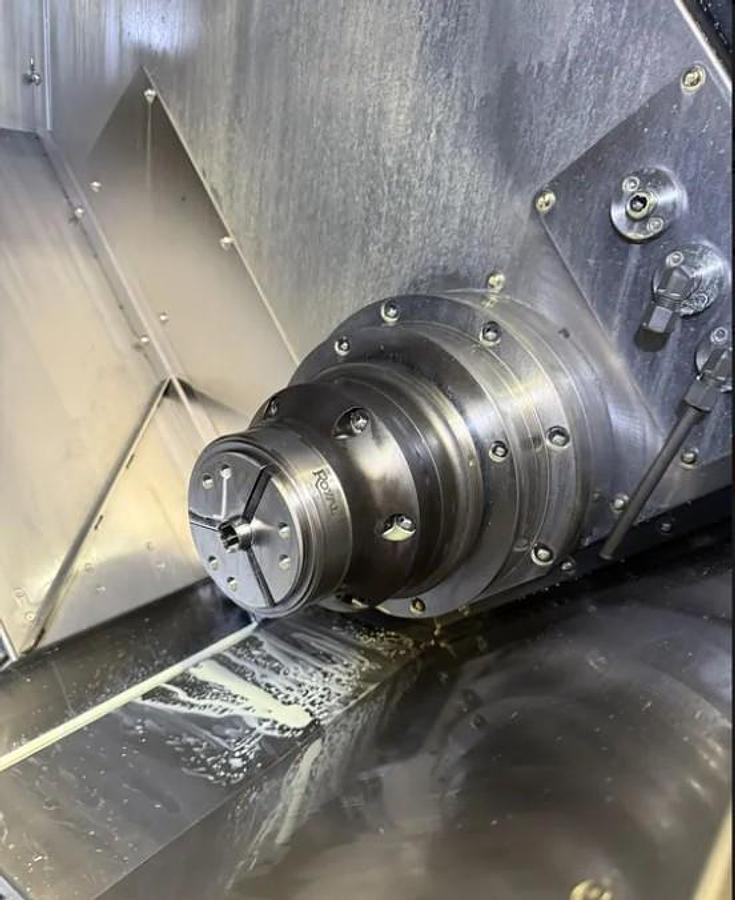

Royal Collet Chucks on both Spindles
Tool Presetter
Parts Catcher
Parts Exit Conveyor
Chip Conveyor
Ethernet Interface
PCMCIA Card Interface RS 232 Port Interface
3 Color Machine Status Condition Lights
Boxed Ways
Coolant Tank with Pump
Specifications
| Manufacturer | Doosan |
| Model | Puma TT1800SY |
| Year | 2016 |
| Condition | Used |
| Stock Number | 120436 |
| Control | Fanuc 31i Model B Control |
| Chuck Size | Royal Collet Chucks Both Spindles |
| Maximum Swing over Bed | 9.05" |
| Maximum Cutting Diameter | 9.05" |
| Maximum Machining Length | 9.1" |
| Distance Between Spindles | 38.582" |
| Maximum Bar Capacity | 2.625" |
| X1-Axis Travel / X2-Axis Travel | 6.5" / 7.5" |
| Y-Axis Travel | 3.93" |
| Z1-Axis Travel / Z2-Axis Travel | 31.5" / 28.3" |
| C Axis Spindle Rotation | 0.001 Degrees - both Spindles |
| A-Axis Travel - Subspindle | 30.3" |
| Spindle Nose / Spindle Bore | A2-6" / 3.0" - both Spindles |
| Main & Subspindle Speeds | 5,000 RPM |
| Spindle Motor - Both Spindles | 30 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |
| Number of Turret Positions | 24 Station Turret - Each |
| Rapid Traverse Rates X / Y / Z | 787 IPM / 295 IPM / 984 IPM |
| Machine Dimensions | 154" x 82" x 98" |
| Machine Weight | 17,196 lbs. |
