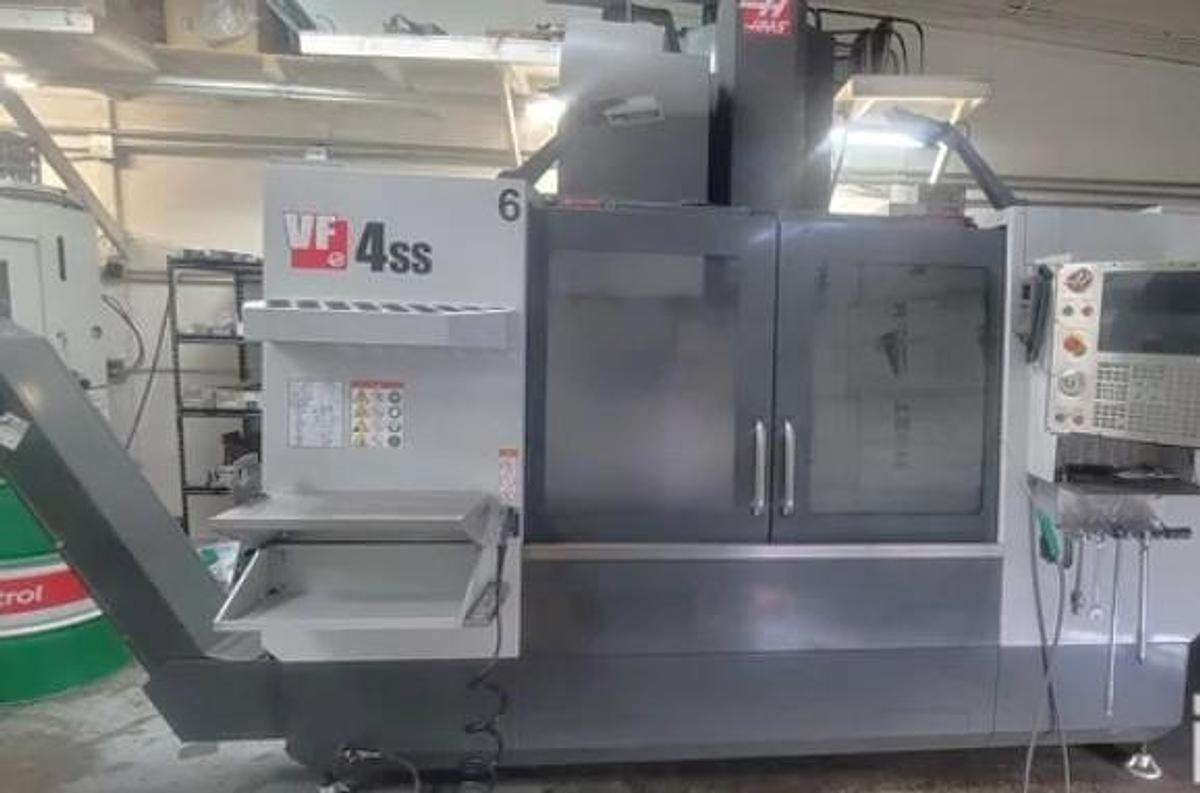

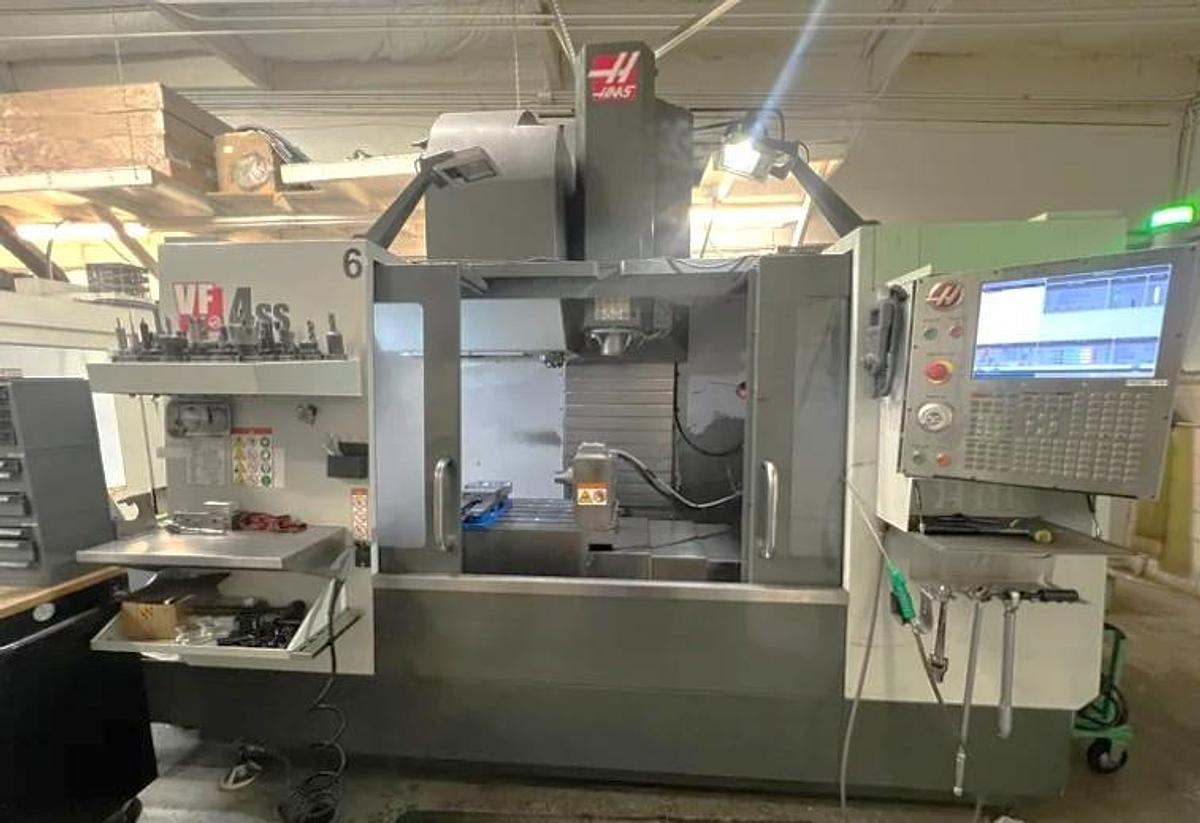

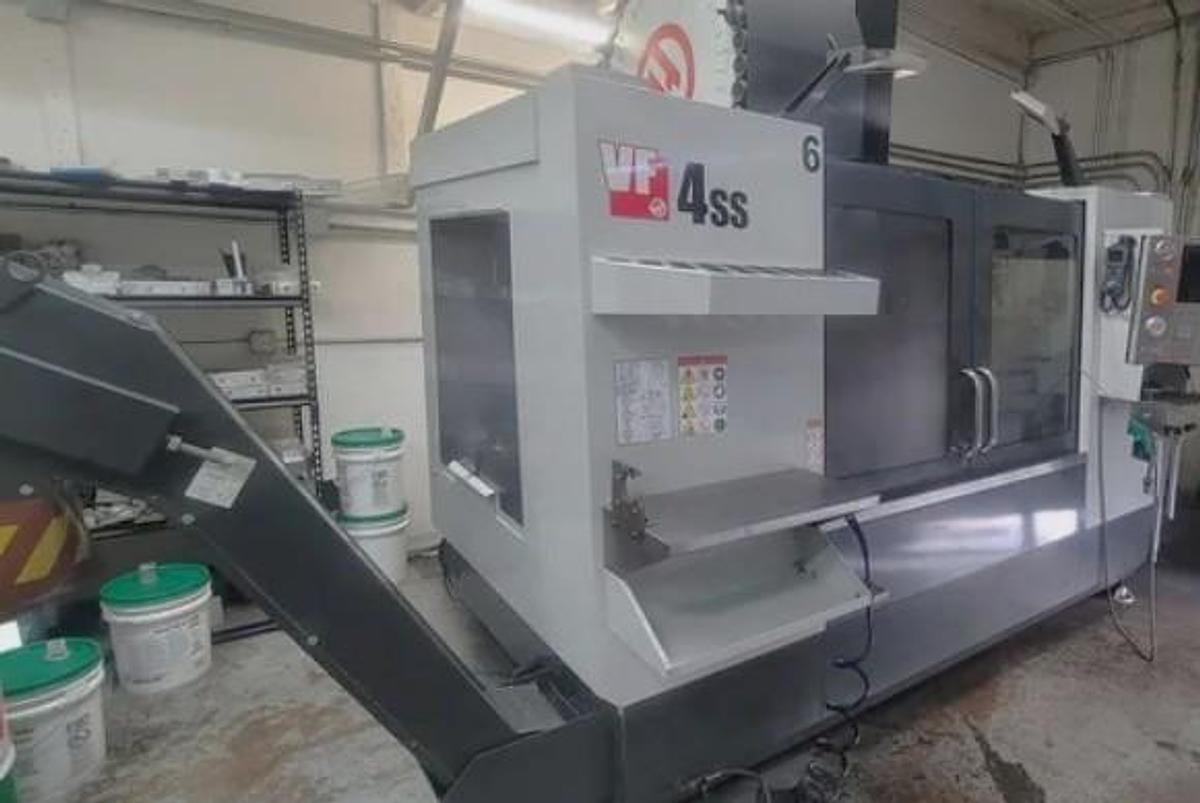

2016 Haas VF4SS with Haas HRC-160 4th Axis Rotary Table, 40 Station ATC, Renishaw Probing, Pcool, 12,000 RPM
2016 Haas VF4SS with Haas HRC-160 4th Axis Rotary Table, 40 Station ATC, Renishaw Probing, Pcool, 12,000 RPM
$74,900 (USD)
Location:Arizona
or
Call (863) 439-6066
Description
4th Axis Drive & Wiring

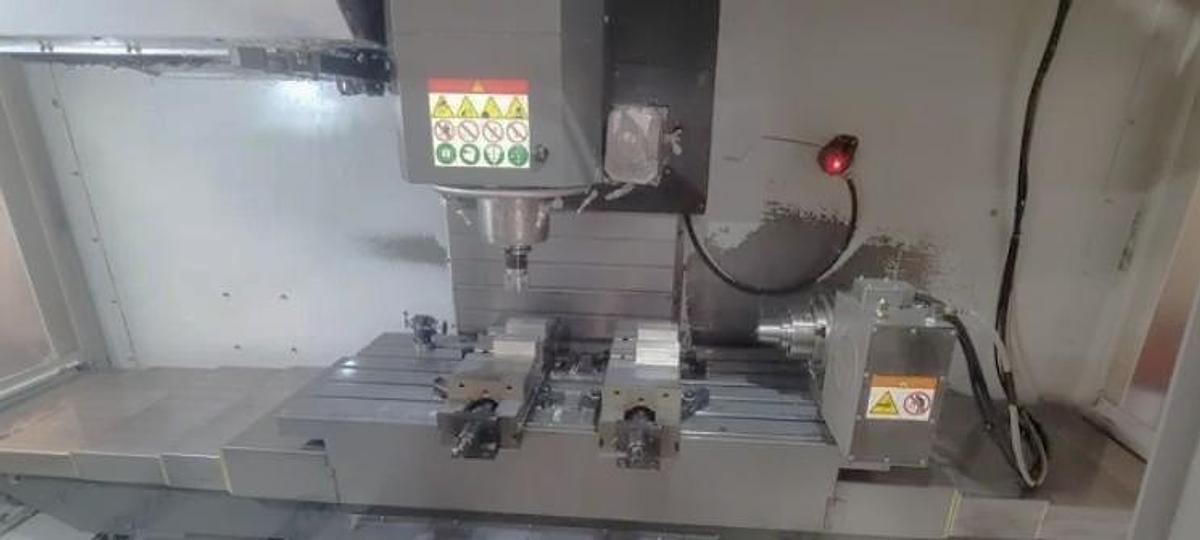

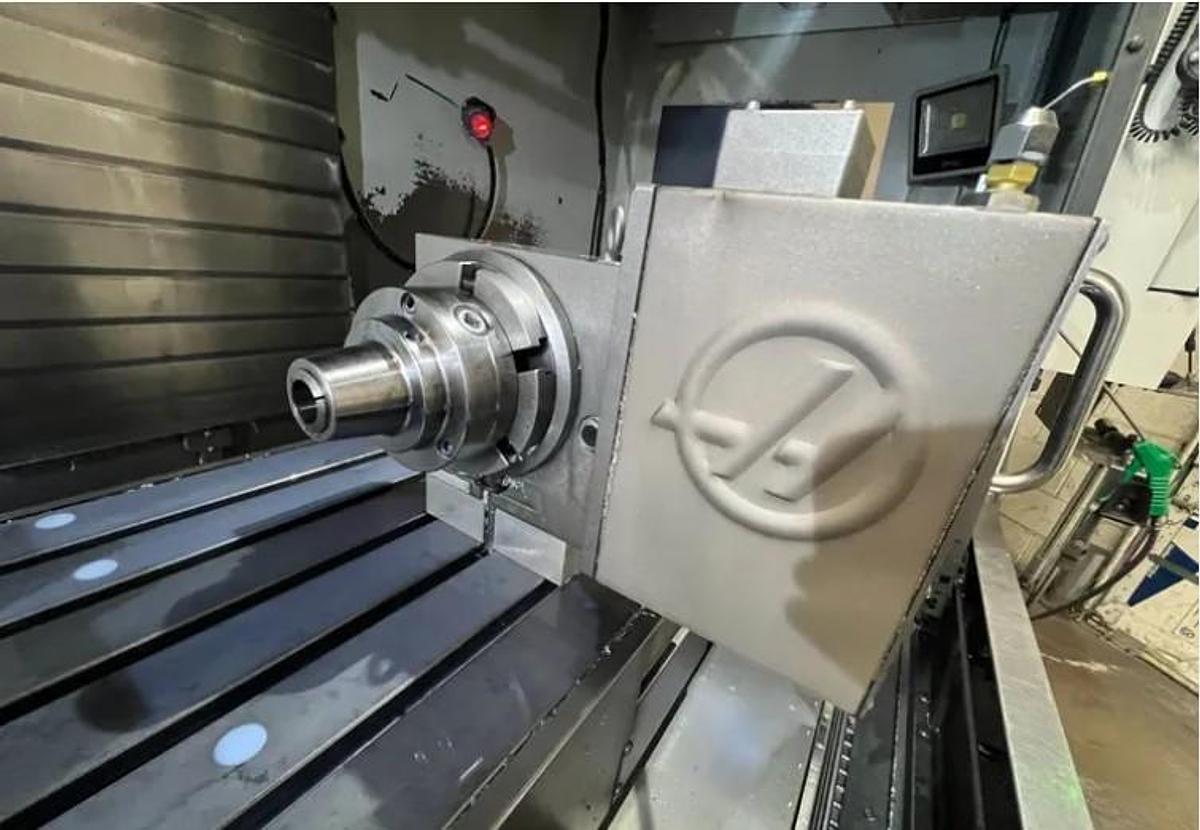

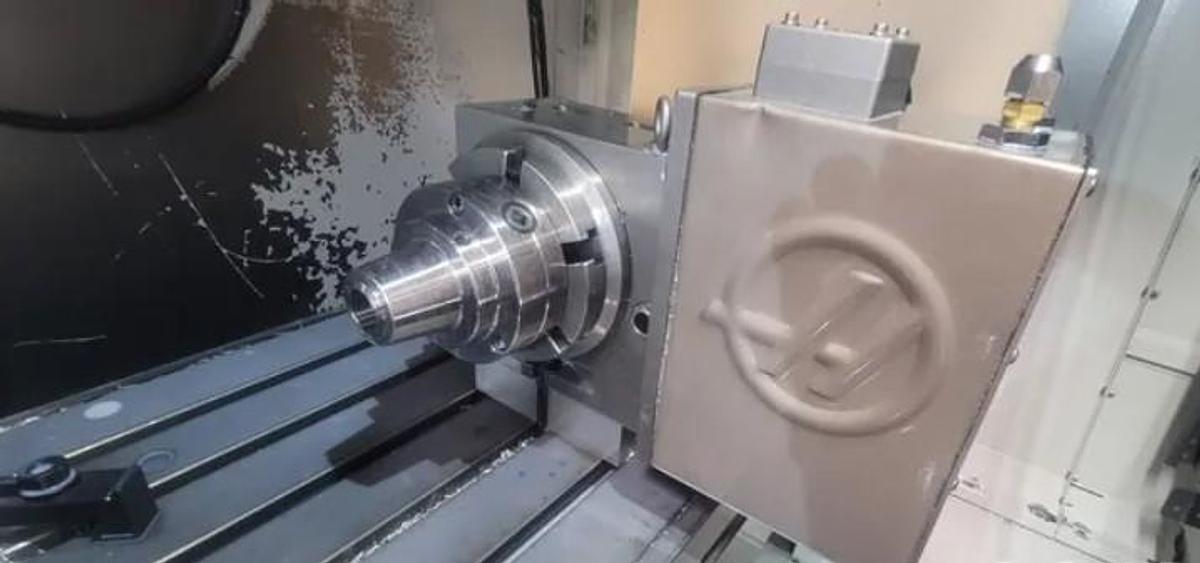

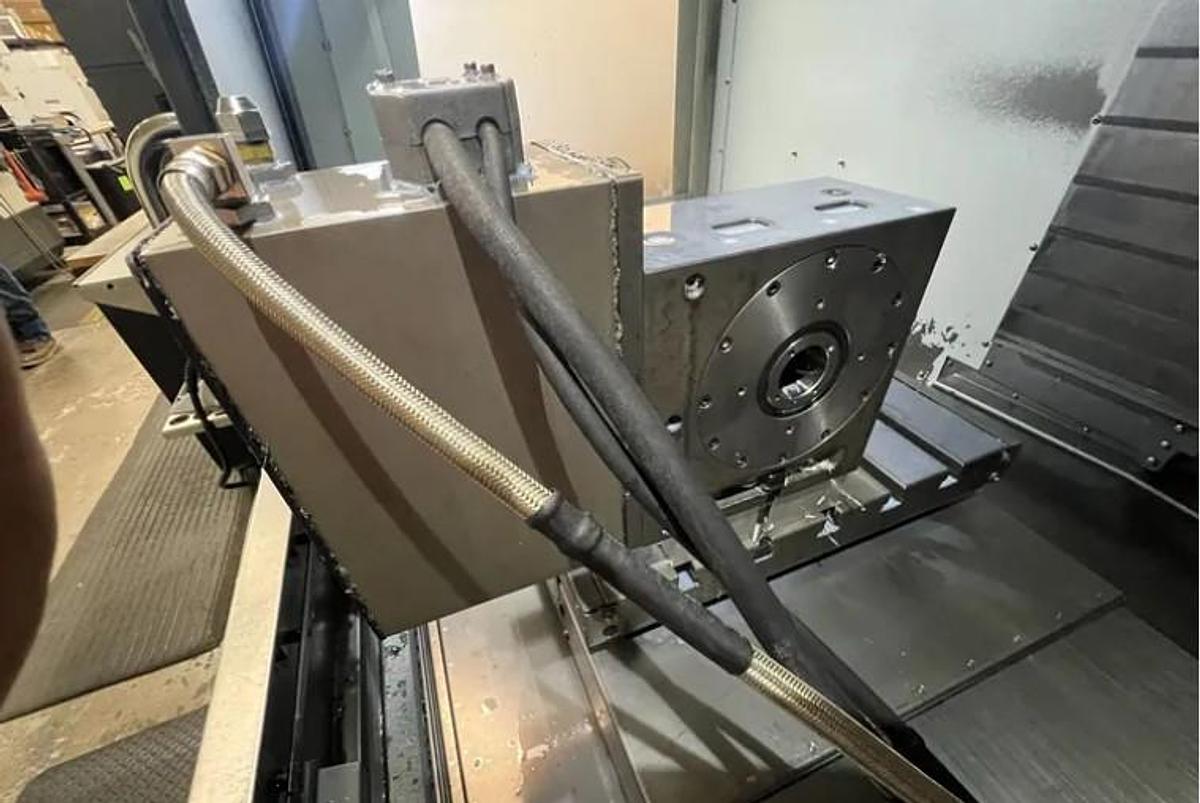

Haas HRC-160 4th Axis Rotary Table

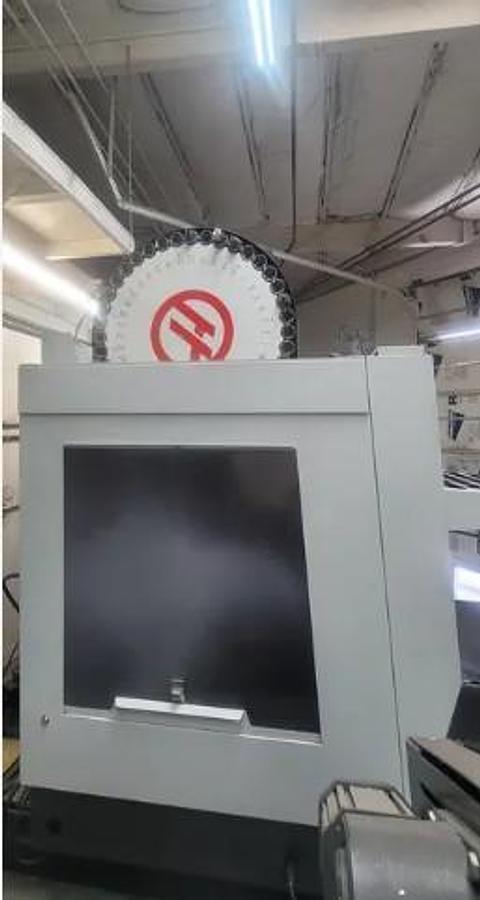

40+1 Position Side Mounted Tool Changer
Haas Wireless Intuitive Probing Package

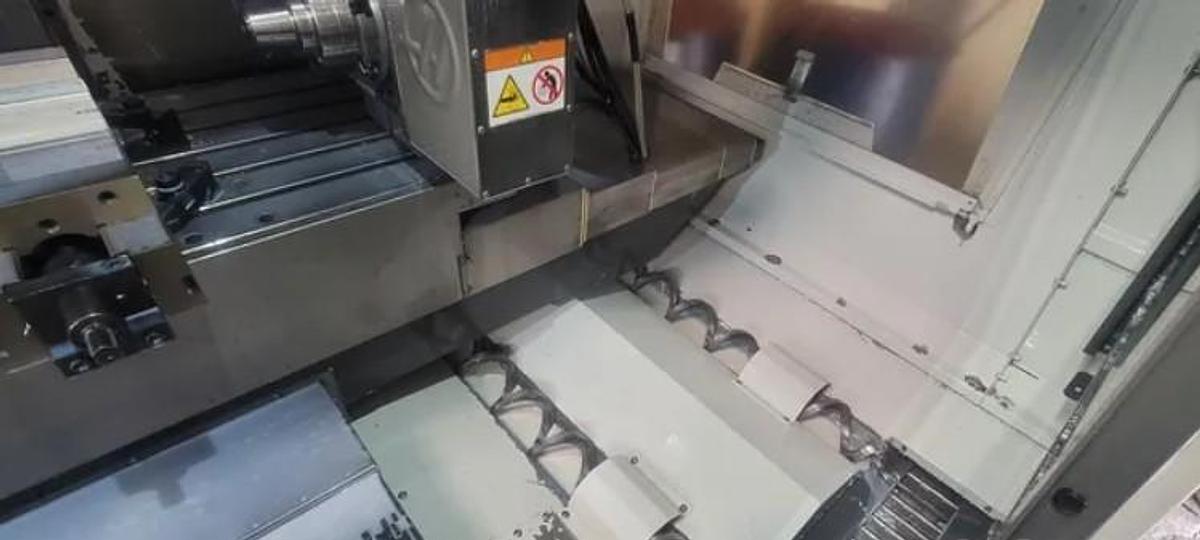

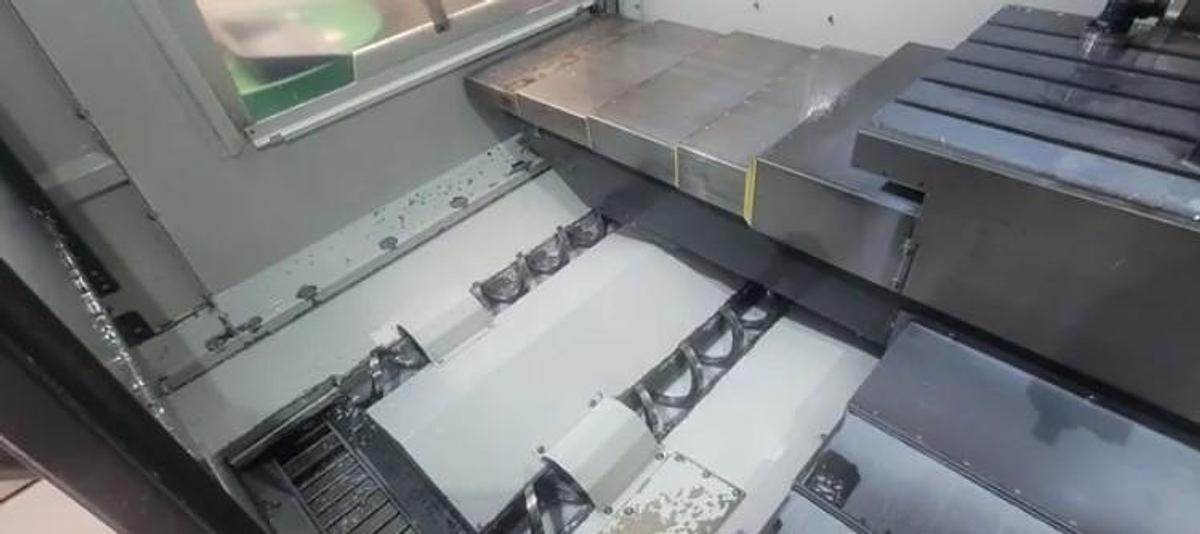

Quad Auger Chip System with External Belt Style Chip Conveyor
High Speed Machining
Spindle Orientation
Coordinate Rotation & Scaling
User Definable Macros
Haas Visual Part Programming System
Remote Jog Handle
High Intensity Lighting
Programmable Coolant Nozzle
Rigid Tapping
Coolant Tank with Pump

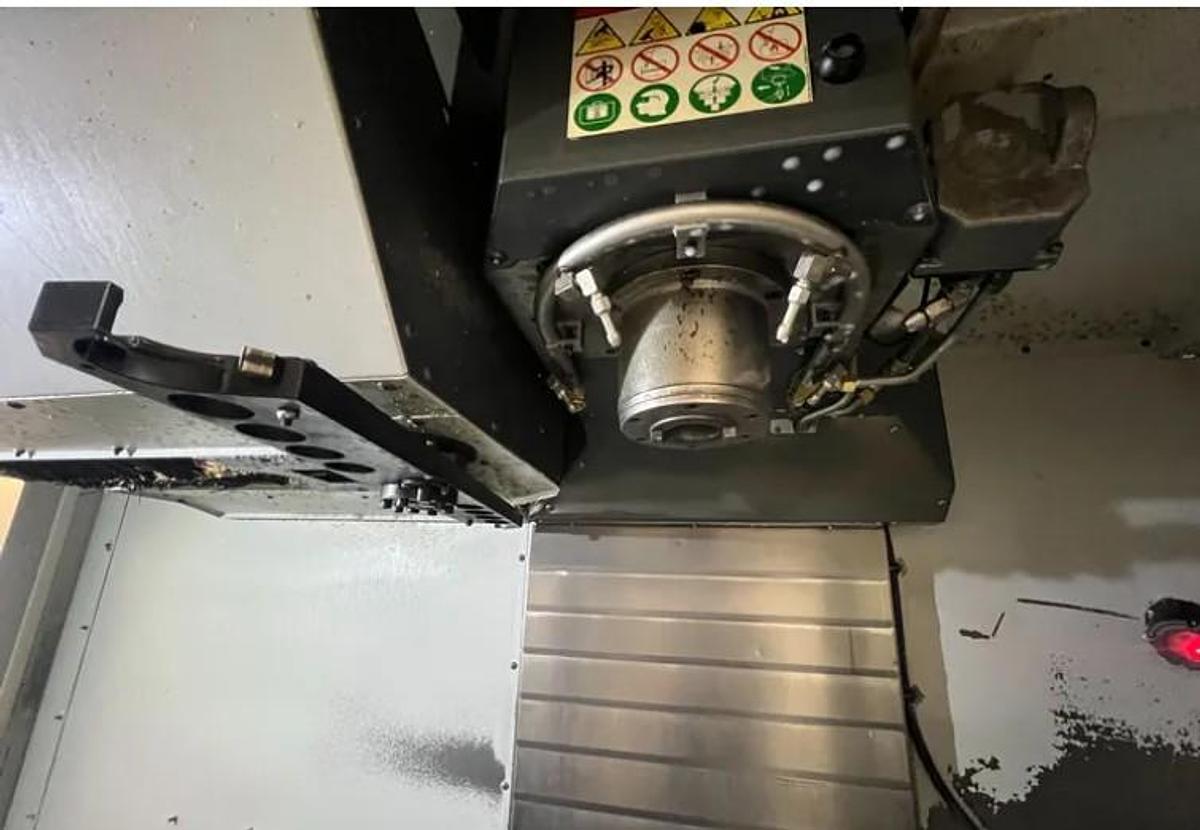

Inline Direct Drive 12,000 RPM Spindle
WiFi Connection
USB Port Interface
RS 232C Port Interface for DNC Operation

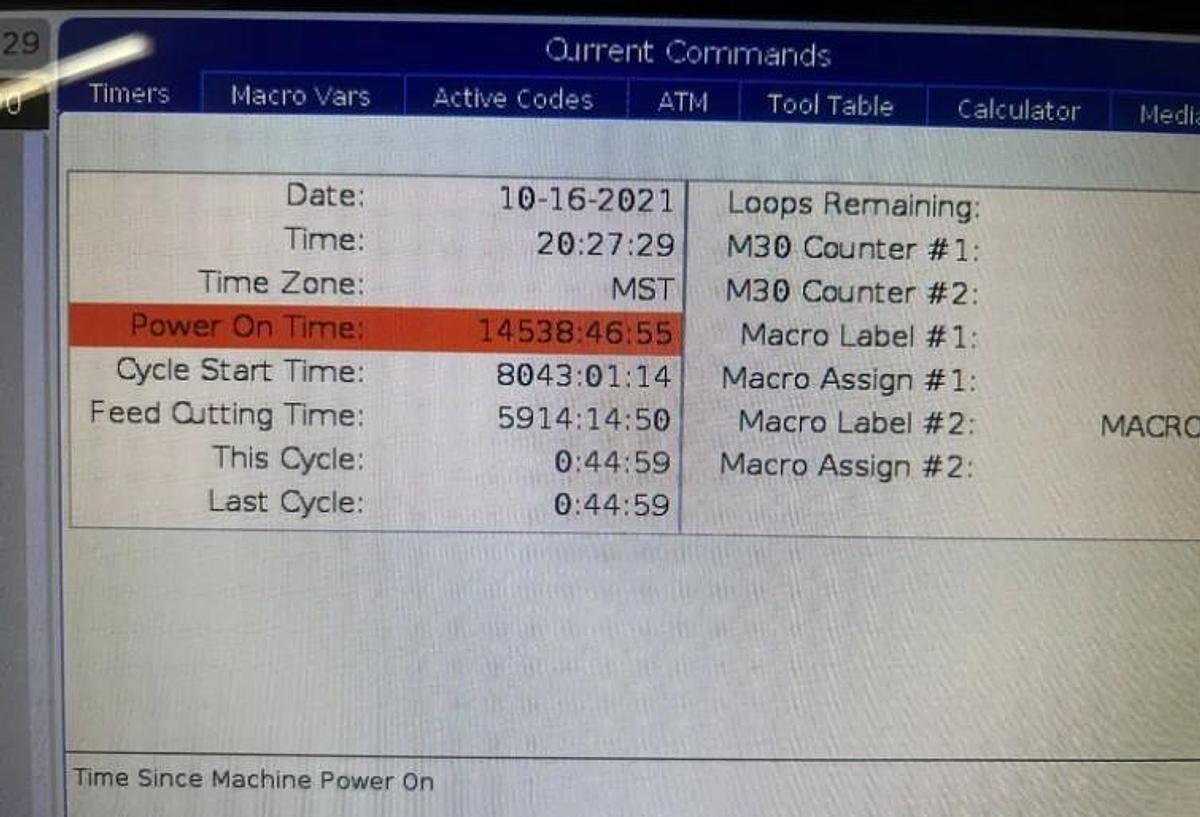

**Power On Hours 14,538**
**Cycle Start Hours 8,043**
**Feed Cutting Hours 5,914**
**Manufactured New in December of 2016**
Specifications
| Manufacturer | Haas |
| Model | VF4SS |
| Year | 2016 |
| Condition | Used |
| Stock Number | 120435 |
| Table size | 52" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 50" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | CAT #40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 40 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 152" x 99" x 106" |
| Machine weight (approximately) | 13,800 lbs. |
