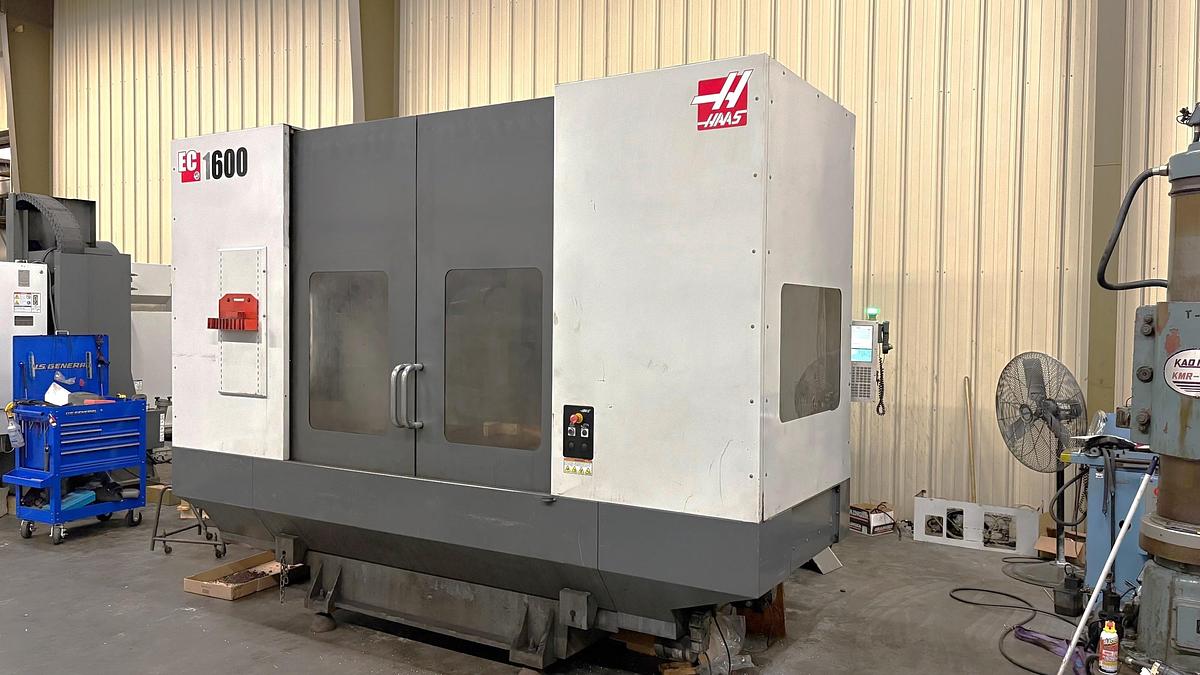

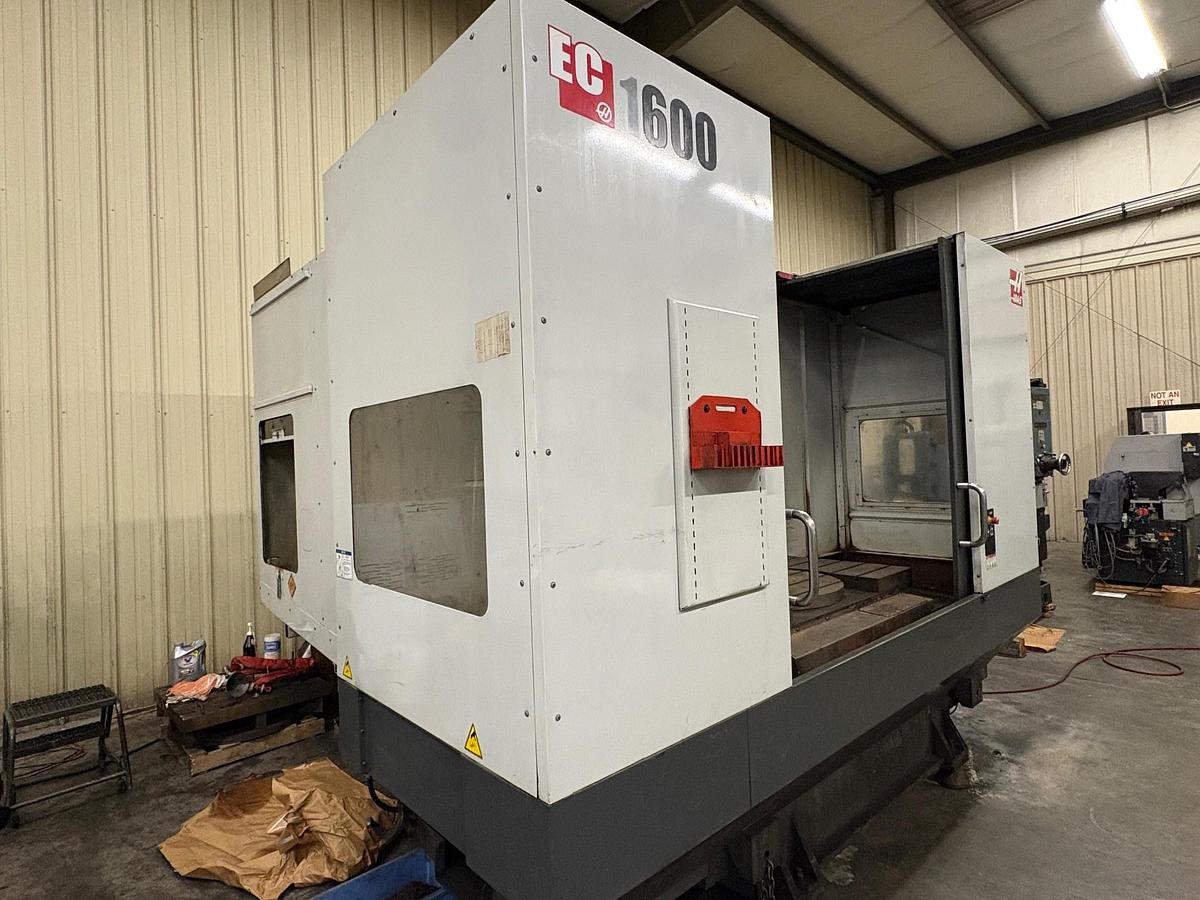

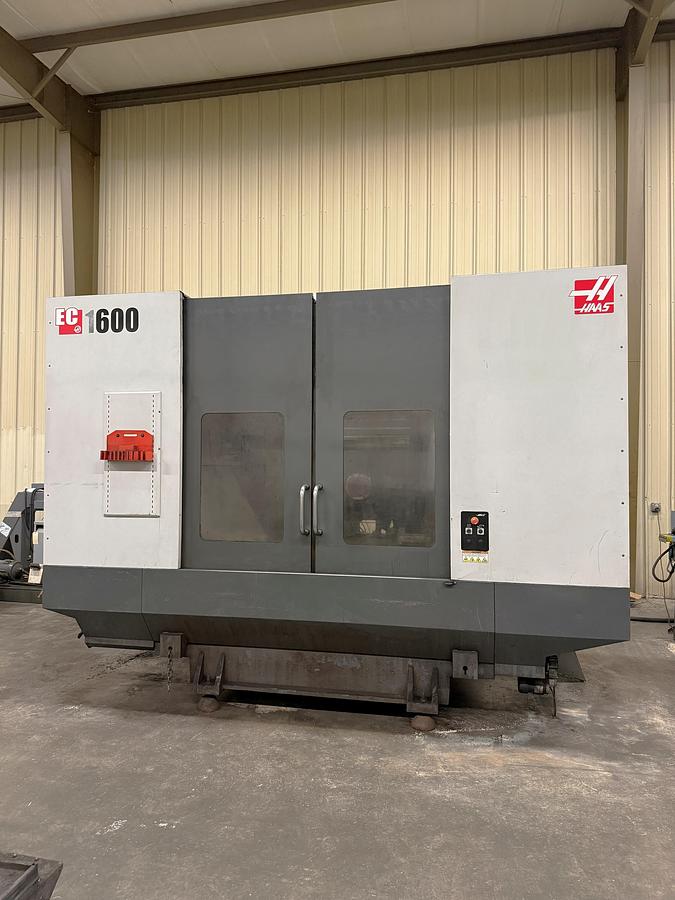

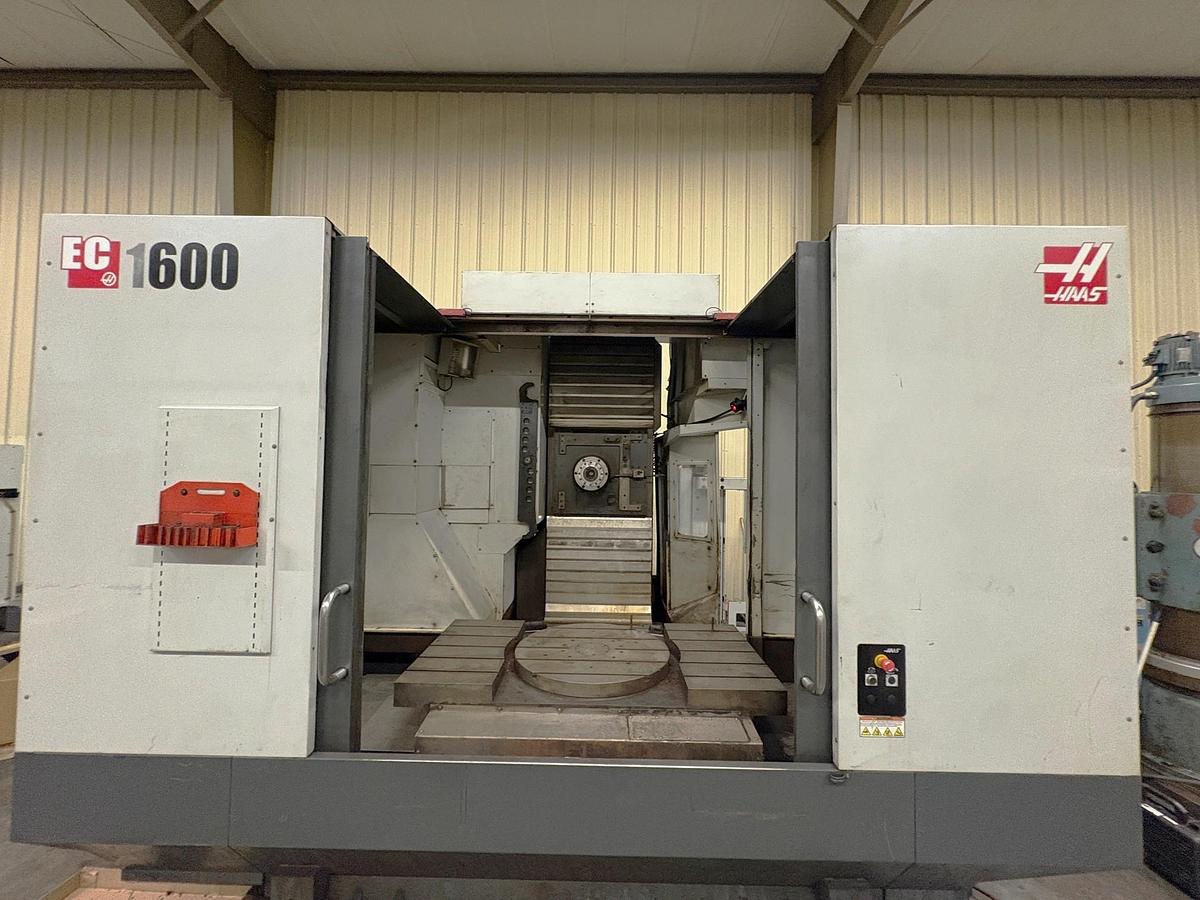

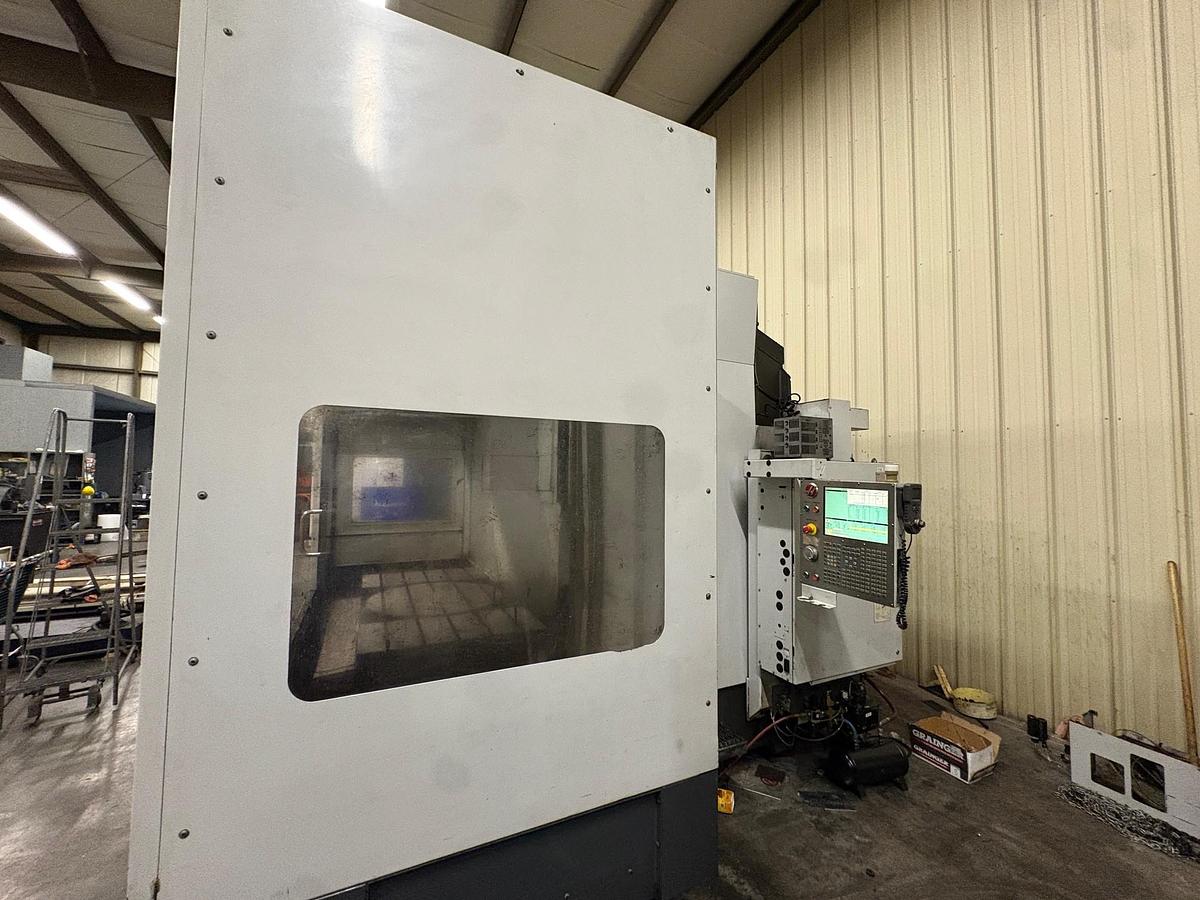

2012 Haas EC-1600-4X, Built in 30" Diam. Rotary Table, Coolant Thru Spindle, Probe Ready, 30 ATC, New Spindle In 2025
2012 Haas EC-1600-4X, Built in 30" Diam. Rotary Table, Coolant Thru Spindle, Probe Ready, 30 ATC, New Spindle In 2025
$119,900 (USD)
Location:South Carolina
or
Call (863) 439-6066
Description

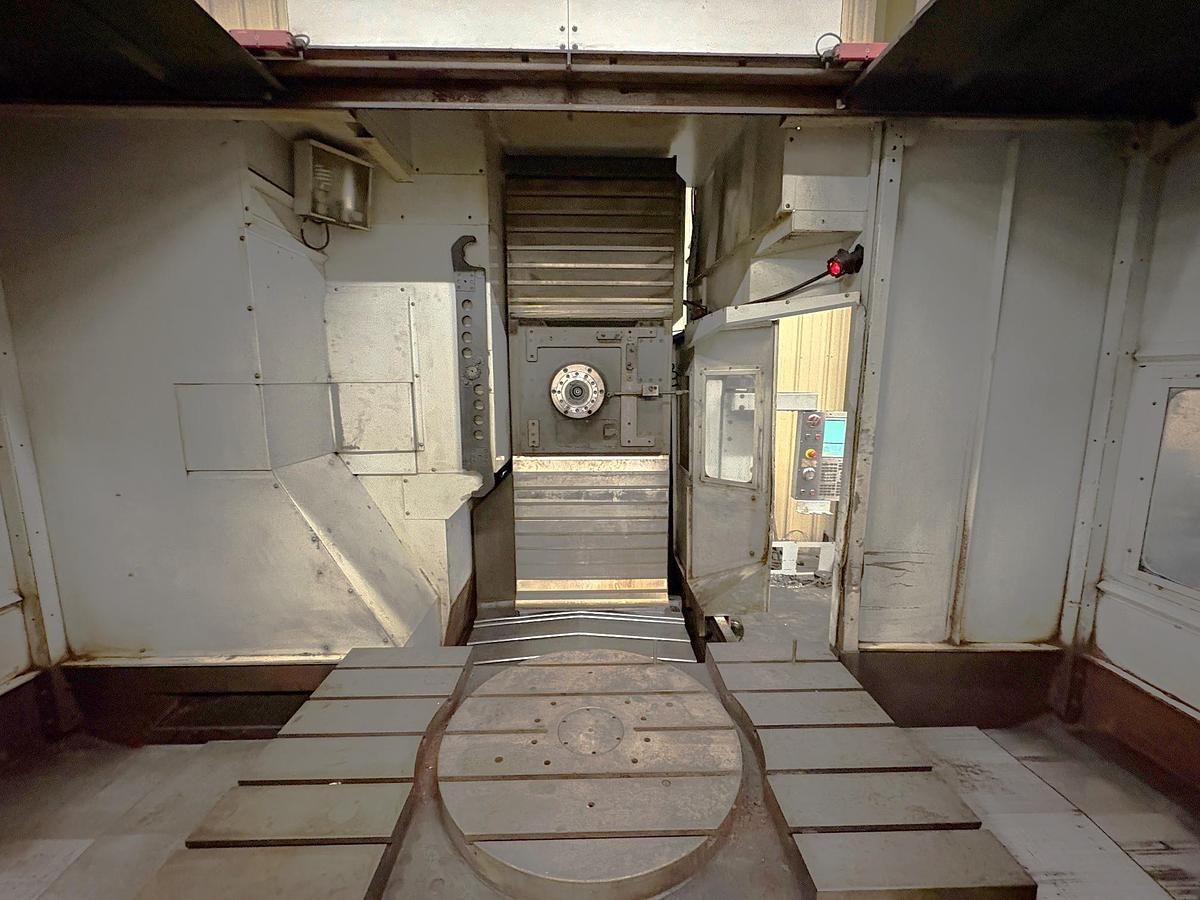

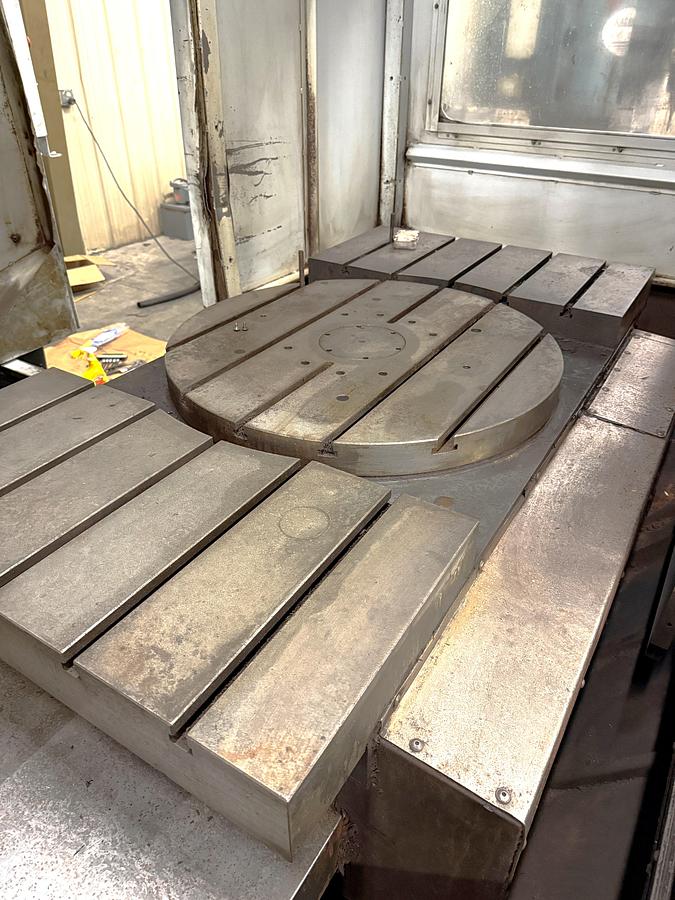

30" Built in 4th Axis Rotary Platter
Wired for WIPS Renishaw Wireless Intuitive Probing System (no probes included)
Coolant Thru the Spindle
30 Station Tool Changer
Rigid Tapping
Dual Chip Augers
Rigid Tapping
Spindle Orientation
Visual Quick Code Programming System
Coordinate Rotation & Scaling
USB Port Interface
RS 232 Port Interface
**New Spindle Factory Installed in 2025**
Specifications
| Manufacturer | Haas |
| Model | EC-1600-4X |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120434 |
| Table Size | 64"x36" |
| Maximum Table Load | 10,000 lbs |
| X-axis travel | 64" |
| Y-Axis Travel | 50" |
| Z-Axis Travel | 32" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 6,000 RPM |
| Spindle Motor | 30 Hp / 2-Speed Geared Head |
| Tool Magazine Capacity | 30+1 Station Side Mounted ATC |
| Rapid Traverse Rates | 540 IPM |
| Maximum Tool Diameter / Length / Weight | 10" / 20" / 30 lbs |
| Machine Dimensions LxWxH | 190"x144"x135" |
| Machine Weight | 30,000 lbs |
| Electrics | 208/230V 3-ph / 80 amps |
