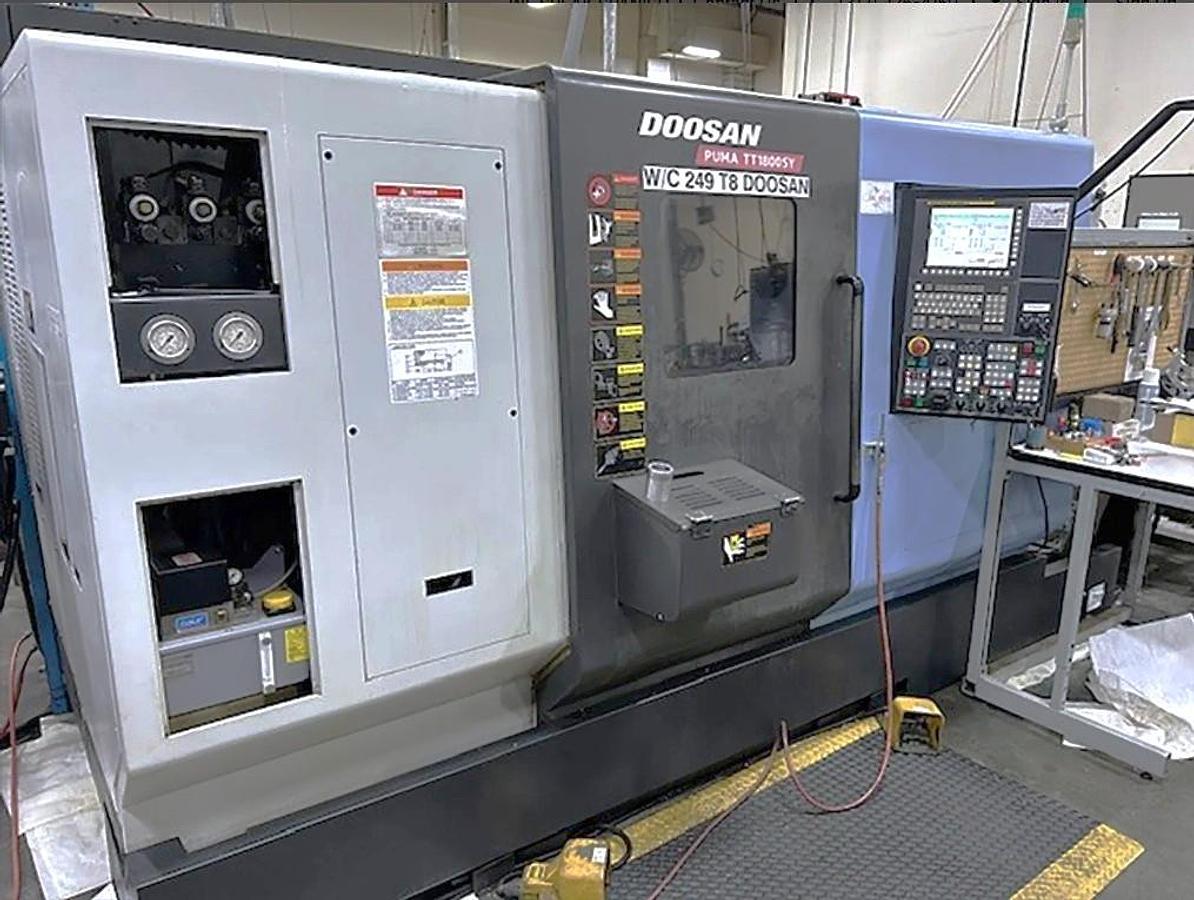

2013 Doosan Puma TT1800SY Twin Spindle/Twin Turret, Y Axis Mill Turn Lathe, LNS Alpha SL65S Bar Feed, Chip Blaster, 4782 hrs.
2013 Doosan Puma TT1800SY Twin Spindle/Twin Turret, Y Axis Mill Turn Lathe, LNS Alpha SL65S Bar Feed, Chip Blaster, 4782 hrs.
$99,500 (USD)
Location:Illinois
or
Call (863) 439-6066
Description
Full C Axis Spindle Rotation - Both Spindles
Live Milling/Drilling Capability - Both Turrets Y Axis Capability on Upper Turret

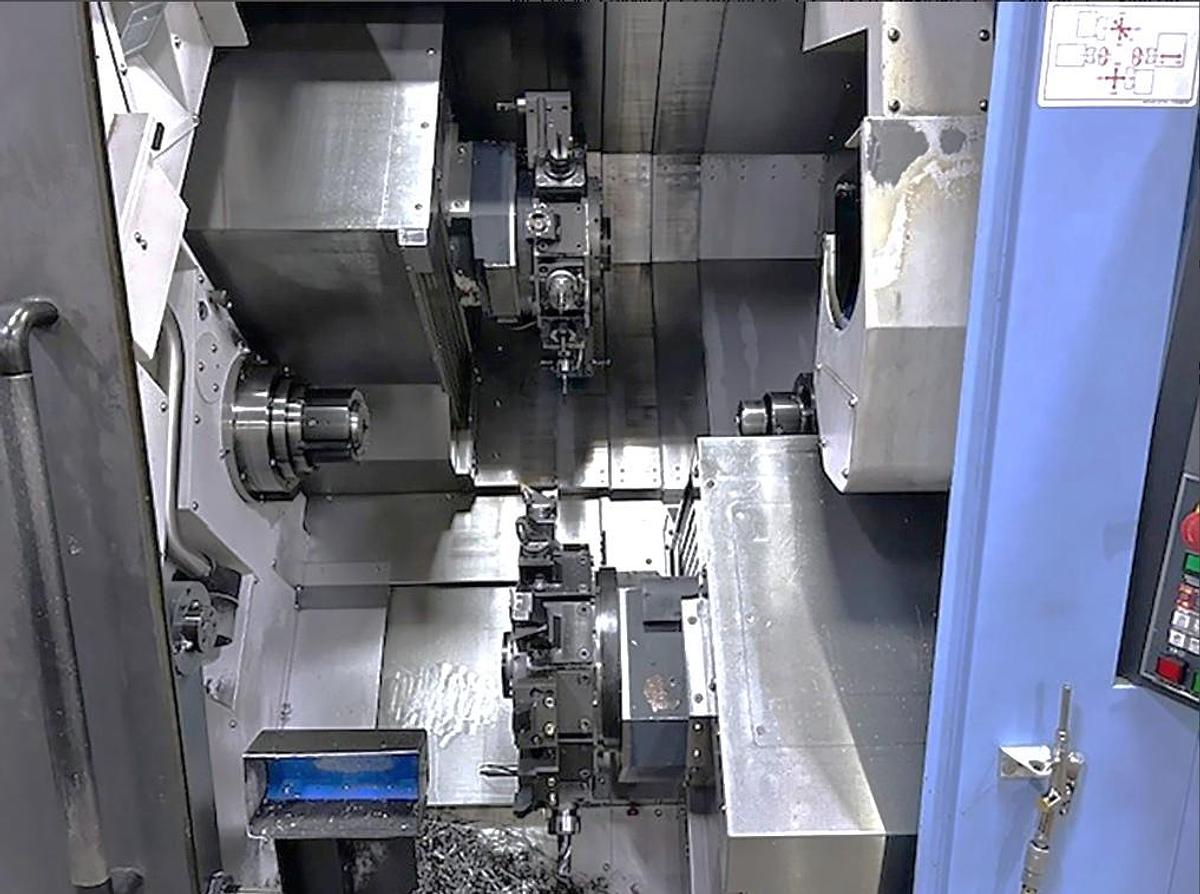

Twin Turret Design with Upper and Lower Turrets
Dual Spindle Design

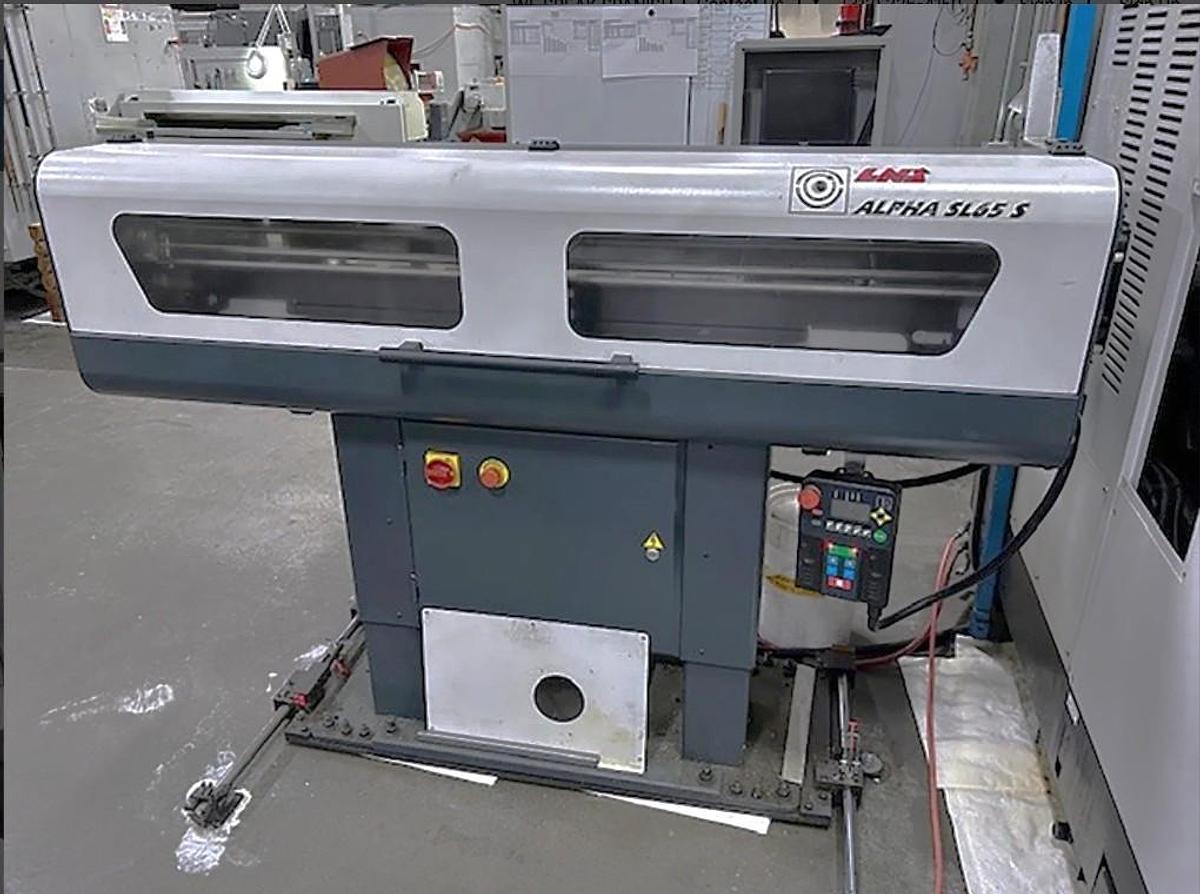

LNS Alpha SL65S Short Load Barfeeder

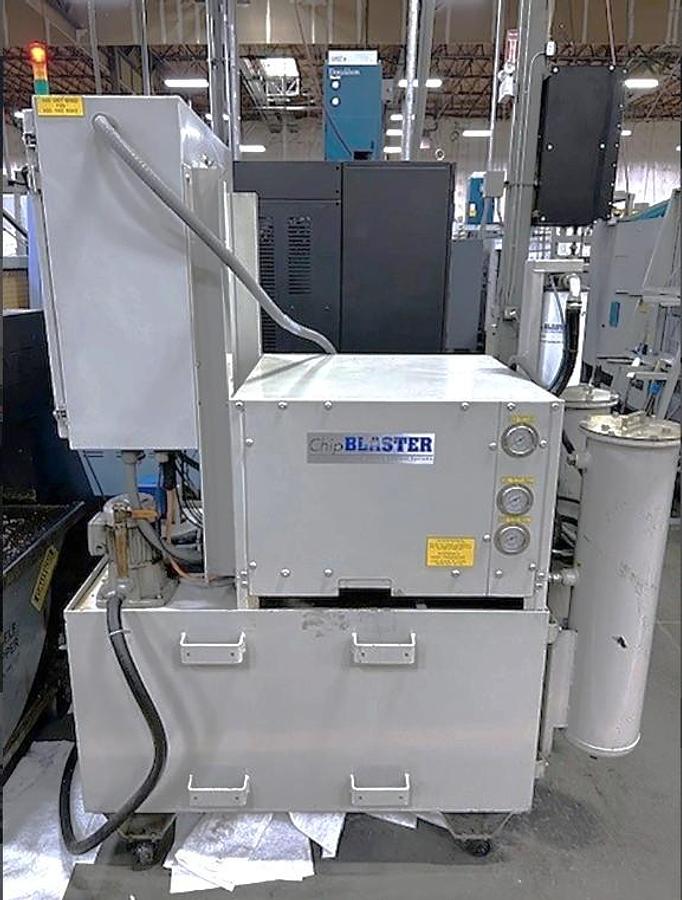

Chip Blaster High Pressure Coolant System

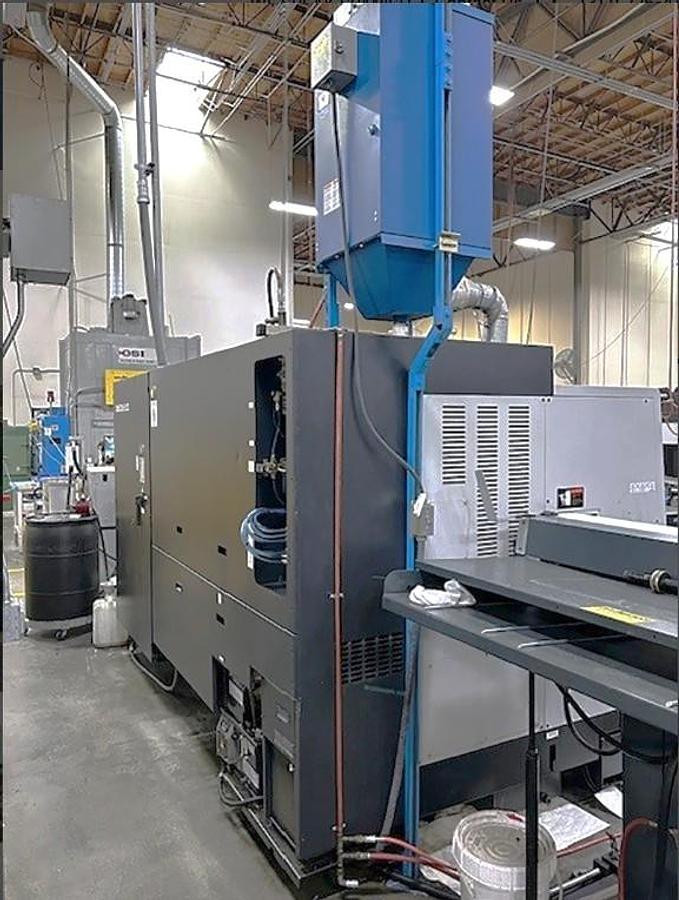

Mist Collector Unit
(2) Collet Chucks on both Spindles
Hydraulic Chucks for each Spindle
Tool Presetter
Parts Catcher
Chip Conveyor
Ethernet Interface
PCMCIA Card Interface RS 232 Port Interface
3 Color Machine Status Condition Lights
Boxed Ways
Coolant Tank with Pump
Includes (4) Live Tool Holders
**Cut Hours 4,782**
Specifications
| Manufacturer | Doosan |
| Model | Puma TT1800SY |
| Year | 2013 |
| Condition | Used |
| Stock Number | 120433 |

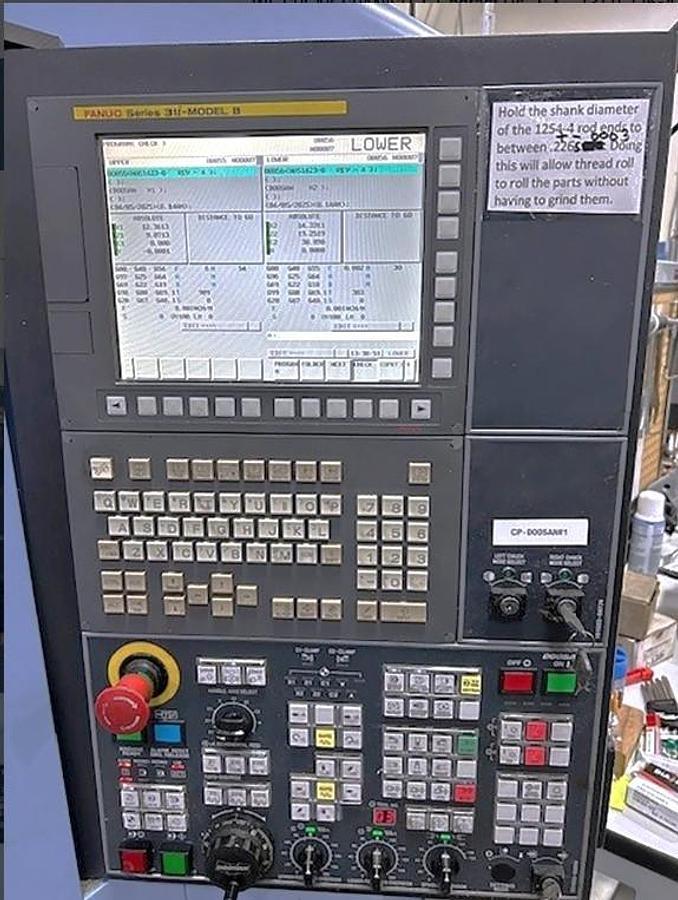

| Control | Fanuc 31i Model B Control |
| Chuck Size | Collet Chucks Both Spindles |
| Maximum Swing over Bed | 9.05" |
| Maximum Cutting Diameter | 9.05" |
| Maximum Machining Length | 9.1" |
| Distance Between Spindles | 38.582" |
| Maximum Bar Capacity | 2.625" |
| X1-Axis Travel / X2-Axis Travel | 6.5" / 7.5" |
| Y-Axis Travel | 3.93" |
| Z1-Axis Travel / Z2-Axis Travel | 31.5" / 28.3" |
| C Axis Spindle Rotation | 0.001 Degrees - both Spindles |
| A-Axis Travel - Subspindle | 30.3" |
| Spindle Nose / Spindle Bore | A2-6" / 3.0" - both Spindles |
| Main & Subspindle Speeds | 5,000 RPM |
| Spindle Motor - Both Spindles | 30 HP |
| Rotary Tool Speed / Rotary Motor | 5,000 RPM / 7.5 HP |
| Number of Turret Positions | 24 Station Turret - Each |
| Rapid Traverse Rates X / Y / Z | 787 IPM / 295 IPM / 984 IPM |
| Machine Dimensions | 154" x 82" x 98" |
| Machine Weight | 17,196 lbs. |
