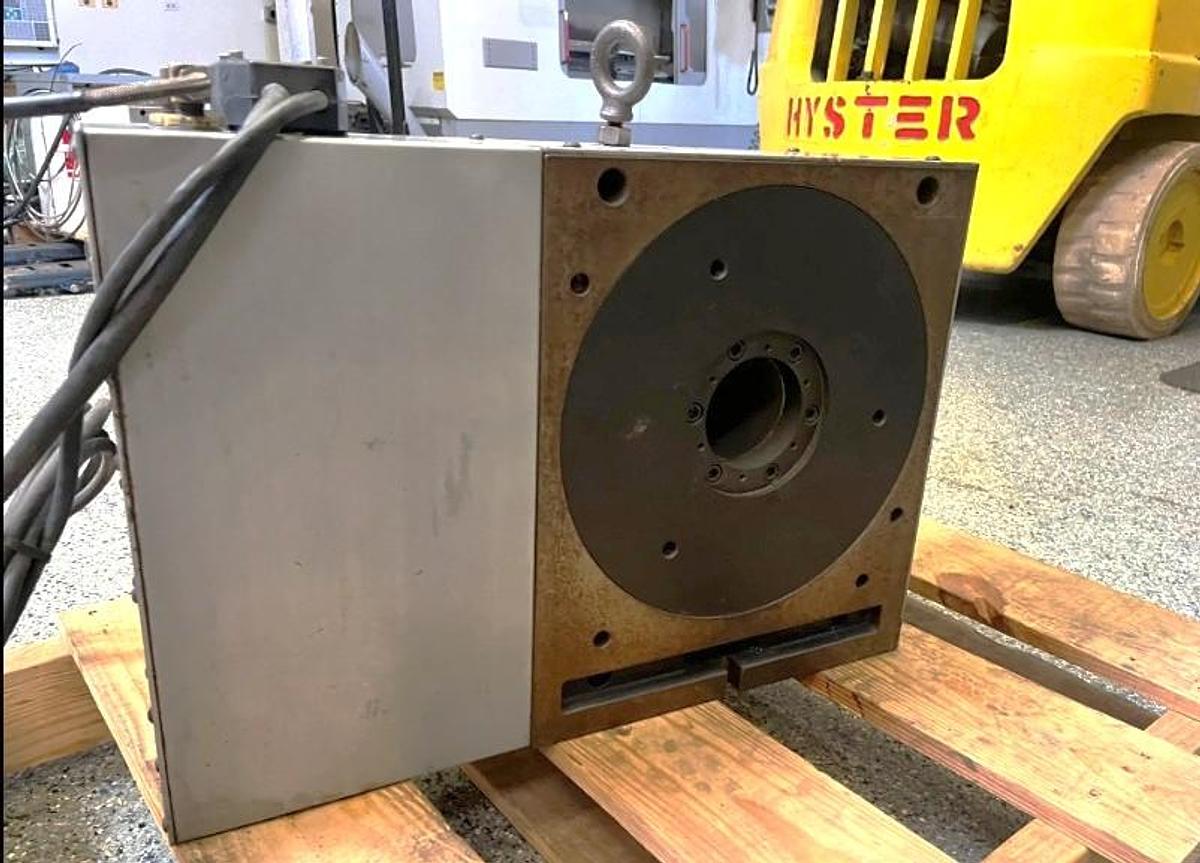

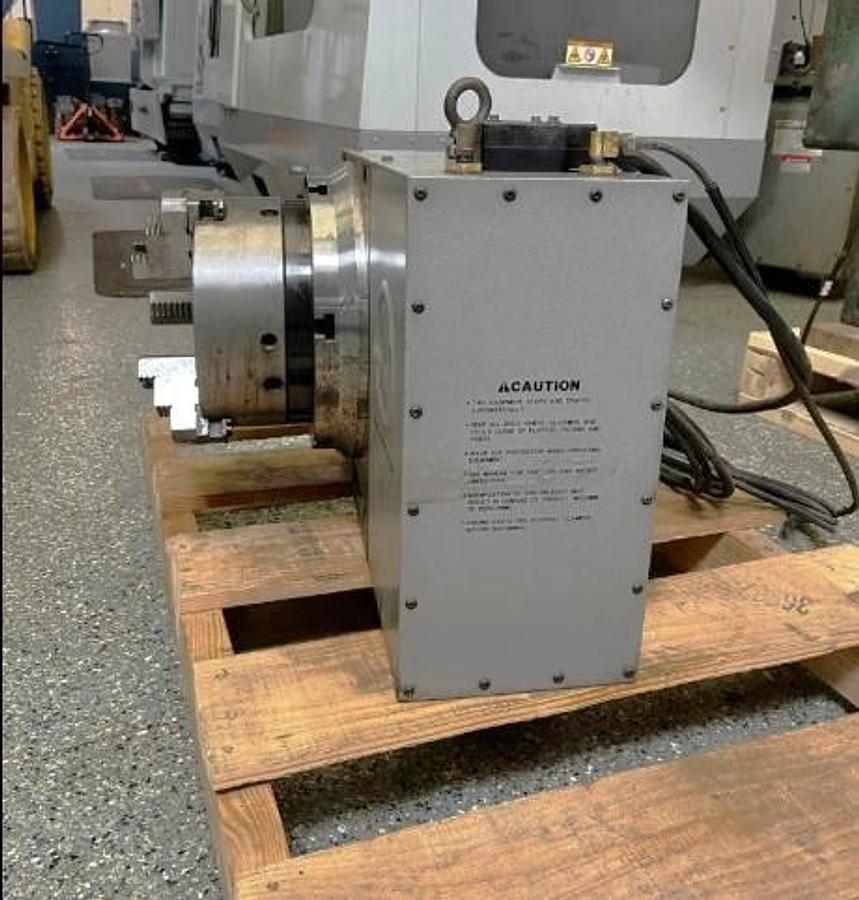

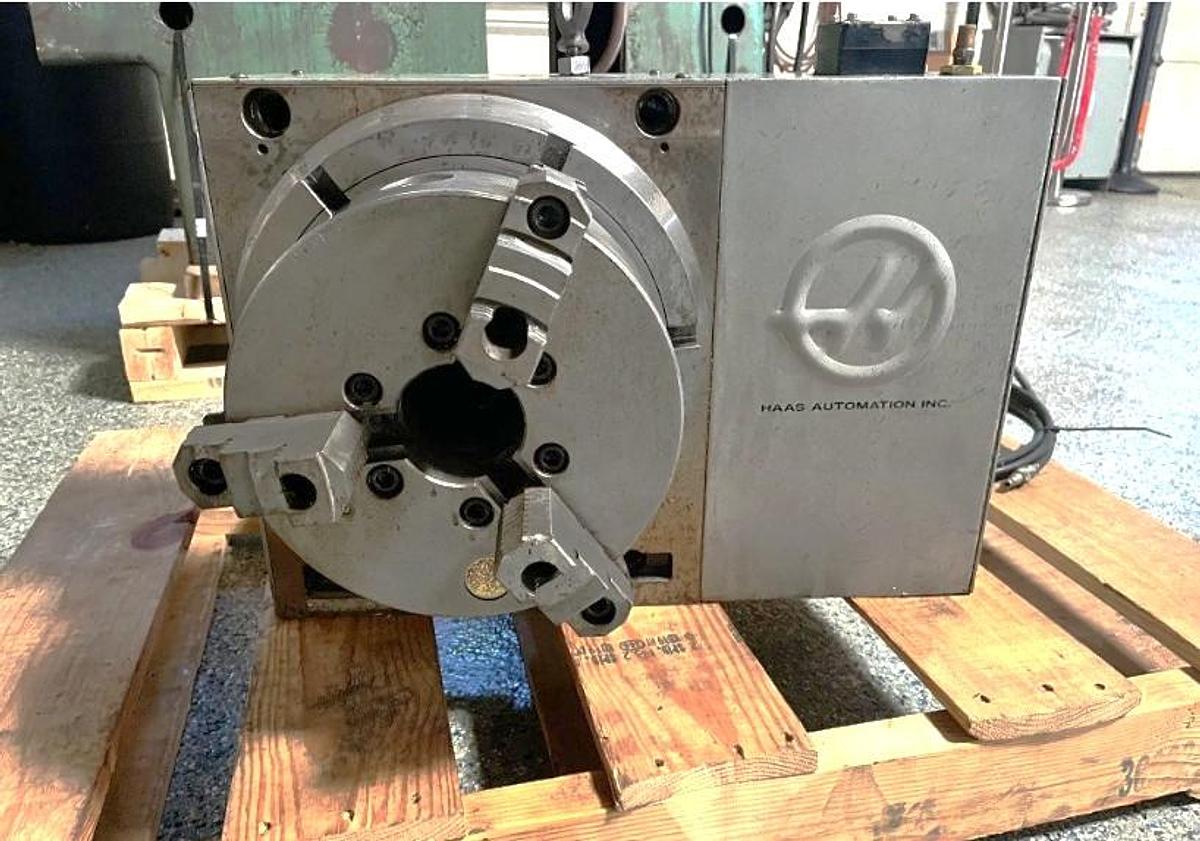

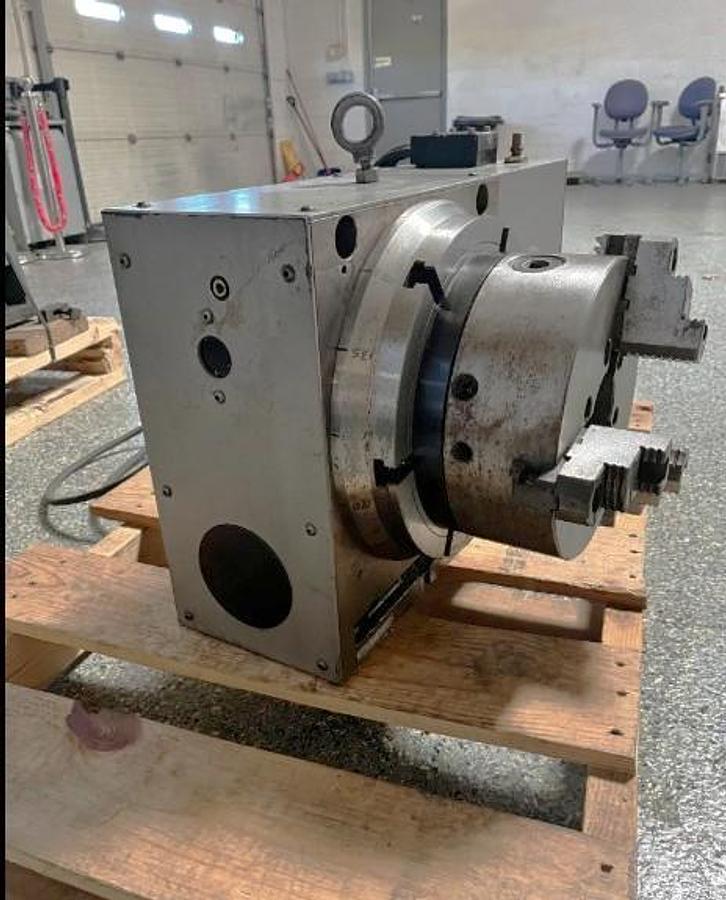

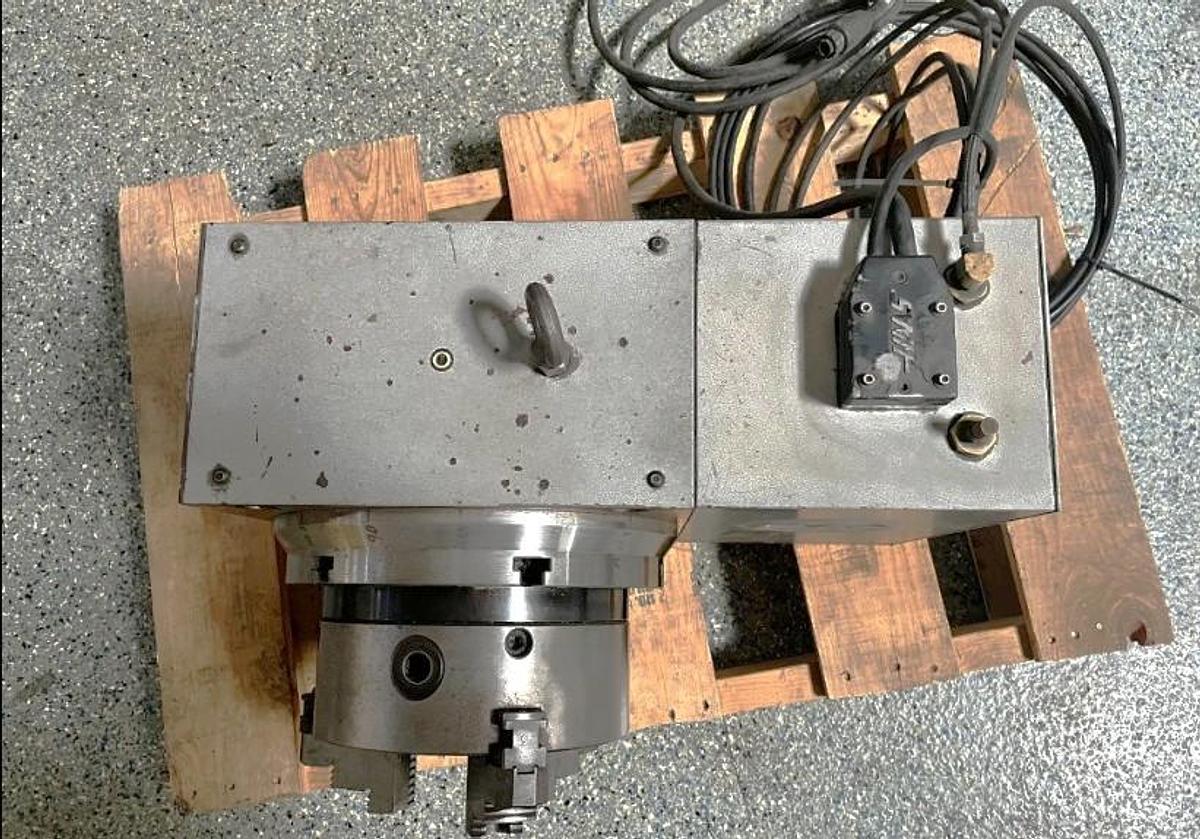

Haas HRT310 Brushless Type with 2 Multi Pin Cable Connections, Chuck Included
Haas HRT310 Brushless Type with 2 Multi Pin Cable Connections, Chuck Included
$7,950 (USD)
Location:Illinois
or
Call (863) 439-6066
Description

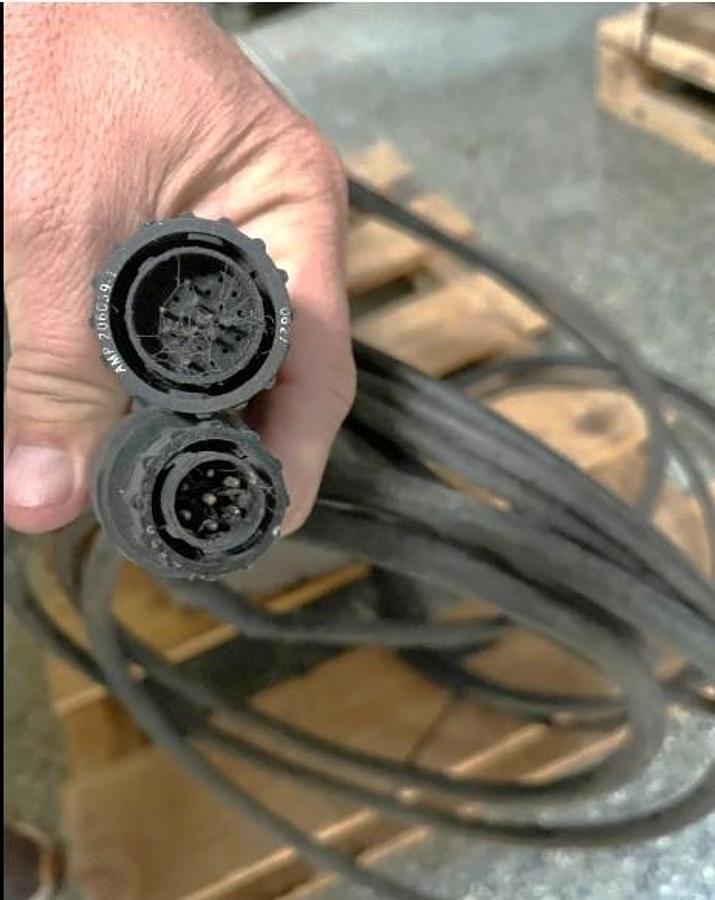

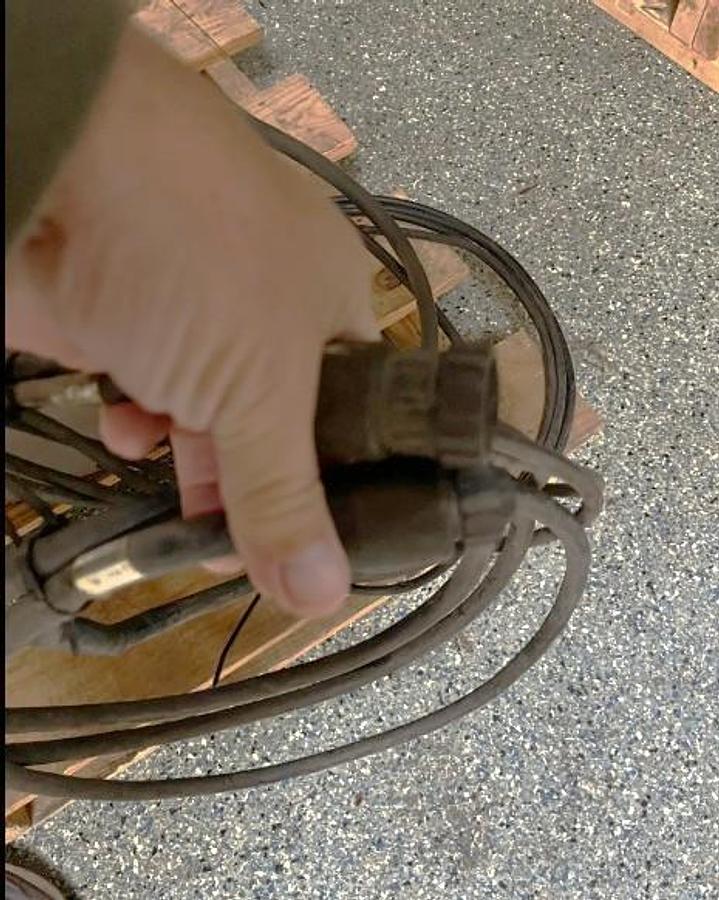

Dual Multi Pin Cable Con - Sigma 1 Type
3 Jaw Manual Chuck Included
310 mm T Slotted Work Surface
Servo Driven
Specifications
| Manufacturer | Haas |
| Model | HRT310 |
| Condition | Used |
| Stock Number | 120432 |
| Platter Diameter | 12.2" |
| Maximum Weight on Platter | With Support 435 lbs / Without Support 218 lbs |
| Torque | 200 ft./lbs. |
| T slots | 6 Slots @ 60 Degree |
| Accuracy | +/- 15 arc sec. |
| Face plate | 12.2" Diameter |
| Resolution | .001 Degree |
| Brake torque | 500 ft./lbs. |
| Center height | 9" |
| Repeatability | 10 arc sec |
| Runout maximum | .0001" |
| Hole thru spindle | 3.375" |
| Worm gear diameter | 9.4" |
| Maximum rotation /step | 999.999 Deg. |
| Machine dimensions | 24"x24"x21" |
| Machine weight | 450 lbs |
