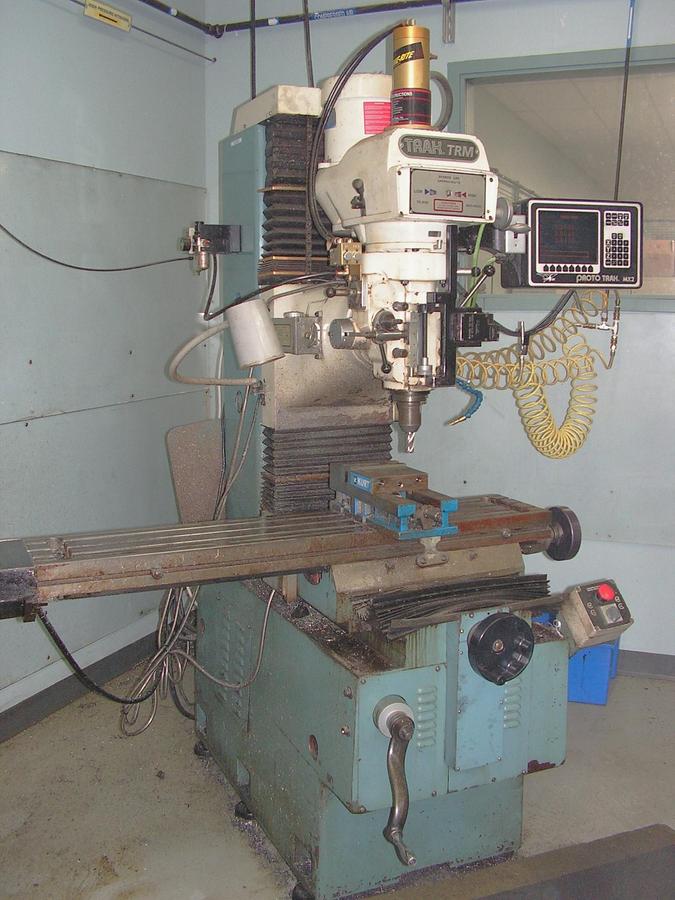

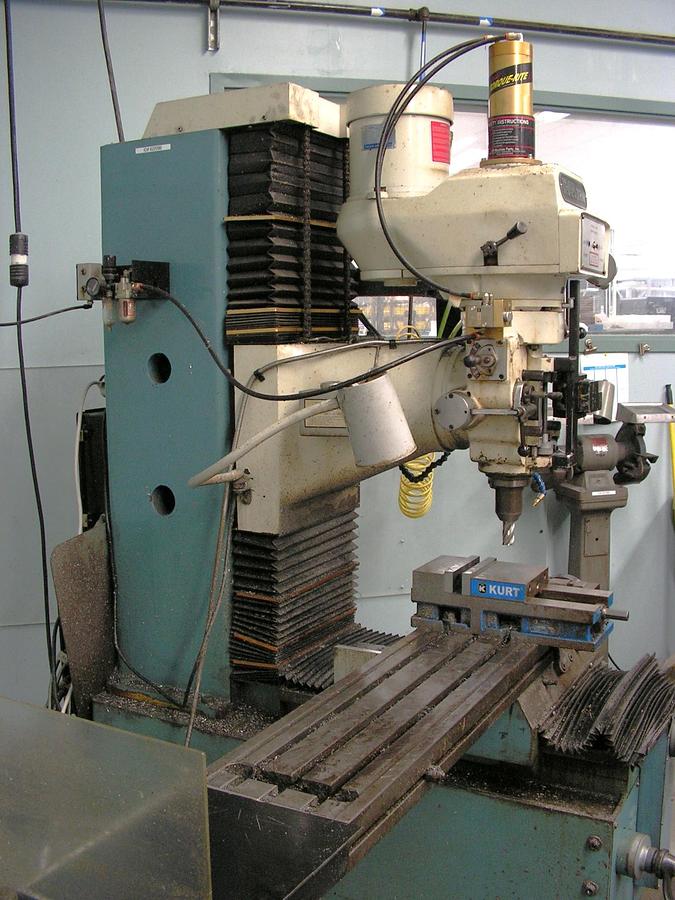

1995 Southwestern Industries Trak TRM 2 Axis CNC Mill
1995 Southwestern Industries Trak TRM 2 Axis CNC Mill
$6,950 (USD)
Location:New Jersey
or
Call (863) 439-6066
Description
Power Draw Bar
Conversational Programming Ability
RS232 Port Interface
Coolant System
Hand Wheels for Manual Movement
Run in Manual or CNC Mode
Work Light
All Available Manuals
Specifications
| Manufacturer | Southwestern Industries |
| Model | Trak TRM |
| Year | 1995 |
| Condition | Used |
| Stock Number | 120428 |

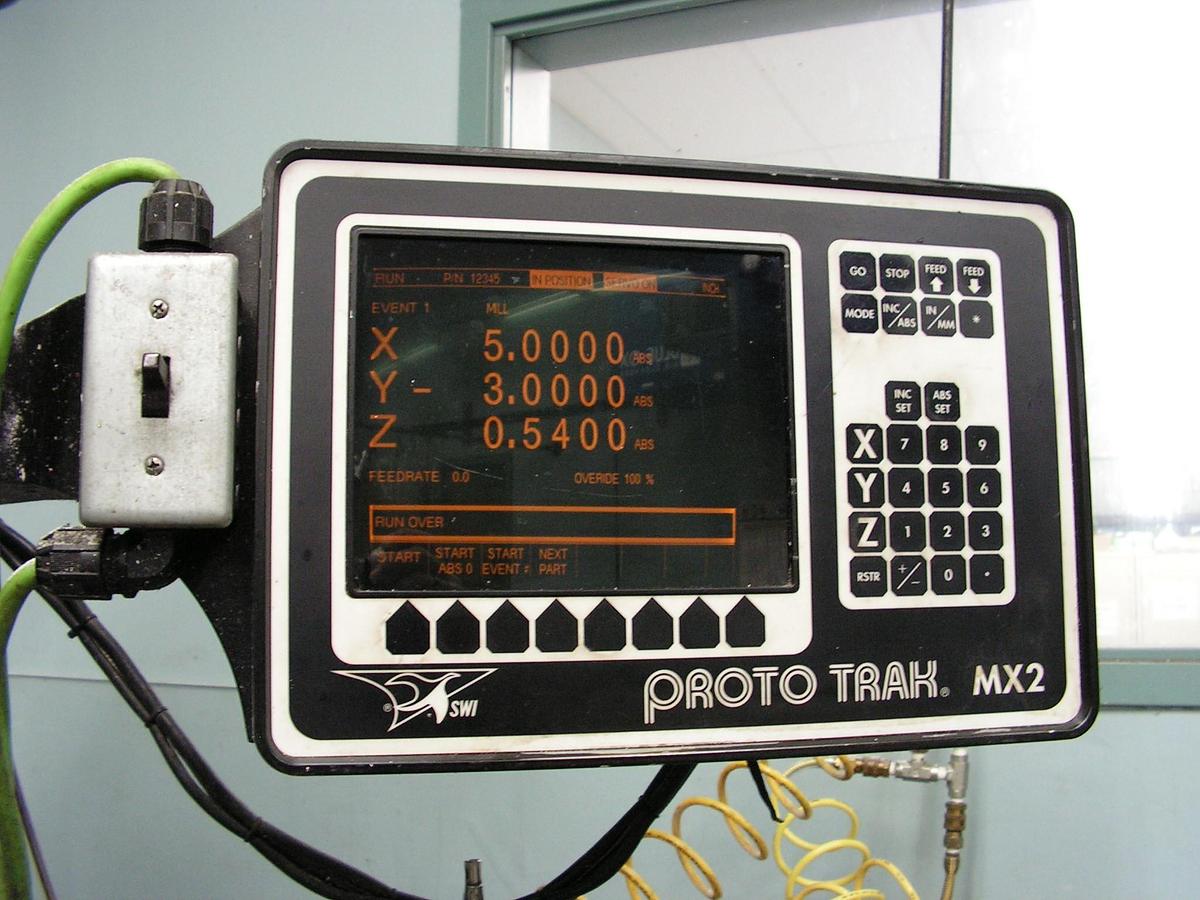

| Machine Control | Trak MX2 Control |
| Table Size | 50" x 10" |
| Maximum Weight on Table | 1,320 lbs. |
| X-axis travel | 31" |
| Y-Axis Travel | 17" |
| Z-Axis Travel | 25" |
| Quill Diameter | 3.9375" |
| Maximum Quill Travel | 5" |
| Spindle Taper | 40 NST/NMTBA |
| Spindle Speeds | 70 - 4,200 RPM |
| Spindle Motor | 3 HP |
| Spindle Center to Column Face | 17.3" |
| Quill Feed per Revolution in Auto Feed | 0.002, 0.004, 0.006 IPR |
| Machine Dimensions LxWxH | 70" x 72" x 90" |
| Machine Weight | 4,500 lbs |
