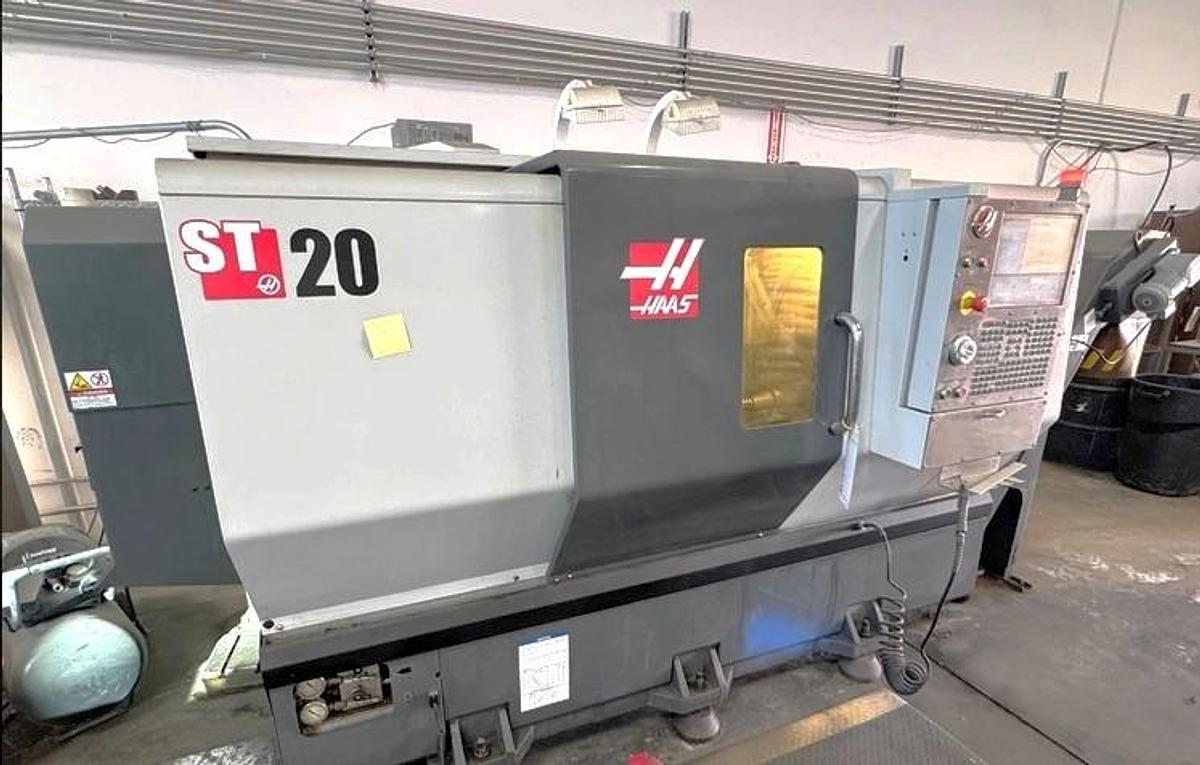

2011 Haas ST-20 with Tailstock, 8" 3 Jaw Chk, Tool Presetter, Chip Conveyor
2011 Haas ST-20 with Tailstock, 8" 3 Jaw Chk, Tool Presetter, Chip Conveyor
$32,500 (USD)
Location:California
or
Call (863) 439-6066
Description

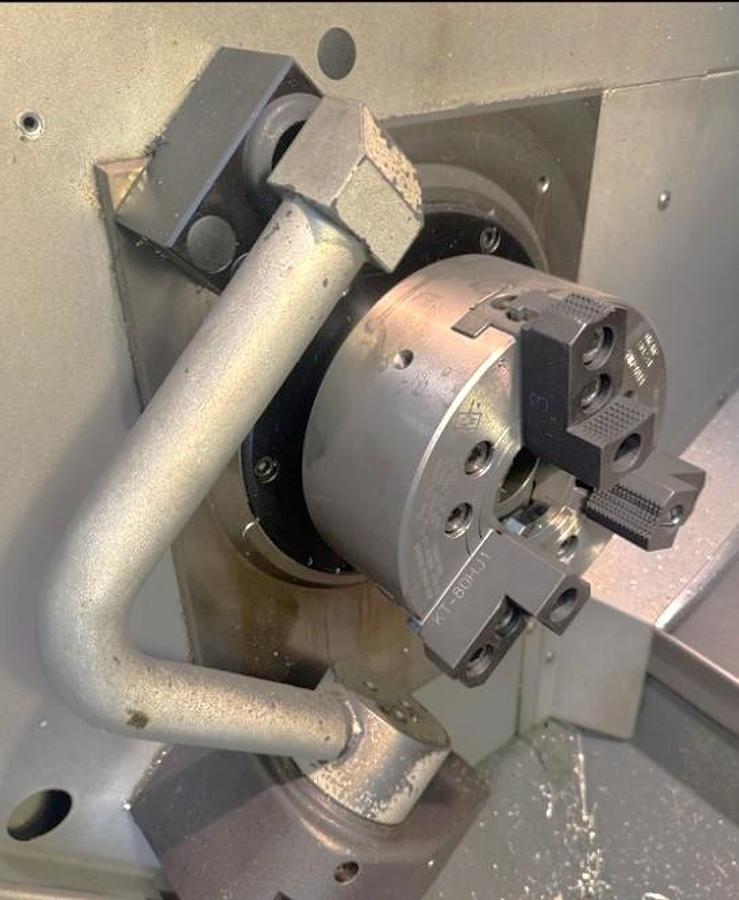

8" 3-Jaw Hydraulic Chuck

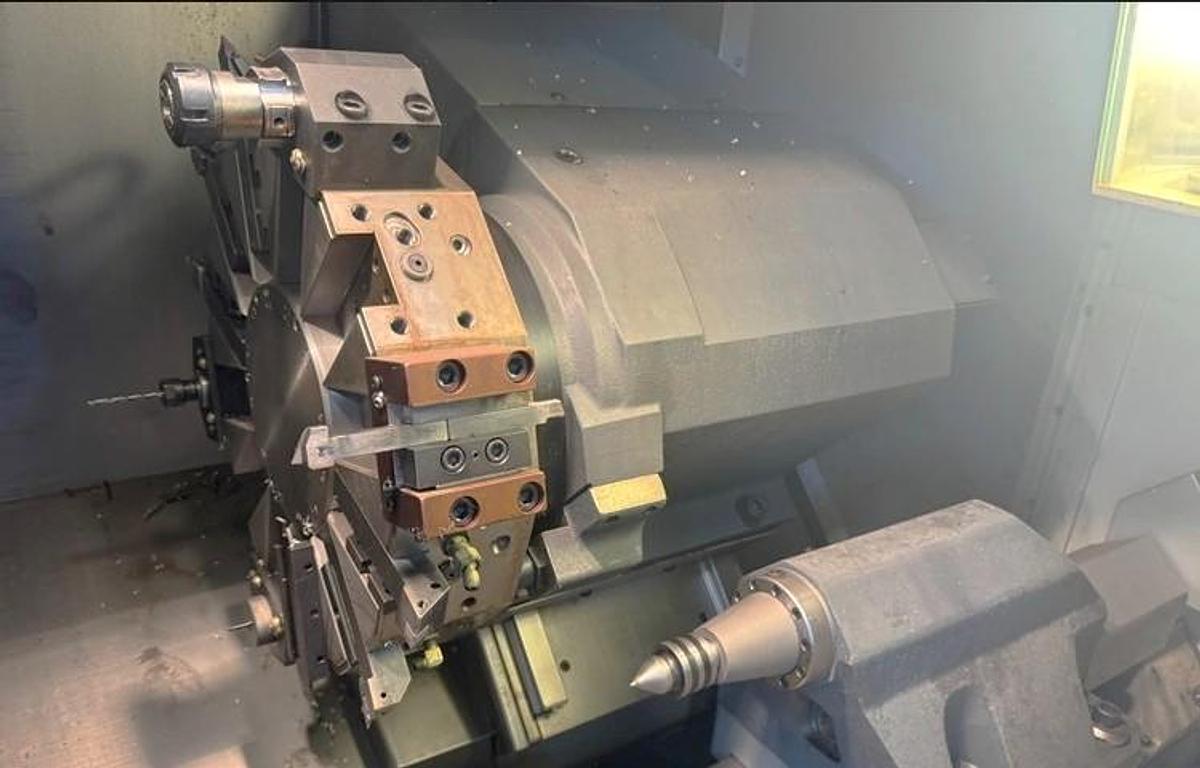

Programmable Tailstock

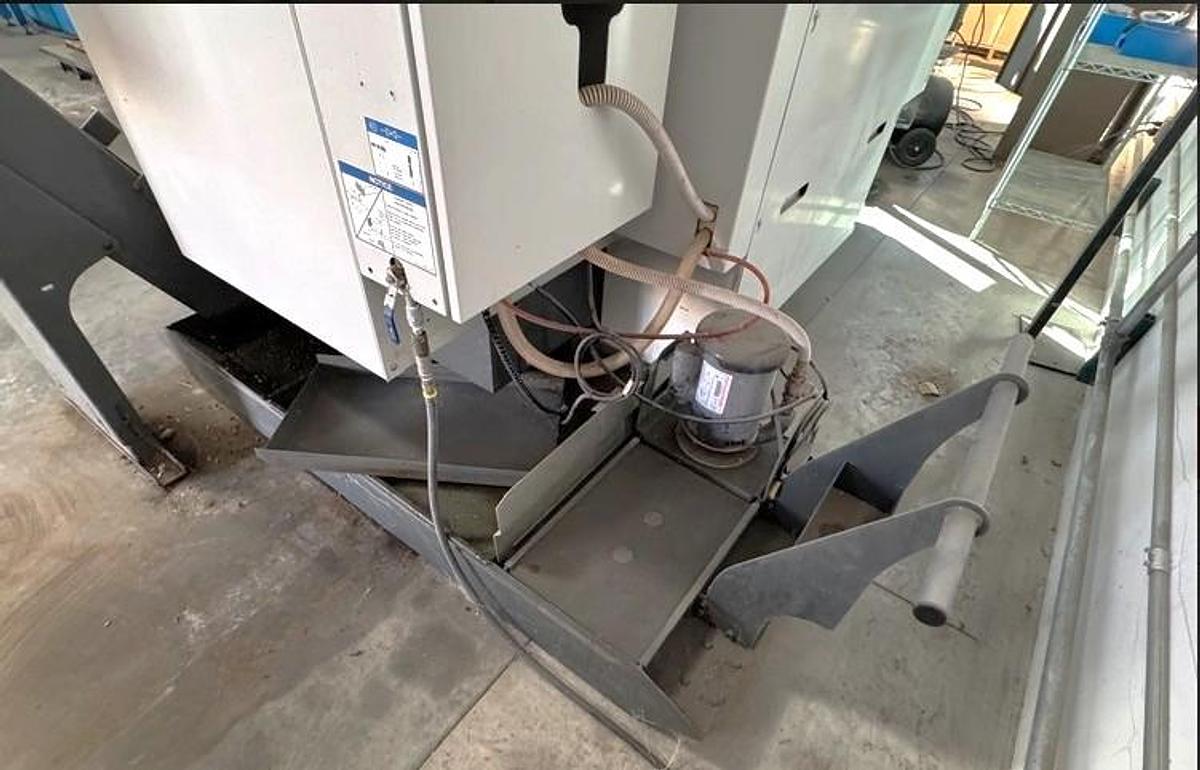

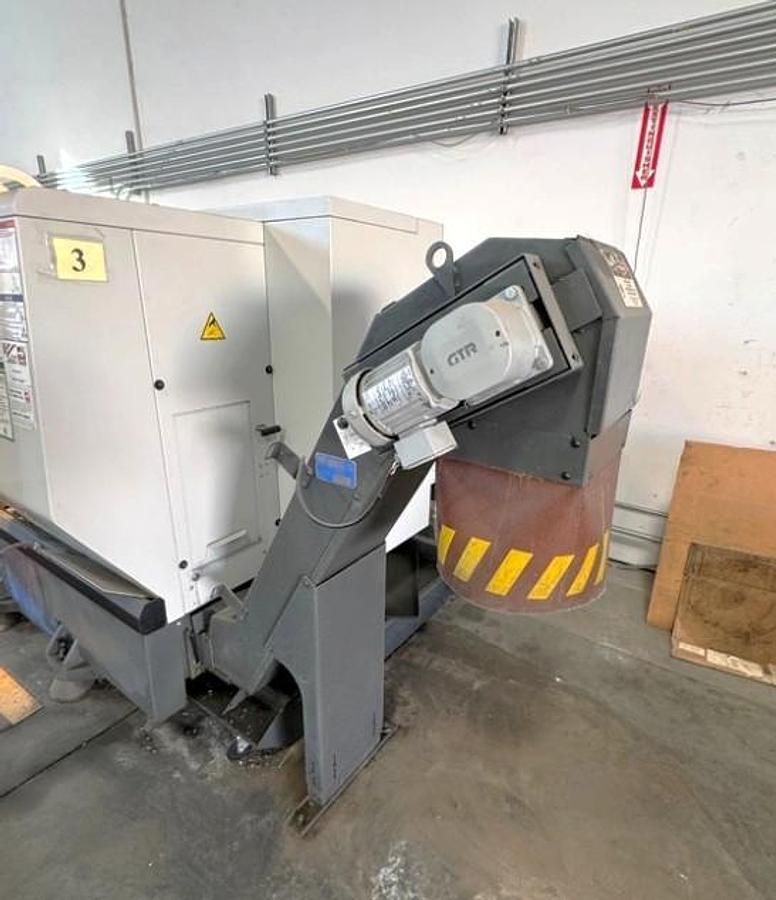

Chip Conveyor - Belt Style
Tool Presetter
Rigid Tapping
High Intensity Lighting
Coolant System with Tank & Pump
RS 232 Port Interface
All Available Tooling
Wired 195-260V Electrics
**Manufactured New in December of 2011**
Specifications
| Manufacturer | Haas |
| Model | ST-20 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120425 |
| Chuck Size | 8" 3 Jaw Hydraulic Chuck |
| Maximum Swing/Over Carriage | 23" / 9.5" |
| Maximum Turning Diameter / Length | 10.3" / 20" |
| Center Distance | 24" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3" / 2" |
| Spindle Speed | 5,000 RPM |
| Spindle Motor | 20 HP |
| Number of Turret Positions | 12 Station Bolt On Turret |
| Rapid Traverse Rates | 710 ipm |
| Tailstock Body Travel / Center | 20" / #4 MT |
| Machine Dimensions LxWxH | 126.5" x62"x72" |
| Machine Weight | 9,000 lbs |
