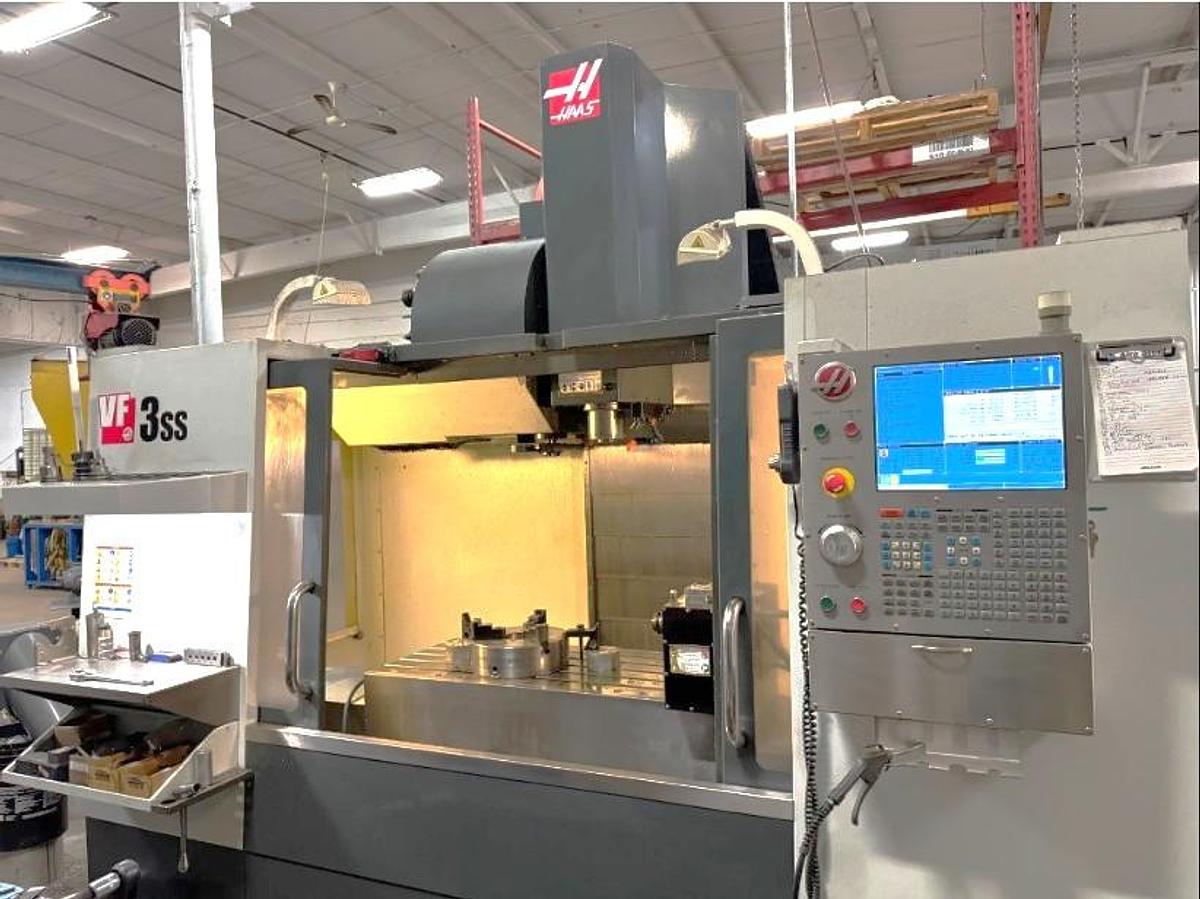

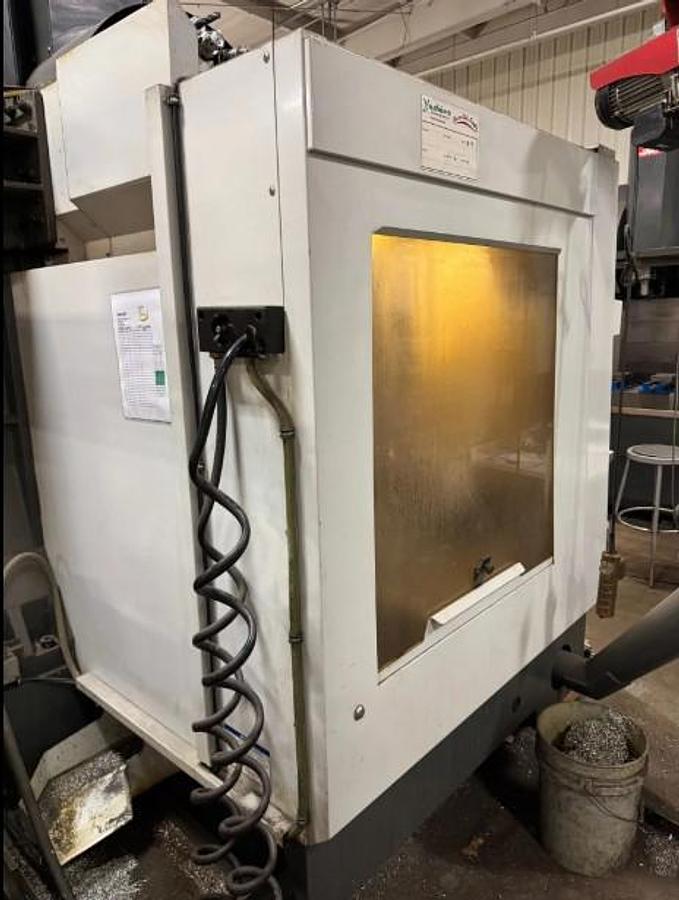

2012 Haas VF-3SS with 4th Axis Rotary Table, Chip Auger, RJH, 24 Station Side Mounted ATC, 12,000 RPM
2012 Haas VF-3SS with 4th Axis Rotary Table, Chip Auger, RJH, 24 Station Side Mounted ATC, 12,000 RPM
Contact us for price
Location:Wisconsin
or
Call (863) 439-6066
Description

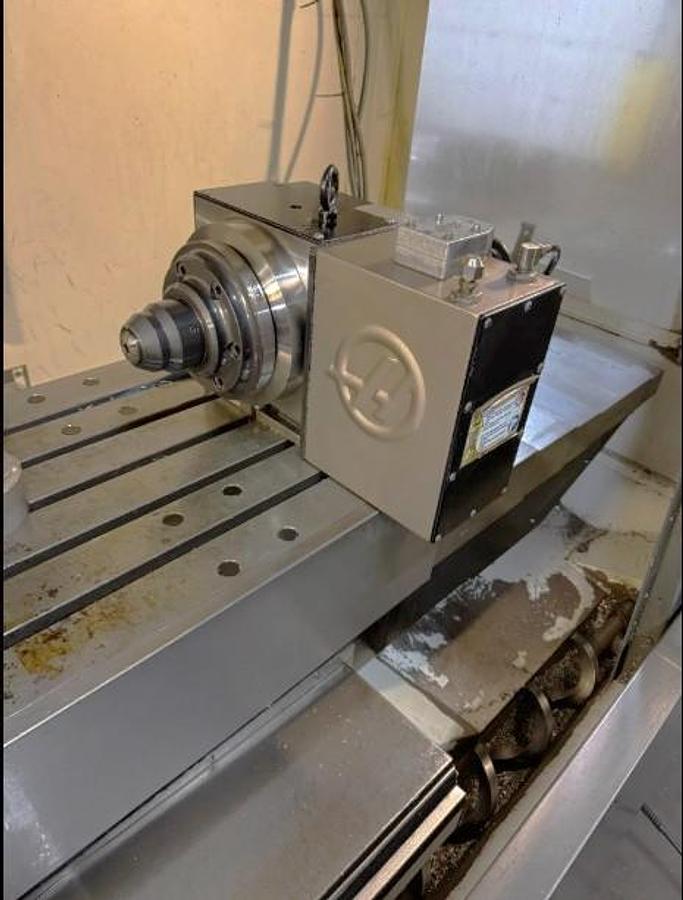

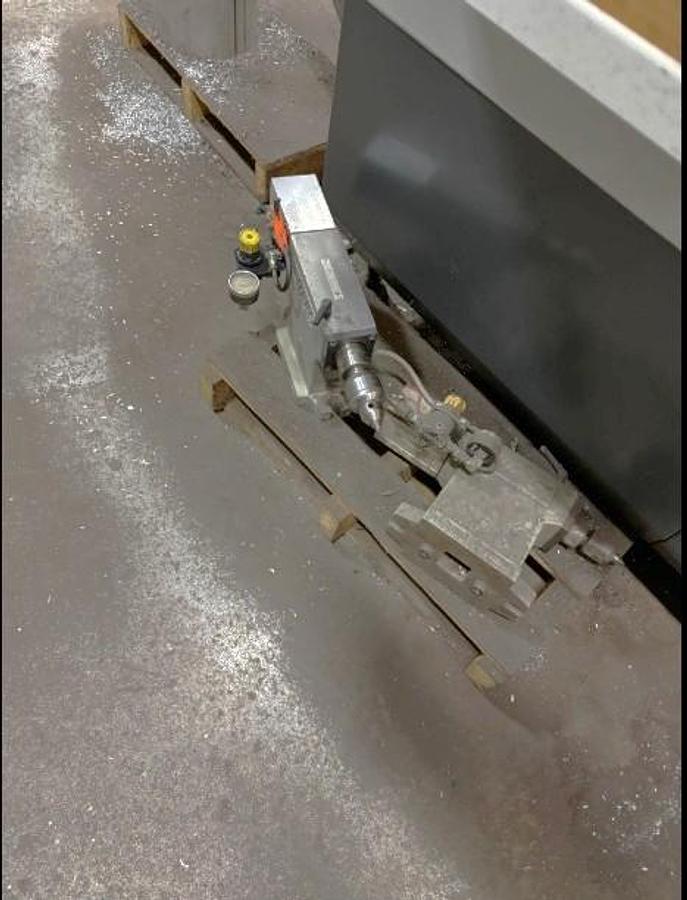

Haas HRT210 4th Axis Rotary Table (chuck not included)

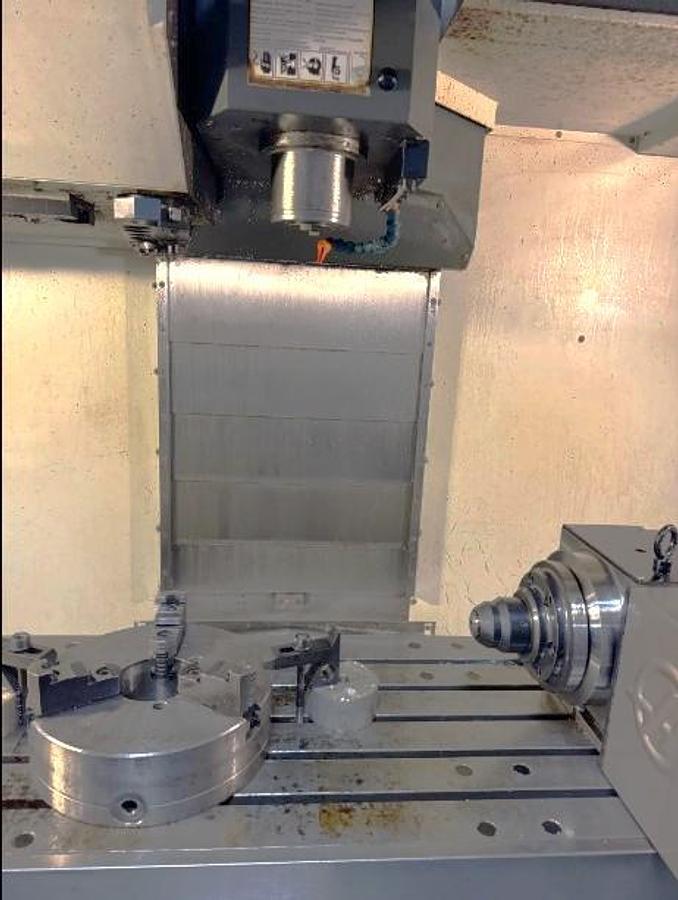

Tailstock to work with 4th Axis

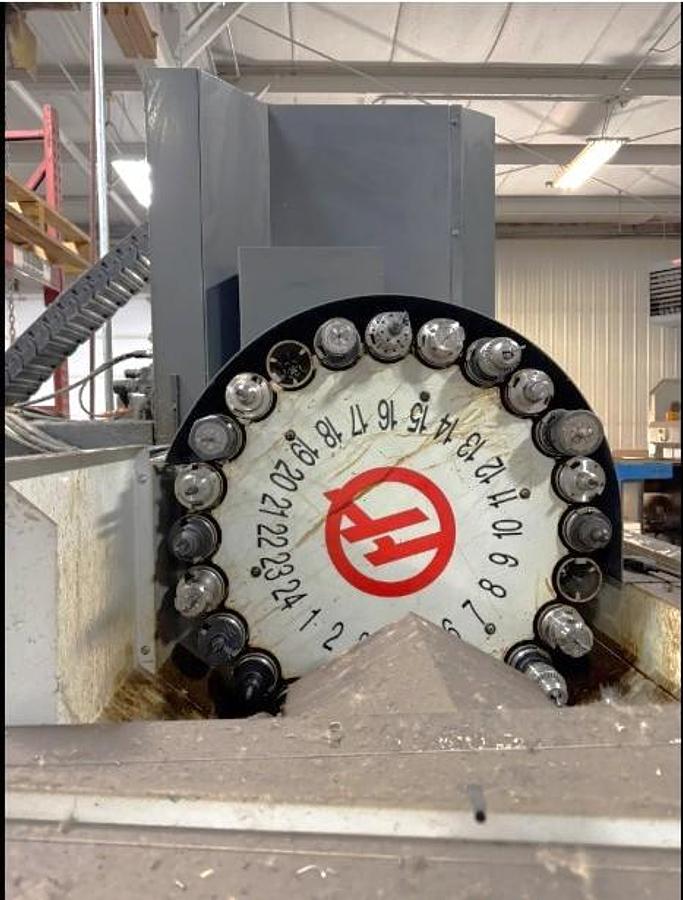

24+1 Position Side Mounted Tool Changer

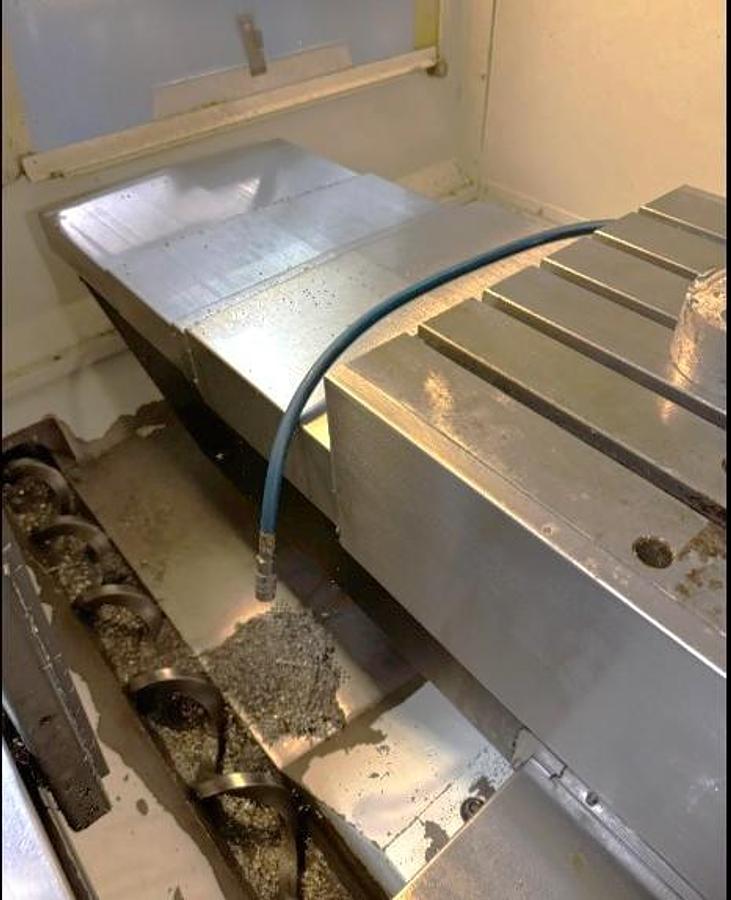

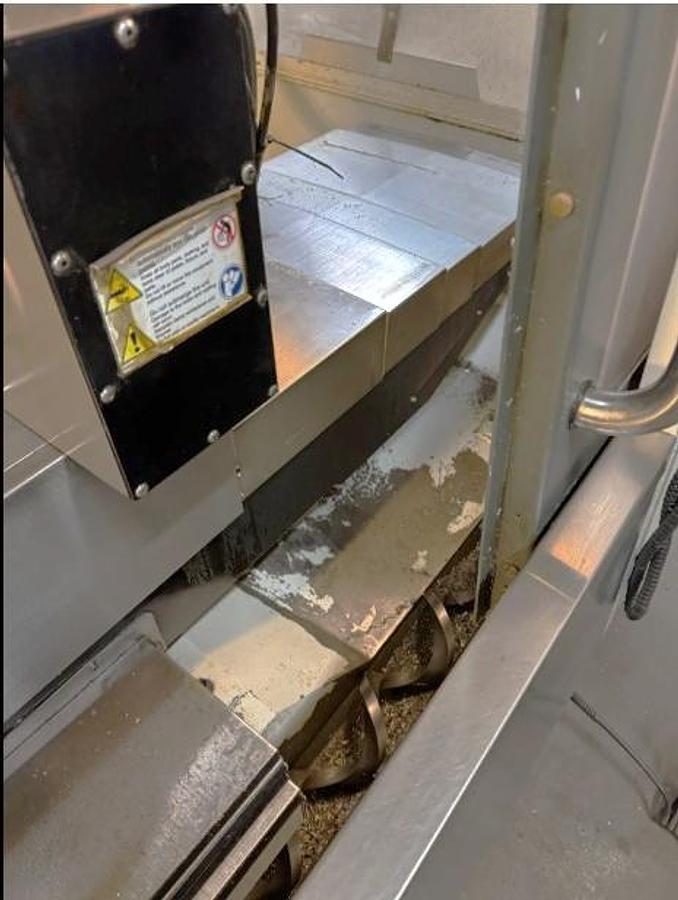

Auger Style Chip Conveyor
BT40 Spindle Taper

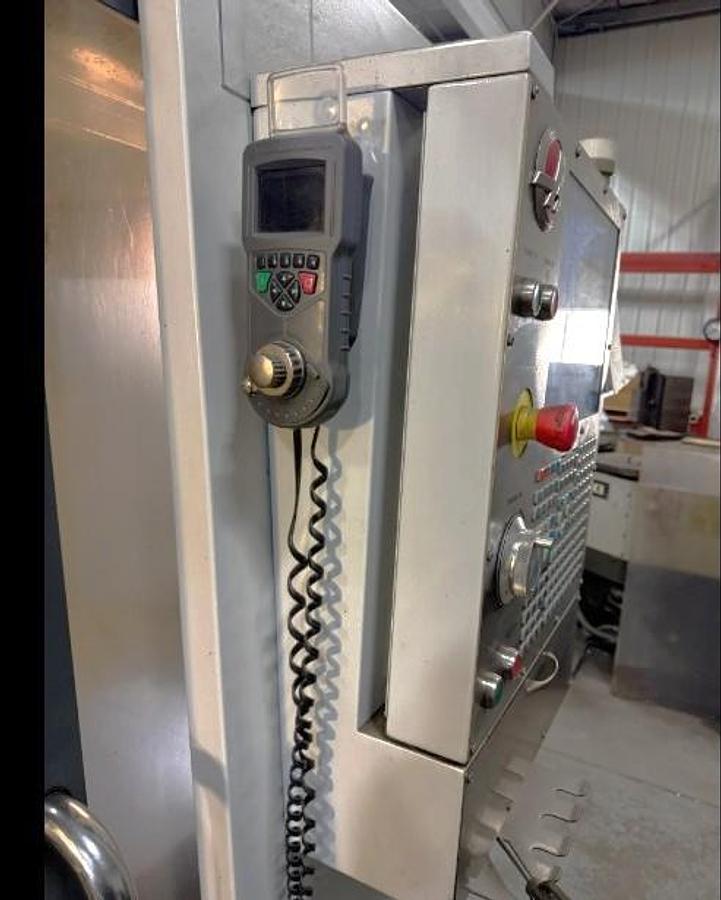

Remote Jog Handle
Programmable Coolant Nozzle
High Intensity Lighting
Coolant Tank with Pump

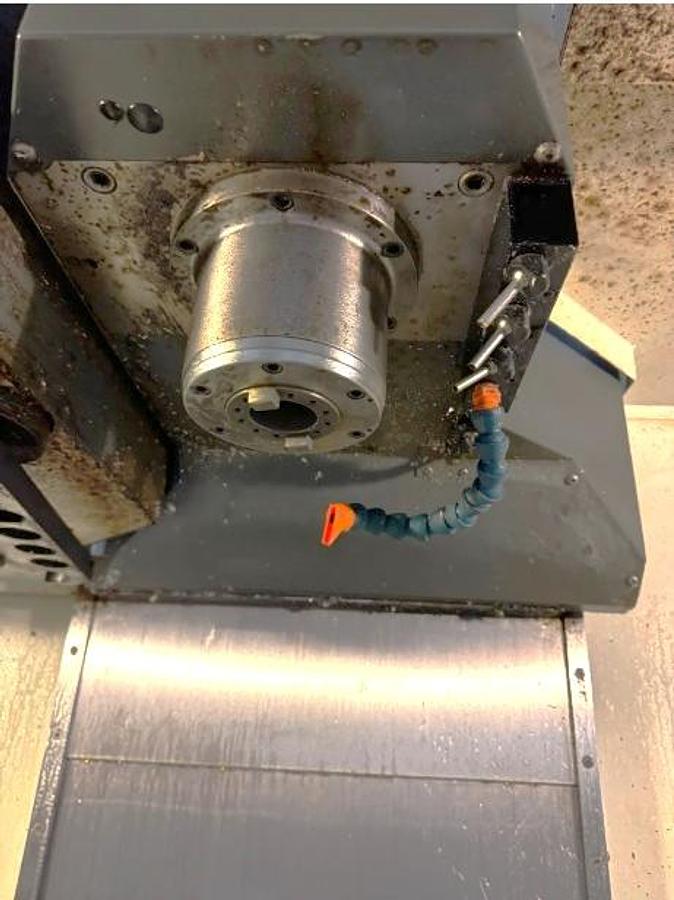

Inline Direct Drive 12,000 RPM Spindle
USB Port Interface
RS 232C Port Interface for DNC Operation
Specifications
| Manufacturer | Haas |
| Model | VF-3SS |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120423 |
| Machine Control | Haas CNC Control |
| Table size | 48" x 18" |
| Max table load | 1,750 lbs |
| X axis travel | 40" |
| Y axis travel | 20" |
| Z axis travel | 25" |
| Spindle taper | BT 40 |
| Spindle speed | 12,000 RPM |
| Spindle motor | 30 HP - Direct Drive |
| Spindle nose to table top | 4.2" - 29.2" |
| Number of tool positions | 24 + 1 Position Side Mount |
| Max tool weight | 12 lbs. |
| Rapid feed rate (x,y,z) | 1,400 IPM |
| Cutting feed rate | 0.1 - 833 IPM |
| Machine dimensions | 122" x 98" x 98.5" |
| Machine weight (approximately) | 12,500 lbs. |
