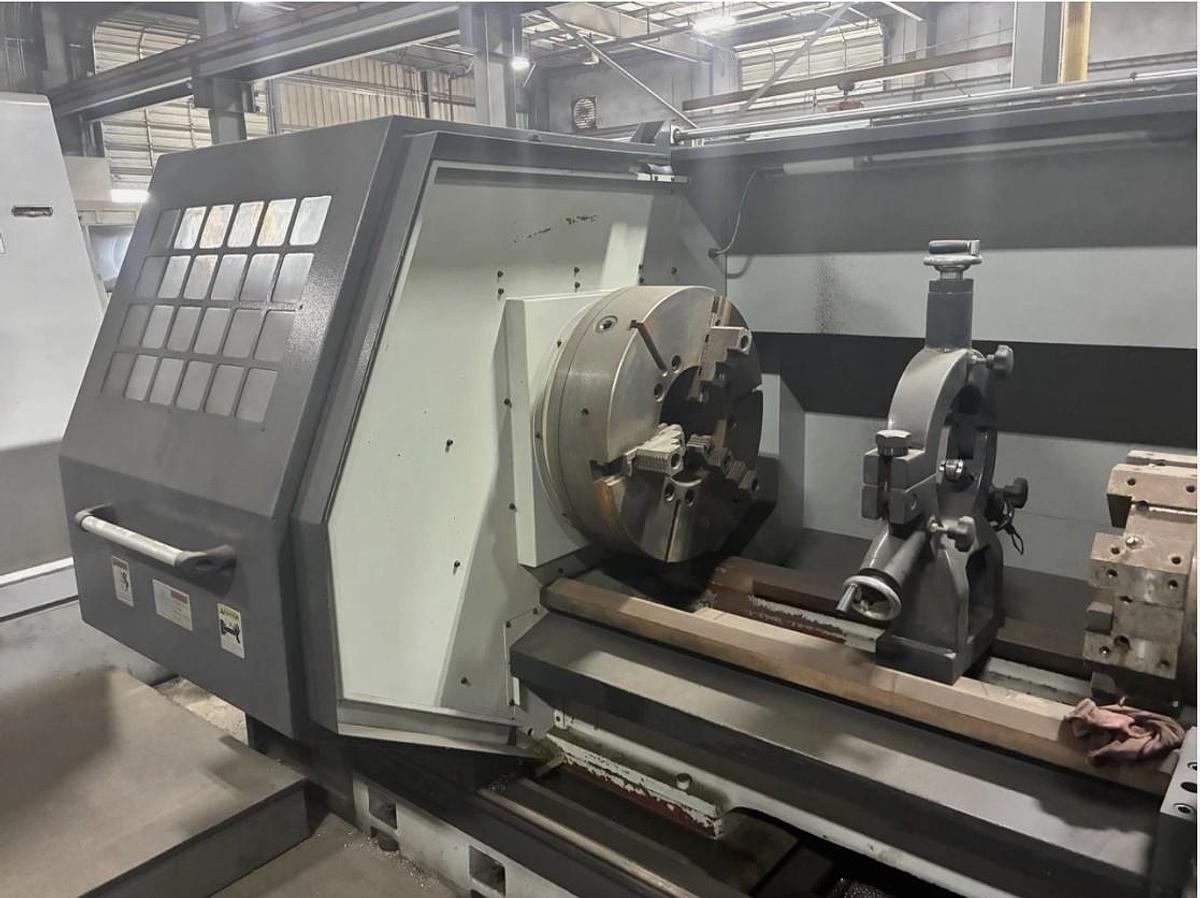

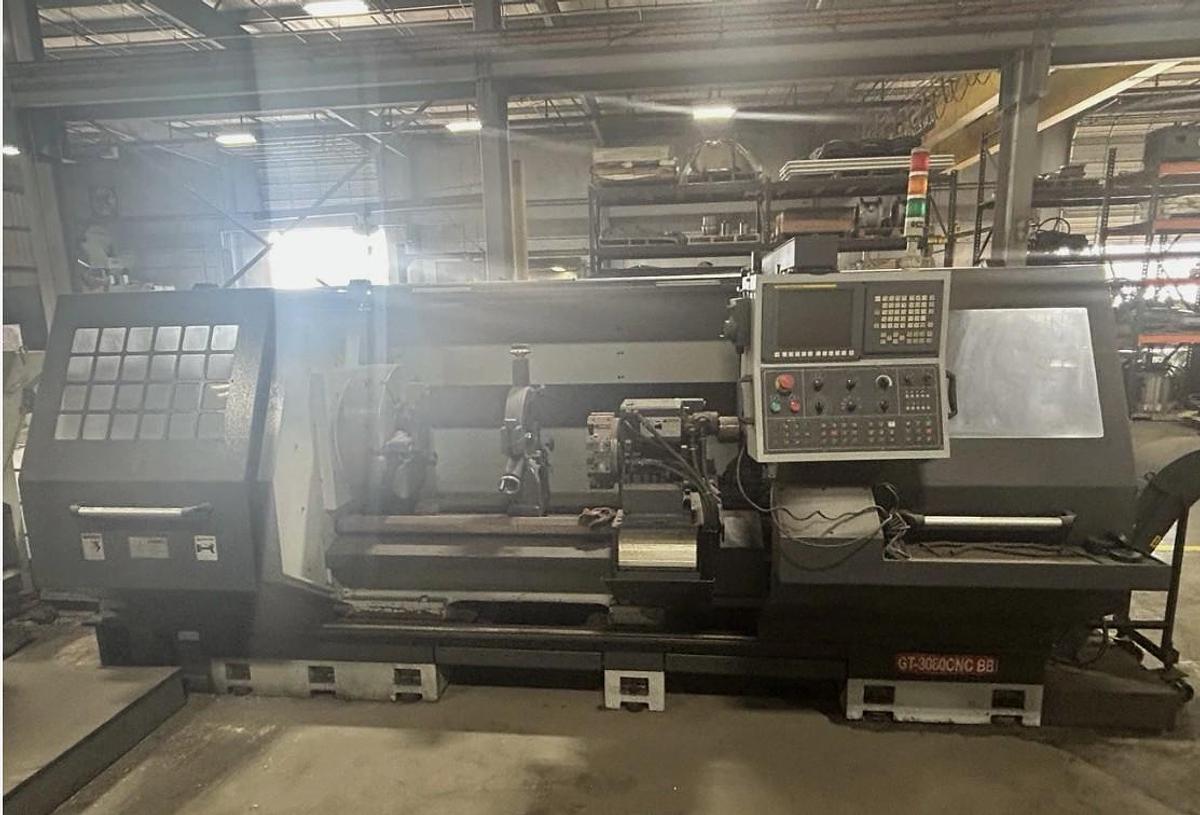

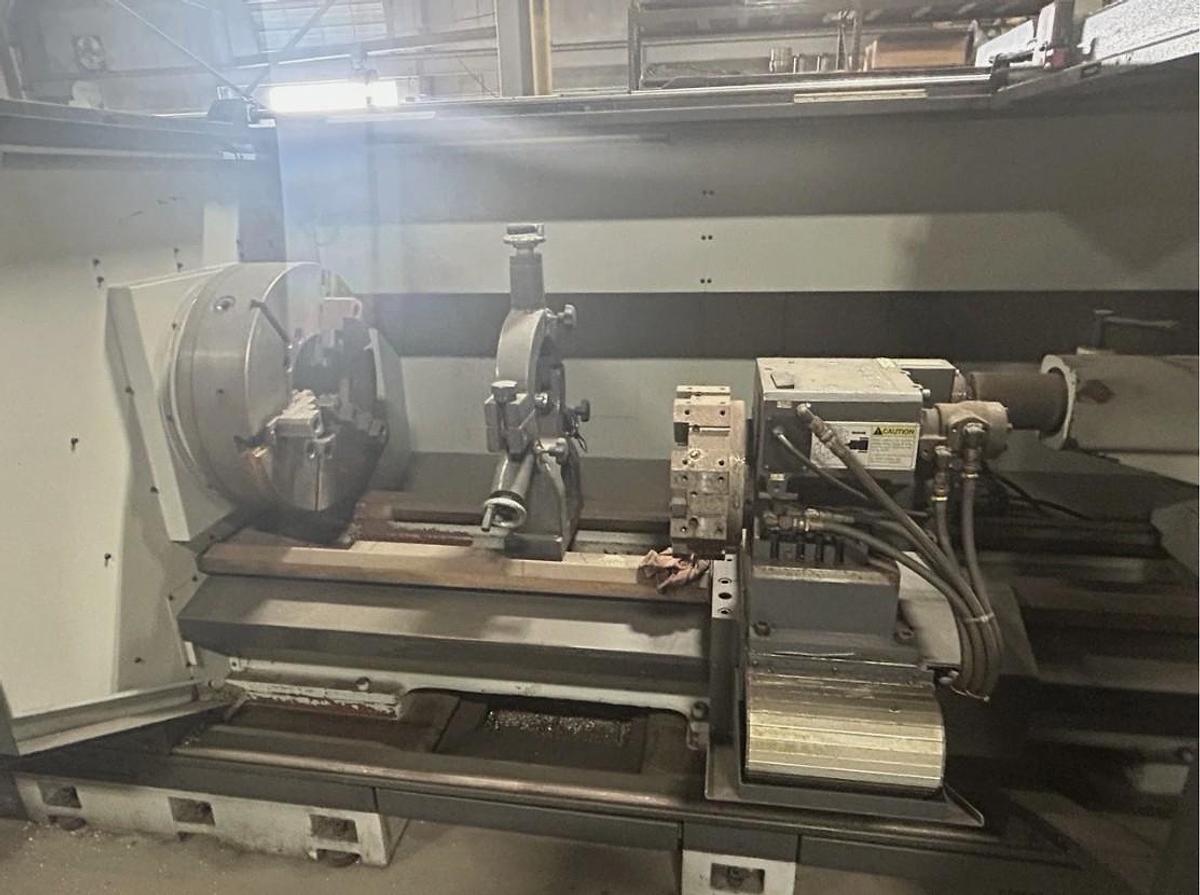

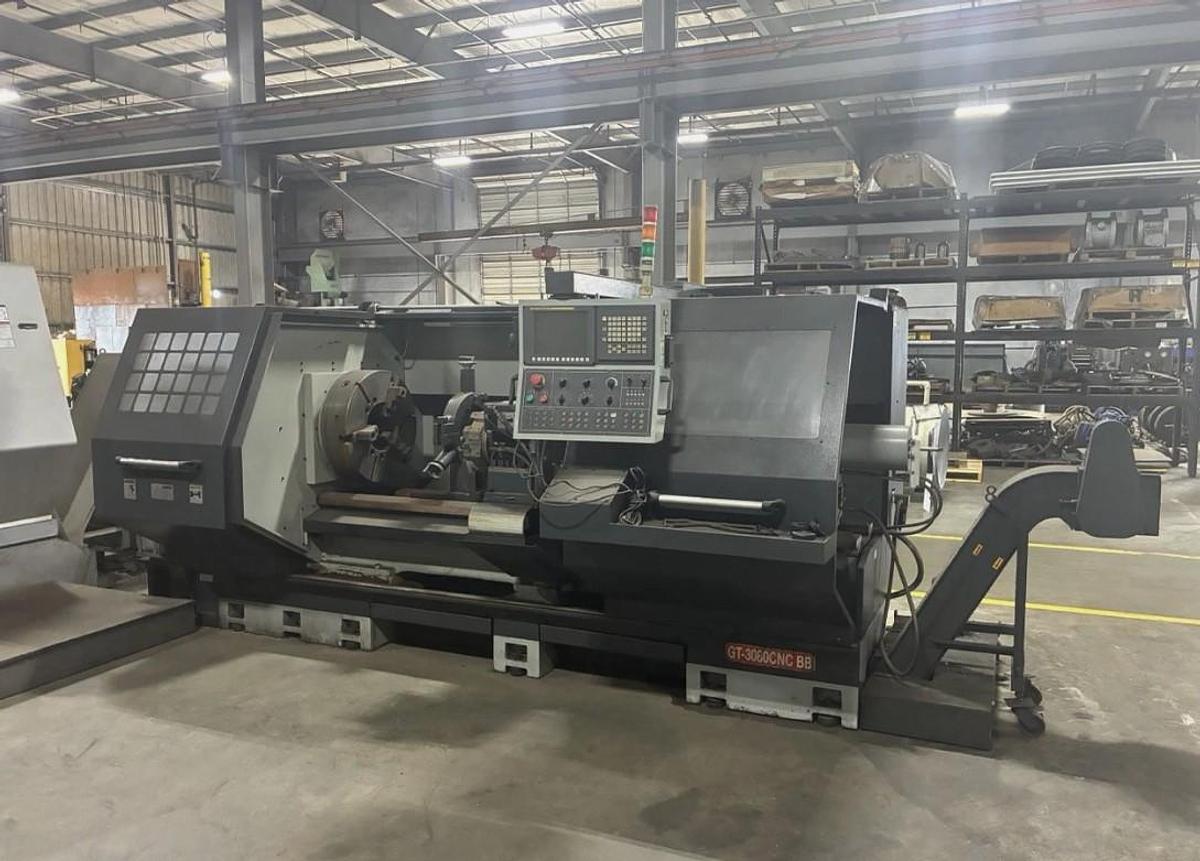

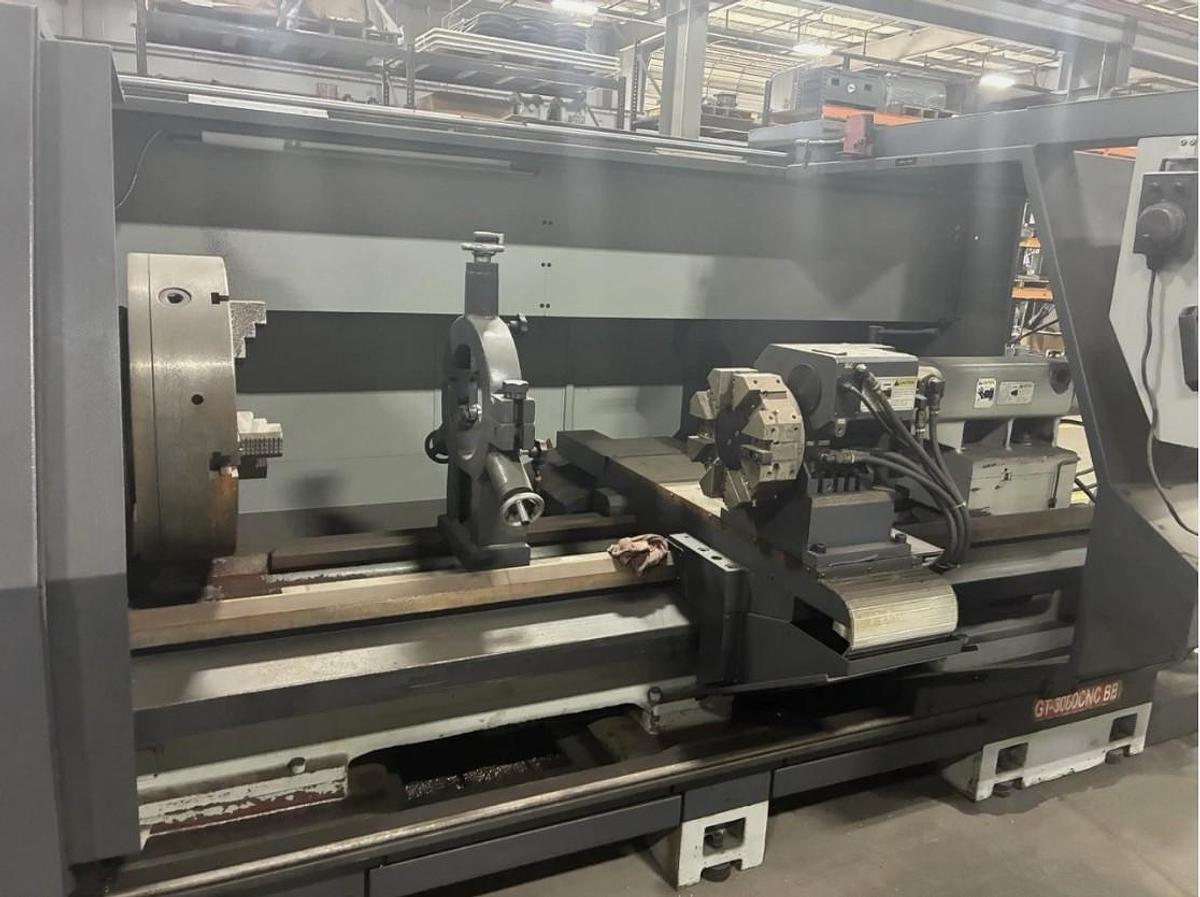

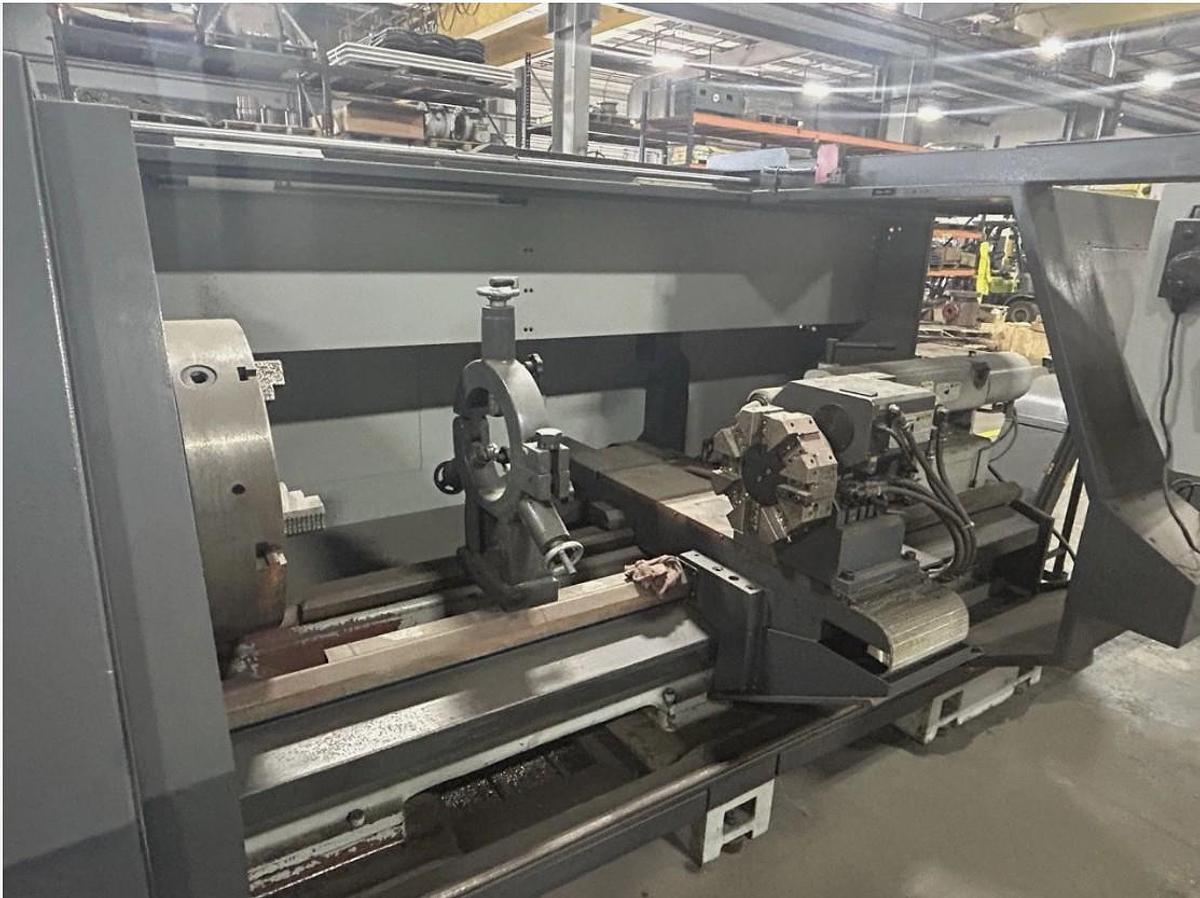

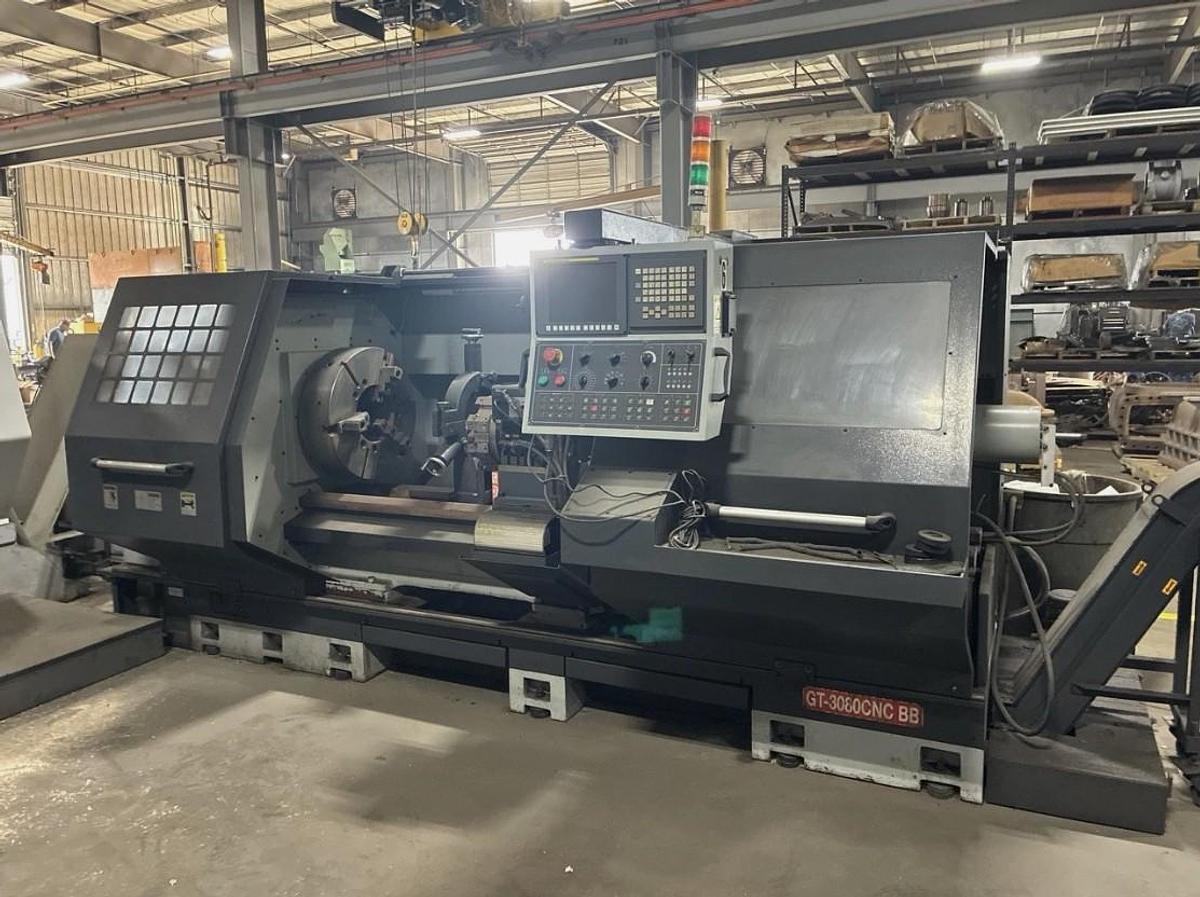

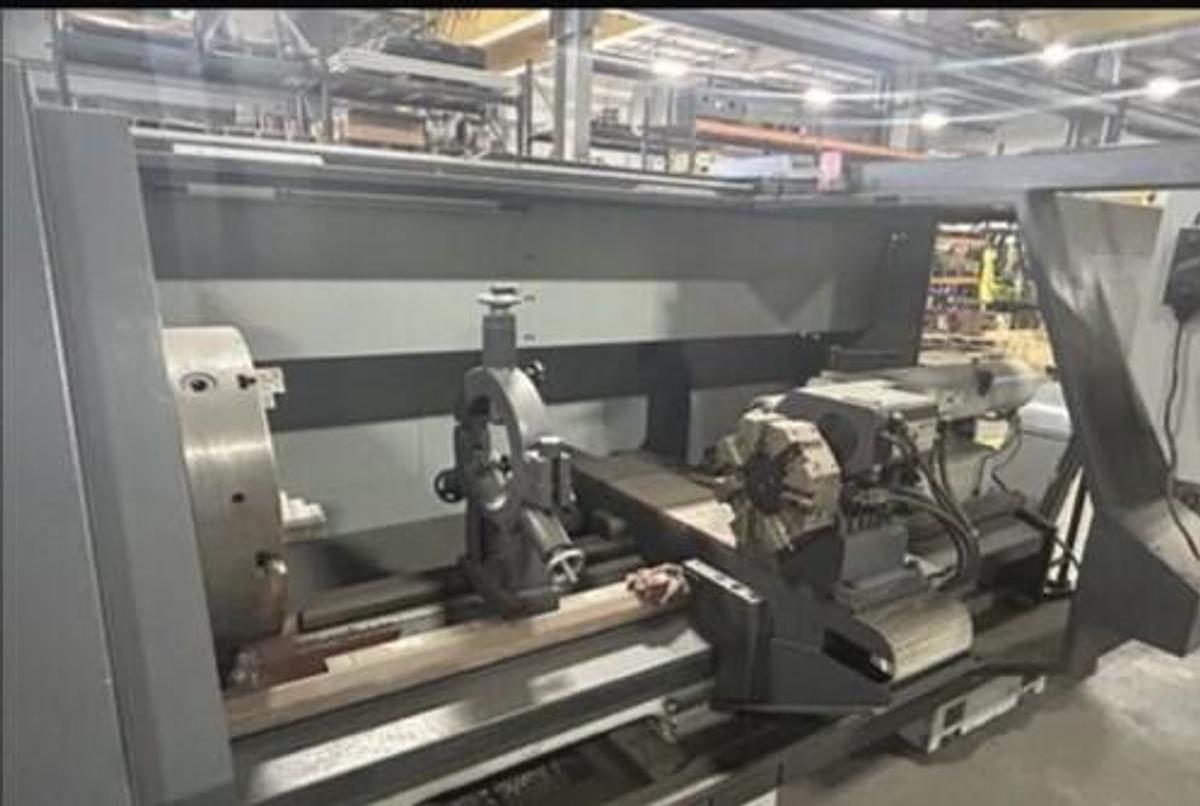

2015 Ganesh GT-3080CNC BB with 10" Spindle Bore
2015 Ganesh GT-3080CNC BB with 10" Spindle Bore
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
10" Spindle Bore

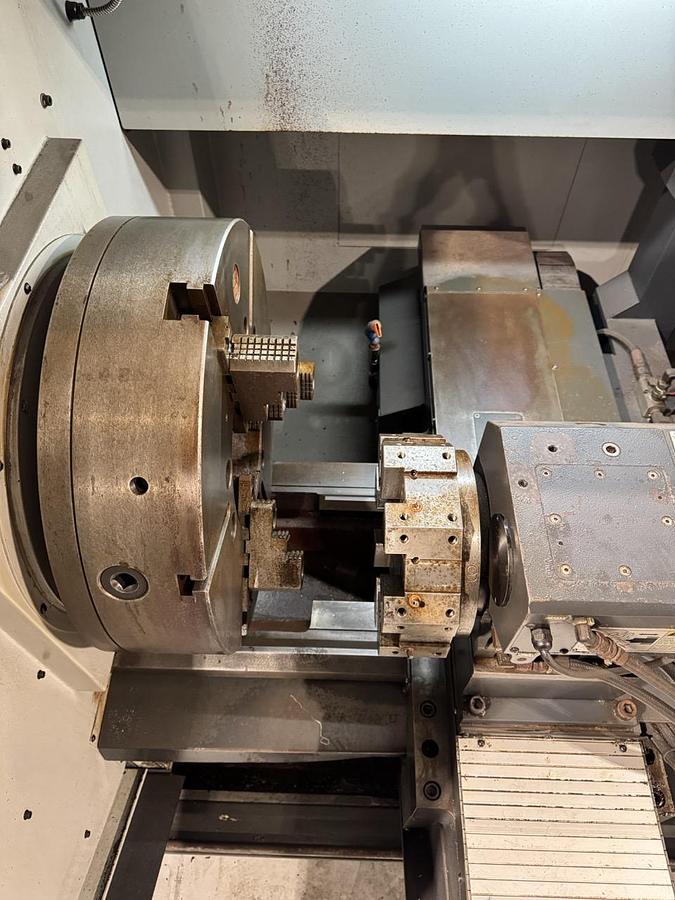

25" 3 Jaw Manual Chuck
8 Station Turret

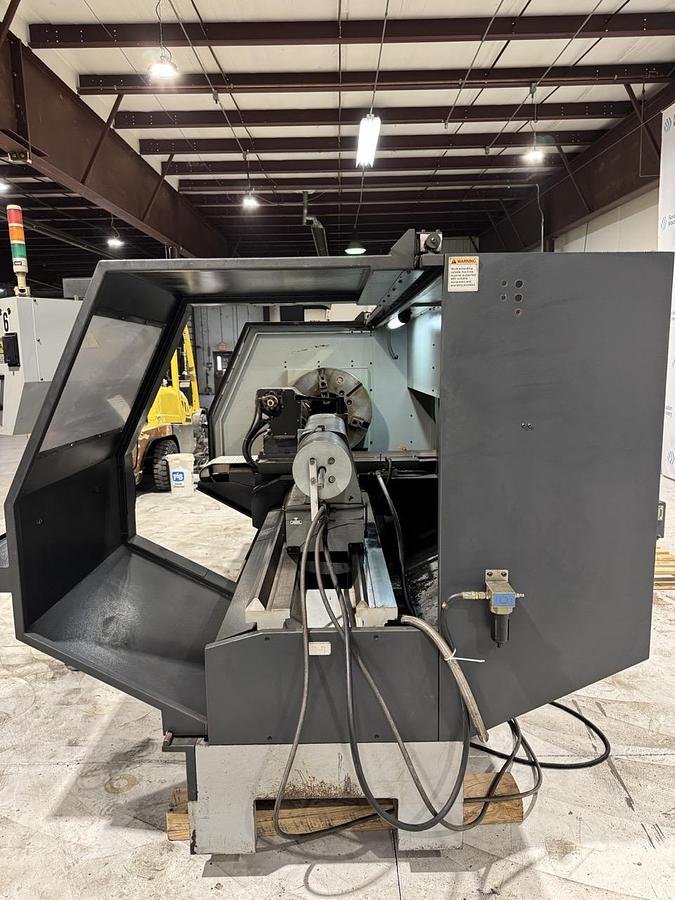

Heavy Duty Tailstock
Steady Rest
Chip Conveyor Coolant System with Tank & Pump
3 Color Machine Status Condition Lights
Remote Jog Handle IC Memory Card Interface RS 232 Port Interface All Available Tooling All Available Manuals
Specifications
| Manufacturer | Ganesh |
| Model | GTW-3080 with 10" Spindle Bore |
| Year | 2015 |
| Condition | Used |
| Stock Number | 120422 |

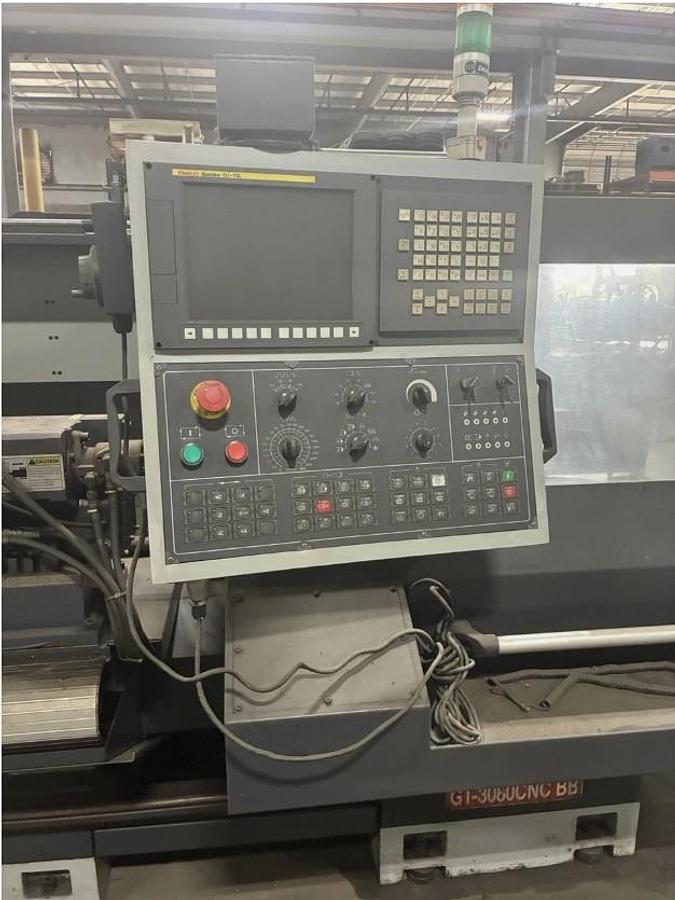

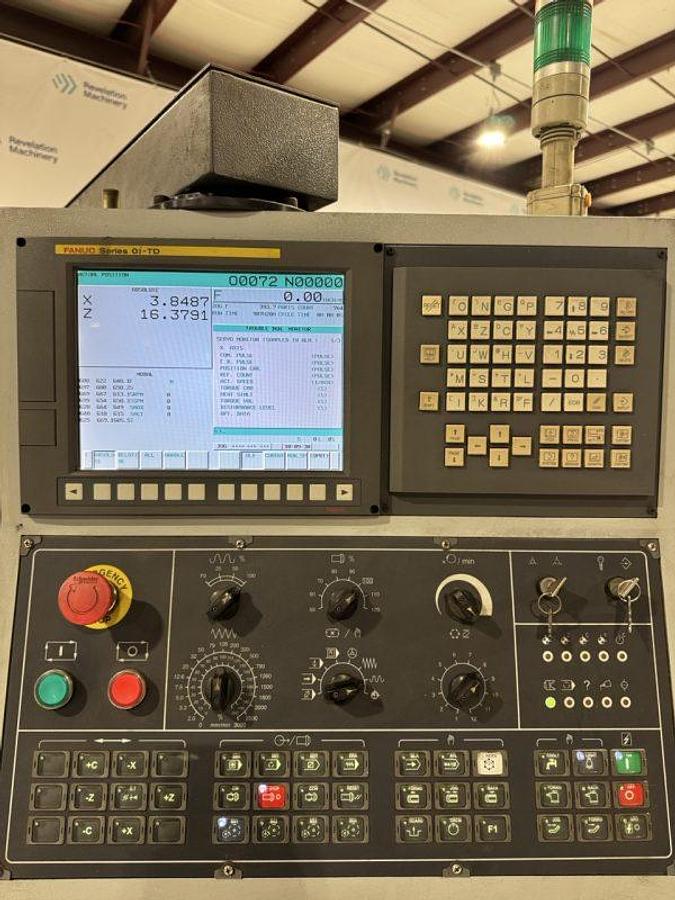

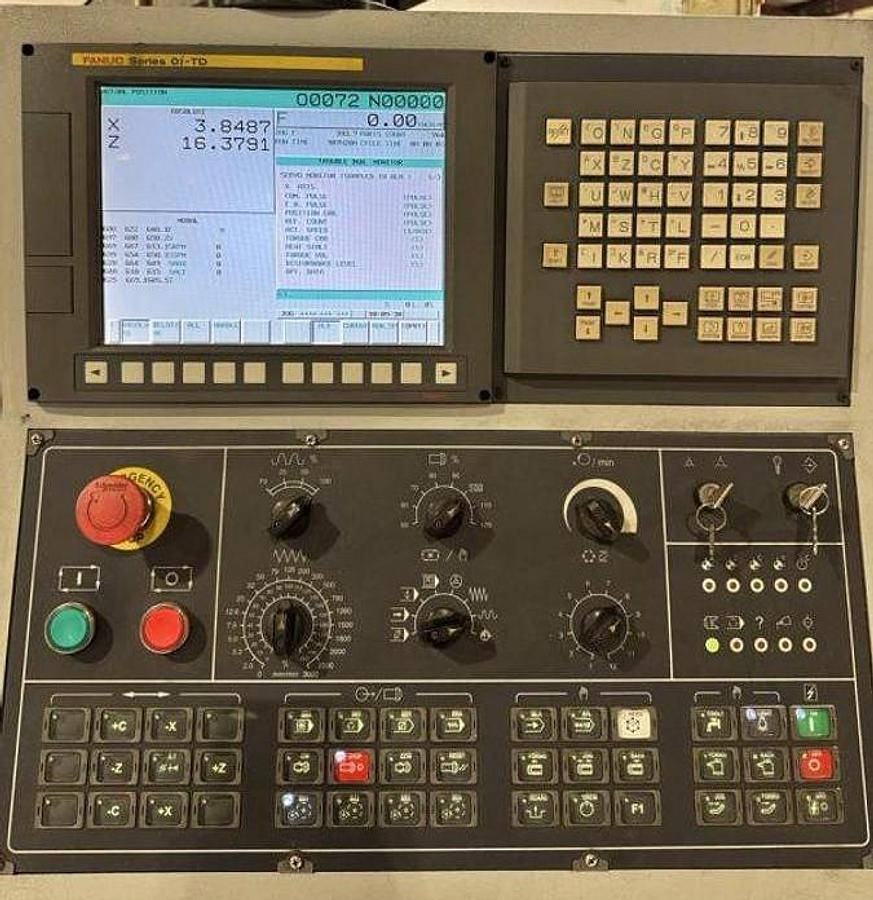

| Control | Fanuc 0i-TD Control |
| Chuck Sizes | 25" 3 Jaw Hydraulic Chuck |
| Maximum Swing over Bed | 30" |
| Maximum Cutting Diameter | 22" |
| Maximum Distance Between Centers | 78" |
| Maximum Bar Capacity | 10" through bore |
| X-Axis Travel | 19.625" |
| Z-Axis Travel | 78" |
| Spindle Nose / Spindle Bore | A2-15" / 10" |
| Spindle Speed | 18 - 600 RPM |
| Spindle Motor | 30 HP - 2 Ranges |
| Number of Turret Positions | 8 Station Turret |
| Rapid Traverse Rates | 394 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 4.92" / 7.87" / MT #6 |
| Machine Dimensions LxWxH | 223" x 90" x 80" |
| Machine Weight | 13,230 lbs |
