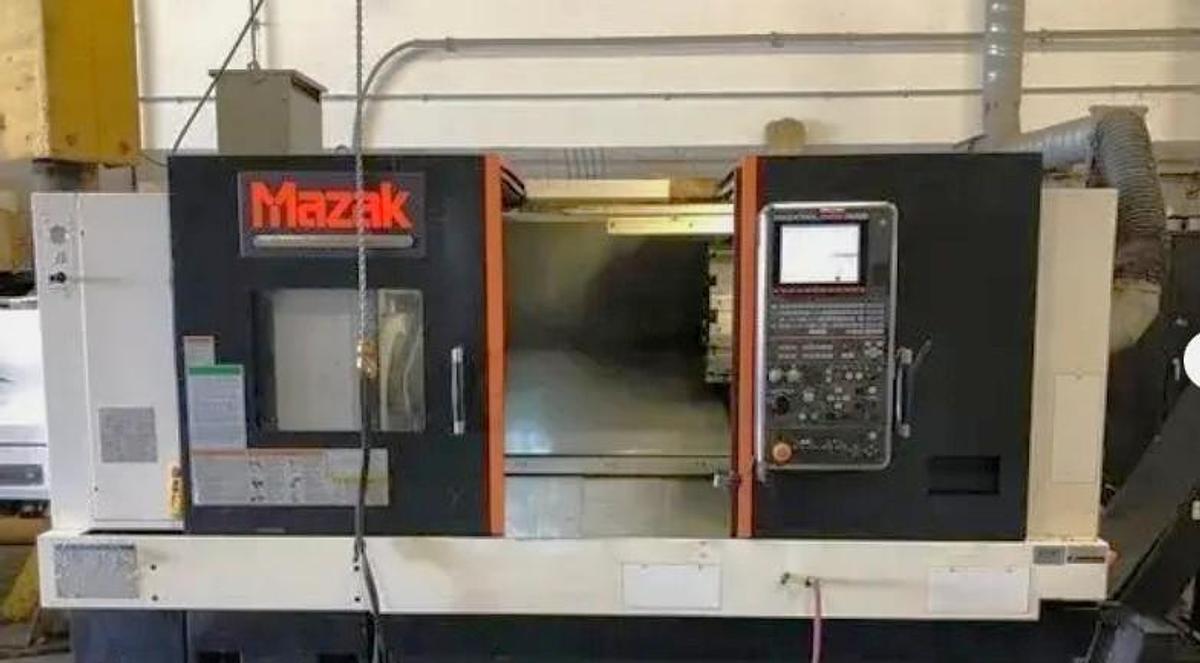

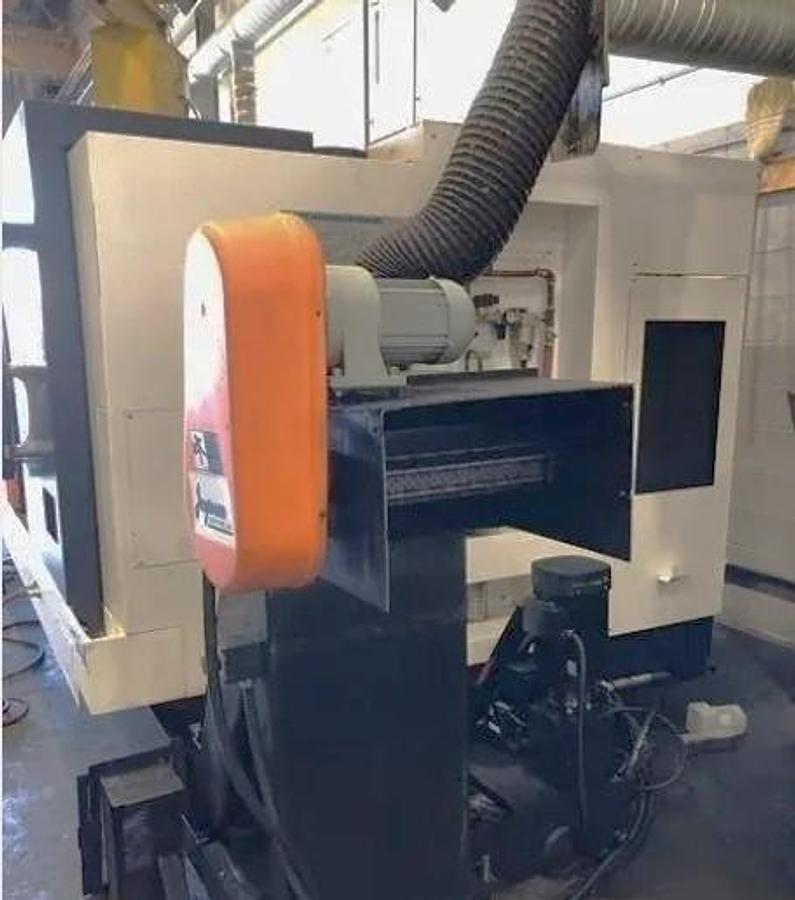

2012 Mazak Nexus QTN 450-II/1000 with 6.5" Bar Capacity, Chip Conveyor, Tailstock, Toolsetter, 40" centers, 50 HP
2012 Mazak Nexus QTN 450-II/1000 with 6.5" Bar Capacity, Chip Conveyor, Tailstock, Toolsetter, 40" centers, 50 HP
$139,500 (USD)
Location:Canada
or
Call (863) 439-6066
Description

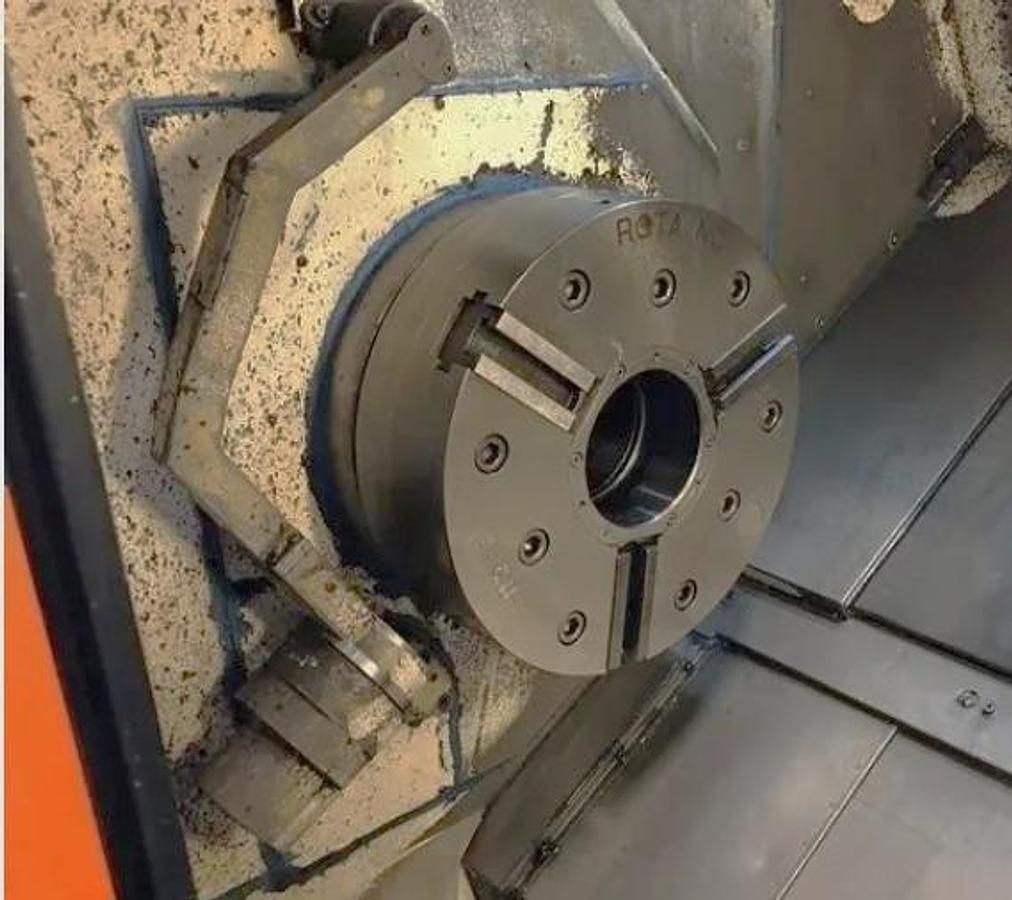

20" Schunk Rota NC-500-166.5 3 Jaw Hydraulic Chuck

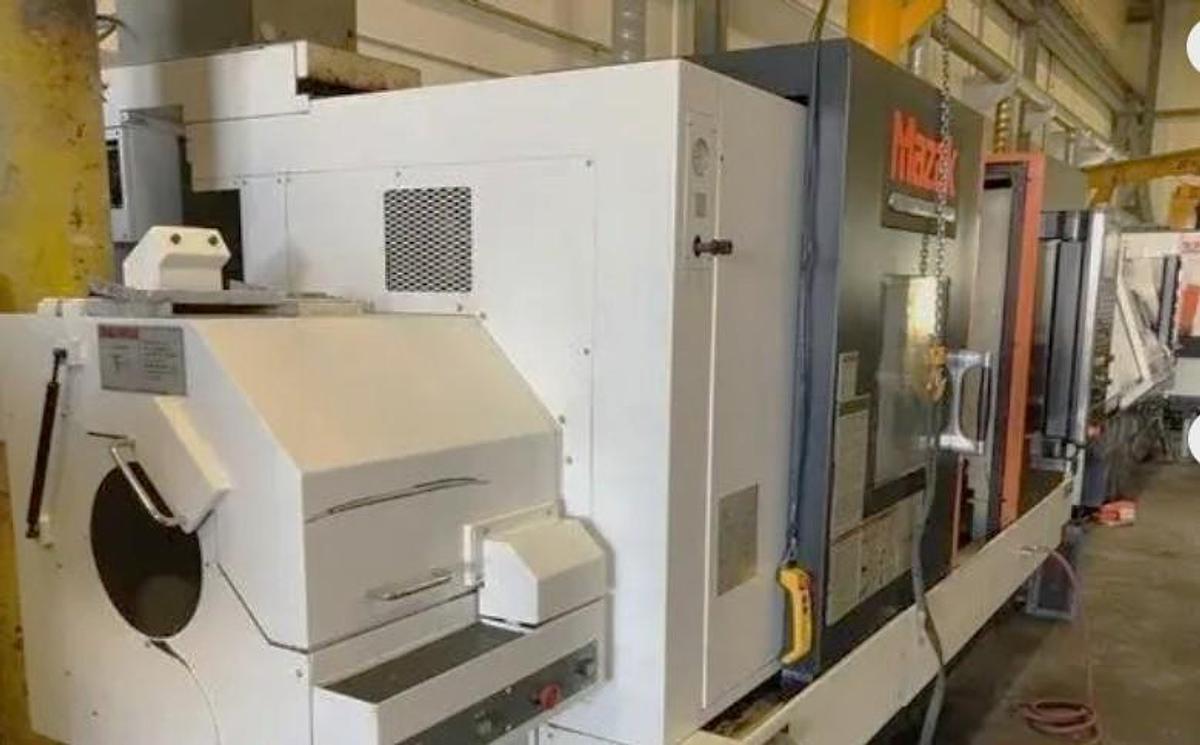

Chip Conveyor

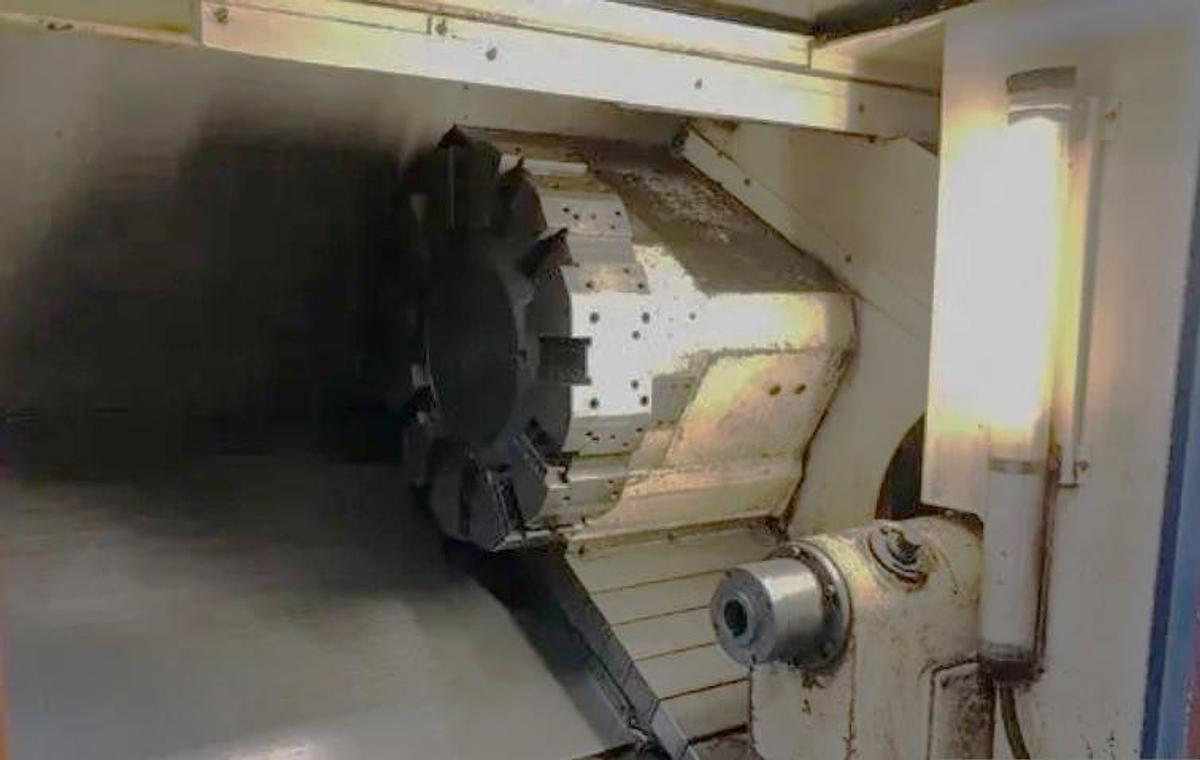

Programmable Tailstock
Tool Presetter

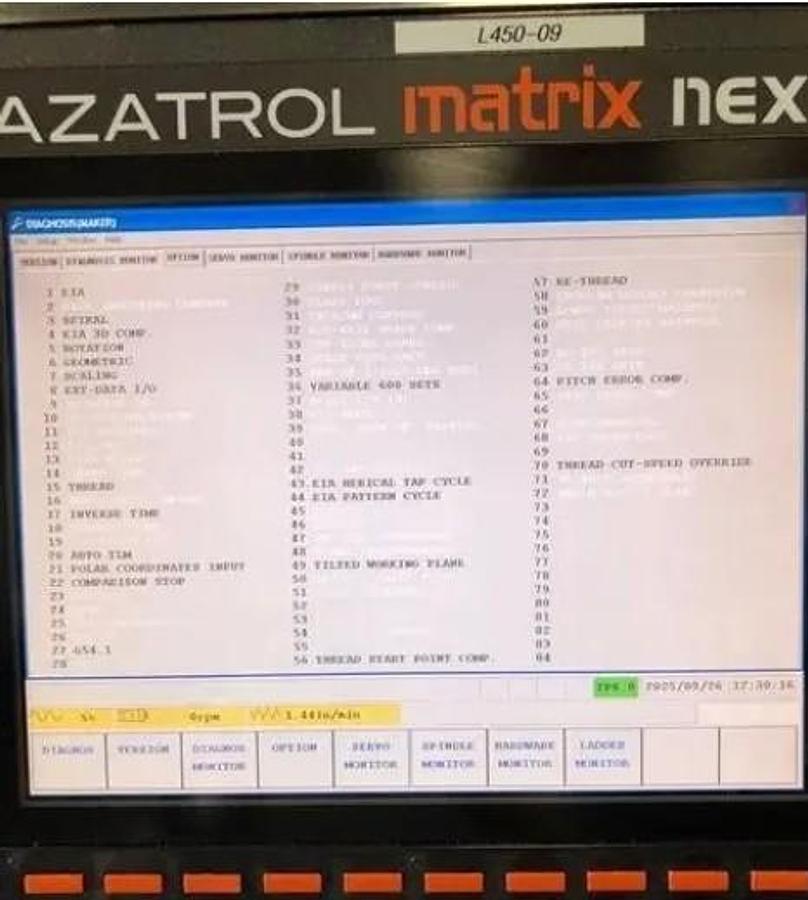

EIA/ISO Programming EIA 3D Compensation
EIA Helical Tap Cycle
EIA Pattern Cycle
Thread Cut-Speed Override
Re-Threading
Thread Start Point Compensation
Threading
Rotation & Scaling
Polar Coordinates Input
Comparison Stop
Variable 600 Sets
Tilted Working Plane
Pitch Error Compensation Multitap Transformer
Coolant System with Tank & Pump
12.1" Color LCD
USB Interface (2 Ports)
RS 232 Port Interface All Available Manuals All Available Tooling

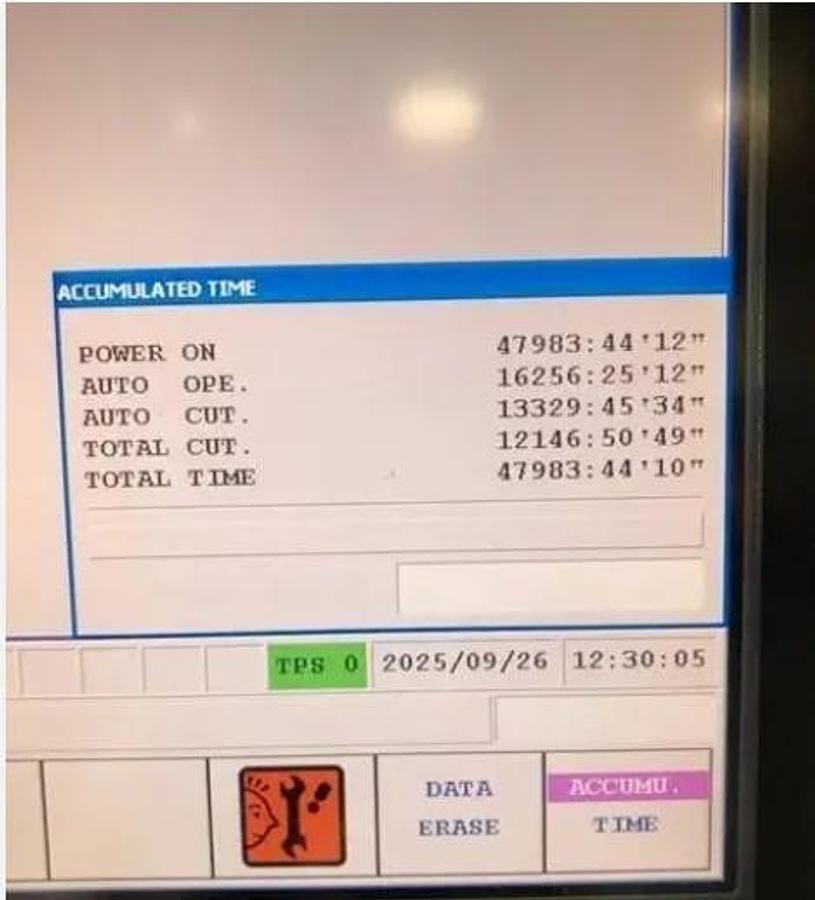

**Total Cutting Hours 12,146**
Specifications
| Manufacturer | Mazak |
| Model | Nexus QTN 450-II/1000 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120419 |

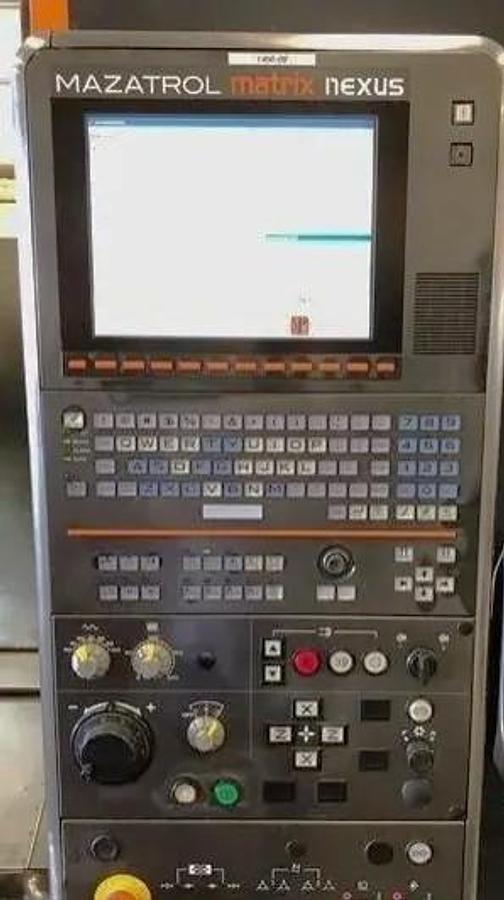

| Control | Mazatrol Matrix Nexus 2 |
| Chuck Size | 20" 3 Jaw Hydraulic Chuck |
| Maximum Swing | 33.268" |
| Maximum Turning Diameter | 22.835" |
| Maximum Turning Length | 40.3" |
| Maximum Bar Capacity | 6.5" |
| X-Axis Travel | 12.13" |
| Z-Axis Travel | 42.13" |
| Spindle Nose / Spindle Bore | A2-15" / 7.1" |
| Spindle Speeds | 2,000 RPM - Geared |
| Spindle Motor | 50 HP |

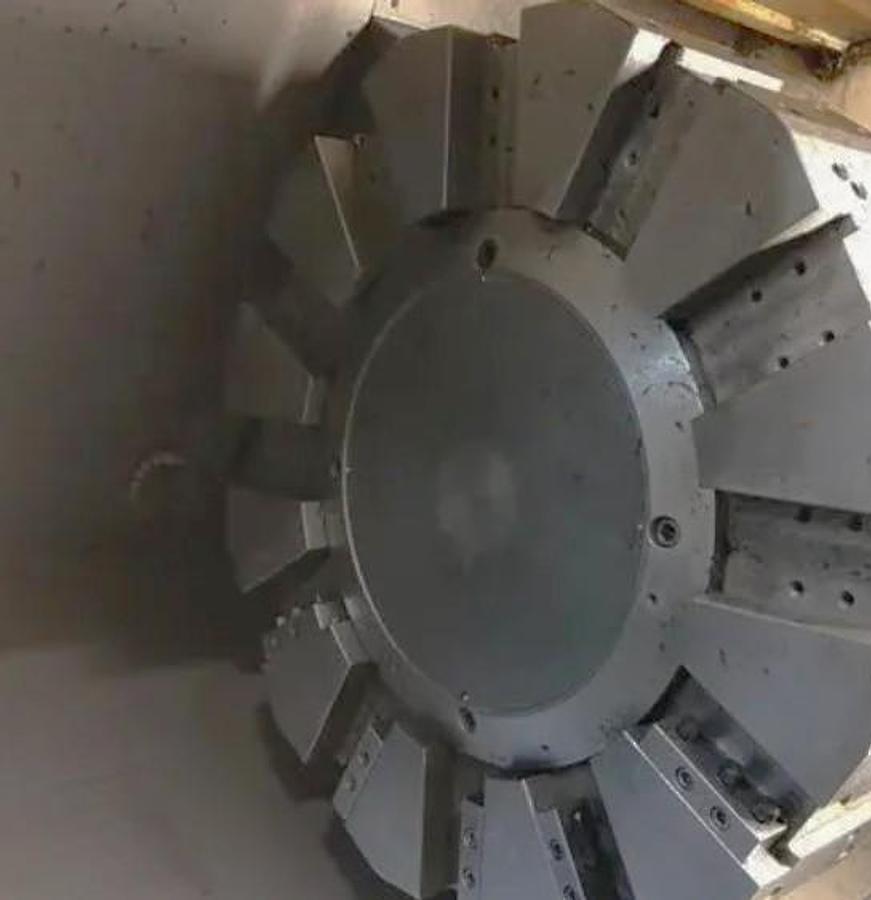

| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 40.375" / MT #5 |
| Machine Dimensions | 178"x99"x84" |
| Machine Weight | 21,283 lbs. |
