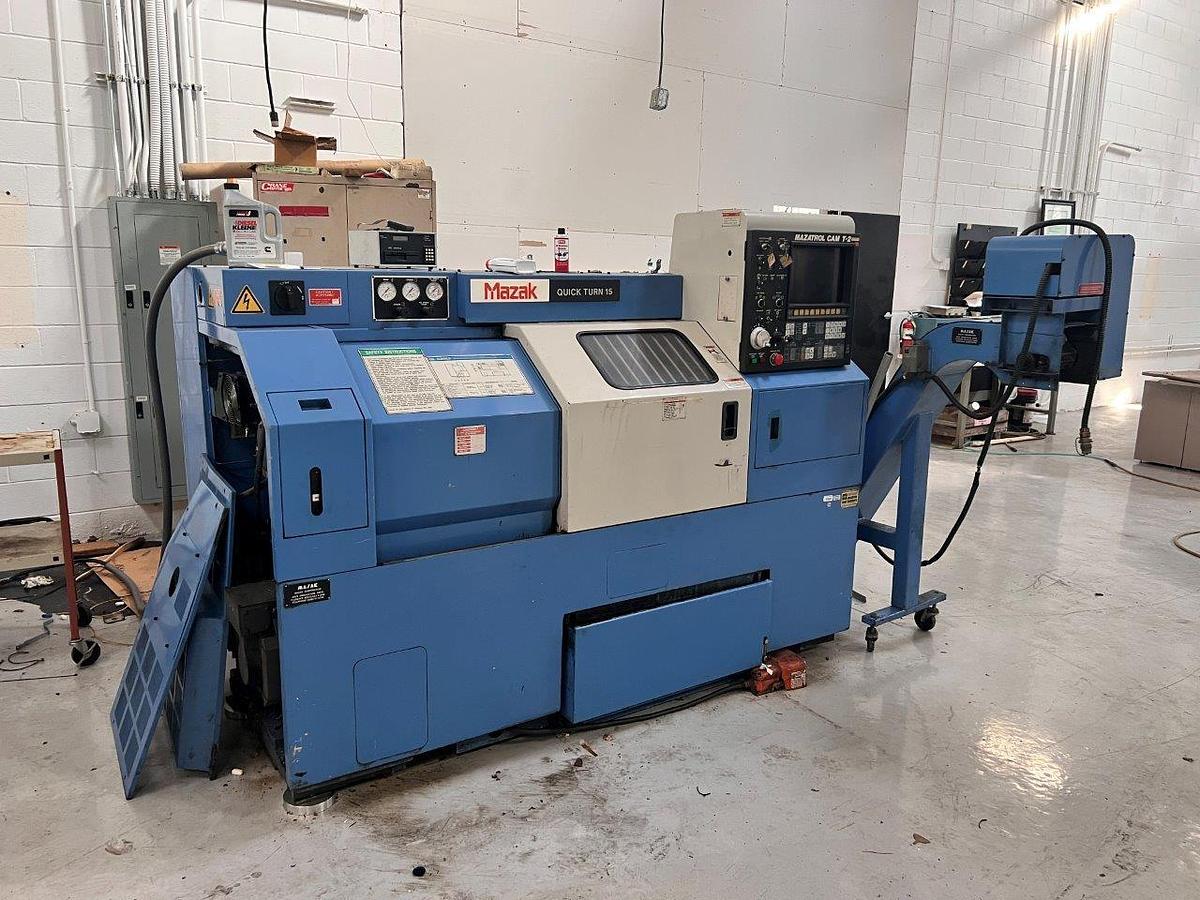

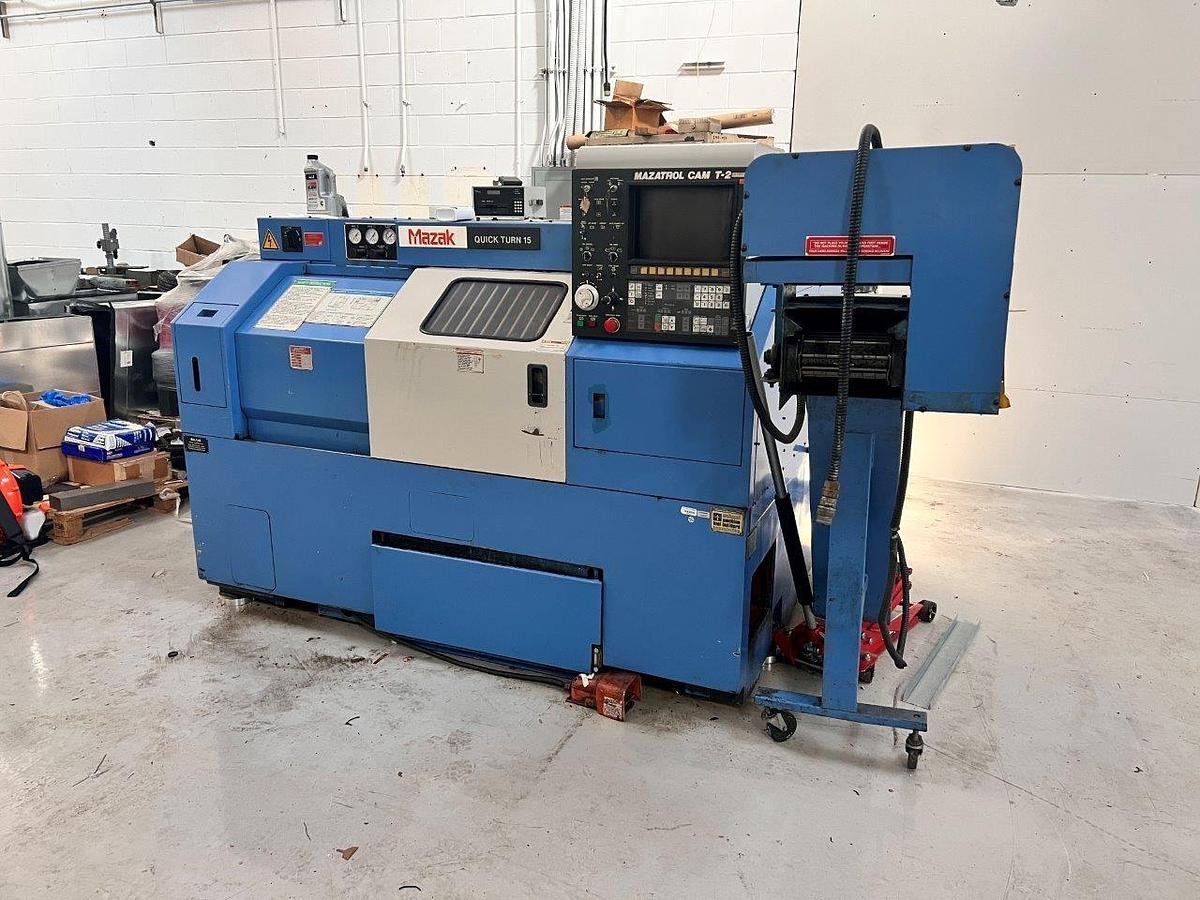

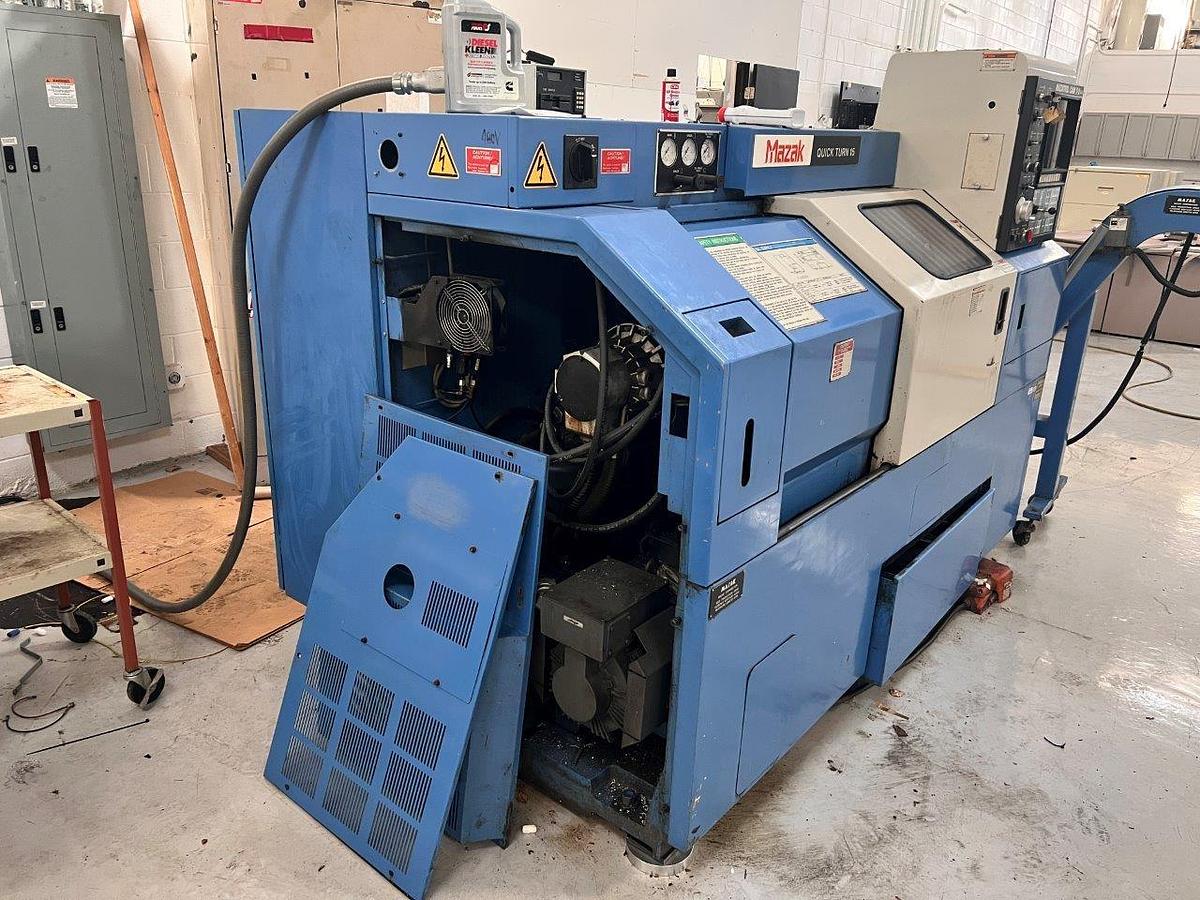

1988 Mazak QT15 Universal with Mazatrol T-2 Control, 8" Chuck, 2" Bar Capacity, Chip Conveyor, Tool Presetter, Tailstock
1988 Mazak QT15 Universal with Mazatrol T-2 Control, 8" Chuck, 2" Bar Capacity, Chip Conveyor, Tool Presetter, Tailstock
$6,950 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description

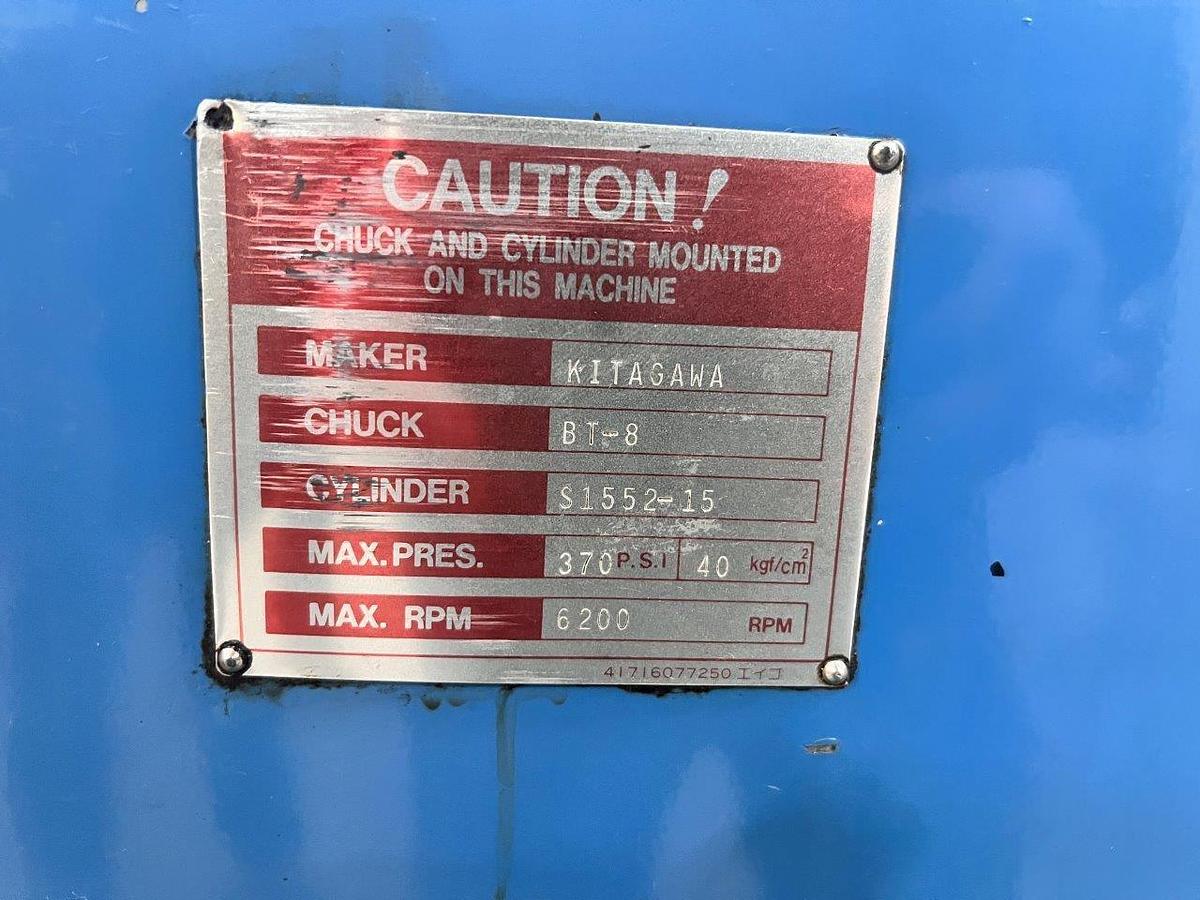

8" 3 Jaw Hydraulic Chuck
Chip Conveyor
Programmable Tailstock
Automatic Tool Eye RS 232 Port Interface Multi Tap Transfomer Complete Coolant System with Tank & Pump
All Available Tooling
Specifications
| Manufacturer | Mazak |

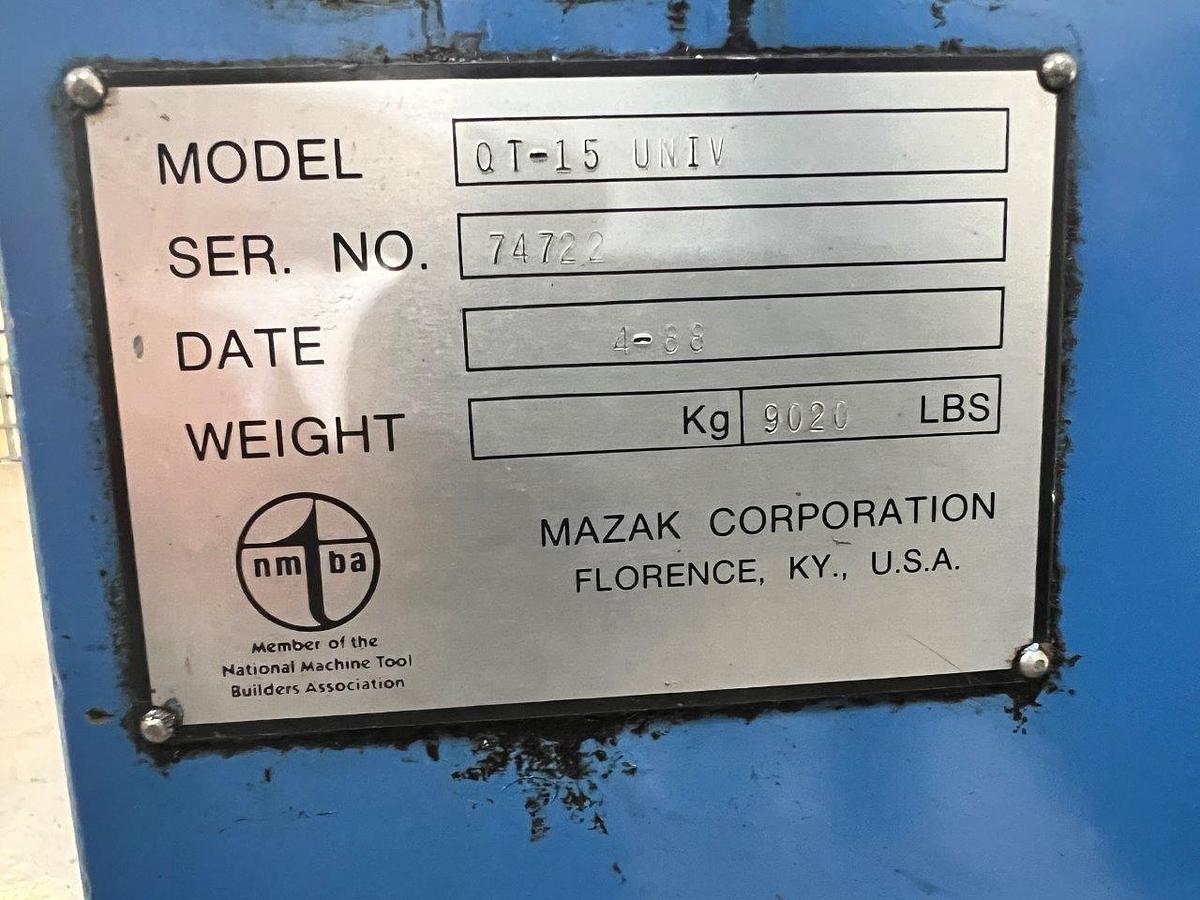

| Model | QT15 |
| Year | 1988 |
| Condition | Used |
| Stock Number | 120417 |

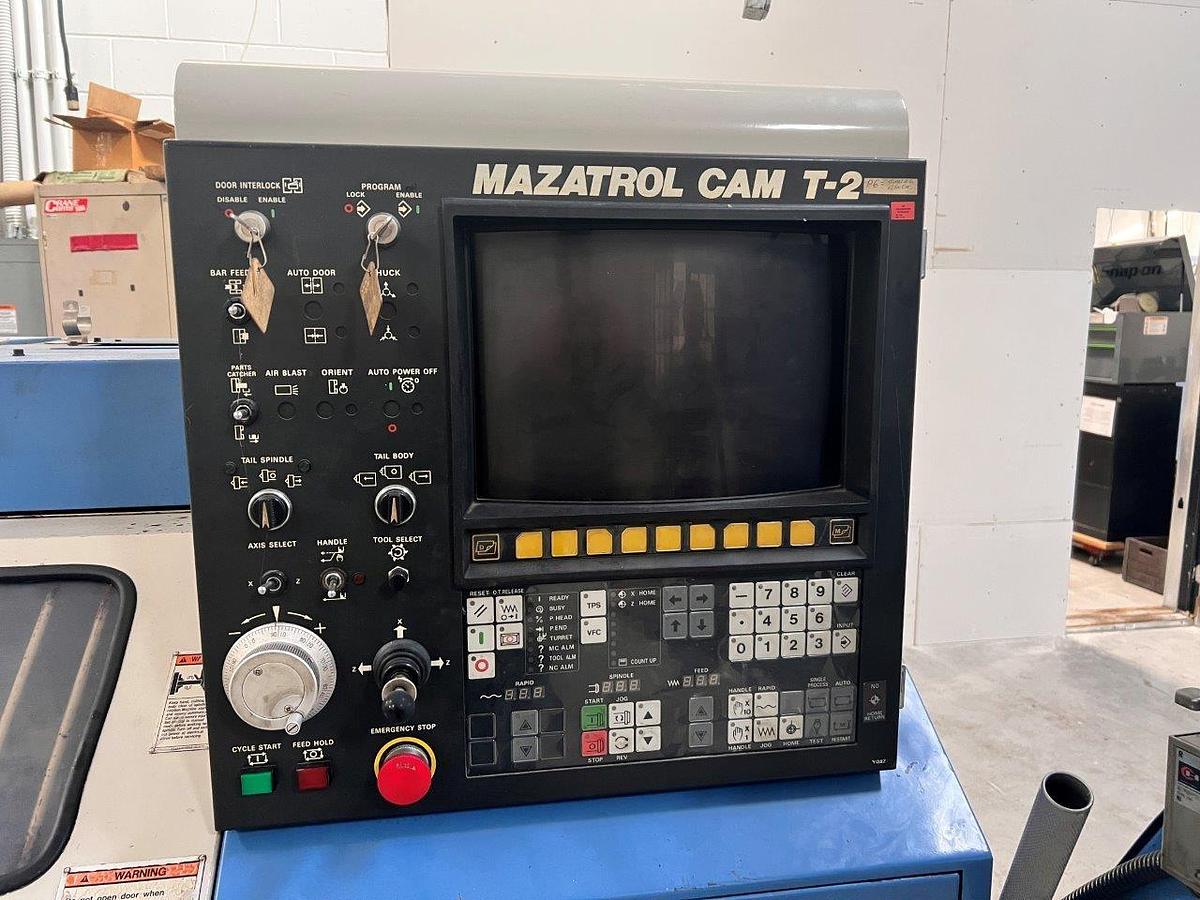

| Control | Mazatrol CAM T-2 Control |
| Chuck Size | 8" 3 Jaw Hydraulic |
| Maximum Swing over Bed | 17.32" |
| Maximum Swing Over Cross Slide | 11.81" |
| Maximum Cutting Length | 19.69" |
| Maximum Bar Capacity | 2.0" |
| X-Axis Travel | 7.09" |
| Z-Axis Travel | 20.08" |
| Spindle Nose / Spindle Bore | A2-6" / 2.44" |
| Spindle Speeds | 45 - 4,500 RPM |
| Spindle Motor | 20 HP |
| Number of Turret Positions | 8 Station Turret |
| Rapid Traverse Rates | 1180 IPM |
| Cutting Feedrates | 197 IPM |
| Tailstock Quill Diameter / Center | 3.15" / MT #4 |
| Machine Dimensions | 93" x 61" x 71" |
| Machine Weight | 9,400 lbs. |
