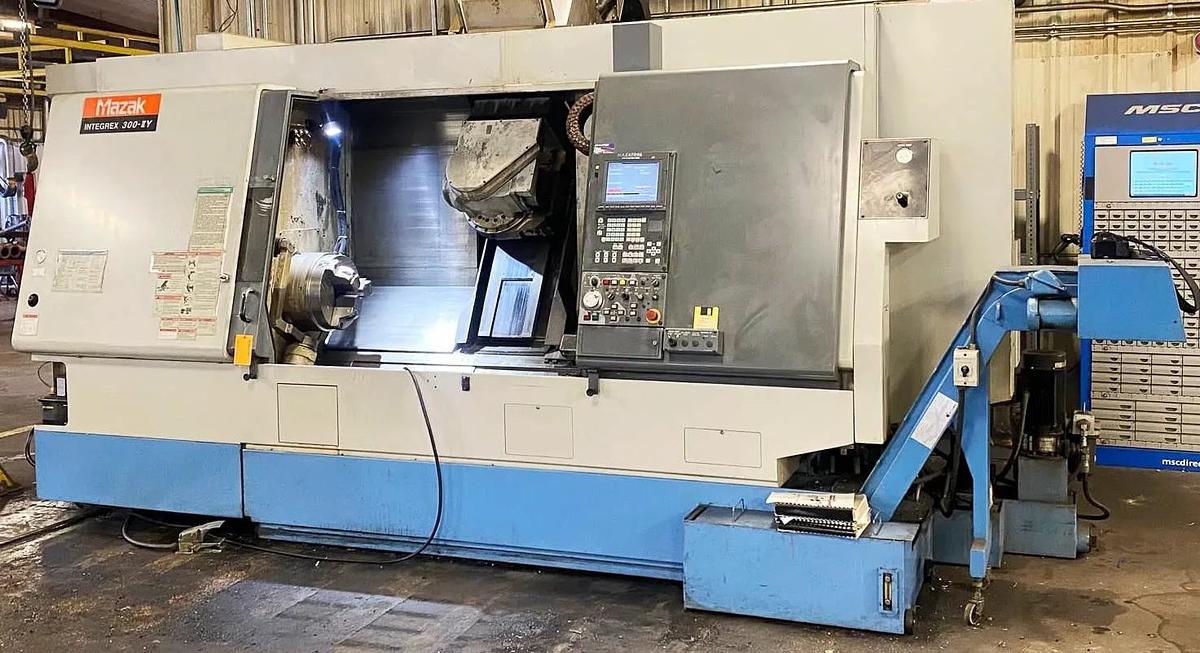

2002 Mazak Integrex 300-IIY/1000
2002 Mazak Integrex 300-IIY/1000
Contact us for price
Location:Idaho
or
Call (863) 439-6066
Description
5-Axis Machining
B-Axis Pendulum Style Head
Full C-Axis Spindle Rotation
Live Milling/Drilling Capability
Chip Conveyor
SMW Hydraulic Steady Rest
12" 3 Jaw Hydraulic Chuck
40 Station Tool Changer
Automatic Tool Eye
Programmable Tailstock
Transformer
B Axis Angle Positioning Turning
Synchronized Tapping with Mill Tool
Scale Feedback
User Macro
Enhanced Y Axis Mazatrol
Coolant Through the Mill Head
EIA/ISO Input Function for G Code Programming
EIA/ISO Helical Interpolation
EIA Helical Tapping
PCMCIA Interface 2-Slots
3.5" Floppy Disk Drive
RS-232C Port for DNC Interface
All Available Manuals
Tool Cart w/Assorted Tool Holders
Specifications
| Manufacturer | Mazak |
| Model | Integrex 300-IIY/1000 |
| Year | 2002 |
| Condition | Used |
| Stock Number | 120414 |

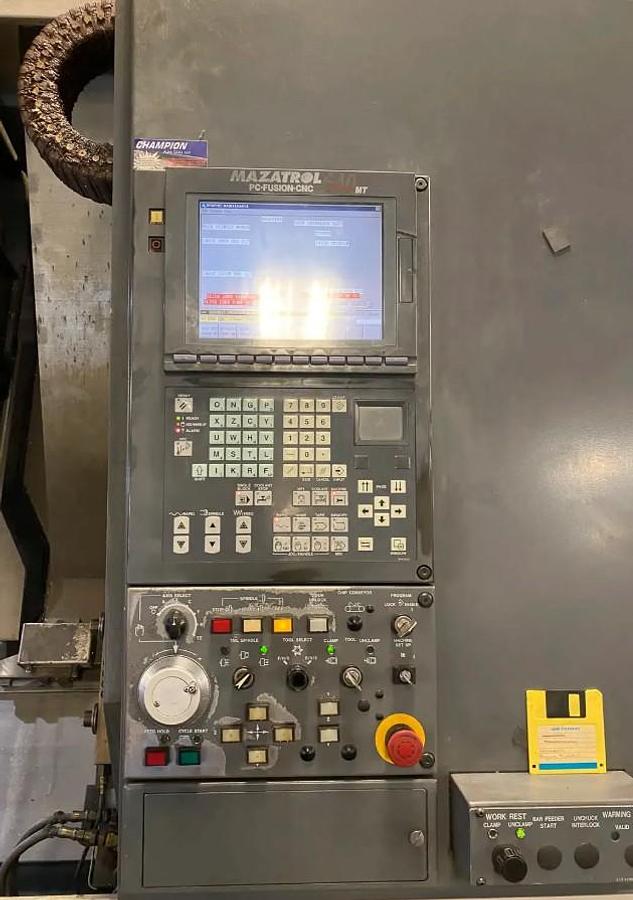

| Machine Control | Mazatrol Fusion 640MT |
| Chuck Sizes Main / Subspindle | 12" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 24.01" |
| Maximum Swing Over Carriage | 15.35" - 24.01" depending on workpiece length |
| Maximum Turning Diameter | 24.01" |
| Maximum Cutting Length | 41.2" |
| Spindle Nose / Bore / Bar Capacity | A2-8" / 3.46" / 3.03" |
| X-Axis Travel | 22.83" |
| Y-Axis Travel | +/- 4.53" |
| Z-Axis Travel | 43.11" |
| C-Axis Rotation | .001 Degree |
| B-Axis Tilt Movement | 225 Degrees |
| Spindle Motor | 35 HP |
| Spindle Speed | 35 - 3,500 RPM |
| Milling Spindle Speed | 10,000 RPM |
| Milling Spindle Motor | 20 HP |
| Tool Magazine Capacity | 40 Position Tool Changer |
| Rapid Traverse Rates (X, Y, Z) | 1181 IPM, 590 IPM, 1181 IPM |
| Tailstock Quill Diameter / Center | 3.35" / MT #4 |
| Machine Dimensions LxWxH | 191" x 87" x 106.3" |
| Machine Weight | 20,042 lbs |
