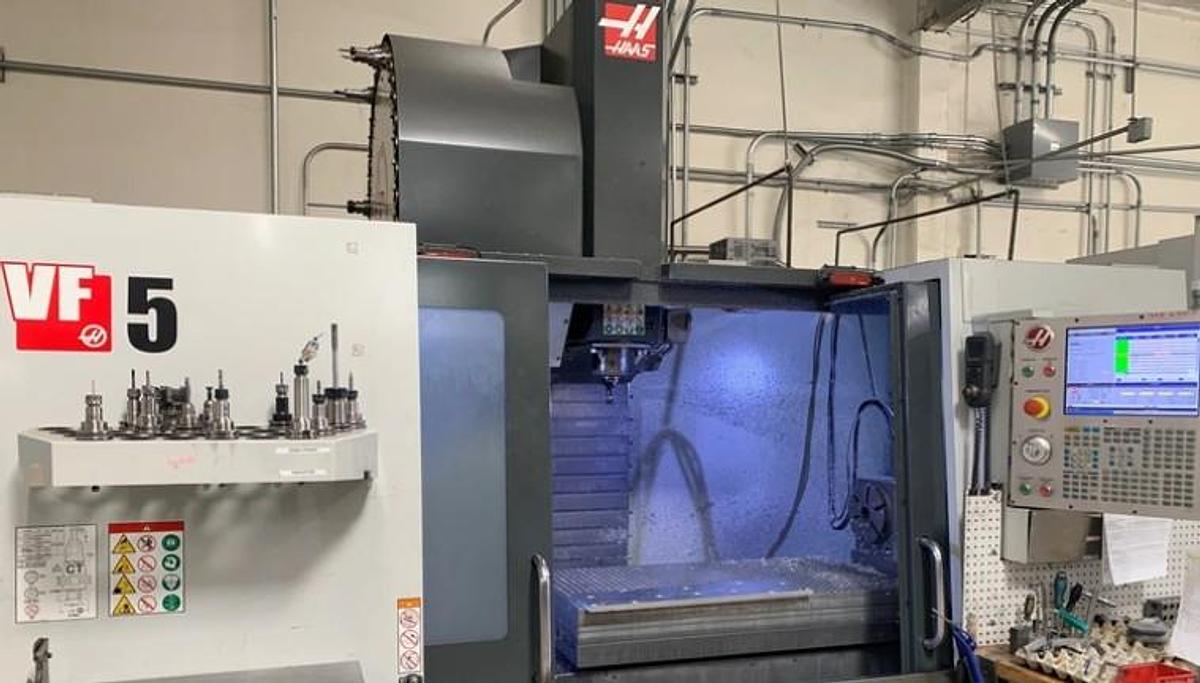

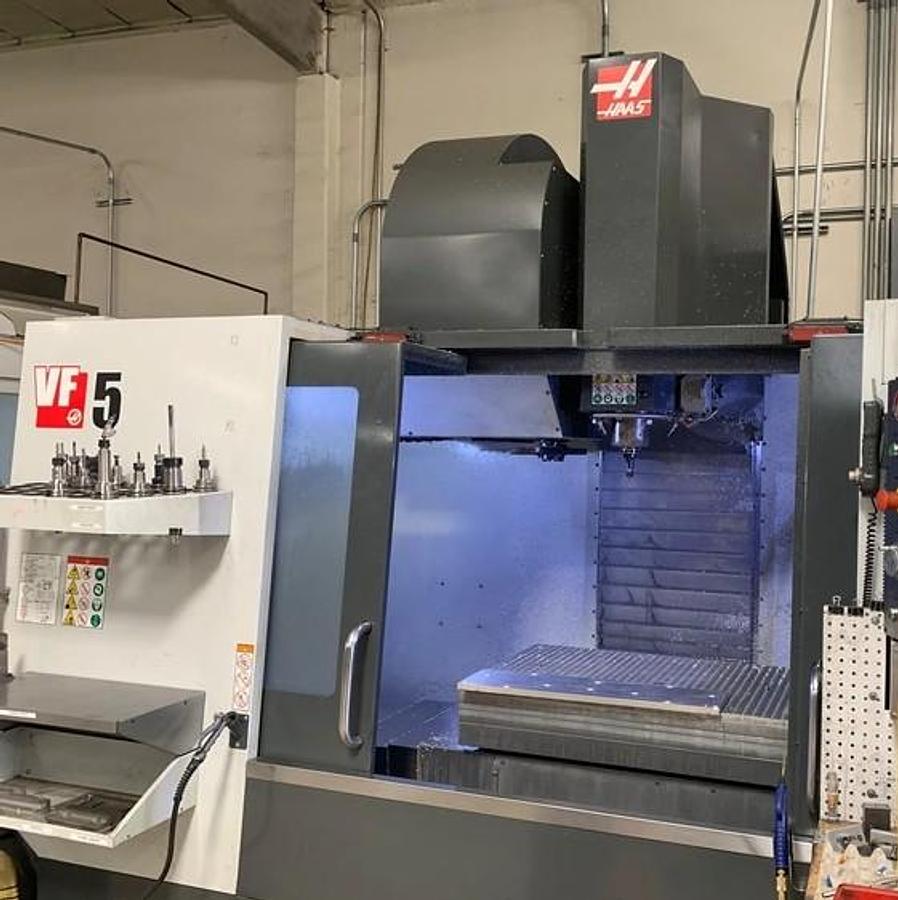

2015 Haas VF5B/40 with Haas HRT210 4th Axis Rotary Table, Geared Head, High Spd Machining, 40 Station Side Mount ATC
2015 Haas VF5B/40 with Haas HRT210 4th Axis Rotary Table, Geared Head, High Spd Machining, 40 Station Side Mount ATC
Contact us for price
Location:California
or
Call (863) 439-6066
Description

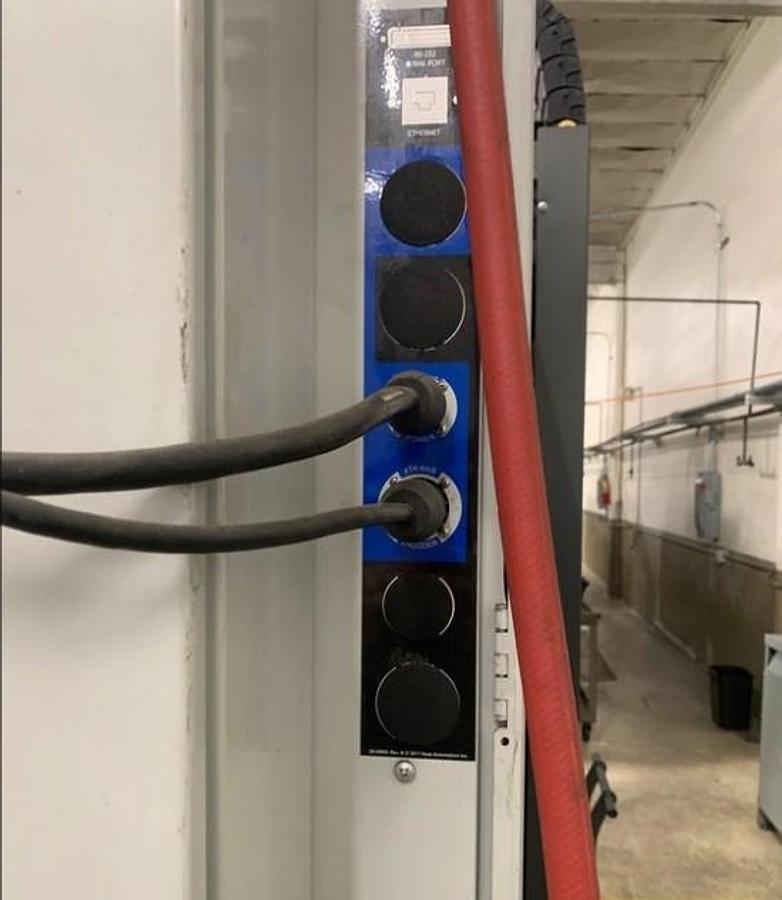

4th Axis Drive & Wiring
Haas HRT-210 4th Axis Rotary Table

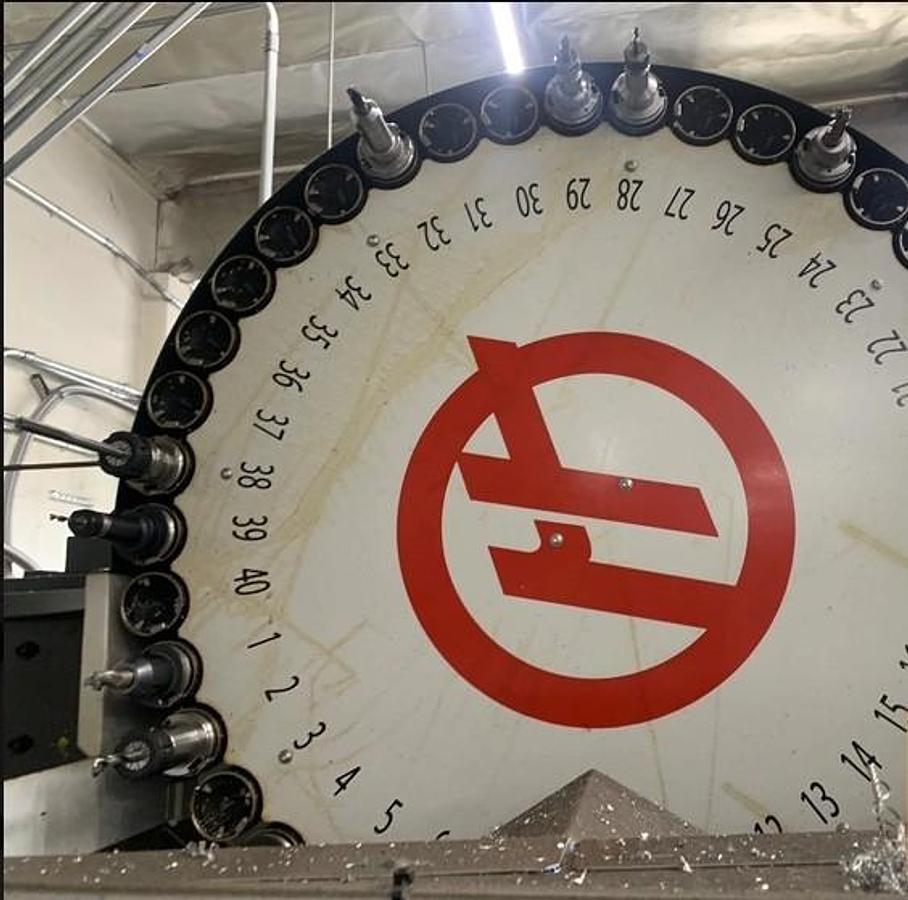

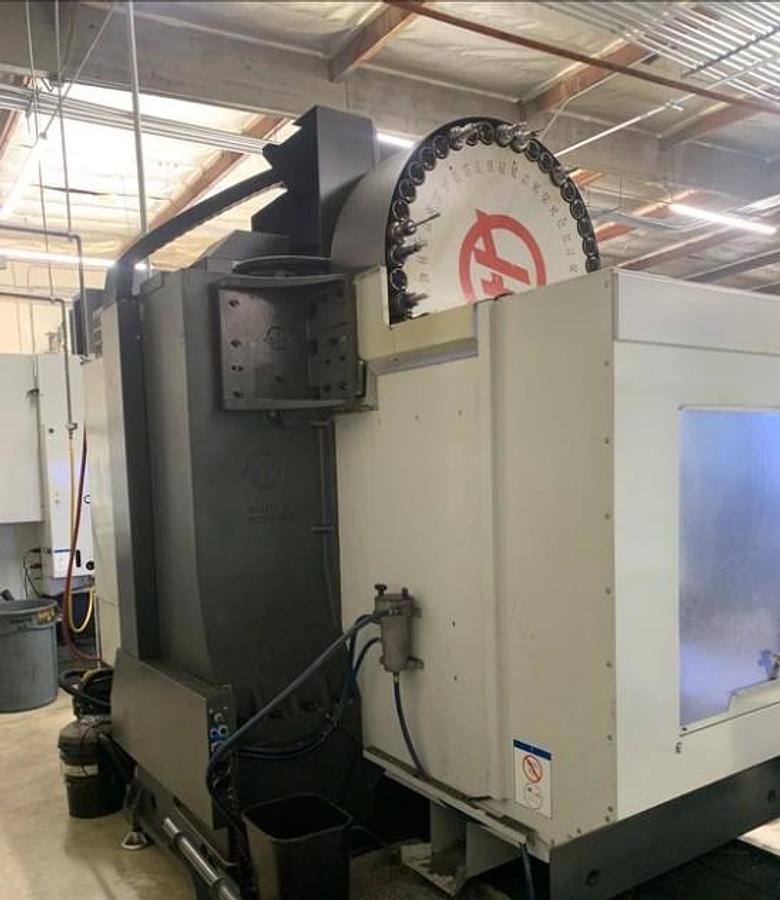

40 Station Side Mounted Tool Changer
High Speed Machining
8100 RPM - 2 Speed Geared Head Spindle

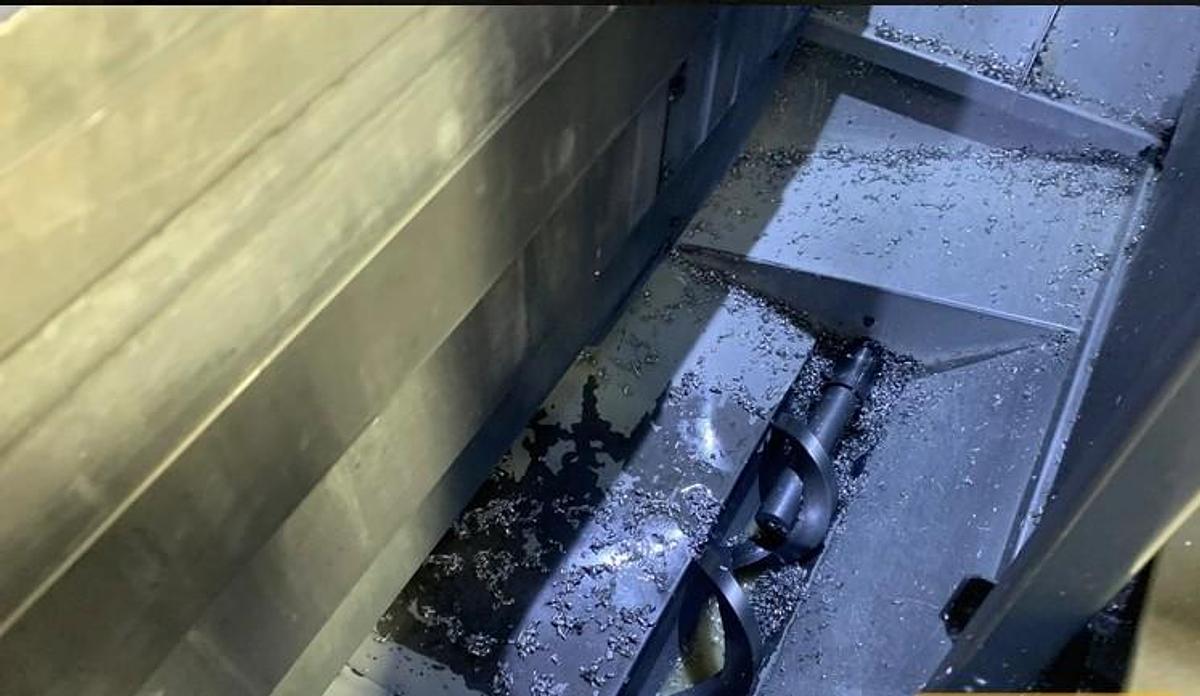

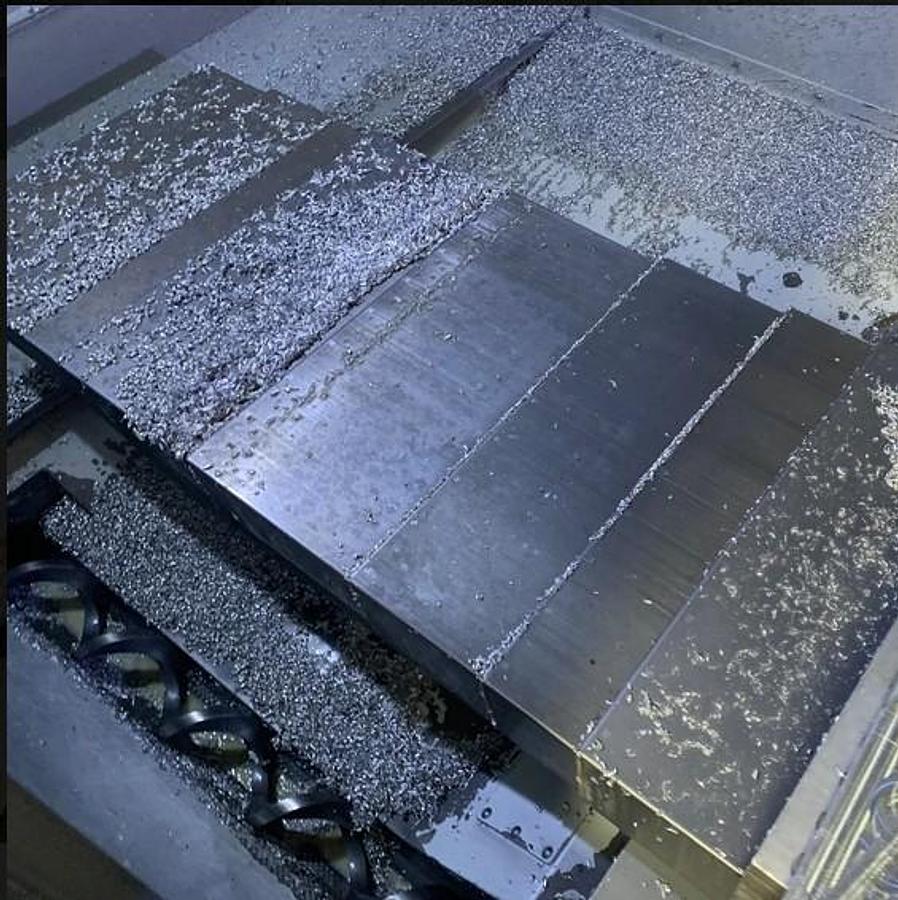

Auger Style Conveyor

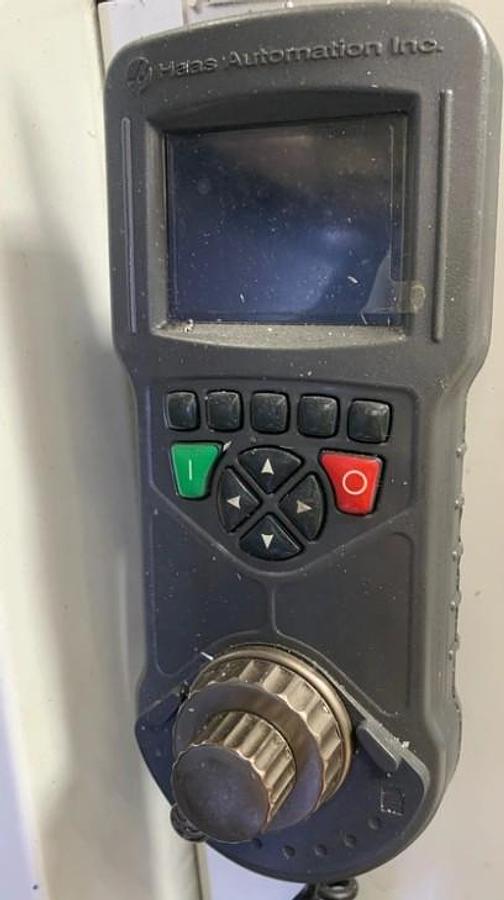

Remote Jog Handle
Programmable Coolant Nozzle
Rigid Tapping
1 GB Programming Memory
Compensation Tables

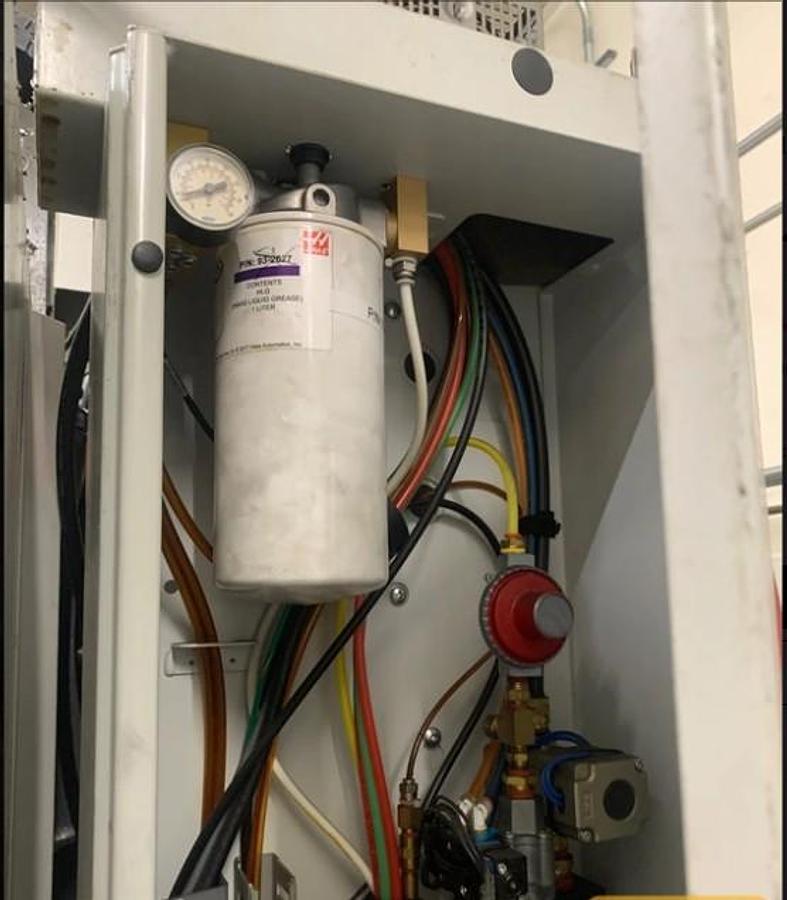

Coolant System with Tank & Pump
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Haas Connect
Media Display M-Code
**Servo On Hours 24,109**
**Spindle Run Hours 12,642**
Specifications
| Manufacturer | Haas |
| Model | VF5B/40 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 120412 |
| Table size | 52" x 23" |
| Table load capacity | 4,000 lbs. |
| X-axis travel | 50" |
| Y-axis travel | 26" |
| Z-axis travel | 25" |
| Spindle nose to table | 7" - 32" |
| Spindle motor | 30 HP - 2 Speed Geared Head |
| Spindle taper | CAT 40 |
| Spindle speeds | 0 - 8,100 RPM |
| Tool magazine capacity | 40 Position ATC Side Mount |
| Rapid traverse rates | 710 IPM |
| Cutting feedrates | 500 IPM |
| Machine dimensions lxwxh | 148"x114"x118" |
| Machine weight | 14,600 lbs. |
