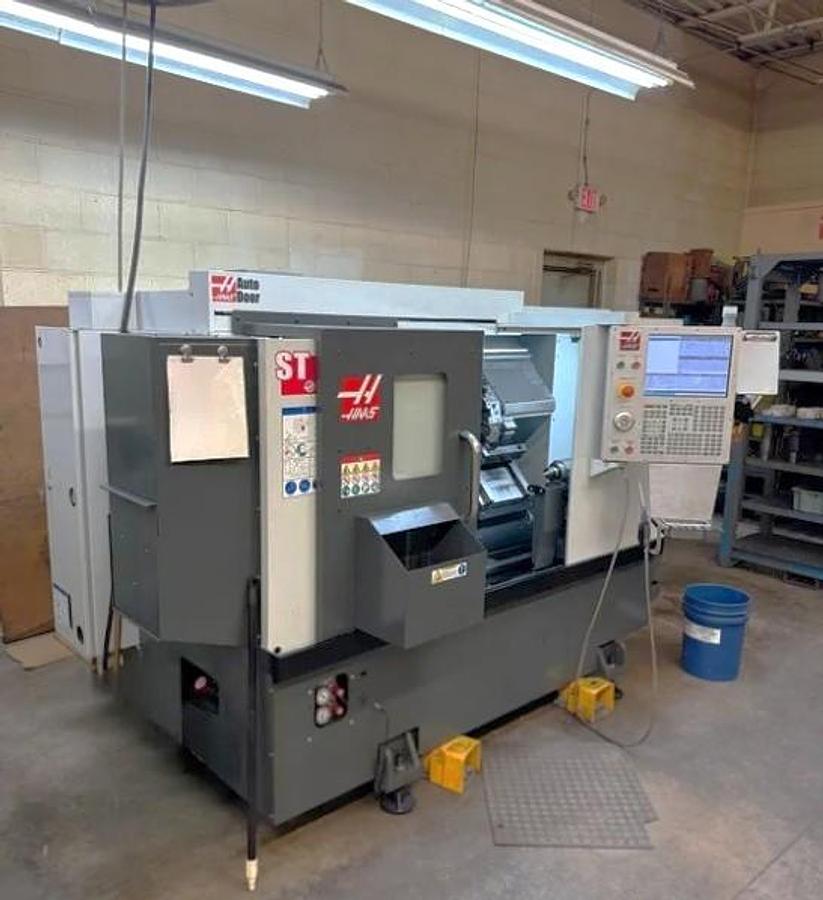

2019 Haas ST-10 with Tailstock, Toolsetter, Chip Conveyor, Royal Collet Chuck, 6" 3 Jaw Chuck, Parts Catcher, ONLY 961 Hours
2019 Haas ST-10 with Tailstock, Toolsetter, Chip Conveyor, Royal Collet Chuck, 6" 3 Jaw Chuck, Parts Catcher, ONLY 961 Hours
Contact us for price
Location:California
or
Call (863) 439-6066
Description
6.5" 3 Jaw Hydraulic Chuck
Royal QC65 Quick Change Collet Chuck
Royal Collet Changing Tool
Royal Bar Puller
Automatic Tool Presetter
Parts Catcher
Belt Type Chip Conveyor
Tailstock
Auto Door
Liner Guide Adapter
Spindle Liner Kit
15" LCD Color Monitor
Coolant System with Tank & Pump
All Available Manuals
All Available Tool Holders & Some Collets
**Spindle Run Hours 961**
Specifications
| Manufacturer | Haas |
| Model | ST-10 |
| Year | 2019 |
| Condition | Used |
| Stock Number | 120411 |
| Machine Control | Haas CNC Control |
| Chuck Size | 6.5" Hyd. Chuck / Royal QC65 Collet Chuck |
| Maximum Swing | 16.5" |
| Maximum Machining Diameter | 11" |
| Maximum Machining Length | 16" |
| X-Axis Travel | 7.88" |
| Z-Axis Travel | 14" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 2.31" / 1.75" |
| Spindle Speeds | 6,000 RPM |
| Spindle Motor | 15 HP |
| Number of Turret Positions | 12 Bolt on Style Turret |
| Spindle Torque | 75 ft/lbs. |
| Rapid Traverse Rates | 1,200 IPM |
| Machine Dimensions LxWxH | 92"x63"x85" |
| Machine Weight | 7,900 lbs |
