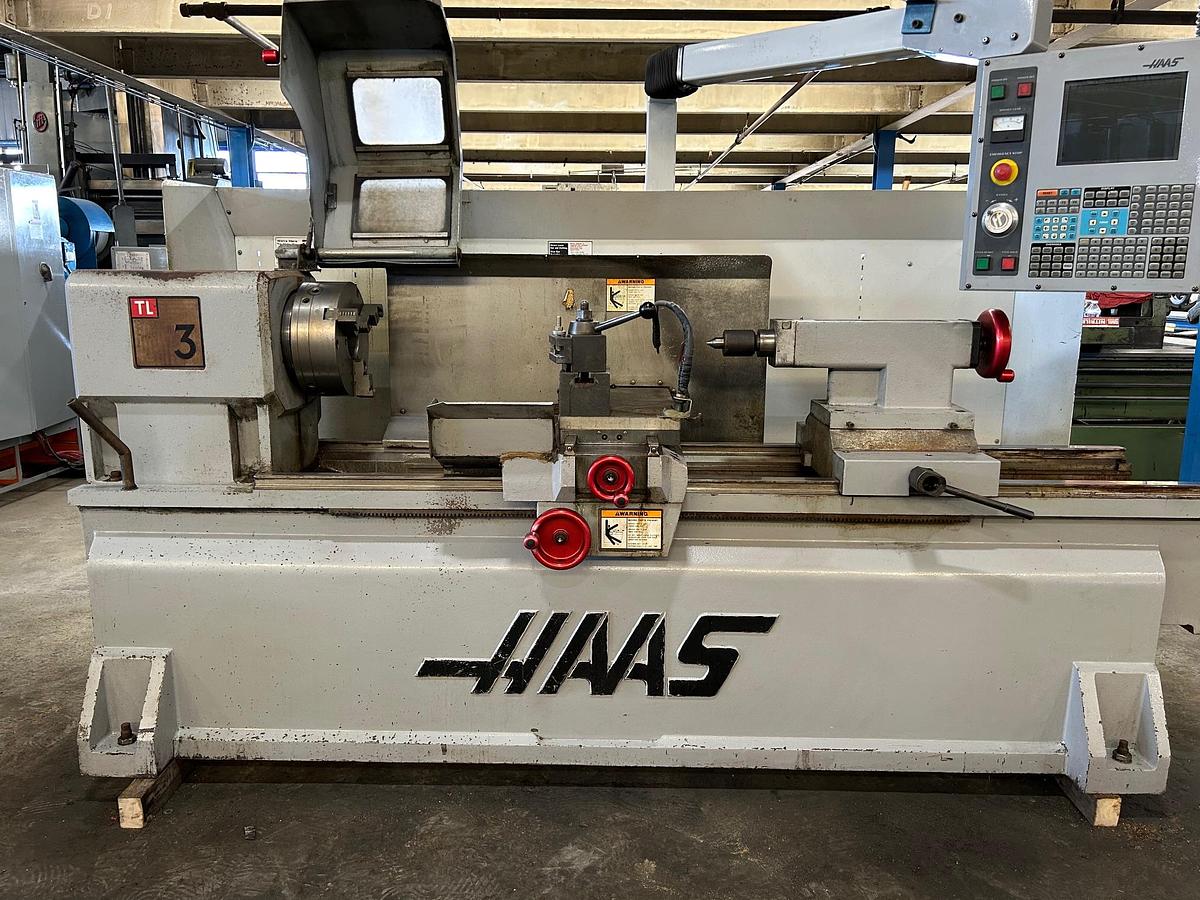

2005 Haas TL-3

10" 3 Jaw Chuck

Tailstock

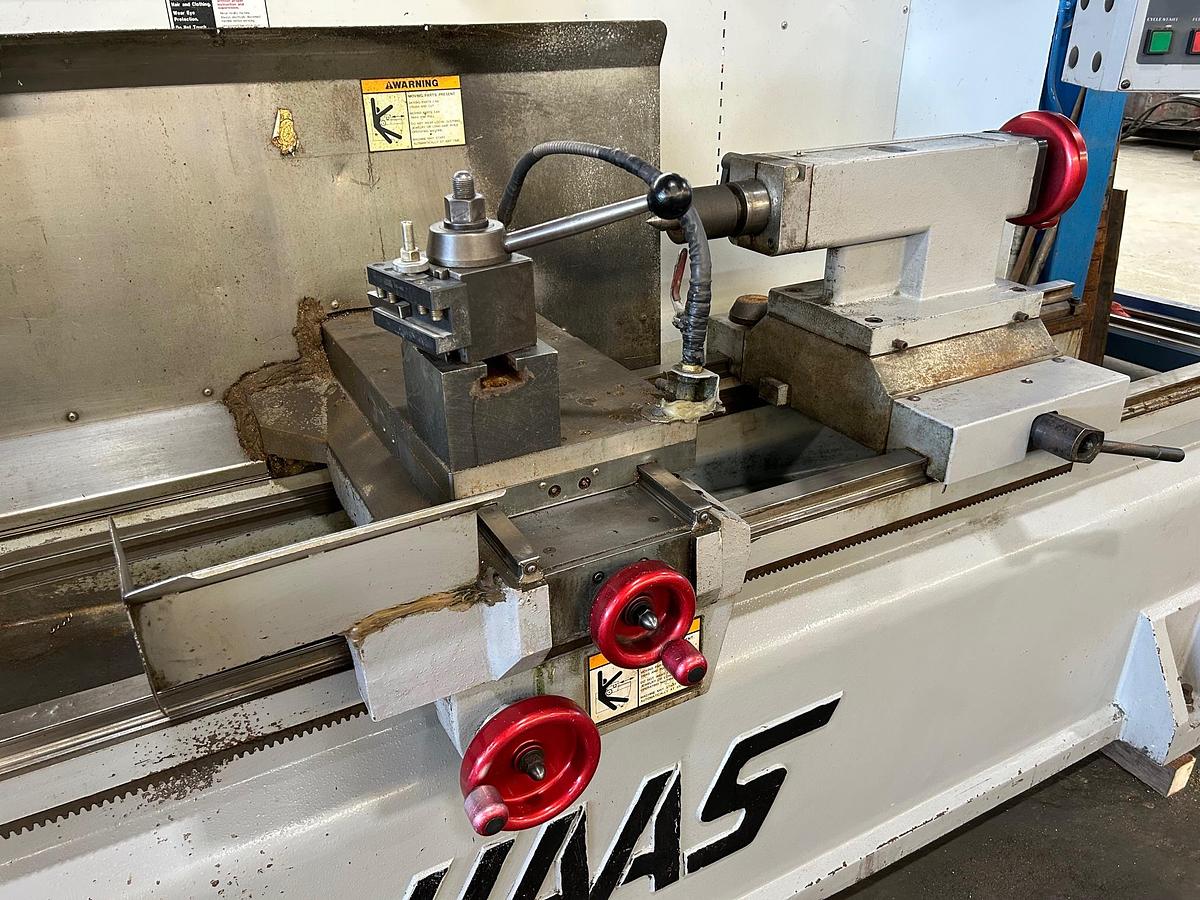

Quick Change Tool Post

2-Speed Gearbox

Chuck Cover

208/230 Volts 3-Phase

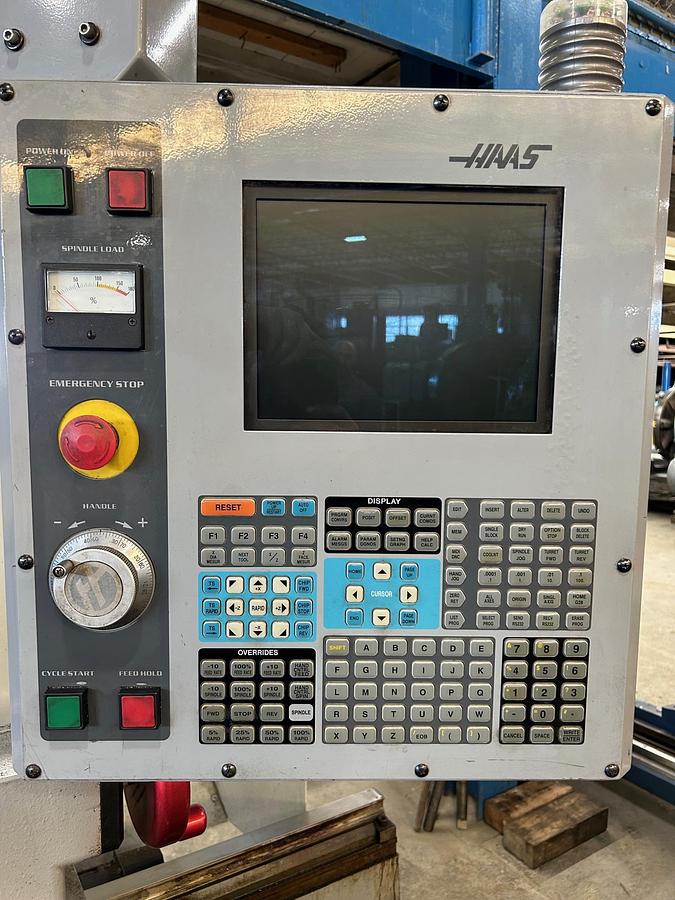

The 2005 Haas TL-3 is a reliable CNC lathe designed for precision machining with three axes or fewer. It's equipped with a Haas 32 BIT control system, facilitating efficient operation and ease of use. The lathe has a 12-inch 3-jaw manual chuck and accommodates a maximum swing of 20 inches, with a maximum swing over the cross slide of 13 inches. The TL-3 is capable of handling workpieces with a maximum machining diameter of 20 inches and has a generous distance between centers of 60 inches. With an X-axis travel of 12 inches and Z-axis travel of 60 inches, this machine provides ample space for diverse machining tasks. Its spindle operates at speeds up to 2,000 RPM, supported by an 18 HP motor, and features an A2-6 spindle nose with a bore of 3.5 inches and a 3-inch bar capacity. Rapid traverse rates are substantial, at 75 inches per minute on the X-axis and 150 inches per minute on the Z-axis, enhancing productivity. The machine includes a quick change tool post for efficient tool handling and a tailstock bore taper of #5 MT for added versatility. The Haas TL-3 measures 123 inches in length, 77 inches in width, and 87 inches in height, with a weight of 9,624 pounds, confirming its robustness for demanding industrial applications.
