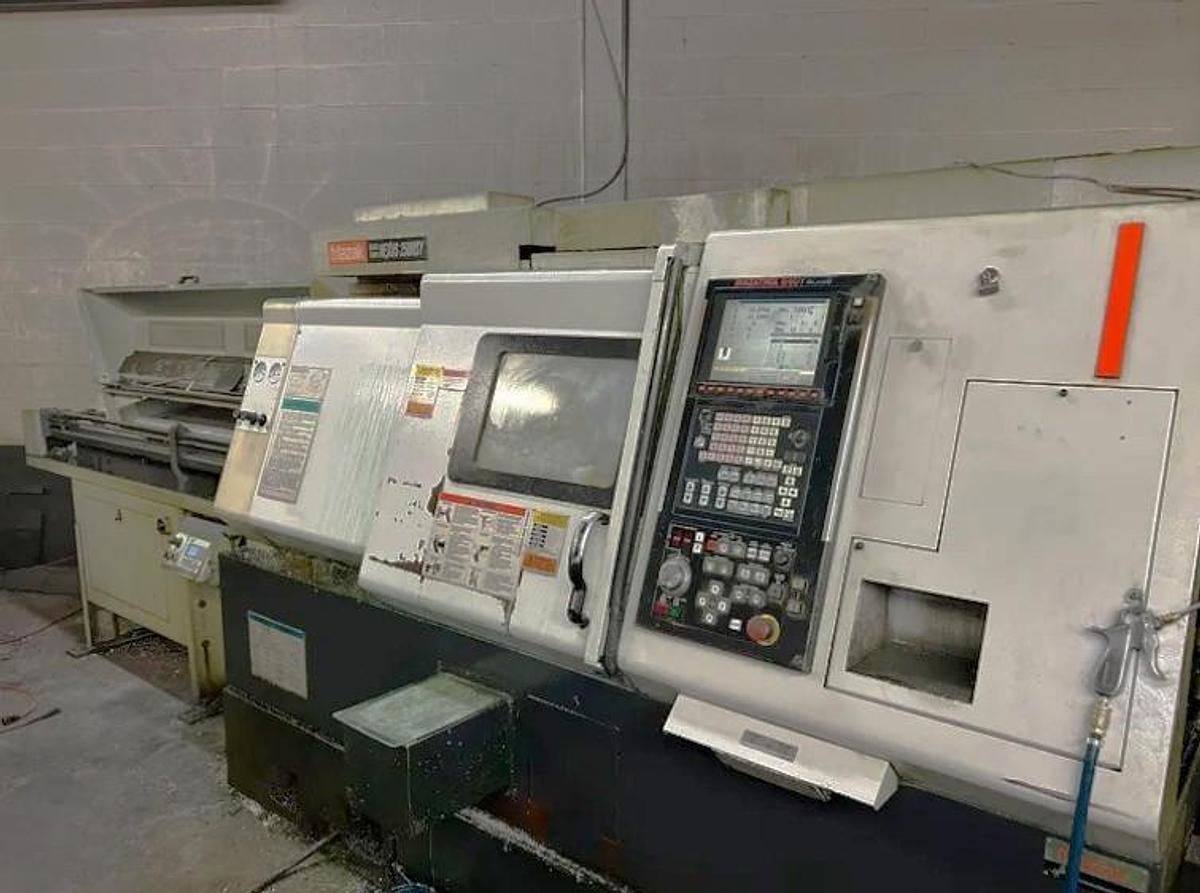

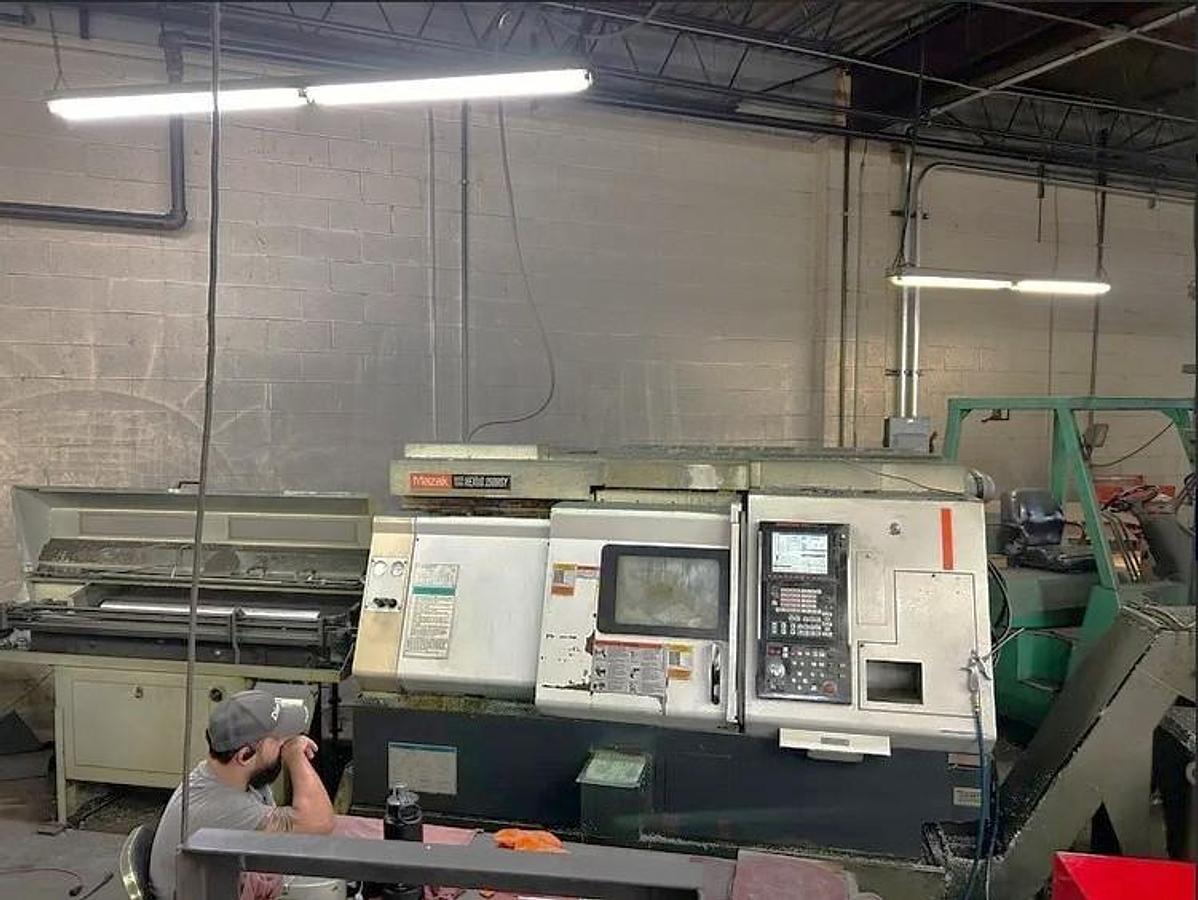

2006 Mazak Nexus QTN 250 MSY with Live Milling, Subspindle, Y Axis, Barfeed, Parts Catcher, Chip Conveyor, Hydraulic Chucks

Y Axis Capability (Off Center)

Subspindle with .001 Degree Index

Full C Axis Spindle Rotation

Live Milling / Drilling Capability

10" 3 Jaw Hydraulic Chuck on Main Spindle

6" 3 Jaw Hydraulic Chuck on Subspindle

Autoload Barfeed System - (currently disconnected, but is included)

Automatic Tool Eye

Chip Conveyor

Parts Catcher

Mill Spindle Synchronous Tapping

USB Port Interface

3.5" Floppy Disk Drive Interface

RS 232 Port Interface

Chuck Air Blast - Second Spindle

EIA/ISO Input Function for G Code Programming

Multi Tap Transformer

All Available Tooling

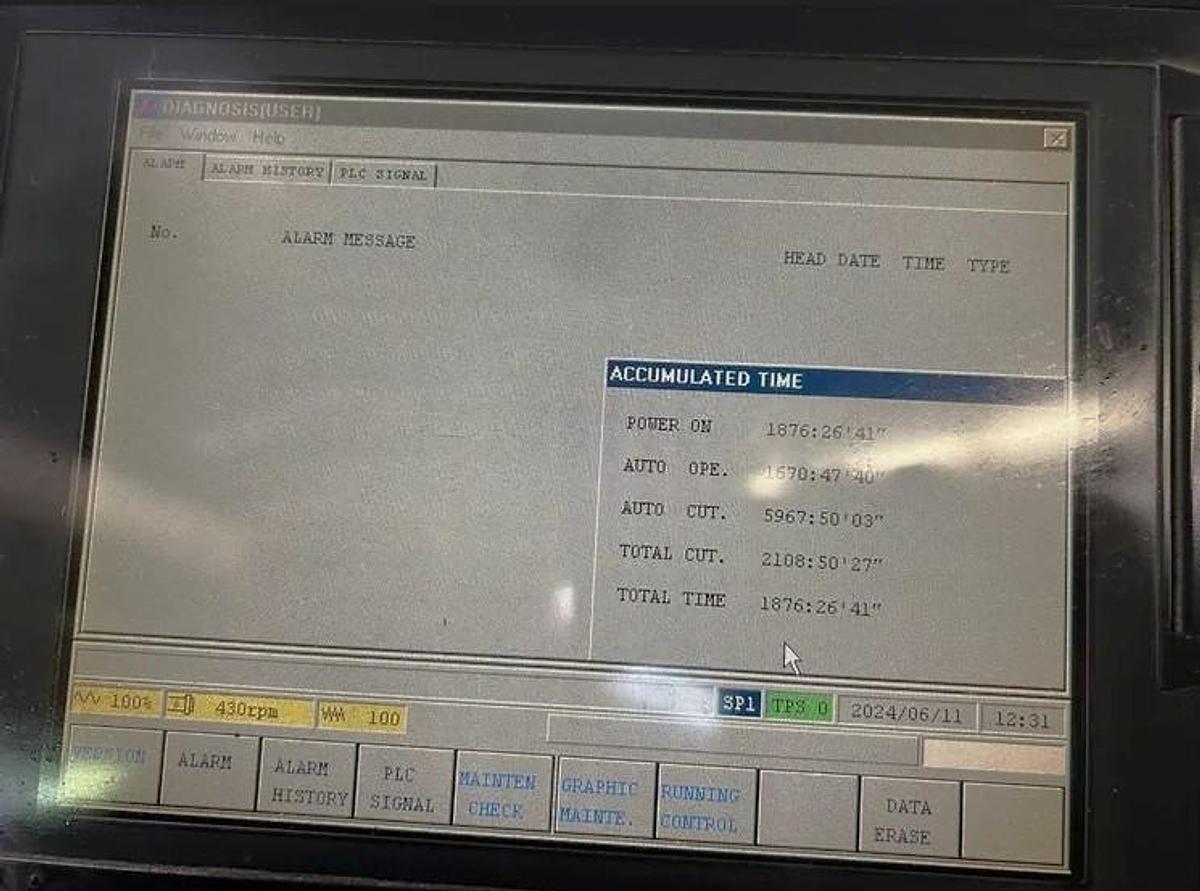

Auto Cut Hours - 5,967

Total Cut Hours - 2,108

The 2006 Mazak Nexus QTN 250 MSY is a versatile used CNC lathe featuring a robust design suitable for complex machining tasks. Equipped with the Mazatrol Fusion 640T Nexus Control, this machine provides intuitive operation and precise control. It features live milling, a subspindle, Y-axis capabilities, and a reliable barfeed, making it an ideal choice for diverse manufacturing needs. Hydraulic chucks with a 10" size on the main spindle and 6" on the subspindle facilitate secure workpiece handling. This model supports a maximum swing of 26.5" and a cutting diameter of up to 14.75", with a maximum cutting length of 21.28". Its travels include X-axis at 9.055", Y-axis at 4" with +/- 2.0" allowances, and Z-axis at 22.63", enabling a broad range of operations. The main spindle offers speeds up to 4,000 RPM, while the subspindle reaches 6,000 RPM, driven by a 35 HP and 10 HP motor respectively. Additionally, the rotary tool spins at 4,500 RPM with a 7.5 HP motor, ensuring efficiency in cutting tasks. This machine is equipped with a 12-station turret and features rapid traverse rates of 1181 IPM on X and B axes, and 1299 IPM on the Z-axis. Overall, it offers a practical footprint of 116" x 74" x 73" and weighs 12,500 lbs., integrating a parts catcher and chip conveyor for streamlined operations. The Nexus QTN 250 MSY stands out in its category, delivering precision and power for various intricate machining applications.
