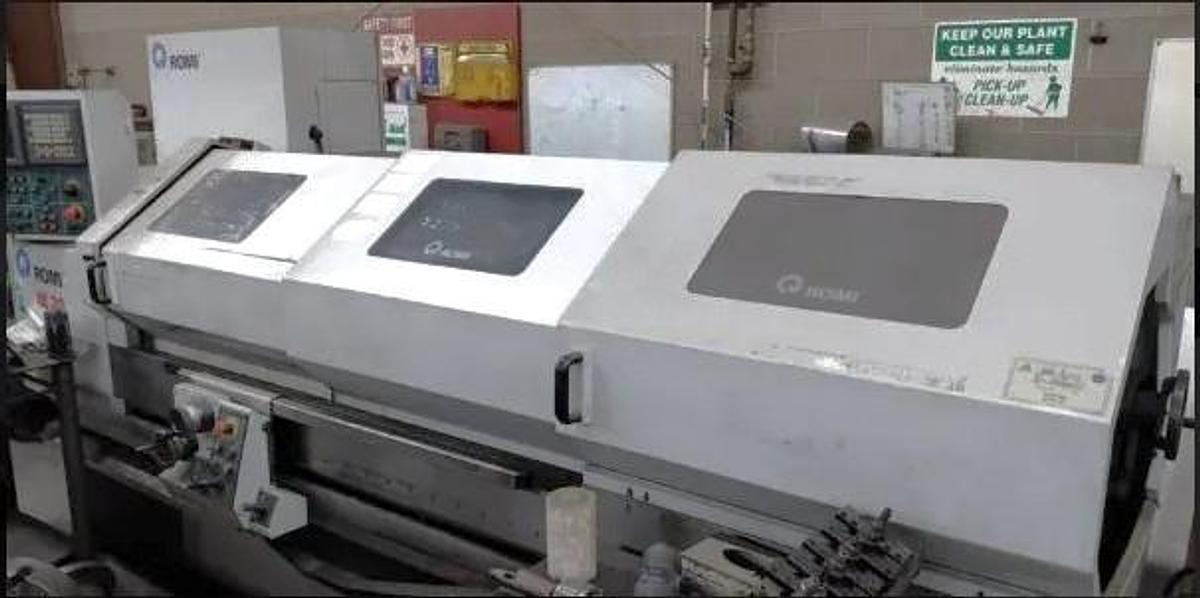

2007 Romi M20 x 80" with 12" Chuck, Tool Post, Tailstock, Coolant System, Fanuc 21i-T Control
2007 Romi M20 x 80" with 12" Chuck, Tool Post, Tailstock, Coolant System, Fanuc 21i-T Control
Contact us for price
Location:Kentucky
or
Call (863) 439-6066
Description
12" 4-Jaw Manual Chuck
Tool Post
Tailstock
Manual Hand Wheels
Conversational, G-Code and Teach Mode Operational Programming
Coolant System with Tank & Pump
RS 232 Port Interface
Specifications
| Manufacturer | Romi |
| Model | M20 x 80" |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120407 |
| Machine Control | Fanuc 21i-T Control |
| Chuck Size | 12" 4 Jaw Manual Chuck |
| Maximum Swing | 20" |
| Maximum Swing Over Cross Slide | 10" |
| Distance Between Centers | 80" |
| X-Axis Travel | 11.02" |
| Z-Axis Travel | 80" |
| Spindle Nose / Bore / Bar Capacity | A2-" / 3.15" / 3.15" |
| Spindle Speed | 2 - 2,200 RPM |
| Spindle Motor | 15 HP |
| Number of Tool Positions | Tool Post |
| Rapid Traverse Rates X / Z | 394 IPM / 295 IPM |
| Tailstock Quill Diameter / Quill Travel / Taper | 3.15" / 5.12" / MT #4 |
| Machine Dimensions LxWxH | 156"x60"x80" |
| Machine Weight | 10,000 lbs |
