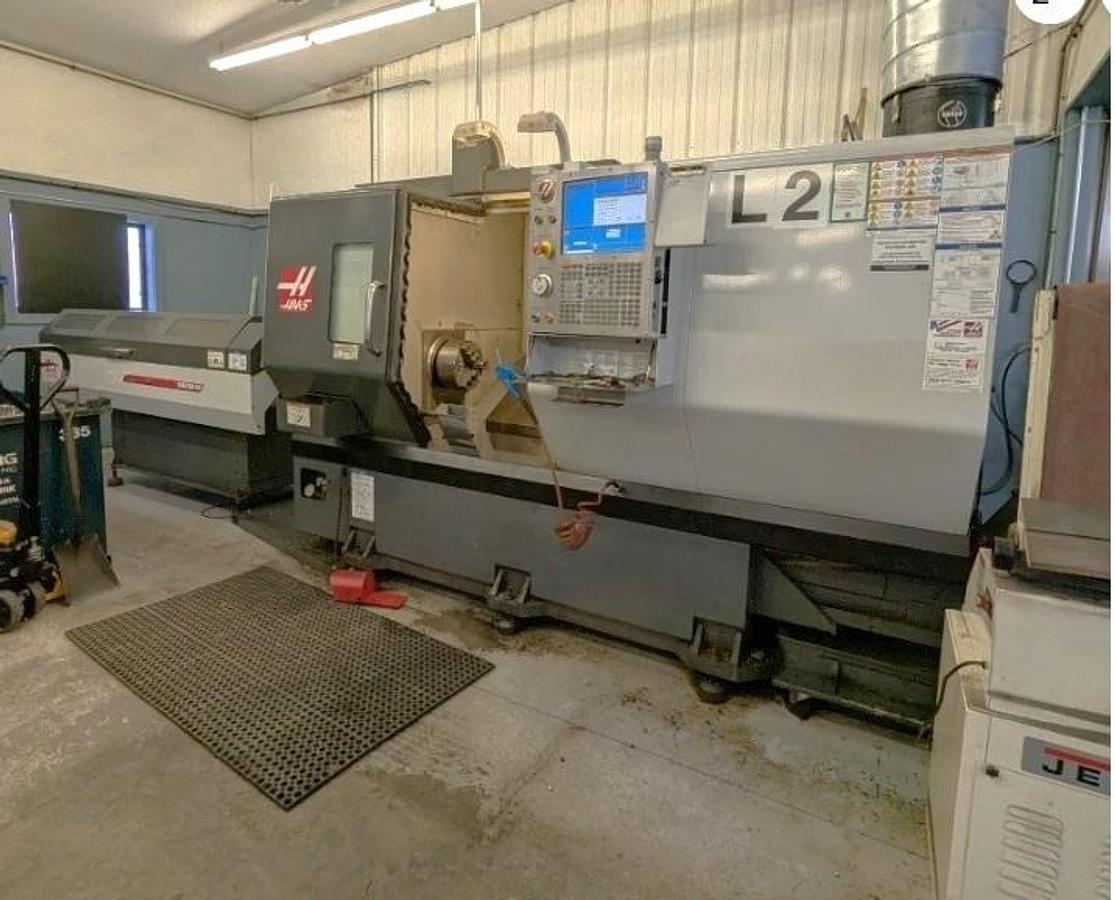

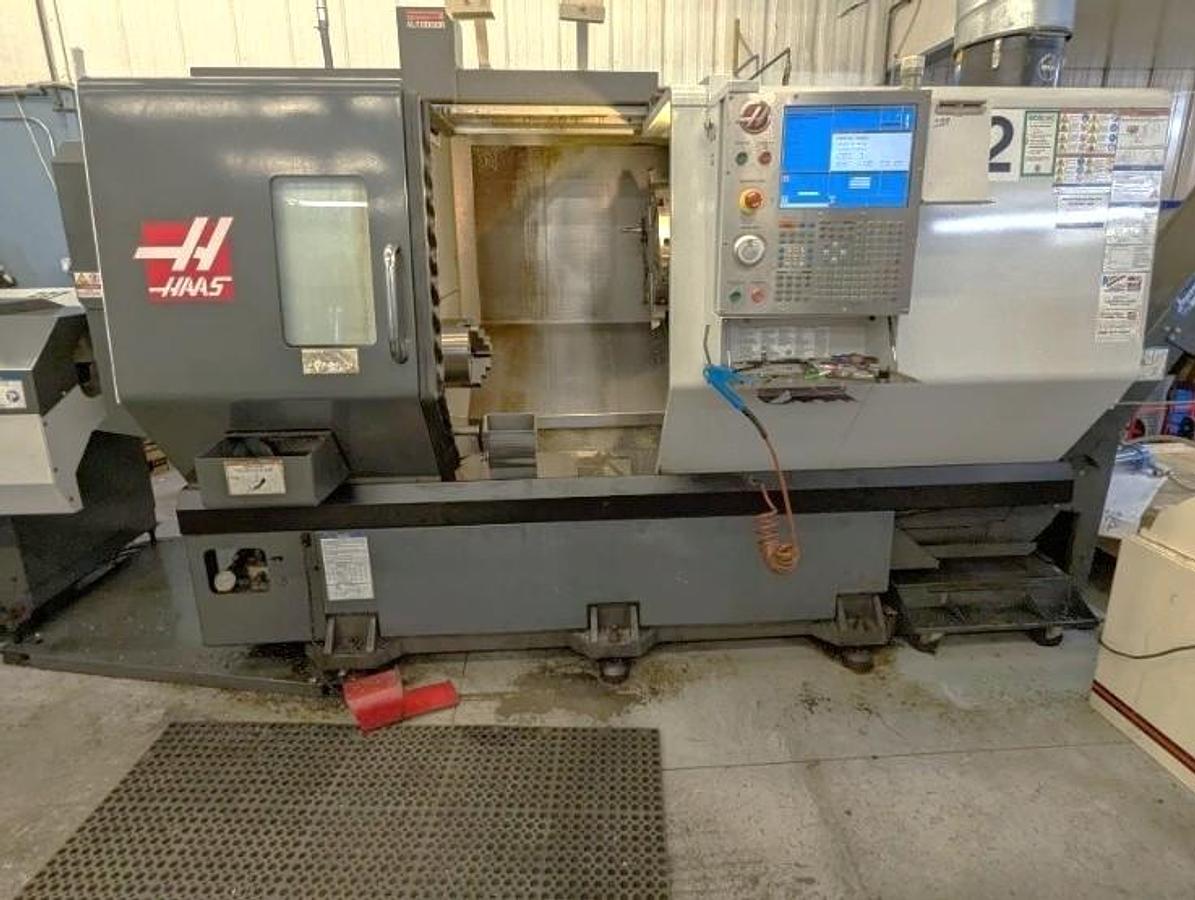

2011 Haas ST-30M Chucker with Haas Barfeed, Chip Conveyor, Parts Catcher, Live Tooling, 3" Bar Cap., 10" Chuck, (5) Live Holders
2011 Haas ST-30M Chucker with Haas Barfeed, Chip Conveyor, Parts Catcher, Live Tooling, 3" Bar Cap., 10" Chuck, (5) Live Holders
$44,500 (USD)
Location:New Hampshire
or
Call (863) 439-6066
Description

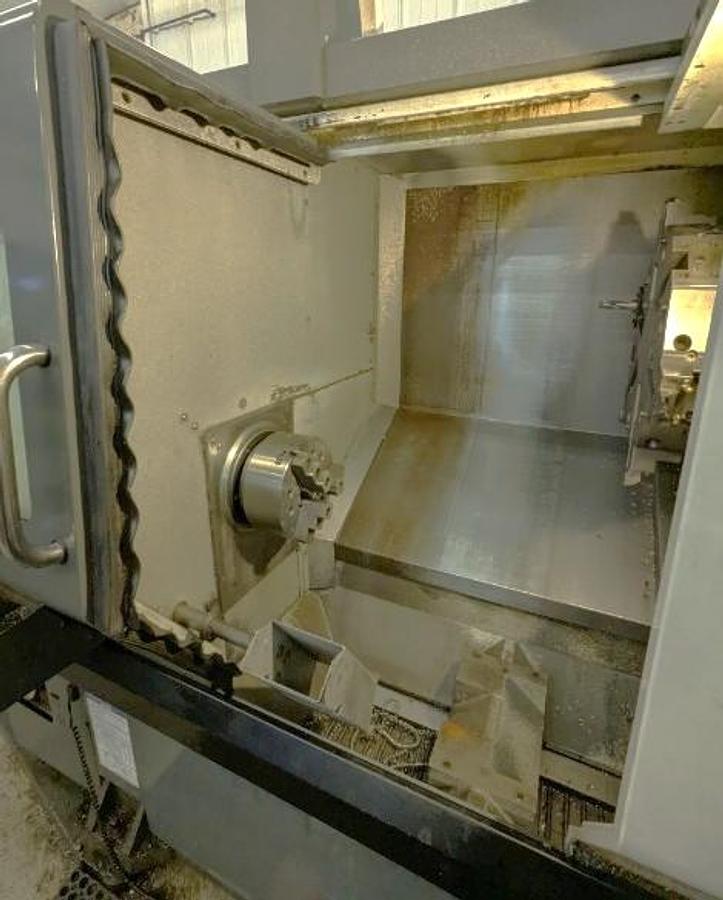

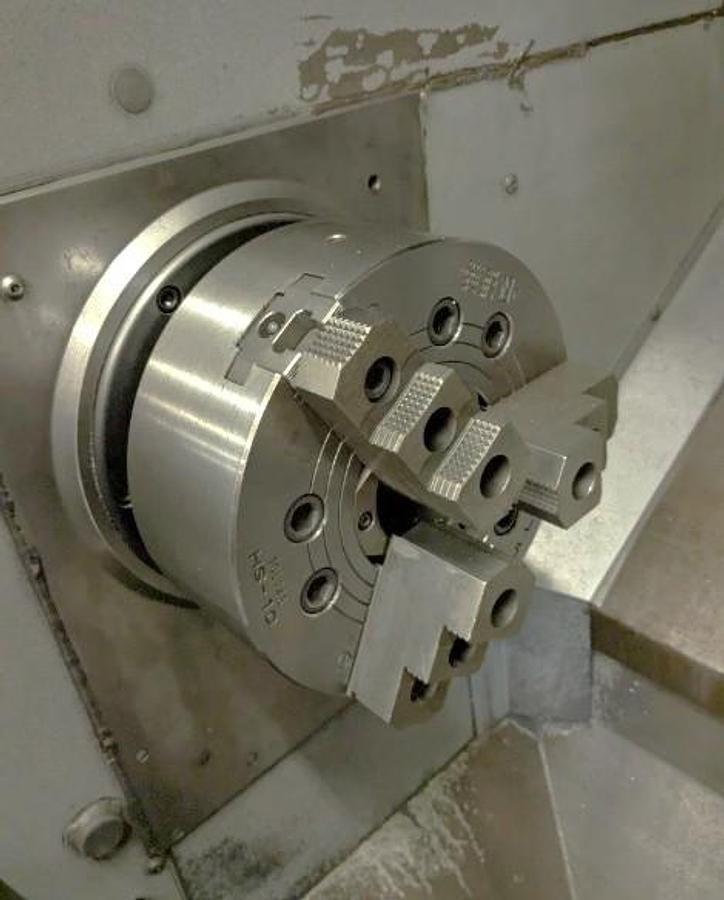

10" 3 Jaw Hydraulic Chuck
Full C Axis Spindle Rotation
Live Milling / Drilling Capability

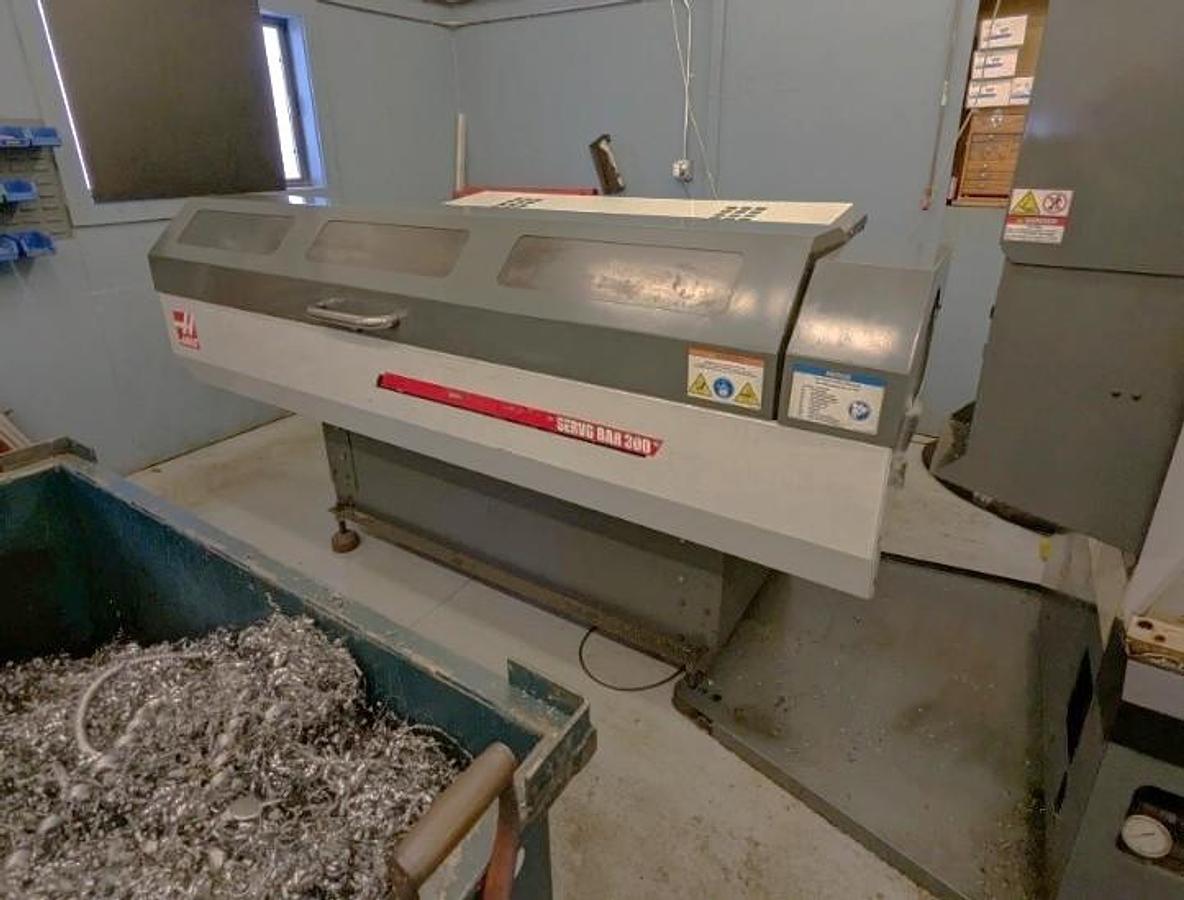

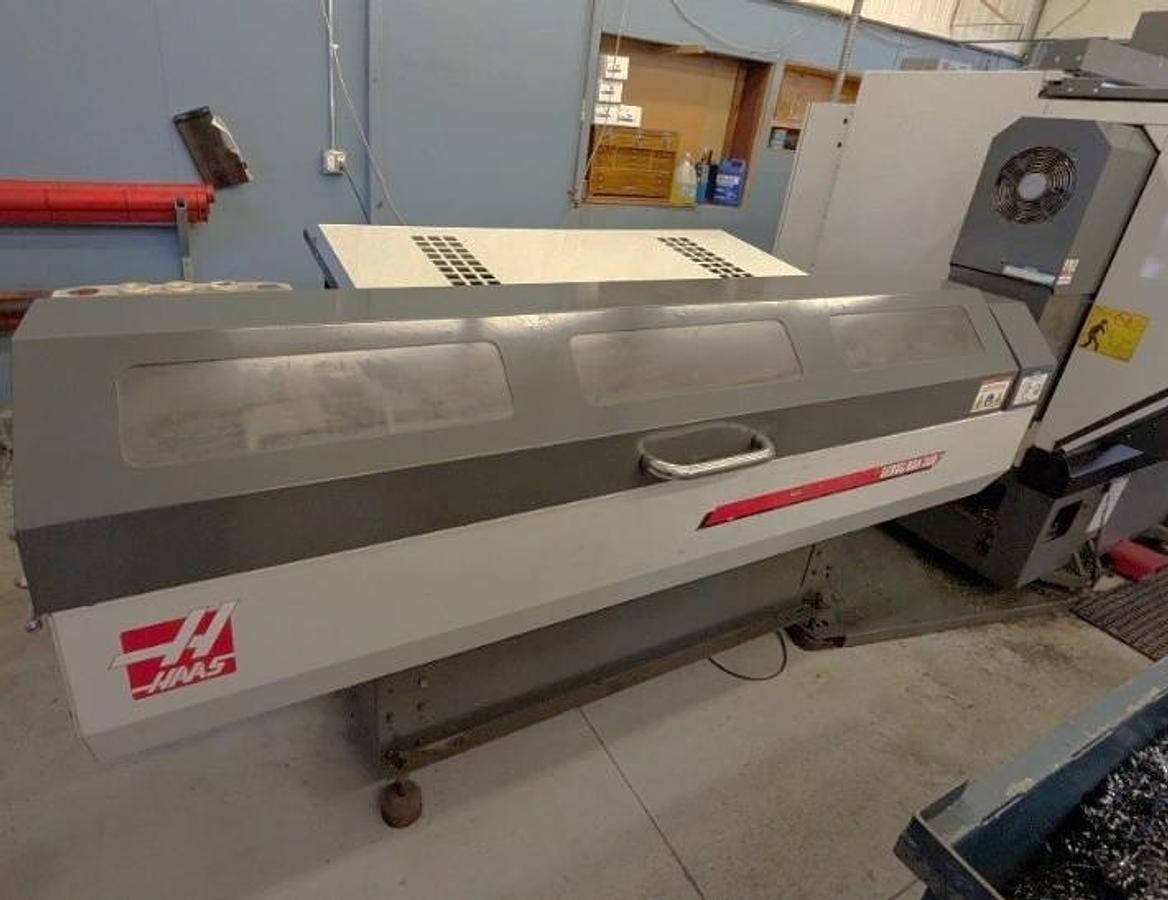

Haas Servo Bar 300 Barfeed
Chip Conveyor

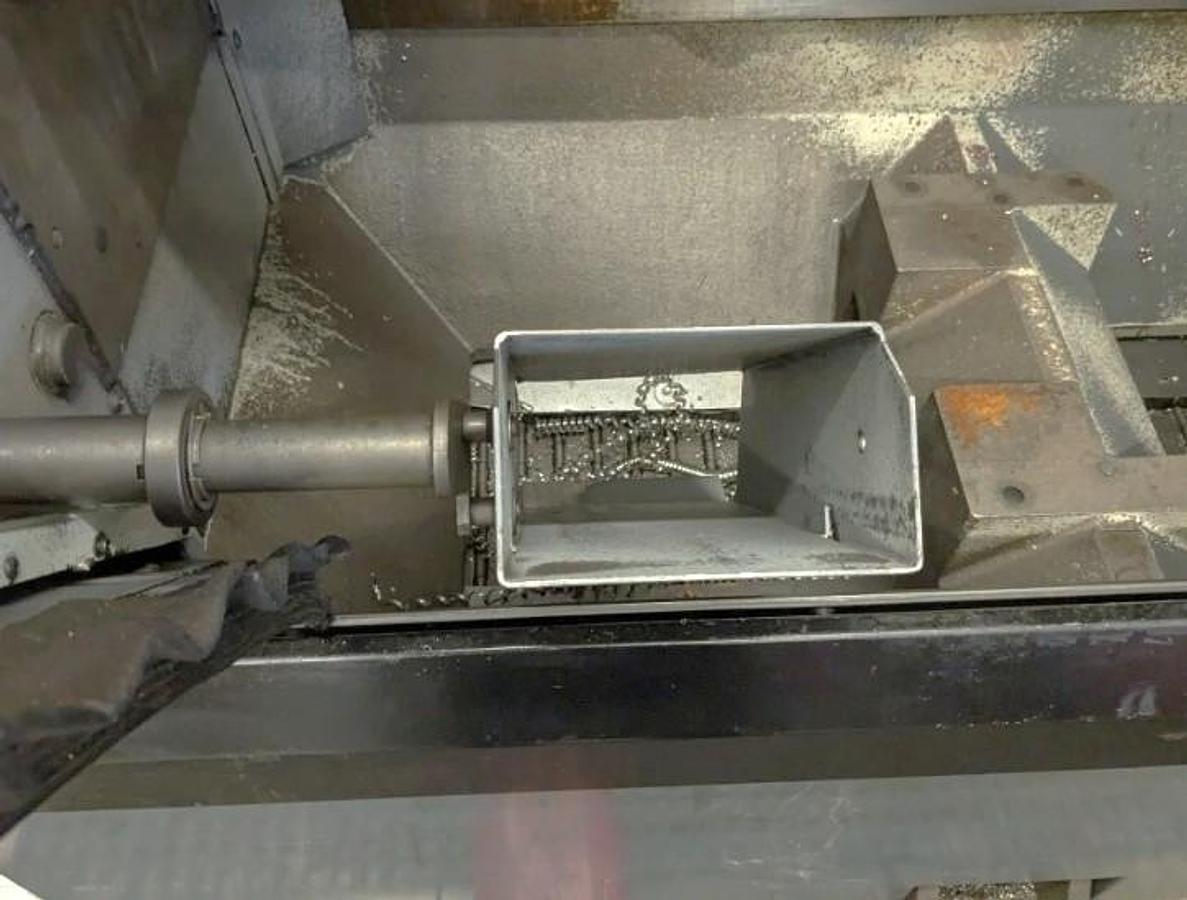

Parts Catcher
Rigid Tapping
User Definable Macros
Compensation Tables
Visual Quick Code Programming
Spindle Orientation
Coolant System with Tank & Pump

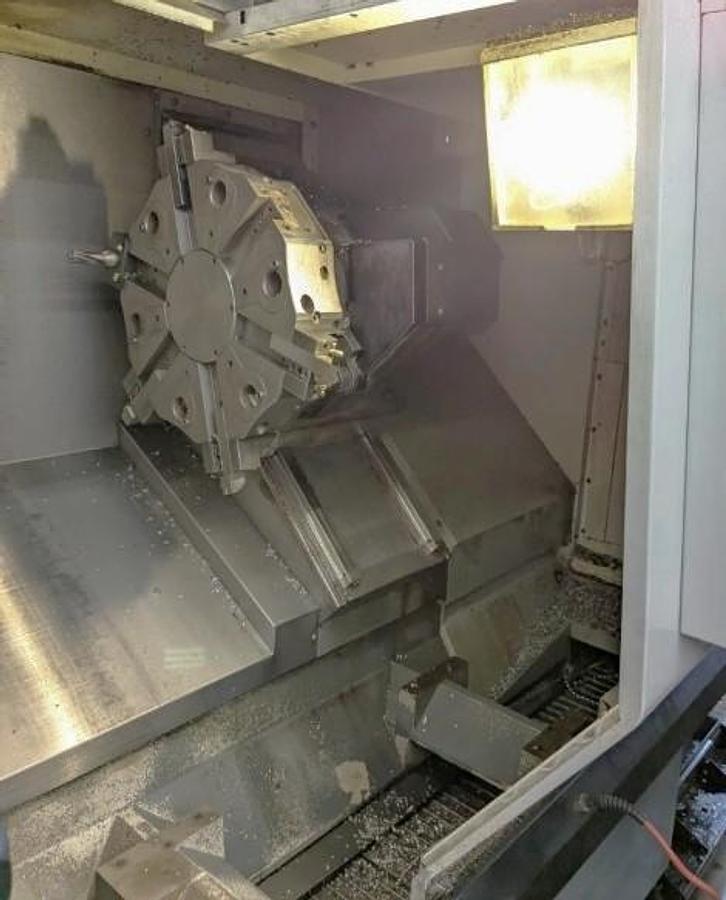

12 Station Hybrid Style Turret
Enable DNC
USB Port Interface
RS 232 Port Interface

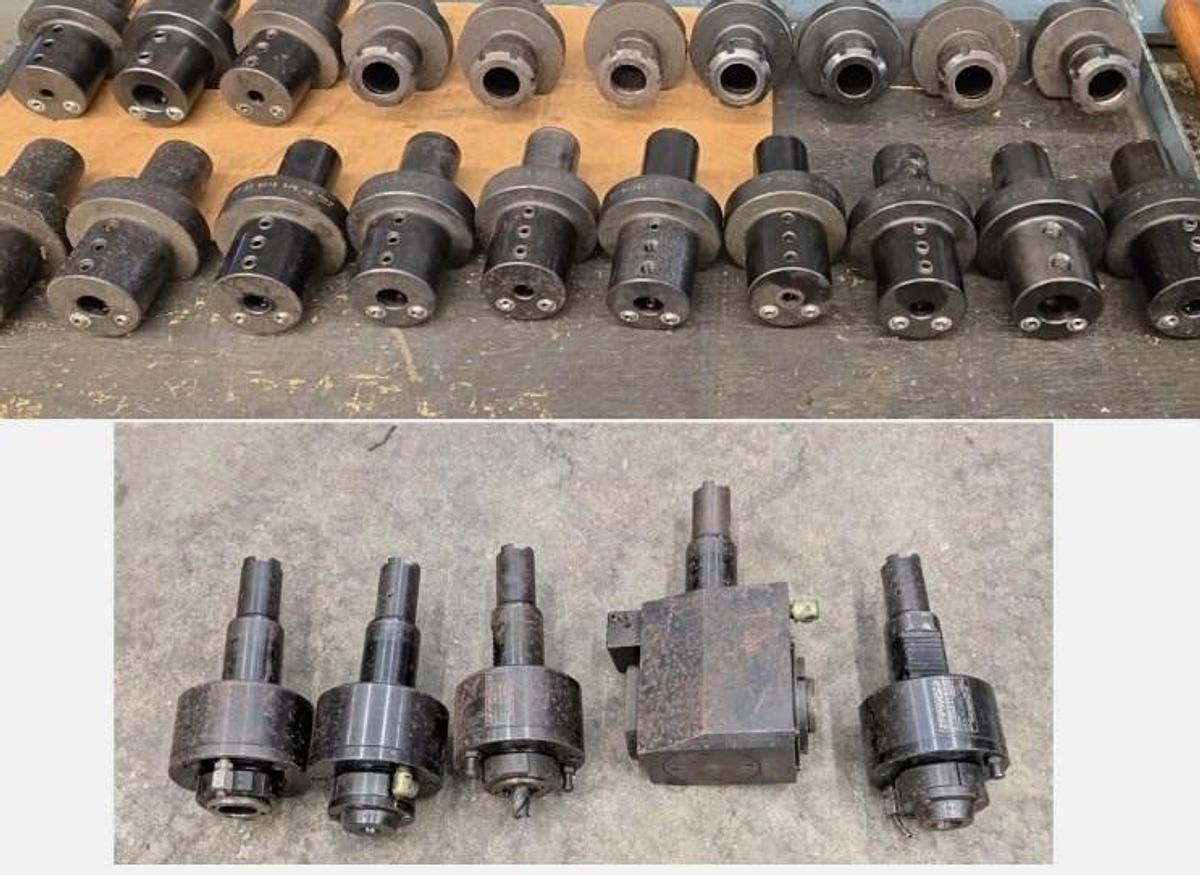

Approximately (20) Static Tool Blocks
Spindle Liners
(5) Live Tool Holders

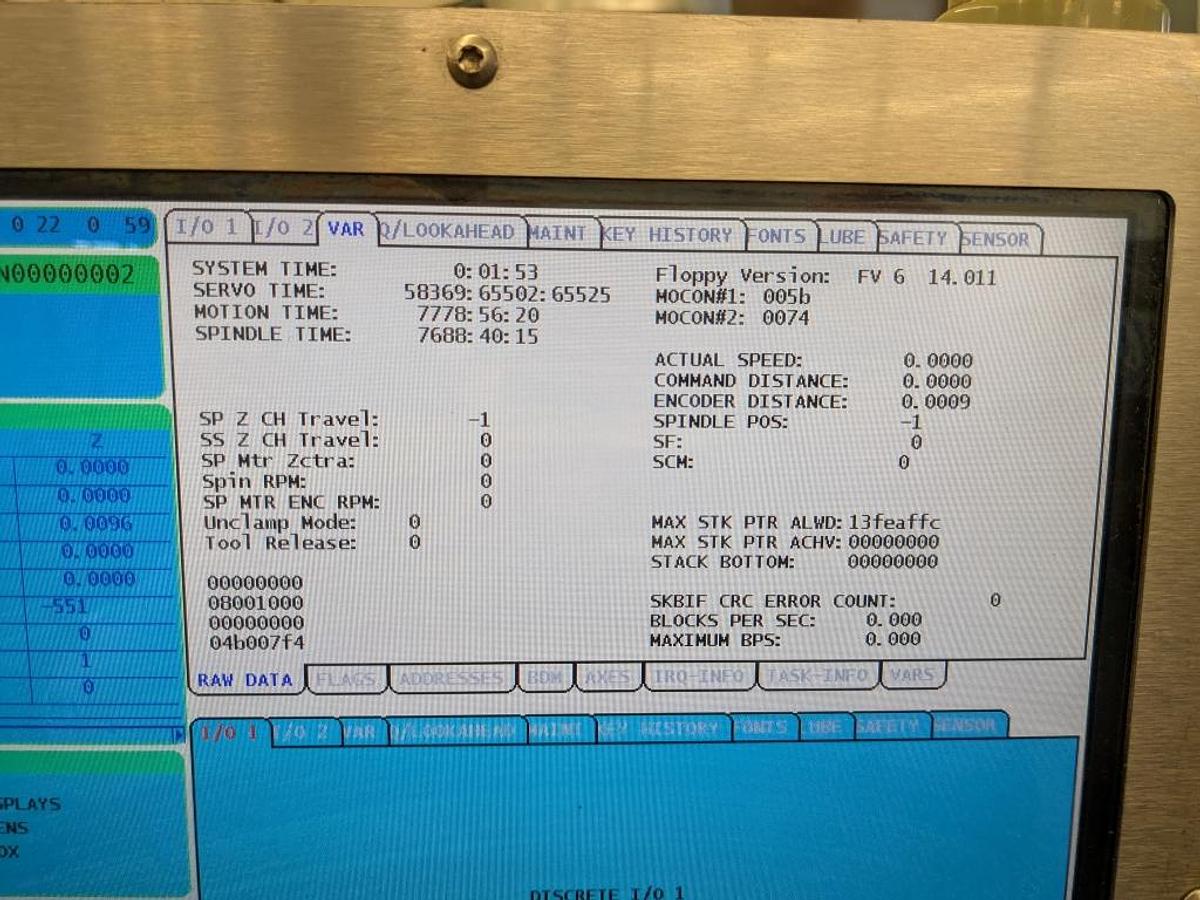

**Approximately 7,688 Spindle Hours**
**Spindle Replaced by Haas in November 2024**
**Filter Mist Unit in Photos is NOT included**
Specifications
| Manufacturer | Haas |
| Model | ST-30M Chucker |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120405 |

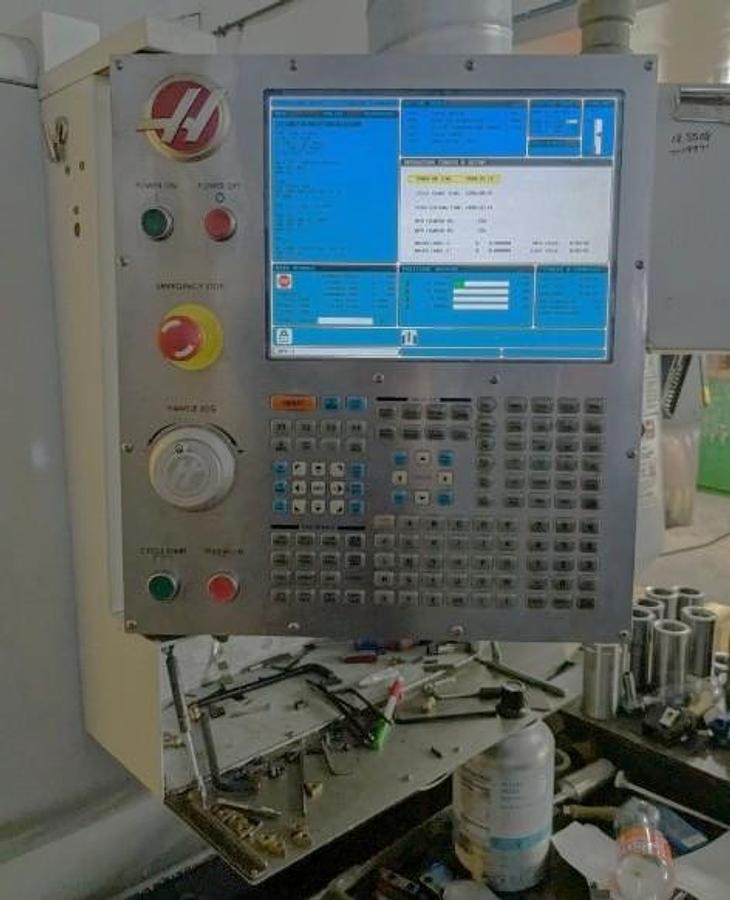

| Machine Control | Haas CNC Control |
| Chuck Size | 10" Hydraulic Chuck |
| Maximum Swing | 31.5" |
| Maximum Turning Diameter | 21" |
| Maximum Machining Length | 26" |
| Maximum Bar Capacity | 3" |
| X-Axis Travel | 12.5" |
| Z-Axis Travel | 26" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
| Spindle Speeds | 30 - 3,400 RPM |
| Spindle Motor | 30 HP |
| Number of Turret Positions | 12 Position all can be live |
| Rapid Traverse Rates X/Z | 945 ipm / 945 ipm |
| Tailstock Body Travel / Taper | 20" / MT #4 |
| Machine Dimensions | 171" x 90" x 83" |
| Machine Weight | 12,540 lbs. |
