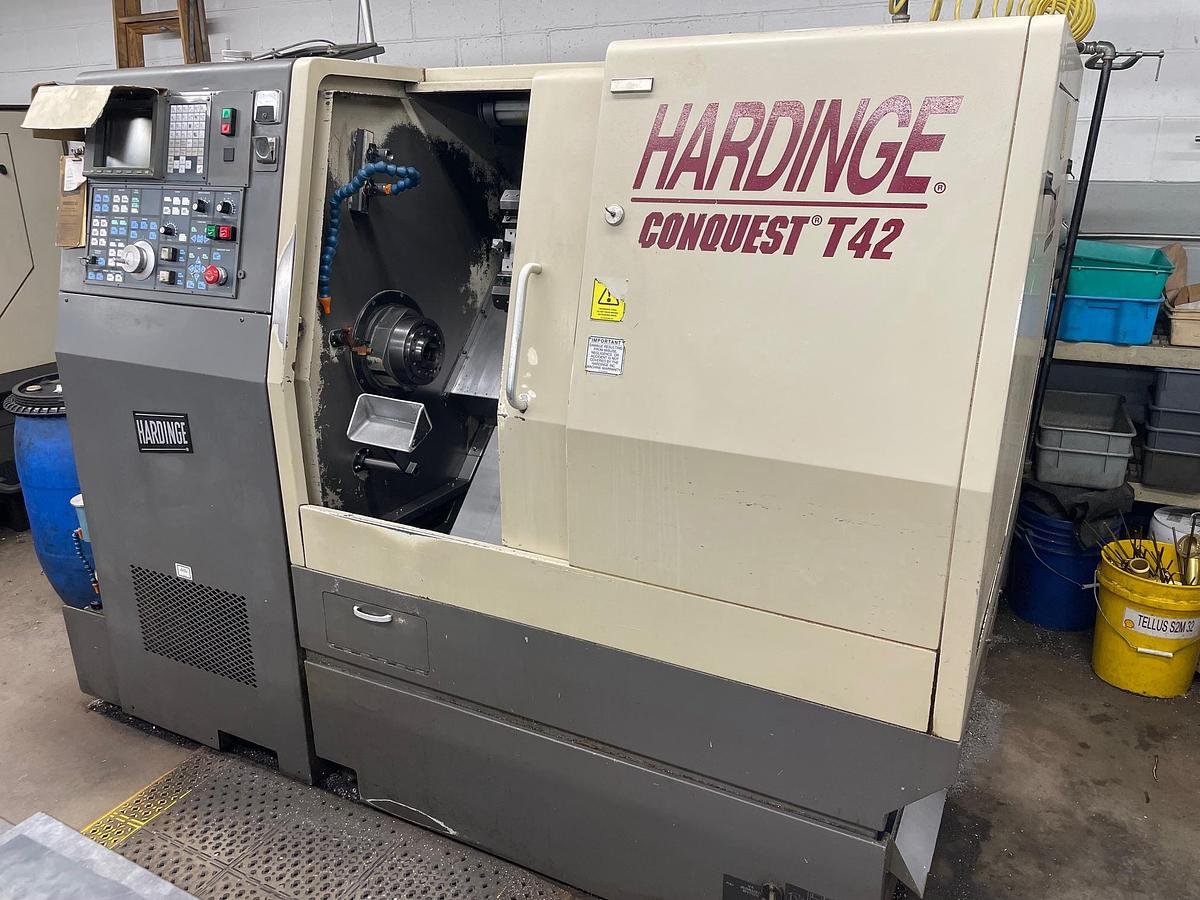

1995 Hardinge Conquest T42 with Parts Catcher, Collet Chuck, Tailstock
1995 Hardinge Conquest T42 with Parts Catcher, Collet Chuck, Tailstock
$6,950 (USD)
Location:New York, NY
or
Call (863) 439-6066
Description
Parts Catcher
Collet Chuck

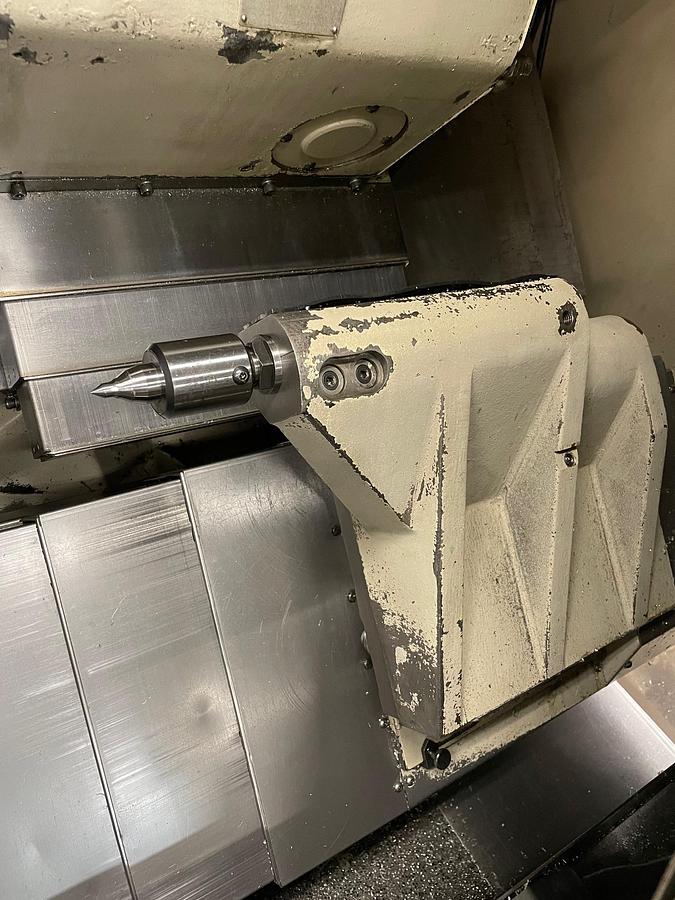

Tailstock
Coolant System with Tank & Pump
RS 232 Port Interface
All Available Manuals
All Available Tool Holders
Specifications
| Manufacturer | Hardinge |
| Model | Conquest T42 |
| Year | 1995 |
| Condition | Used |
| Stock Number | 120404 |
| Machine Control | Fanuc 18T |
| Chuck Size | Collet Chuck |
| Maximum Swing | 19.5" |
| Distance Between Centers | 22" |
| X-Axis Travel | 11" |
| Z-Axis Travel | 13.65" |
| Spindle Nose / Bore / Bar Capacity | A2-5" / 1.875" / 1.625" |
| Spindle Speed | 5,000 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | 10 Station Turret |
| Rapid Traverse Rates X/Z | 472 IPM / 630 IPM |
| Machine Dimensions LxWxH | 81"x54"x68" |
| Machine Weight | 9,000 lbs |
