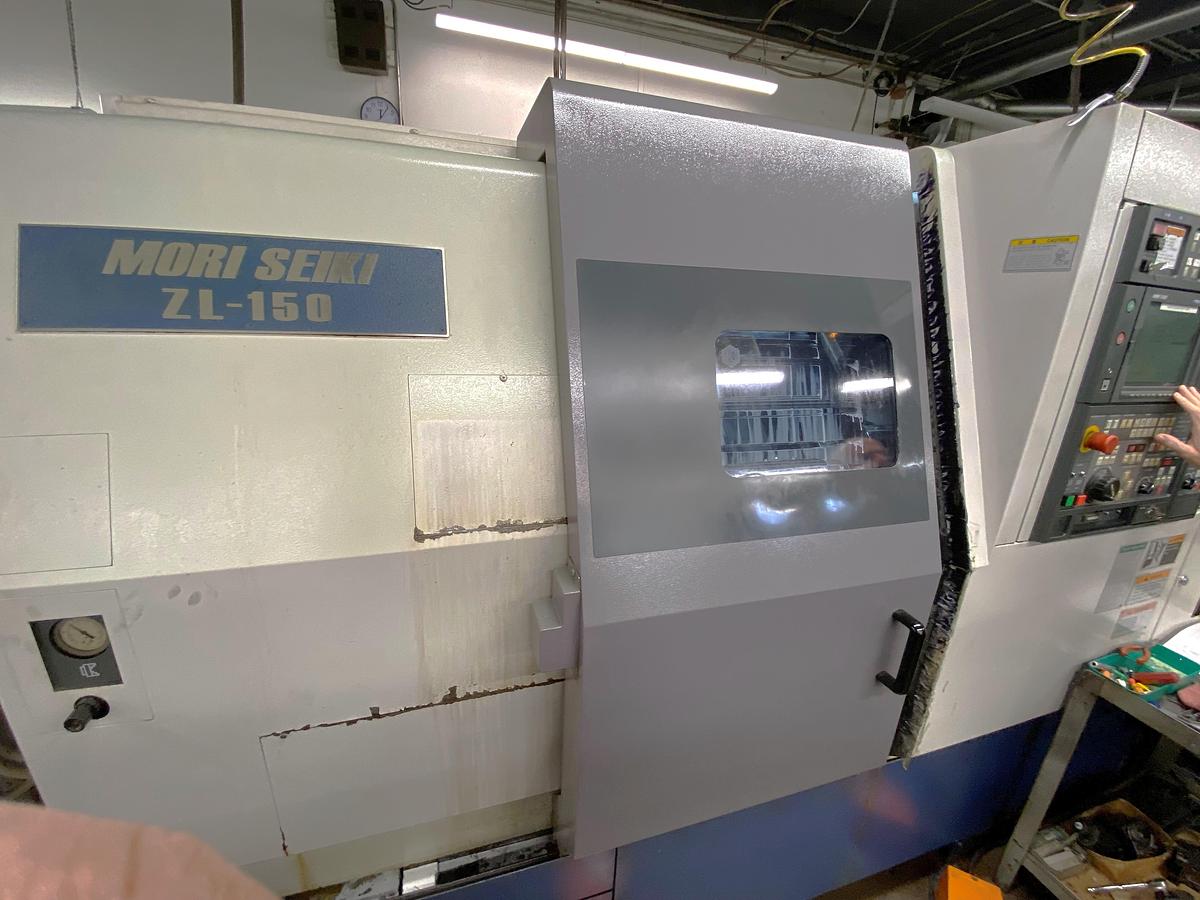

2000 Mori Seiki ZL-150SMC w/ Iemca VIP80 Barfeed, Parts Convey., Chip Convey., Collet Chks., Live Tooling, Dual Turrets, Subspindle
2000 Mori Seiki ZL-150SMC w/ Iemca VIP80 Barfeed, Parts Convey., Chip Convey., Collet Chks., Live Tooling, Dual Turrets, Subspindle
$19,500 (USD)
Location:New York, NY
Description
Twin Turret Design Upper/Lower
Live Milling/Drilling Capability
Subspindle
Full "C" Axis Spindle Rotation on Main & Subspindle

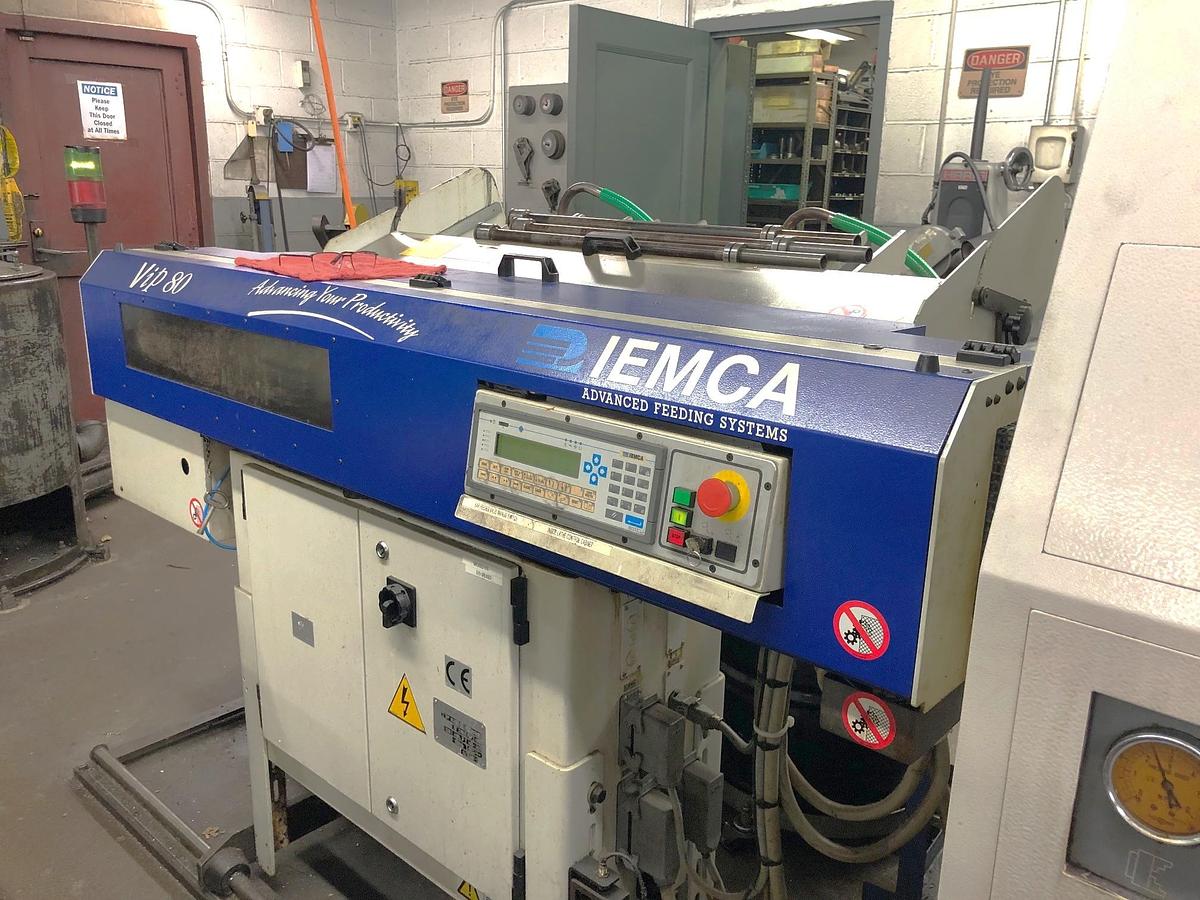

Iemca VIP 80 Short Load Barfeed System
Parts Catcher
Parts Exit Conveyor
Chip Conveyor
Hardinge Quick Change 42mm Collet Nose on Main Spindle
5C Collet Nose on Subspindle
Card Interface
RS 232 Port for DNC Interface
Coolant System with Tank & Pump
Slant Bed Design
Boxed Ways
All Available Static Tooling
Approximately (7) Live Tool Holders
All Available Manuals
**Power On Hours 62,582**
**Cutting Hours 16,586**
**NOTE, machine hours of use are referenced in minutes and needs to be converted to hours as seen in photo**
**There is a second identically equipped 2000 Mori Seiki ZL-150SMC unit available from the same location**
Specifications
| Manufacturer | Mori Seiki |
| Model | SL-150SMC |
| Year | 2000 |
| Condition | Used |
| Stock Number | 120396 |
| Control | Mori Fanuc MSC-501 Control |
| Chuck Sizes Main / Subspindle | Hardinge QC 42 Collet / 5C Collet |
| Maximum Swing | 18.9" |
| Maximum Turning Diameter Main Spindle/Subspindle | 17.3" / 5.3" |
| Maximum Turning Length | 18.5" |
| Maximum Distance Between Centers | 22" |
| Maximum Bar Capacity | 1.67" |
| X Axis Travel Turret 1 / Turret 2 | 9.3" / 6.9" |
| Z Axis Travel Turret 1 / Turret 2 | 21.5" / 19.3" |
| B Axis Travel - Subspindle | 21.9" |
| C1 Axis Spindle Rotation/C2 Axis Spindle Rotation | .001 / .001 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 2.2" |
| Spindle Speeds | 50 - 5,000 RPM |
| Spindle Motor | 15 HP |
| Subspindle Bore | 1.4" |
| Subspindle Speed / Subspindle Motor | 50 - 5,000 RPM / 7.5 HP |
| Rotary Tool Speed / Rotary Motor | 3,000 RPM / 5 HP |
| Number of Turret Positions Upper / Lower | 12 Stations (all live capable) / 12 Stations (all live capable) |
| Rapid Traverse Rates X1, X2 / Z1, Z2 | 788 IPM / 944 IPM |
| Machine Dimensions | 92" x 74" x 73" |
| Machine Weight | 12,430 lbs. |
