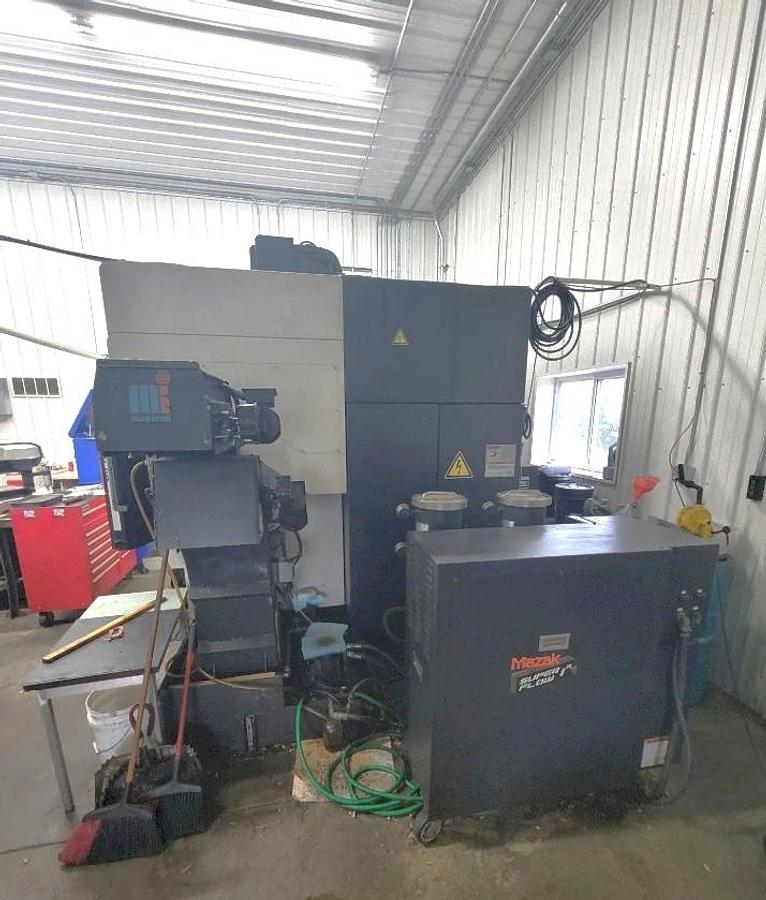

2007 Mazak Variaxis 500-5X II with 5 Axis Trunnion Table, 40 Pos. ATC, HSK63 Taper, 12,000 RPM, HP CTS, Renishaw OMP Probe

5 Axis Trunnion Table Design

High Pressure Mazak Super Flow Coolant Through the Spindle

Renishaw OMP Type Probing

Automatic Tool Length Measurement Probing

Chip Conveyor

Chiller Unit

Rigid Tapping

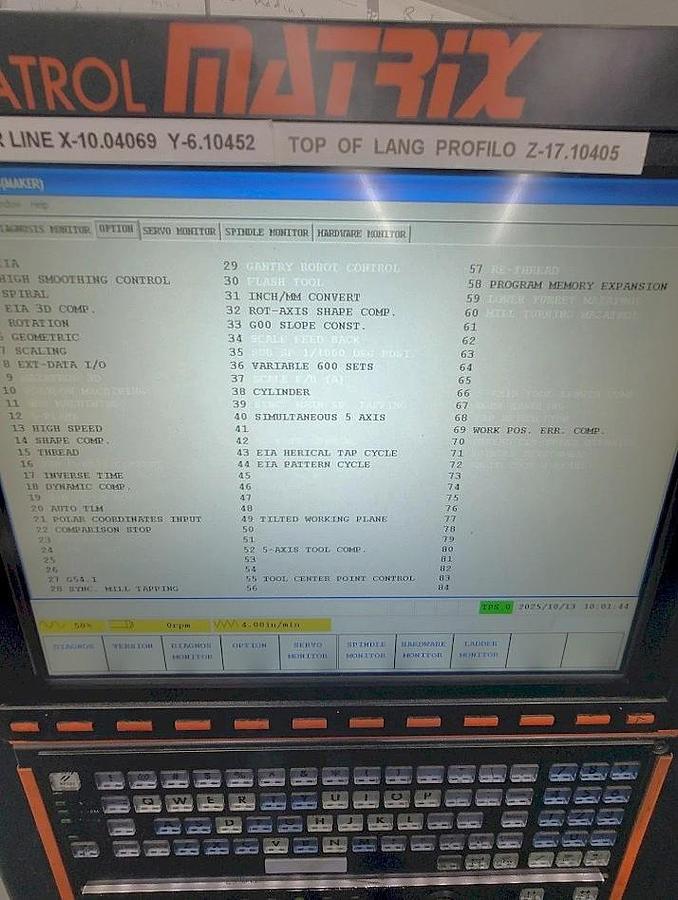

High Smoothing Control

Spiral Interpolation

Coordinate Rotation & Scaling

Geometric

Simultaneous 5-Axis Capability

External Data Input / Output

High Speed Machining

Shape Compensation

Threading

Inverse Time

Dynamic Compensation

Polar Coordinates Input

Comparison Stop

G54.1

Inch/Metric Conversion

Rotary Axis Shape Compensation

Variable 600 Sets

Cylindrical Interpolation

Program Memory Expansion

G00 Slope Constant

Tilted Work Plane

5 Axis Tool Compensation

Tool Center Point Control

Work Position Error Compensation

EIA/ISO Input Function

EIA 3D Compensation

EIA Helical Tapping Cycle

EIA Pattern Cycle

USB Port Interface

LAN Port Interface

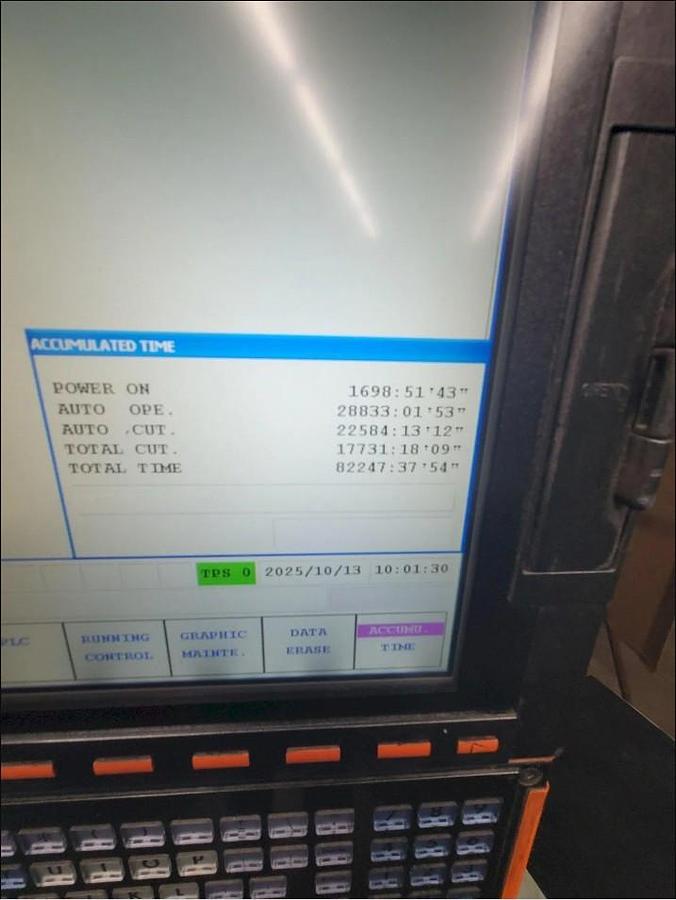

**Auto Operation Hours - 28,833**

**Total Cut Hours 17,731**

The 2007 Mazak Variaxis 500-5X II is a precision 5-axis vertical machining center designed to deliver high efficiency in complex machining tasks. This machine features a 5-axis trunnion table capable of accommodating a maximum workpiece size of 19" x 15" x 15" and a table load capacity of 661 lbs. The machine's X, Y, and Z-axis travels are 20", 20", and 18" respectively, ensuring versatile movement for intricate operations. The A-axis offers a tilt range from -120 degrees to +30 degrees, while the C-axis allows for full 360,000-degree rotation, providing comprehensive coverage for any angular orientation. Fitted with a Mazatrol Matrix control, the Variaxis 500-5X II offers intuitive operation and efficient job management. It is equipped with an HSK-63 taper spindle that boasts a speed of up to 12,000 RPM, driven by a robust 30 HP motor. This machining center includes high-performance coolant through the spindle (HP CTS) and comes equipped with a Renishaw OMP probe for precise measurement and setup. The 40-position automatic tool changer enhances productivity by minimizing downtime between tool changes. Measuring 110" x 115" x 109" and weighing 24,500 lbs, this machining center is a reliable option for industries requiring intricate and accurate part production. Its rapid traverse rates of 1,969 IPM ensure reduced cycle times, making it an efficient choice for increasing throughput in various manufacturing settings.
