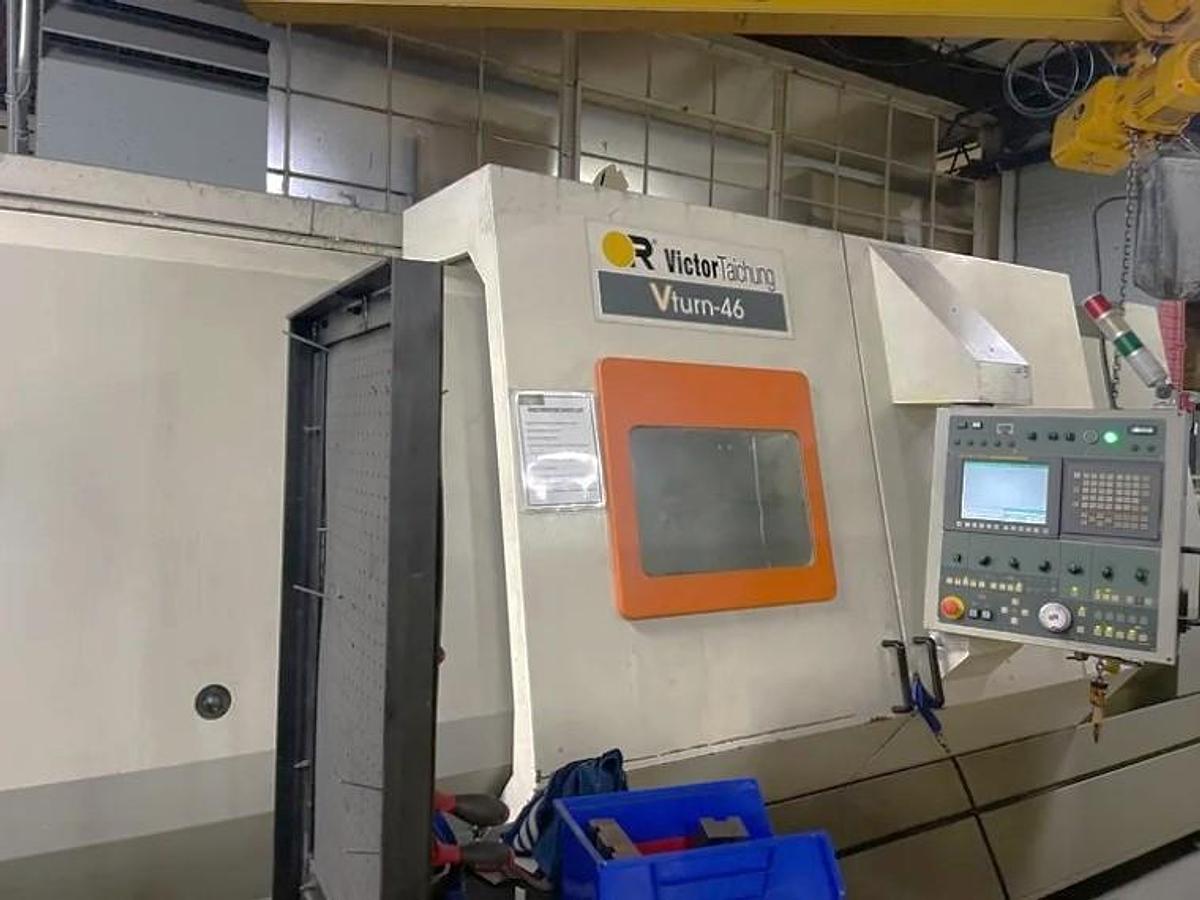

2012 Victor Taichung VTurn 46 Heavy Duty CNC Lathe with 32" sw, 69" cc, 4.52" Bar Capacity, 68 HP, 15" Chuck, 4 Spd Gearbox
2012 Victor Taichung VTurn 46 Heavy Duty CNC Lathe with 32" sw, 69" cc, 4.52" Bar Capacity, 68 HP, 15" Chuck, 4 Spd Gearbox
$89,500 (USD)
Location:Illinois
or
Call (863) 439-6066
Description
Chip Conveyor 15" 3 Jaw Hydraulic Chuck (can accept up to 24" chuck) Programmable Tailstock
Air Conditioned Electrical Cabinet
High Pressure Coolant
RS 232 Port Interface Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed
4 Speed Geared Headstock
Machine Status Condition Lights All Available Tooling All Available Manuals
Specifications
| Manufacturer | Victor Taichung |
| Model | VTurn 46 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 120385 |
| Control | Fanuc 0i-TD Series Control |
| Chuck Size | 15" Hydraulic Chuck |
| Maximum Swing | 32.28" |
| Maximum Turning Diameter | 28.74" |
| Standard Turning Diameter | 20.472" |
| Maximum Turning Length | 64.96" |
| Maximum Distance Between Centers | 68.89" |
| Maximum Bar Capacity | 4.52" |
| Spindle Nose / Spindle Bore | A2-11" / 4.84" |
| Spindle Speeds | 1,500 RPM |
| Spindle Motor | 68.4 HP |
| Number of Turret Positions | 10 Position Turret |
| Turret Indexing Time | 1 second |
| Maximum Boring Bar Diameter / Turning Tool Size | 2.36" / 1.25" |
| Rapid Traverse Rates X/Z | 472 IPM |
| Electrical Requirements | 220V / 63.6 KVA / 57.2 KW |
| Machine Dimensions | 244" x 118" x 98" |
| Machine Weight | 28,160 lbs. |
