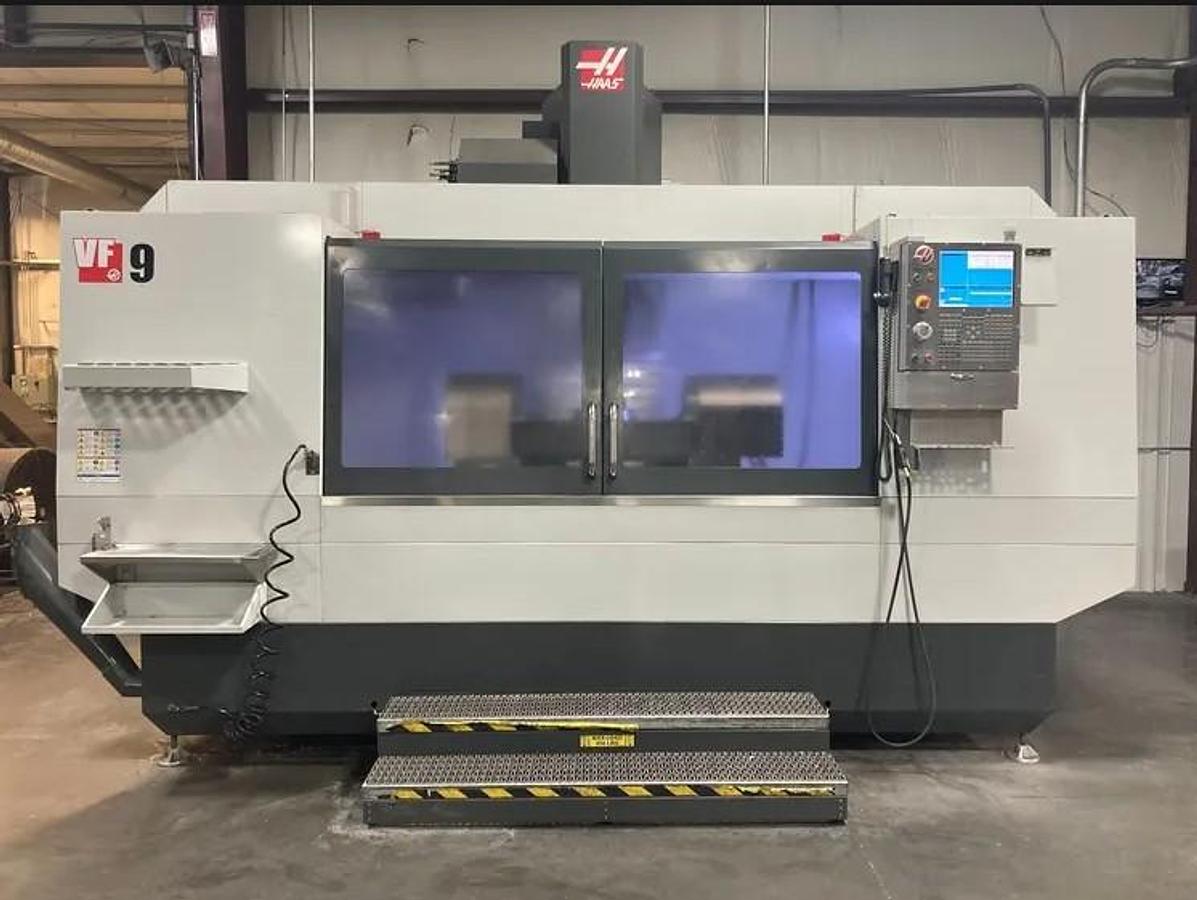

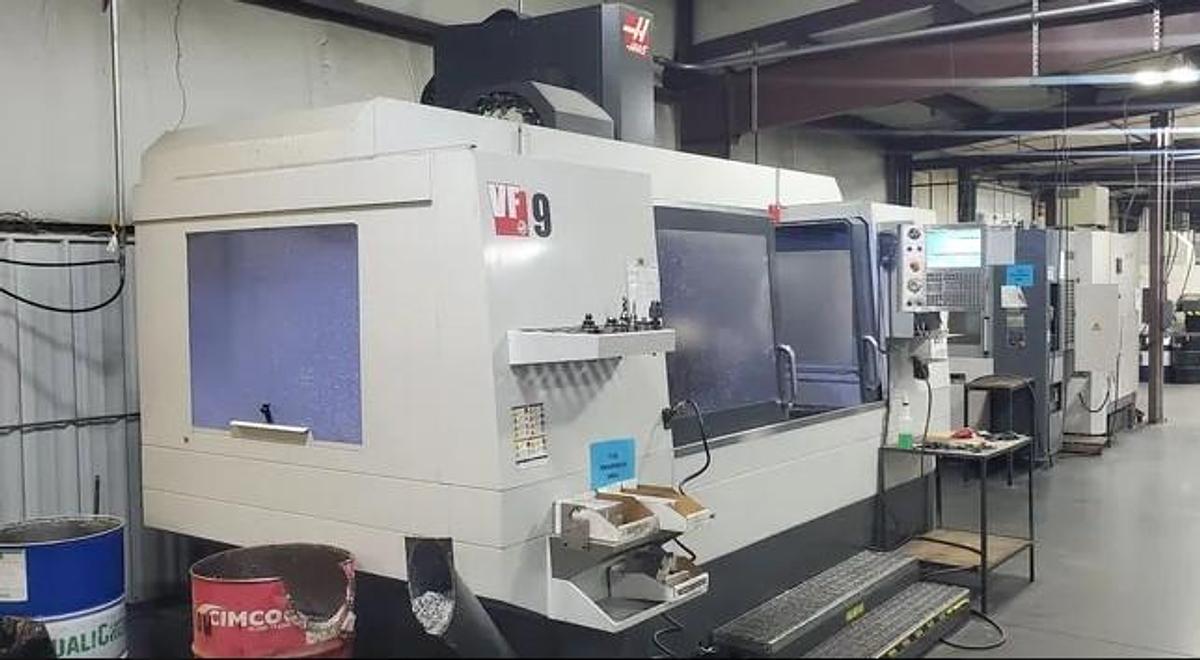

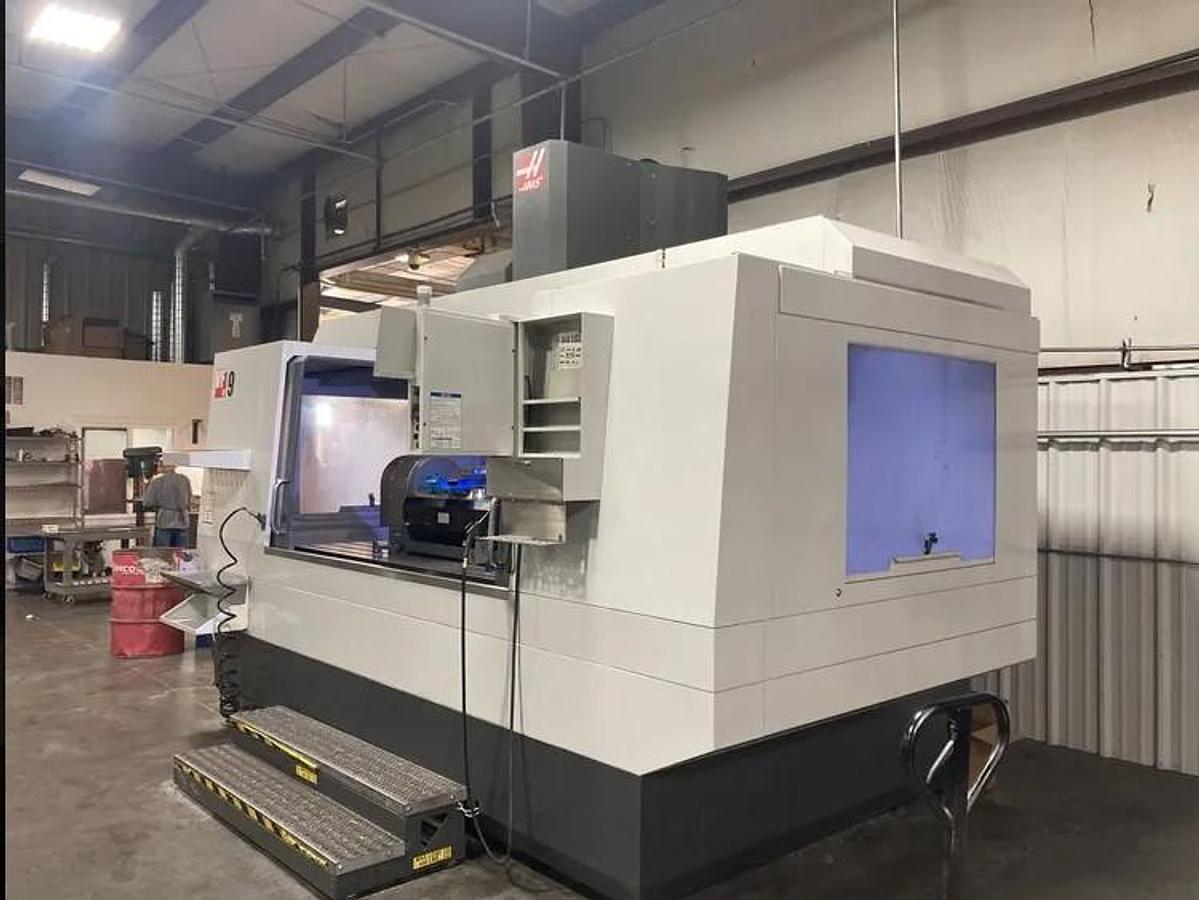

2014 Haas VF-9/40 with Haas TR-310 Trunnion Table, Coolant Through Spindle, Extended Z Clearance, High Speed Machining
2014 Haas VF-9/40 with Haas TR-310 Trunnion Table, Coolant Through Spindle, Extended Z Clearance, High Speed Machining
Contact us for price
Location:Kansas
or
Call (863) 439-6066
Description

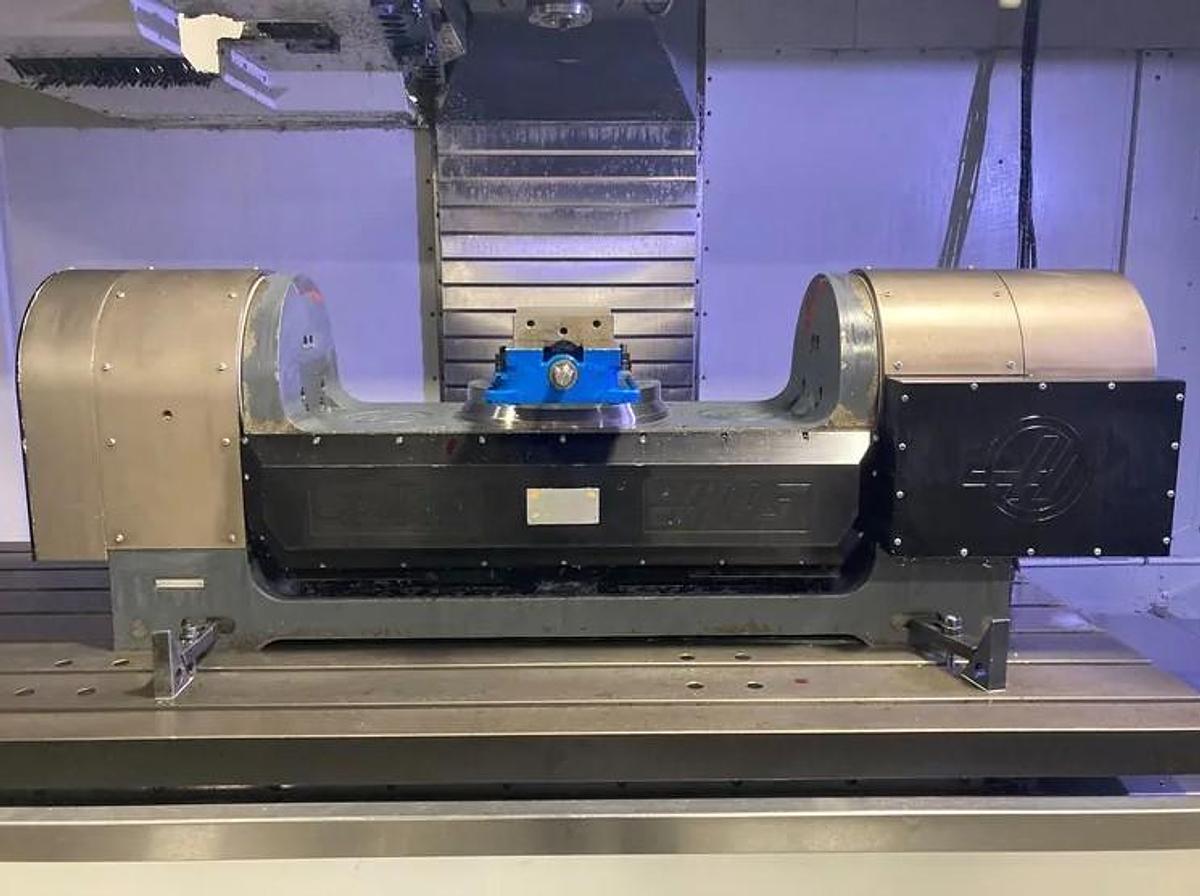

Haas TR-310 Trunnion Style Table
Haas 4th Axis Drive & Wiring
Haas 5th Axis Drive & Wiring
Coolant Through the Spindle - 300 PSI
8" Extended Z Axis Clearance
Auger Style Chip Conveyor
24 Station Side Mounted Tool Changer
High Speed Machining
Programmable Coolant Nozzle
Rigid Tapping
Auxiliary Coolant Filter System
Remote Jog Handle-Color
Internal High Voltage Isolated Transformer for 380V - 480V
Ethernet Interface
USB Port Interface
RS 232 Port Interface
Specifications
| Manufacturer | Haas |
| Model | VF-9/40 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 120380 |
| Table size | 84" x 36" |
| Table load capacity | 4,000 lbs. |
| X axis travel | 84" |
| Y axis travel | 40" |
| Z axis travel | 30" |
| Spindle nose to table top | 4" - 34" |
| Spindle speed | 8,100 RPM |
| Spindle taper | CAT 40 |
| Spindle motor-geared head | 30 HP |
| Transmission type | 2 Speed Geared |
| Tool magazine capacity | 24 Position Side Mount ATC |
| Tool change time | 2.8 sec tool-tool |
| Rapid traverse rates | 600 IPM |
| Max. tool diam./length/weight | 3.5"/8"/12 lbs. |
| Machine dimensions | 183"x139"x129" |
| Machine weight | 25,200 lbs. |
