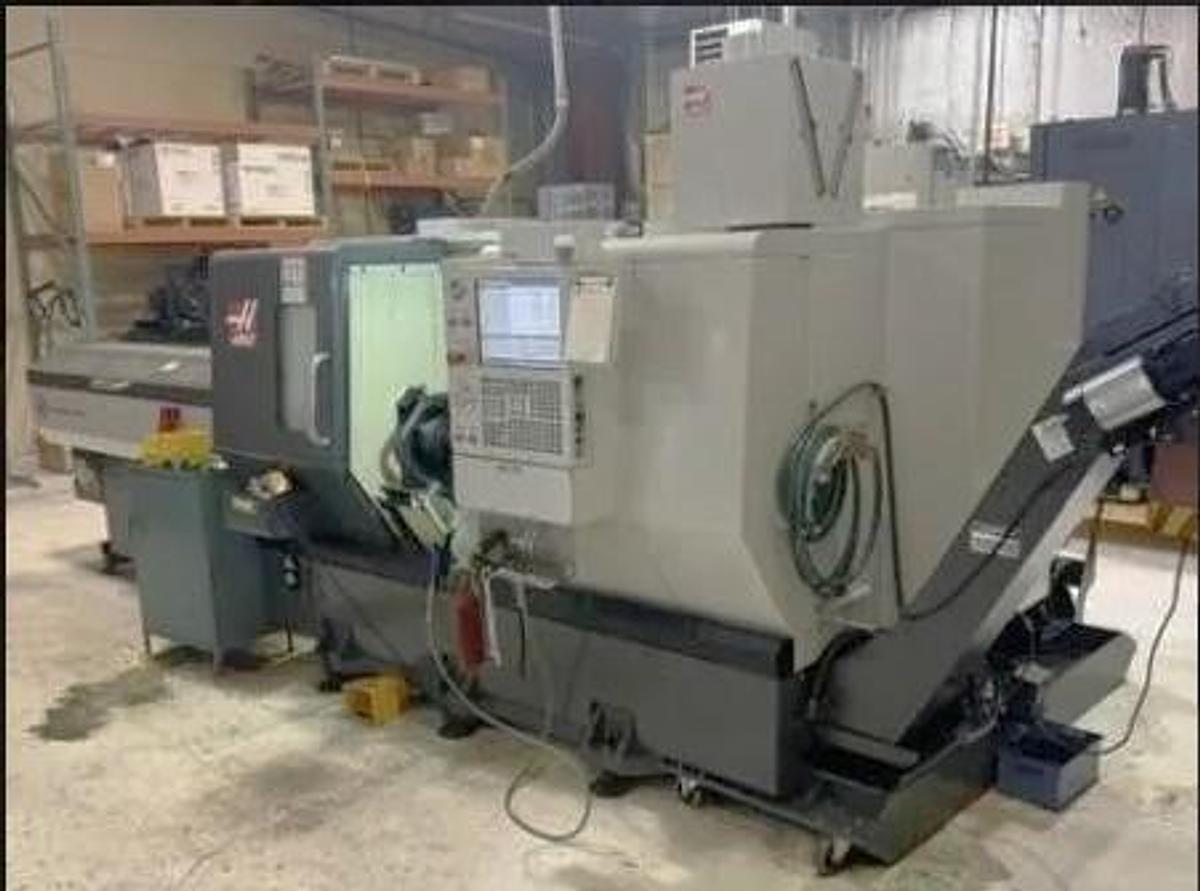

2018 Haas ST-25Y, Haas Barfeeder, Full C Axis Spindle, Milling Cap., Y Axis, Parts Catcher, Toolsetter, Tailstock, HP Coolant
2018 Haas ST-25Y, Haas Barfeeder, Full C Axis Spindle, Milling Cap., Y Axis, Parts Catcher, Toolsetter, Tailstock, HP Coolant
Contact us for price
Location:Illinois
or
Call (863) 439-6066
Description
C Axis Spindle Rotation
Live Milling/Drilling Capability
Y Axis Capability
10" 3 Jaw Hydraulic Chuck
Collet Chuck
Haas Bar Feeder
Chip Conveyor
Parts Catcher
Tool Presetter
High Pressure Coolant
Haas Visual Part Programming System
Haas Intuitive Programming System - Conversational
User Definable Macros
Spindle Orientation
Media Display M Code M130
Haas Connect
1 GB Program Storage
Rigid Tapping
15" LCD Color Monitor
Early Power Failure Detection Module
12 Station VDI/BOT Hybrid Turret
Memory Lock Key Switch
USB Port Interface
RS 232 Port Interface
Wired 195-260V Electrics
All Available Tool Blocks
Specifications
| Manufacturer | Haas |
| Model | ST-25Y |
| Year | 2018 |
| Condition | Used |
| Stock Number | 120378 |
| Machine Control | Haas NextGen Control |
| Chuck Size | 10" 3-Jaw Hydraulic / Collet Chuck |
| Maximum Swing Over Cross Slide | 21" |
| Maximum Machining Diameter | 11.75" |
| Maximum Machining Length | 22.5" |
| Maximum Bar Capacity | 3.0" |
| X-Axis Travel | 8.4" |
| Y-Axis Travel | +/- 2.0" |
| Z-Axis Travel | 22.5" |
| C Axis Spindle Rotation | 0.01 Degree |
| Spindle Nose / Spindle Bore | A2-6" / 3.5" |
| Spindle Speeds | 3,400 RPM |
| Spindle Motor | 30 HP |
| Spindle Torque | 300 ft./lbs. @ 500 RPM |
| Rotary Tool Speed / Rotary Motor | 4,000 RPM / 5 HP |
| Number of Turret Positions | 12 Bolt on Style - BMT65 Type |
| Rapid Traverse Rates X, Y / Z | 472 IPM / 945 IPM |
| Tailstock Taper | MT #4 |
| Machine Dimensions LxWxH | 142" x 90" x 92" |
| Machine Weight | 12,300 lbs. |
