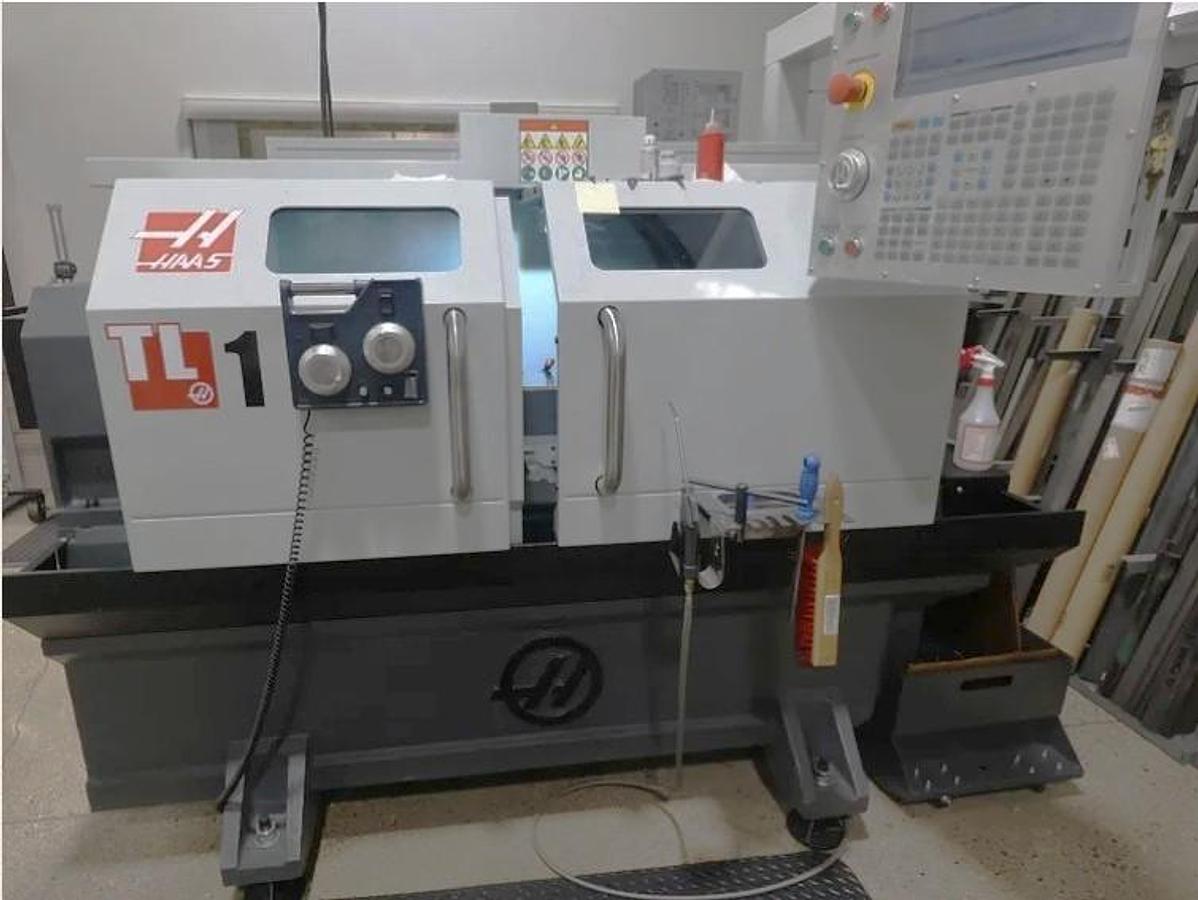

2020 Haas TL-1 with 8" 3 Jaw Chk, 3000 RPM Option, Tailstock, 4 Station Indexable Turret, Rigid Tapping, Fully Enclosed
2020 Haas TL-1 with 8" 3 Jaw Chk, 3000 RPM Option, Tailstock, 4 Station Indexable Turret, Rigid Tapping, Fully Enclosed
$37,500 (USD)
Location:Michigan
or
Call (863) 439-6066
Description

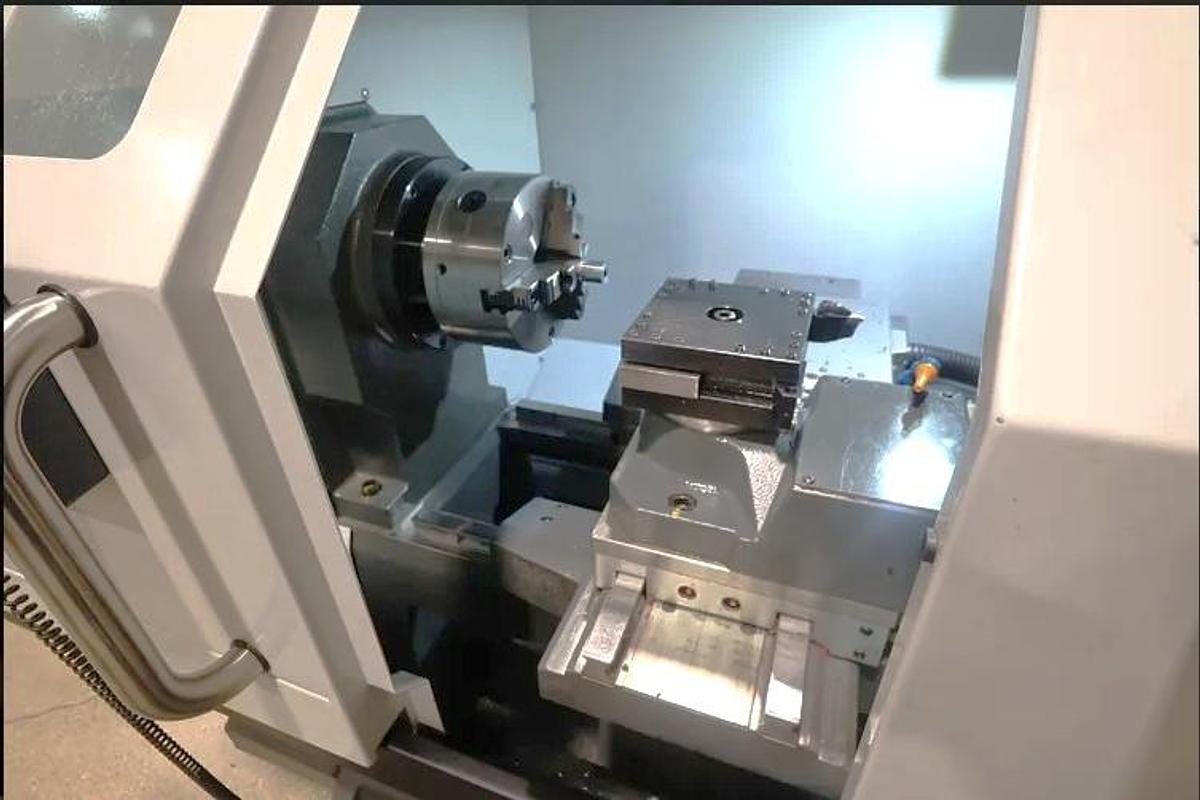

4 Way Indexable Turret
Tailstock 8" 3 Jaw Manual Chuck Rigid Tapping
3,000 RPM Spindle on A2-5" Spindle Nose Option
Haas Visual Part Programming Software Coolant System with Tank & Pump Integral Chip-Flow Channel Full Enclosure Doors
Ethernet Port Interface
USB Port Interface RS 232 Port Interface
1 GB Programming Memory
Haas WiFi Connect
Work Light
**ONLY 60 Spindle Hours !!**
**Price New as Equipped today at $57,365**
Specifications
| Manufacturer | Haas |
| Model | TL-1 |
| Year | 2020 |
| Condition | Used |
| Stock Number | 120374 |
| Control | Haas NextGen Control |
| Chuck Size | 8" 3 Jaw Chuck |
| Maximum Swing over Bed | 16" |
| Maximum Swing Over Cross Slide | 8.5" |
| Maximum Cutting Diameter | 16" |
| Maximum Machining Length | 30" |
| X-axis travel | 8" |
| Z-Axis Travel | 30" |
| Spindle Nose / Spindle Bore | A2-5" / 2.31" |
| Spindle Speeds | 3,000 RPM |
| Spindle Motor | 10 HP |
| Number of Turret Positions | 4 Station Turret |
| Rapid Traverse Rates X/Z | 75 IPM / 150 IPM |
| Machine Dimensions | 88" x 56" x 75" |
| Machine Weight | 4,100 lbs. |
