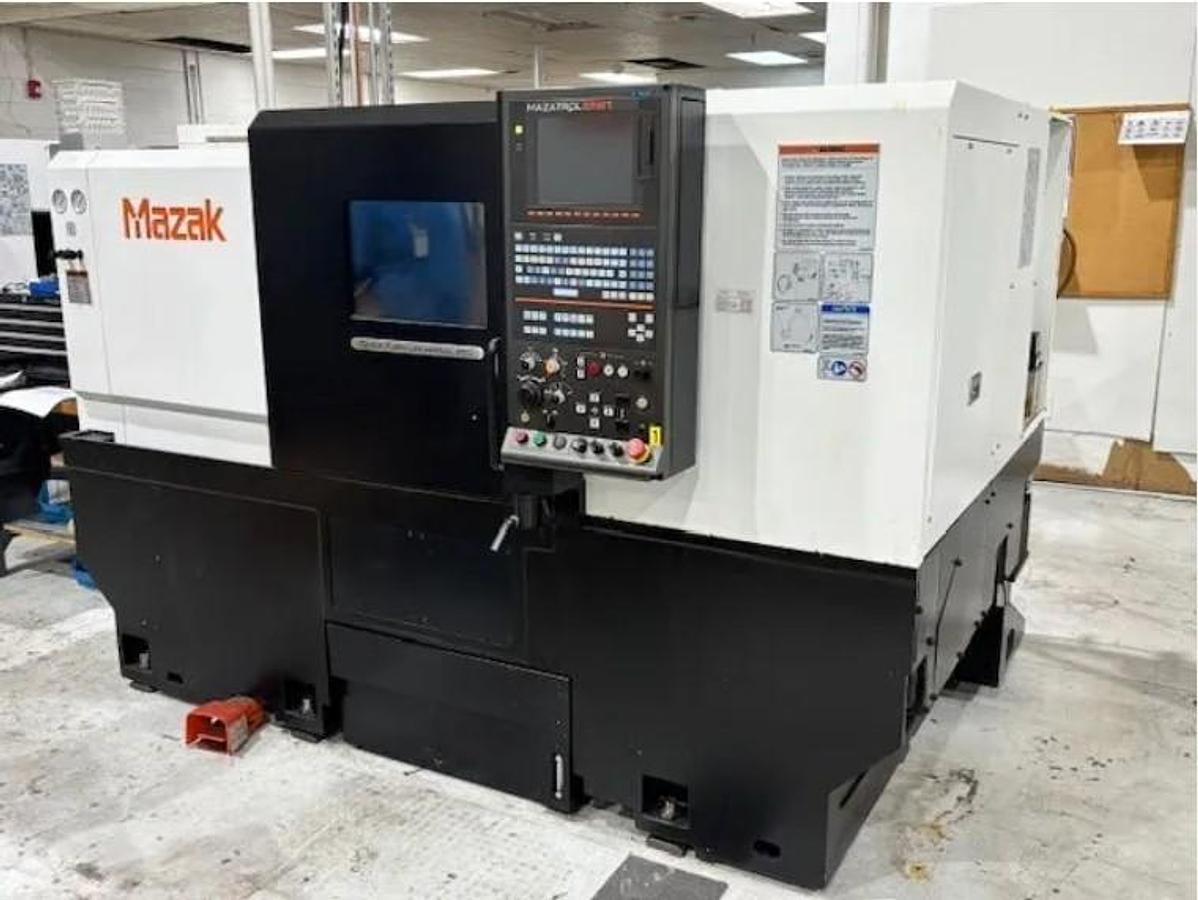

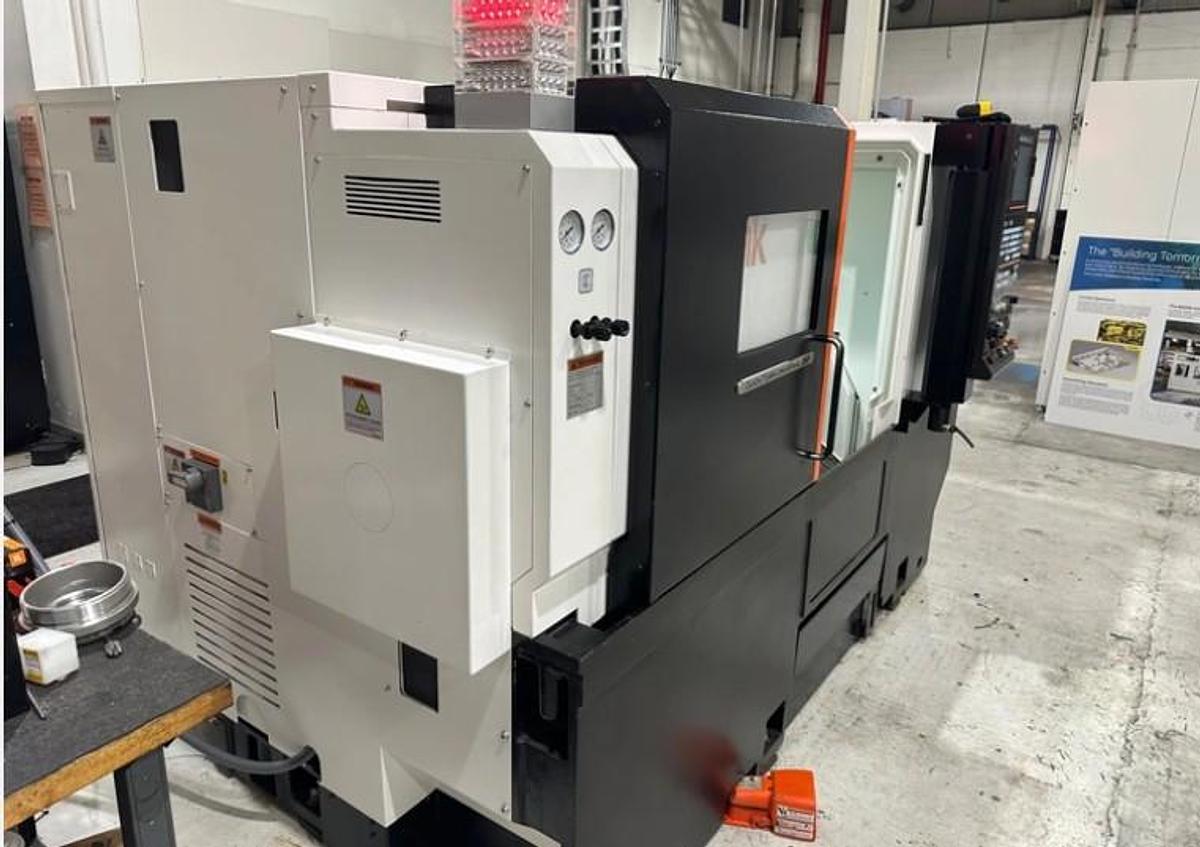

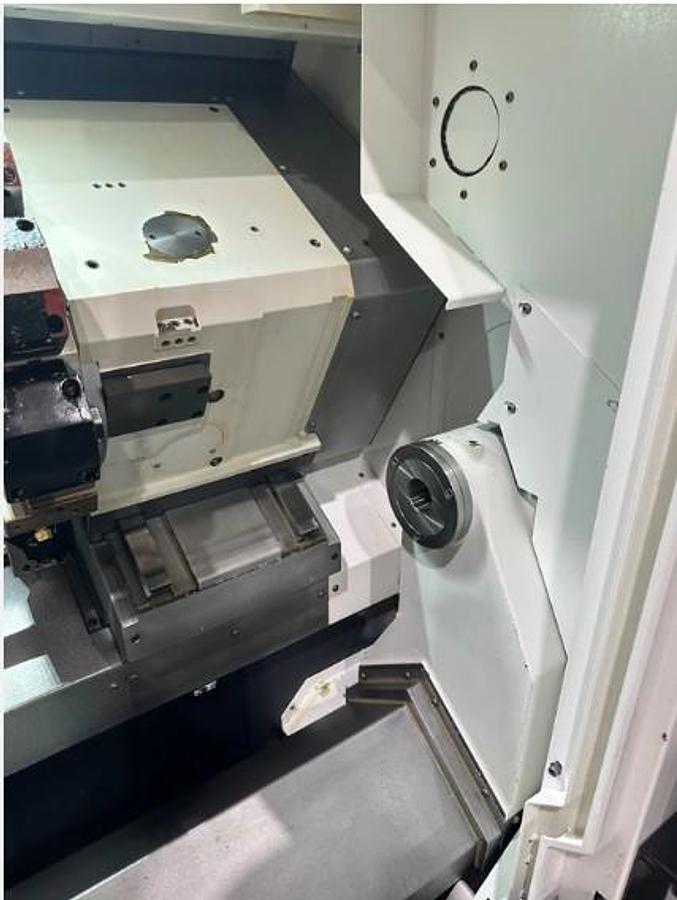

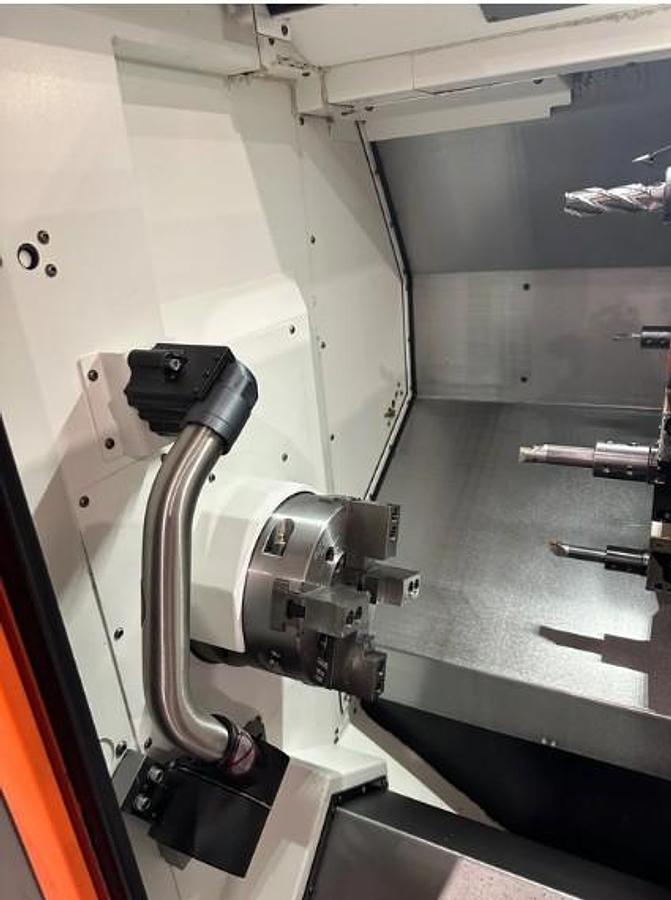

2015 Mazak Quick Turn Universal 250, 8" Hyd Chuck, 2" Bar Capacity, Chip Conveyor, Tool Eye, Tailstock, Hi Pressure Coolant
2015 Mazak Quick Turn Universal 250, 8" Hyd Chuck, 2" Bar Capacity, Chip Conveyor, Tool Eye, Tailstock, Hi Pressure Coolant
$49,950 (USD)
Location:Illinois
or
Call (863) 439-6066
Description

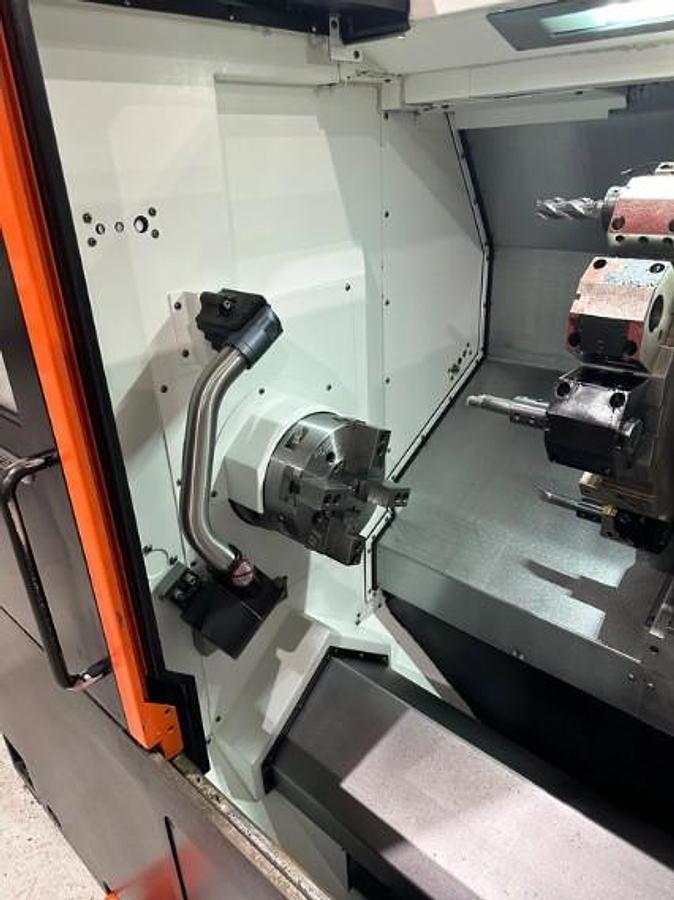

8" 3 Jaw Through Hole Hydraulic Chuck & Drawtube

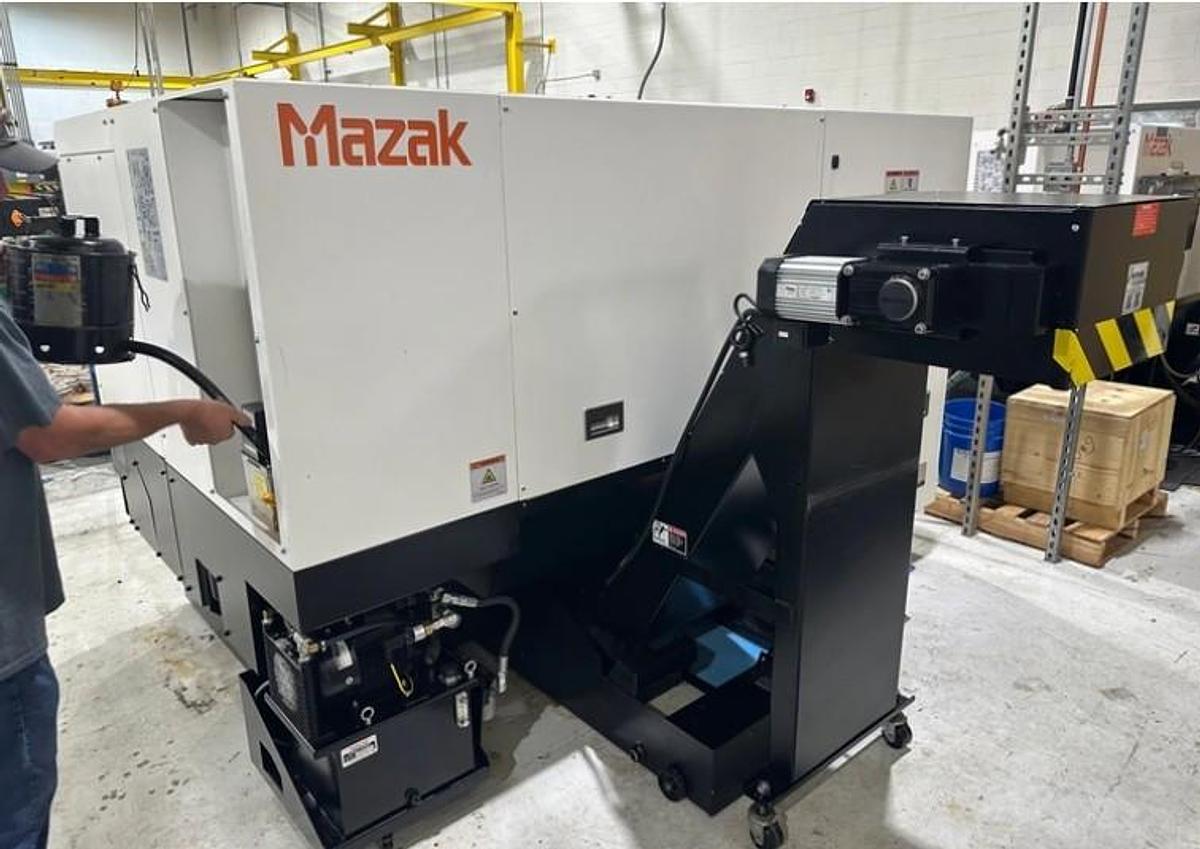

Chip Conveyor - Rear Exit
Automatic Tool Eye
Programmable Tailstock
Mazak High Pressure Coolant

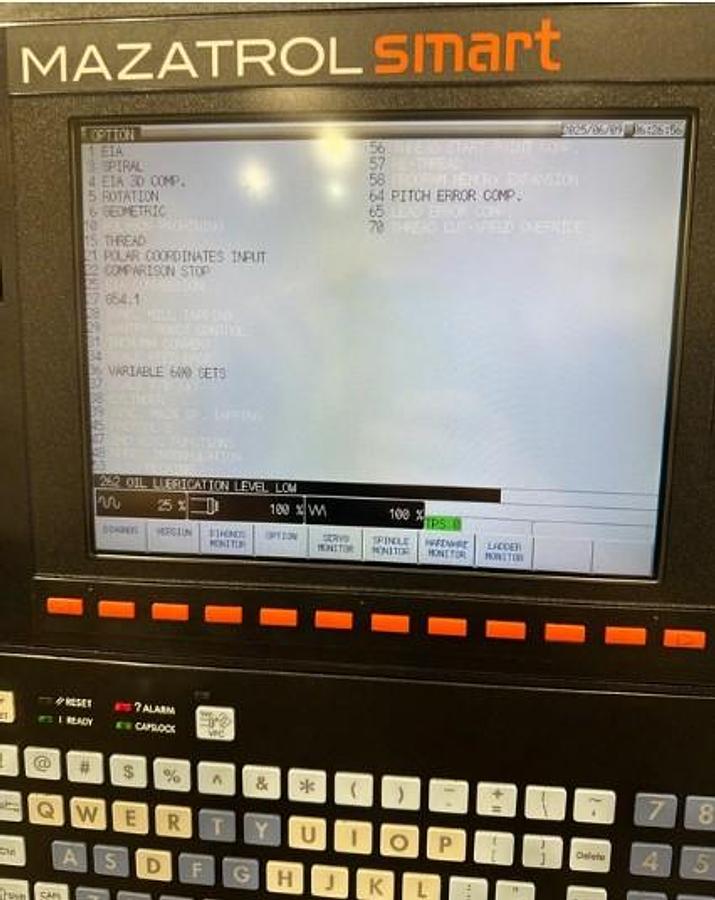

EIA/ISO Input Function
EIA 3D Compensation
Spiral Interpolation
Coordinate Rotation
Geometric
Threading
Polar Coordinate Input
Comparison Stop
G54.1
Variable 600 Sets
Pitch Error Compensation
USB Port Interface
PCMCIA Card Interface
RS 232 Port Interface
Coolant System with Tank & Pump
All Available Manuals
All Available Tool Holders and Wedge Blocks

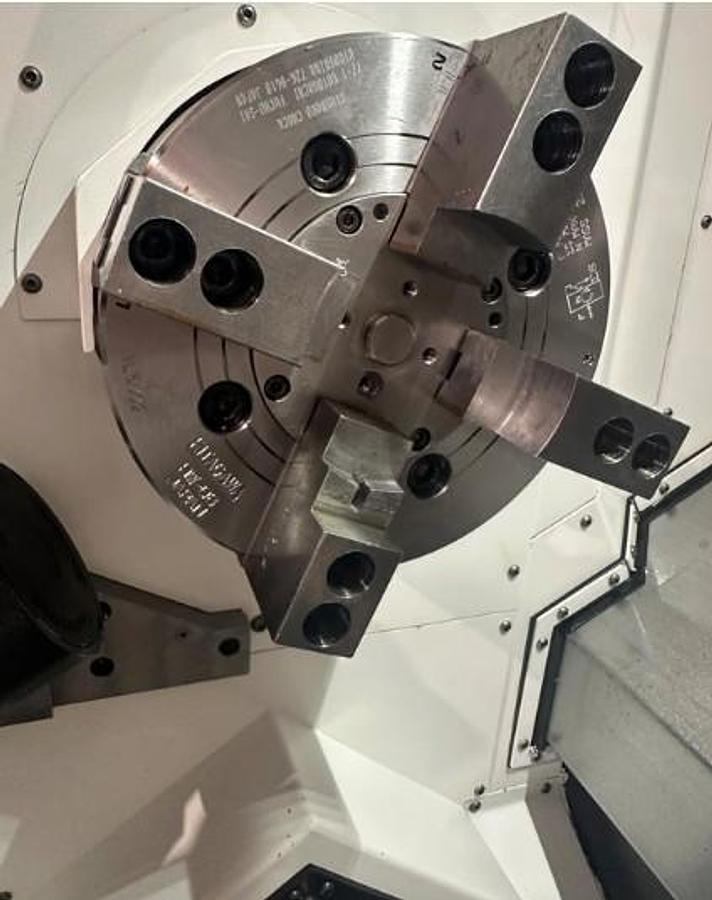

Includes an additional Kitagawa 4 Jaw Hydraulic Chuck and Solid Cylinder
Specifications
| Manufacturer | Mazak |
| Model | Quick Turn Universal 250 |
| Year | 2015 |
| Condition | Used |
| Stock Number | 120370 |
| Machine Control | Mazatrol Smart Control |
| Chuck Sizes Main / Subspindle | 8" 3-Jaw Hydraulic Chuck |
| Maximum Swing | 27.4" |
| Maximum Cutting Diameter | 16.25" |
| Maximum Cutting Length | 18.83" |
| Distance Between Centers | 22.08" |
| X-Axis Travel | 8.5" |
| Z-Axis Travel | 25" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 2.44" / 2.0" |
| Spindle Speeds | 4,500 RPM |
| Spindle Motor | 20 HP |

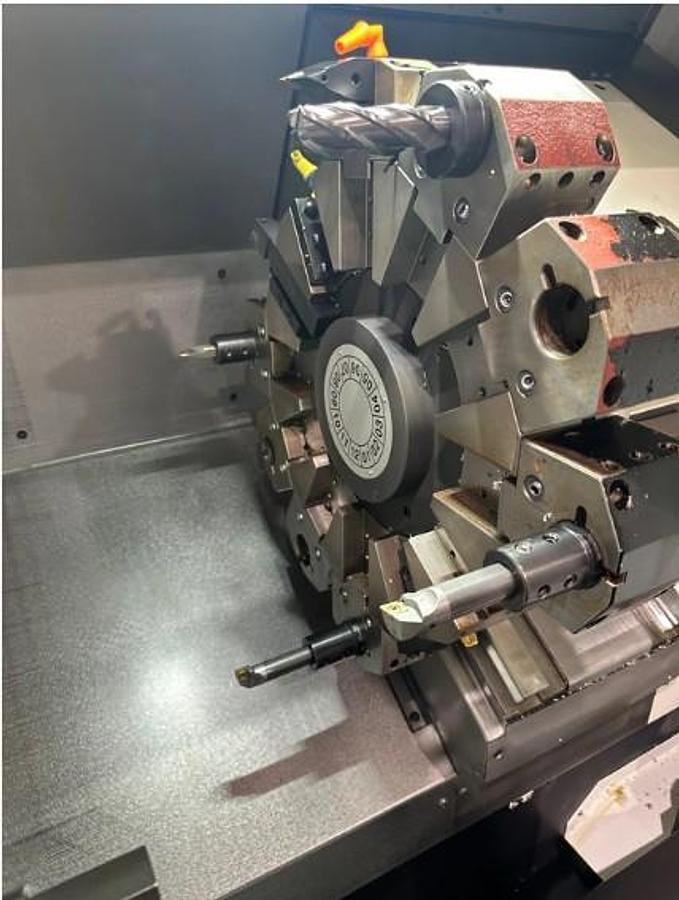

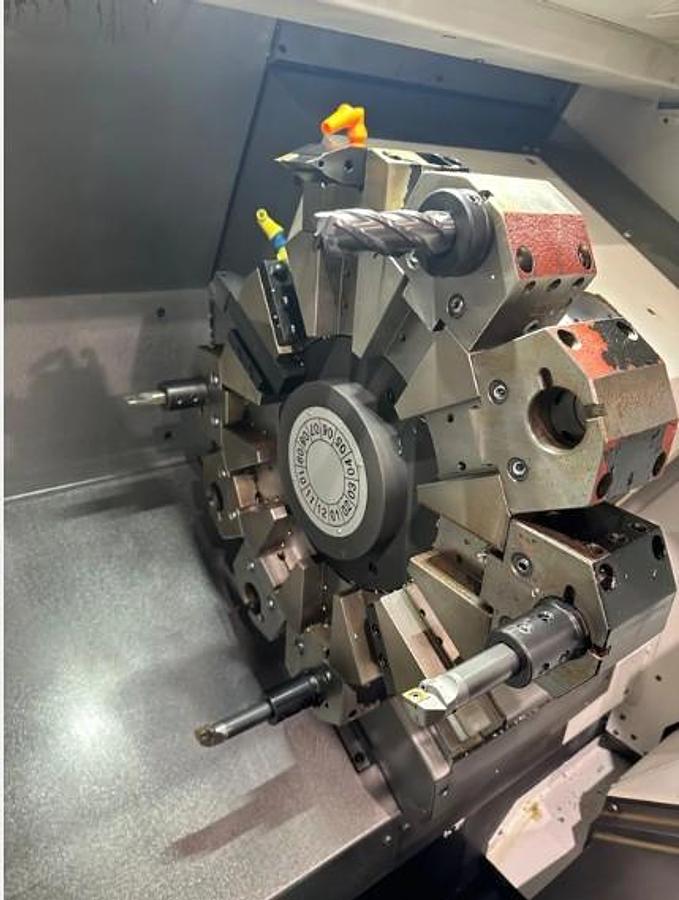

| Number of Turret Positions | 12 Station Turret |
| Rapid Traverse Rates | 1181 IPM |
| Tailstock Body Travel / Center | 14.17" / MT #4 |
| Tailstock Quill Travel / Quill Diameter | 3.7" / 3.7" |
| Machine Dimensions LxWxH | 120"x87"x90" |
| Machine Weight | 11,125 lbs |
