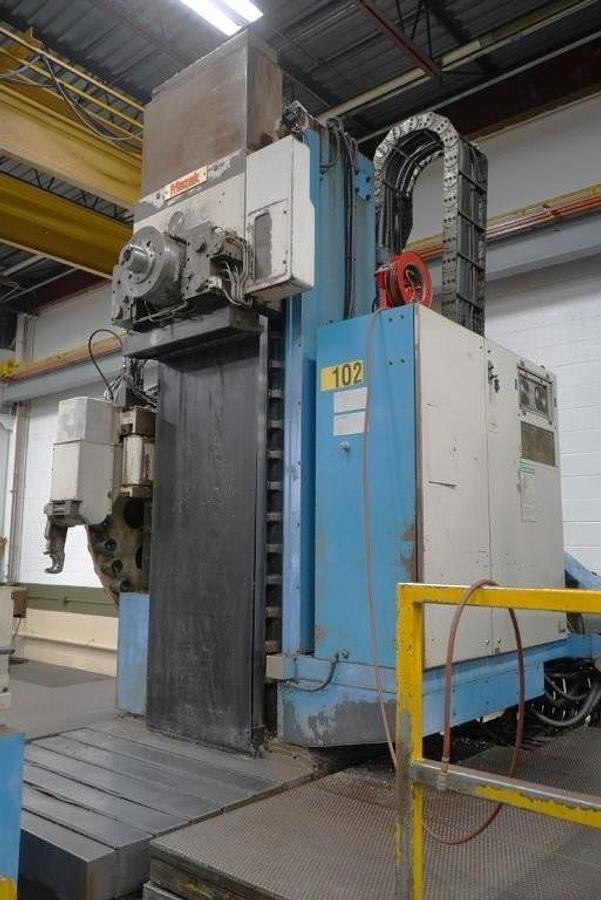

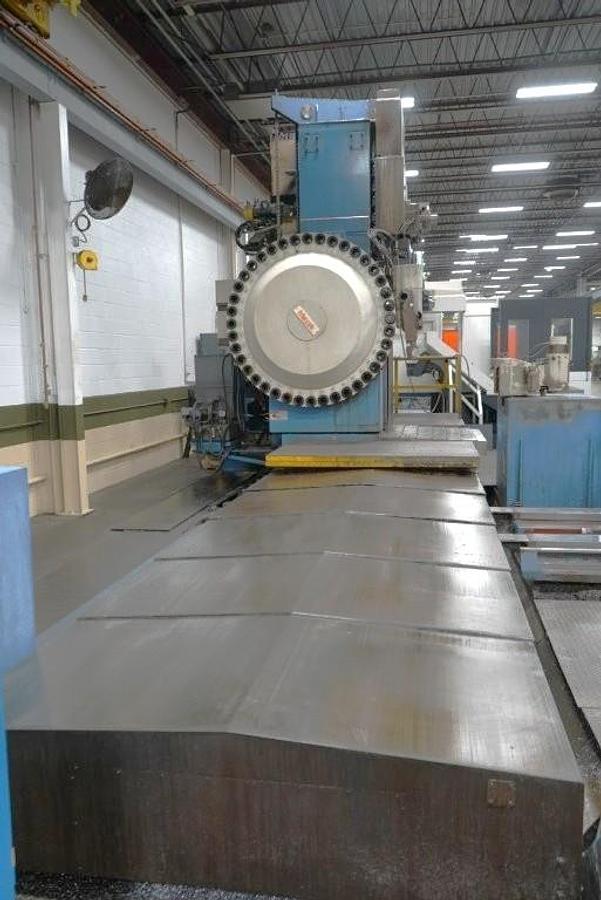

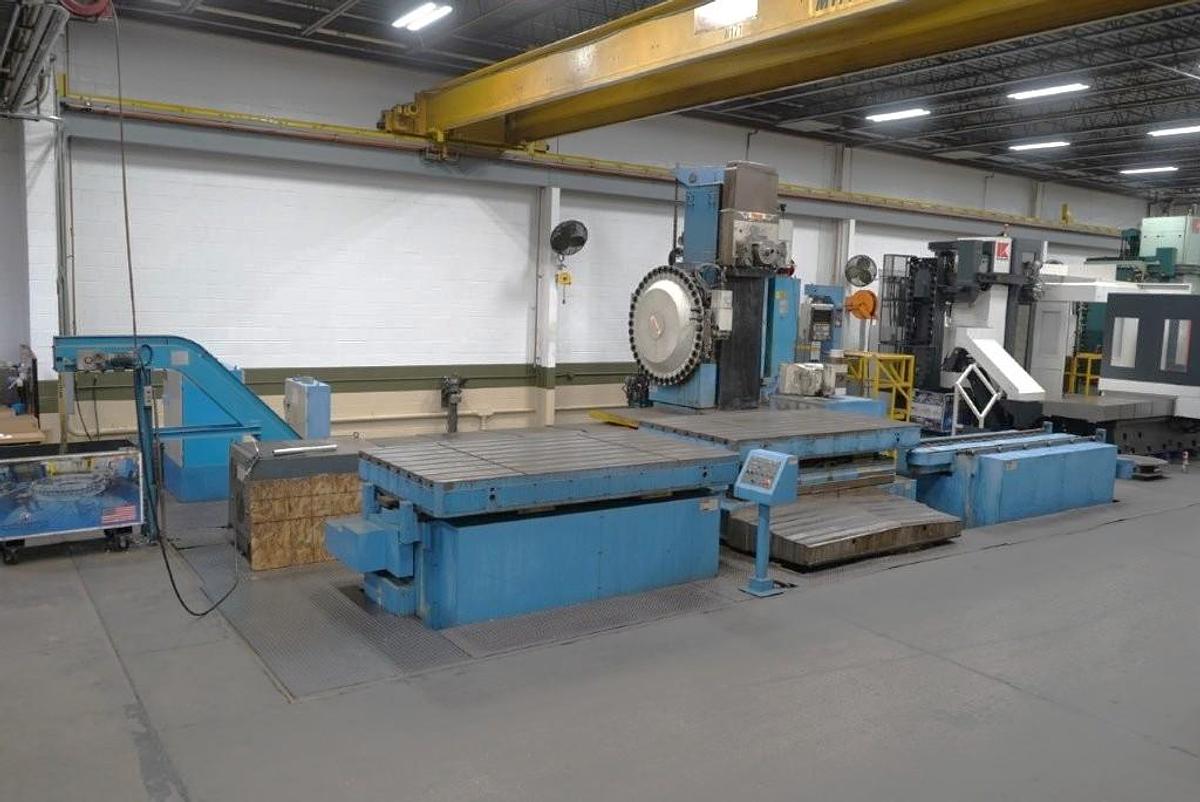

1987 Mazak YMS H40Q with 2 Plt. Changer, Full 4th Rotary Tbl, 40 Pos. ATC, 5.1" Spindle Diam, Right Angle Head, 5 Face Machining
1987 Mazak YMS H40Q with 2 Plt. Changer, Full 4th Rotary Tbl, 40 Pos. ATC, 5.1" Spindle Diam, Right Angle Head, 5 Face Machining
Contact us for price
Location:New York, NY
or
Call (863) 439-6066
Description

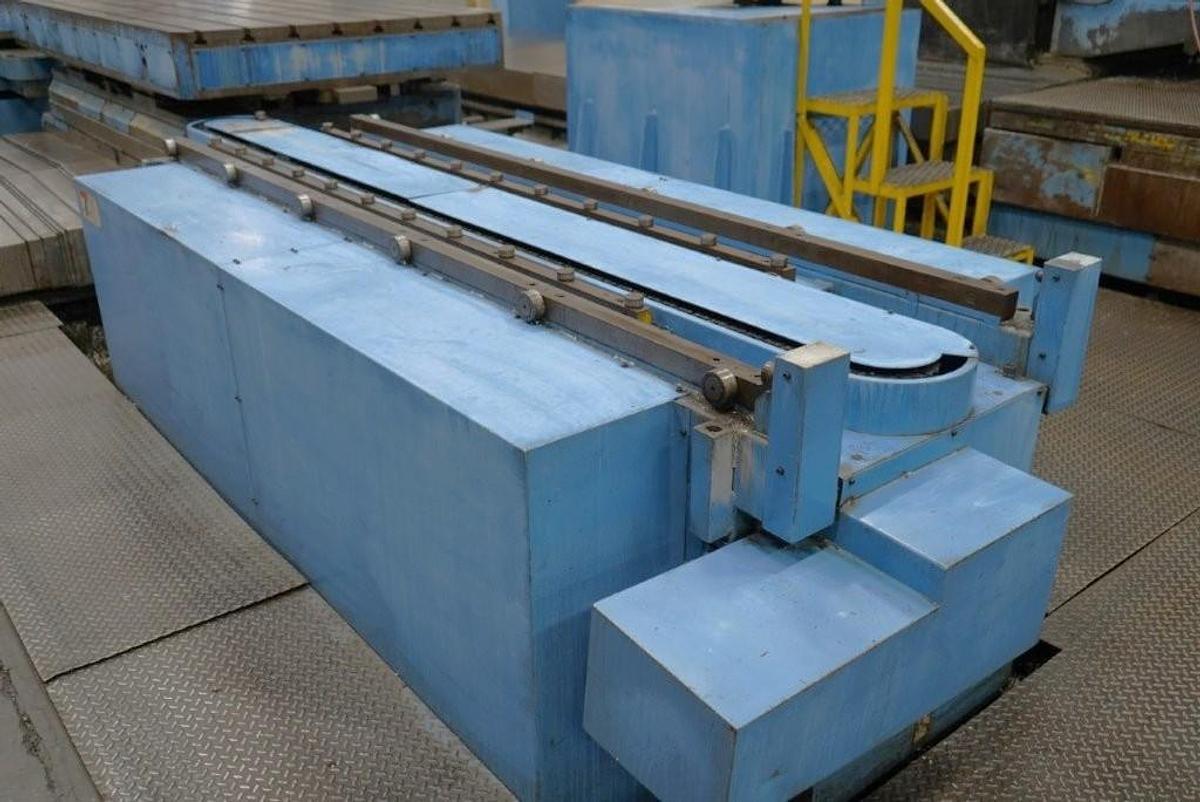

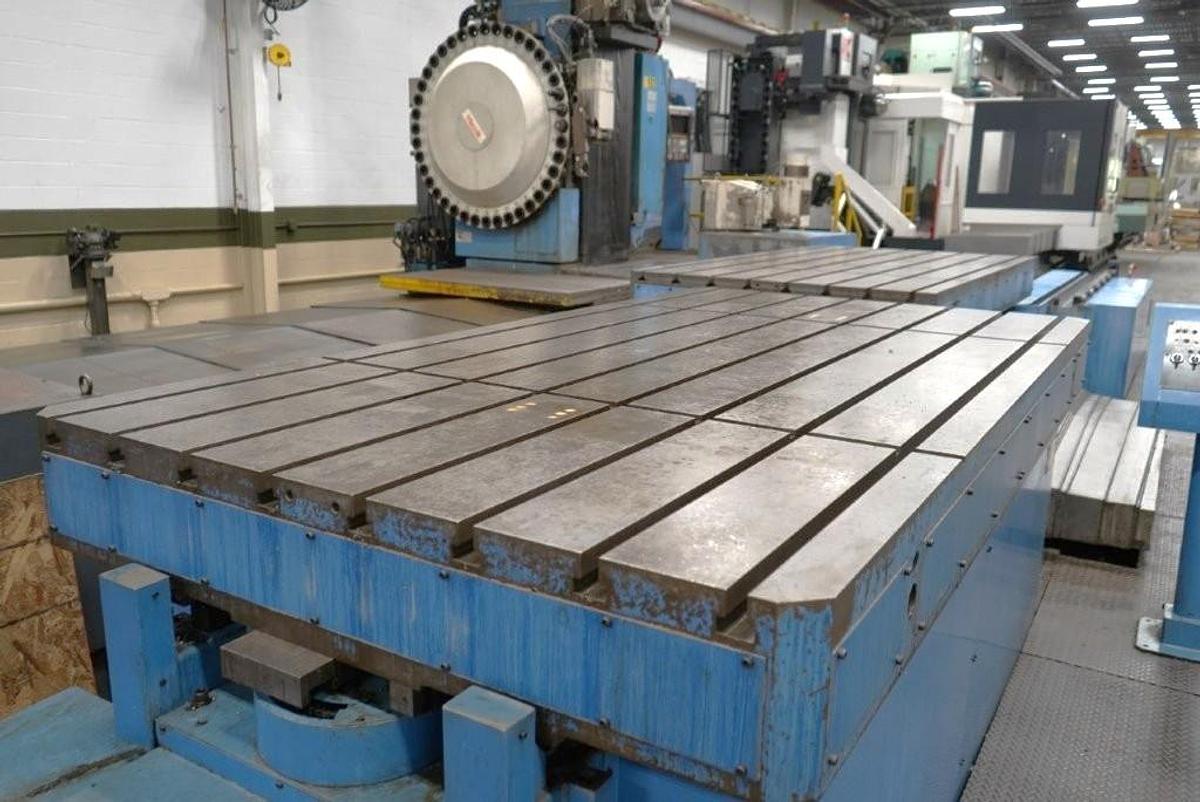

2 Pallet Changer System - (118" x 63" Pallets)
Right Angle Head for 5 Face Machining
Extendable Quill for Deep Hole Boring

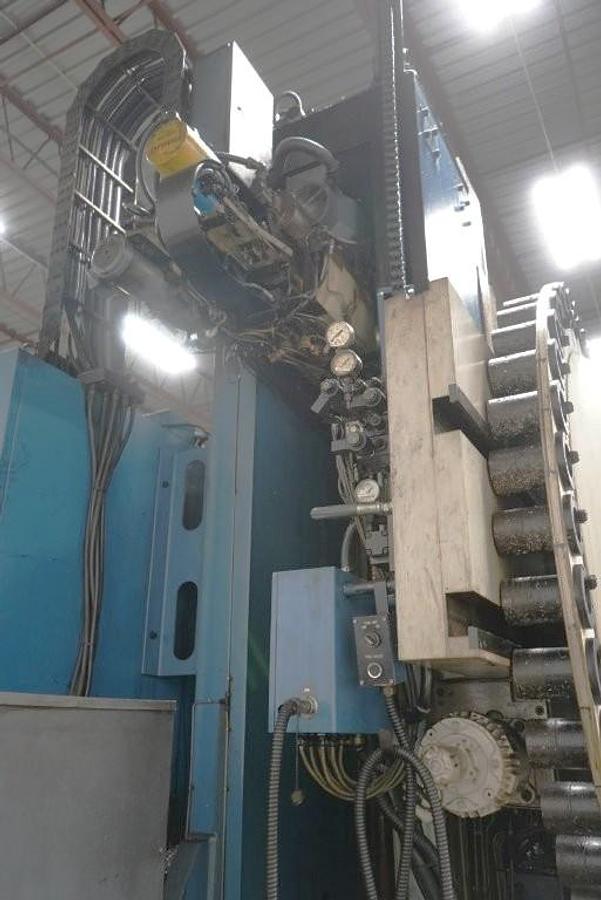

40 Station Tool Changer
Automatic Tool Length Measurement Probe
Chip Conveyor
Adaptive Feedrate Control
Tool Life Monitoring
Tool Breakage Detection
Chiller Unit
EIA/ISO Input Function
Remote Jog Handle
RS 232 Port Interface
Spindle RPM Meter
All Available Manuals
**Power On Hours 91,245**
Specifications
| Manufacturer | Mazak |
| Model | YMS H40Q |
| Year | 1987 |
| Condition | Used |
| Stock Number | 120366 |

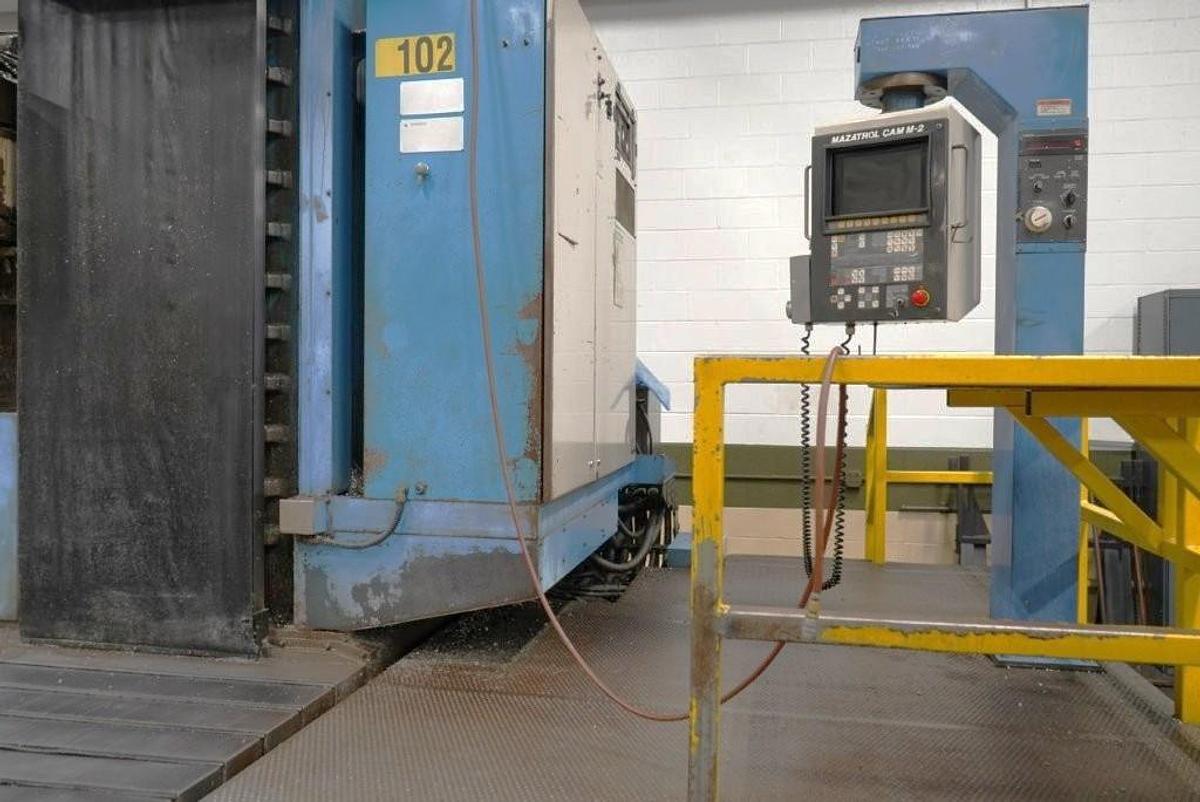

| Machine Control | Mazatrol M-2 CNC Control |
| Pallet Size / Number of Pallets | 118" x 63" / 2 Pallets |
| Maximum Weight on Table | 17,640 lbs |
| Table Indexing | .001 Degree Pallet Rotation |
| X-Axis Travel | 160" |
| Y-Axis Travel | 79.7" |
| Z-Axis Travel | 36" |
| W-Axis Spindle Travel | 15" |
| Spindle speed | 14 - 2,625 RPM |
| Spindle Taper | CAT 50 |
| Spindle Motor | 40 HP - 4 Speeds |
| Tool Magazine Capacity | 40 Station ATC |
| Maximum Tool Diameter / Length / Weight | 12" / 17.7" / 66 lbs |
| Rapid Traverse Rates X, Y / Z / W | 590 IPM / 470 IPM / 354 IPM |
| Machine Dimensions LxWxH | 407"x362"x204" |
| Machine weight | 103,600 lbs |
