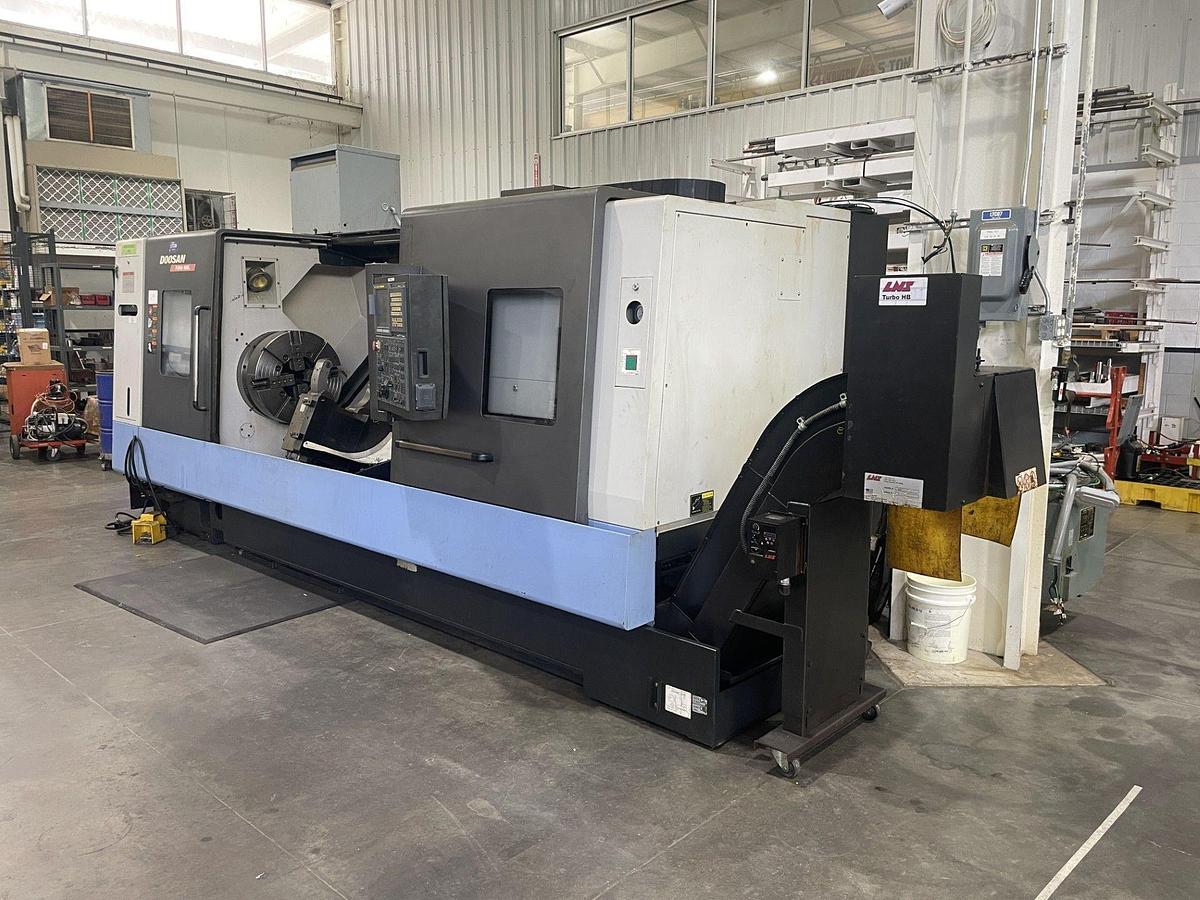

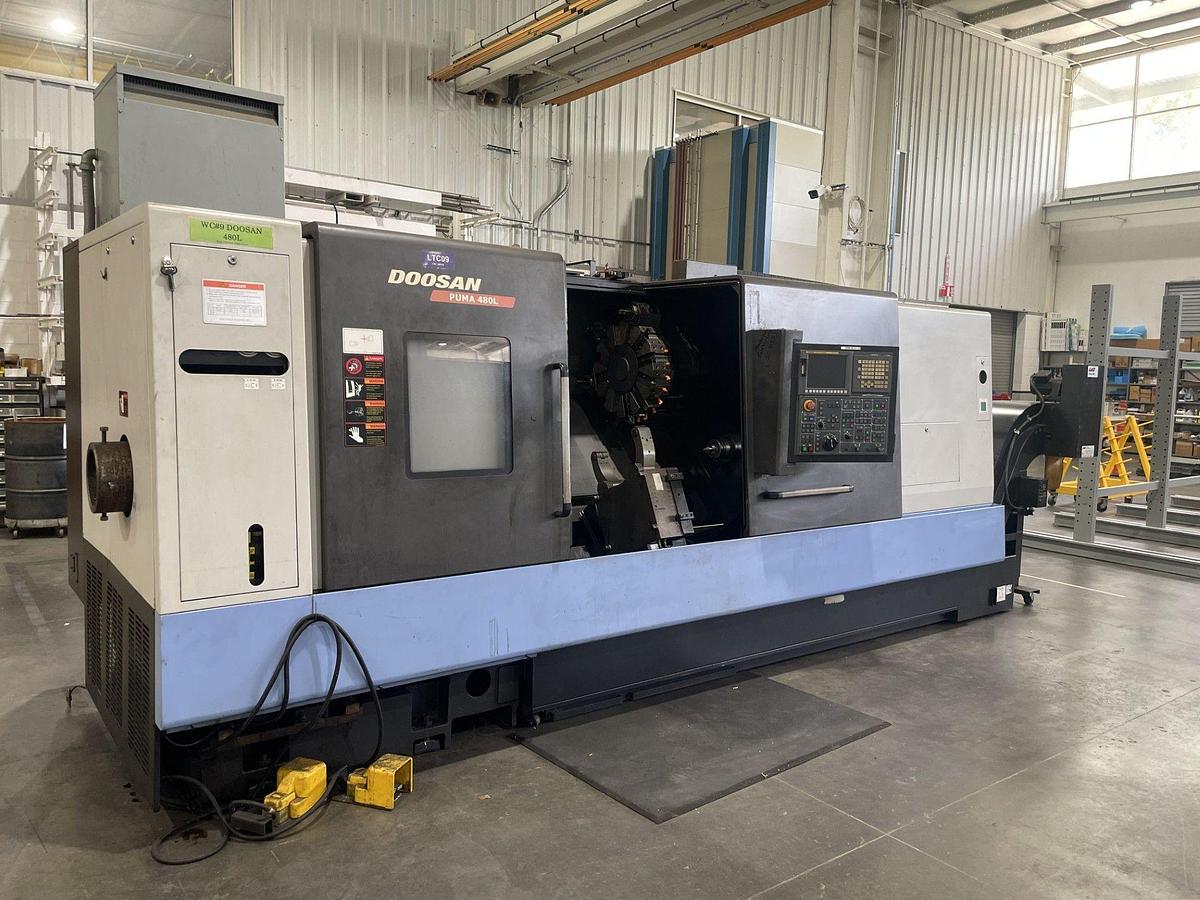

2011 Doosan Puma 480L with 10.8" Bar Cap., (2) 24" Manual Chks, 80" cc, S/R, Tailstock
2011 Doosan Puma 480L with 10.8" Bar Cap., (2) 24" Manual Chks, 80" cc, S/R, Tailstock
Contact us for price
Location:Texas
or
Call (863) 439-6066
Description
10.8" Big Bore Spindle with 10.8" Bar Capacity

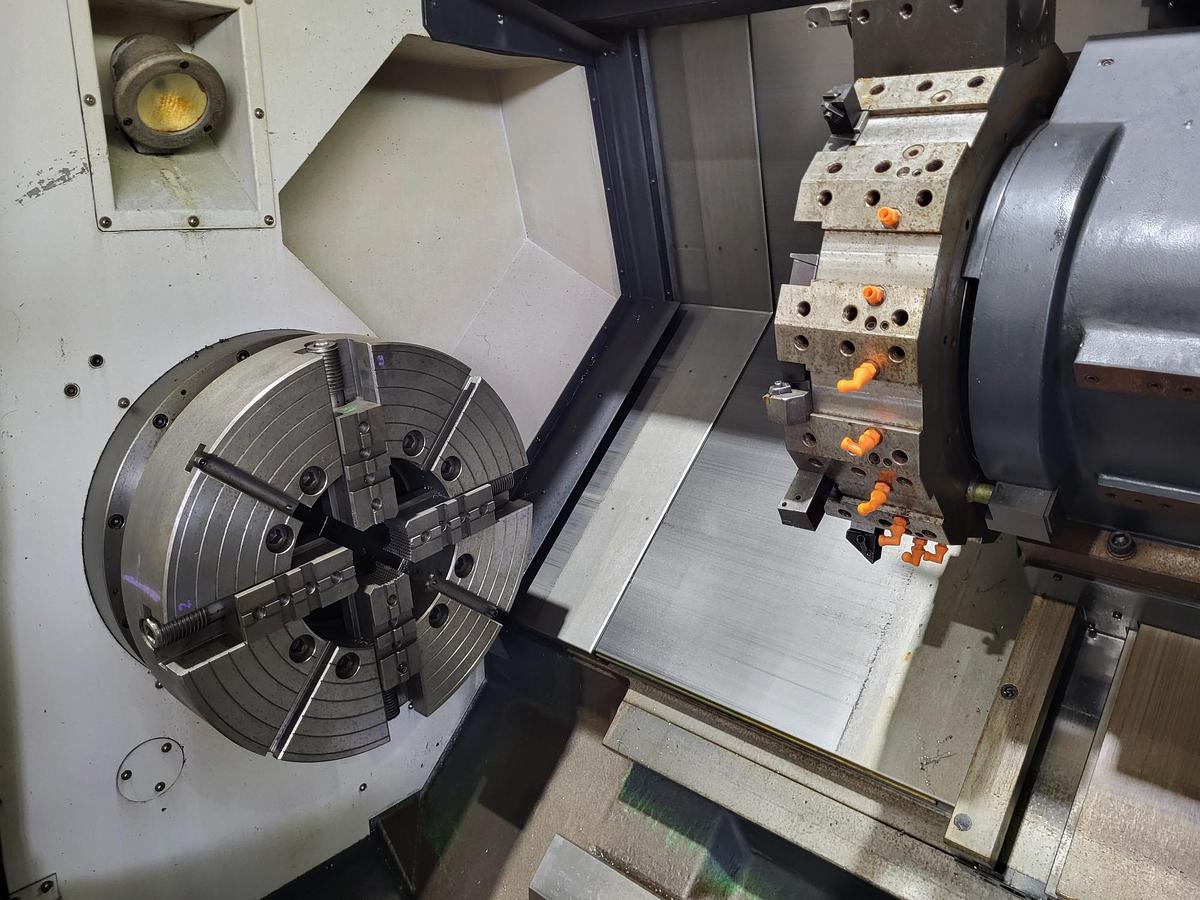

Chip Conveyor 24" Manual 4 Jaw Chuck on Front
24" Manual 3 Jaw Chuck on Rear

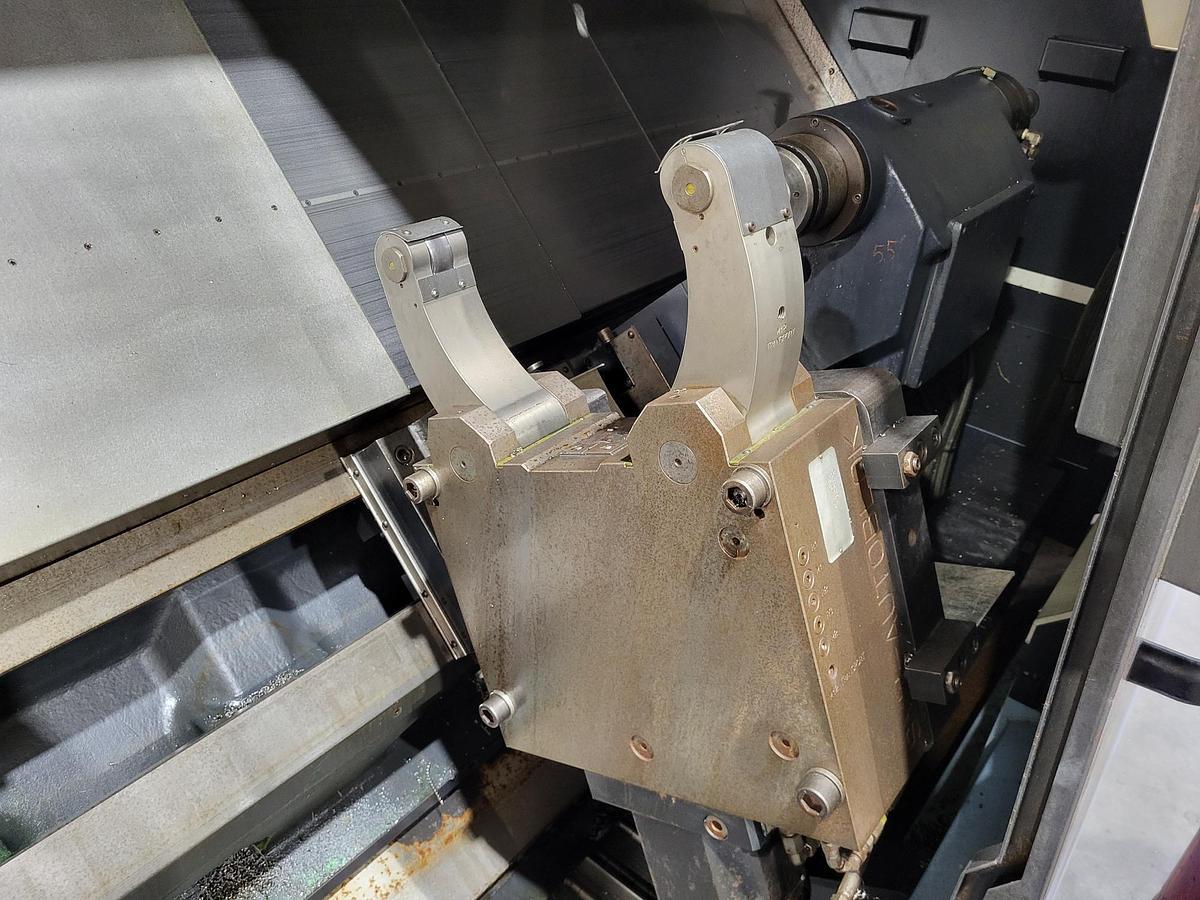

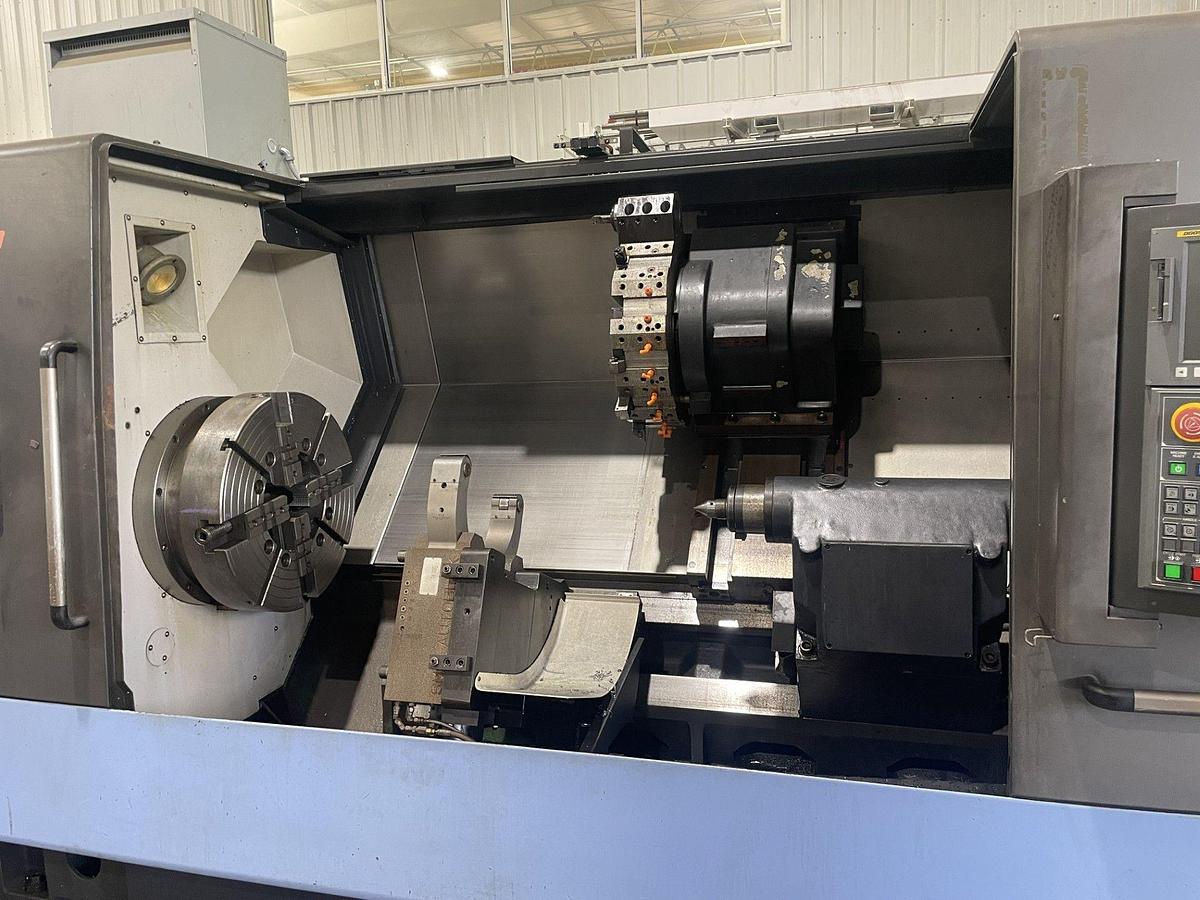

SMW Autoblock Hydraulic Steady Rest with 12.2" Capacity Programmable Tailstock
Factory Special Ordered with Puma 480D Larger Diameter Headstock 2 Speed Gearbox
Card Interface RS 232 Port Interface Coolant System with Tank & Pump
Boxed Way Construction on Slant Bed All Available Tooling All Available Manuals
**ONLY 1,454 Cutting Hours**
Specifications
| Manufacturer | Doosan |
| Model | Puma 480L |
| Year | 2011 |
| Condition | Used |
| Stock Number | 120364 |
| Control | Fanuc 31i-A Control |
| Chuck Size | (2) 24" Manual Chucks |
| Maximum Swing | 35.4" |
| Maximum Turning Diameter | 25.6" |
| Maximum Turning Length | 82.6" |
| Maximum Bar Capacity | 10.8" |
| X-Axis Travel | 14.3" |
| Z-Axis Travel | 82" |
| Spindle Nose / Spindle Bore | A2-15" / 10.8" |
| Spindle Speeds | 1 -1,000 RPM with Gearbox |
| Spindle Motor | 60 HP |
| Number of Turret Positions | 12 Position Turret |
| Rapid Traverse Rates X/Z | 630 IPM / 394 IPM |
| Tailstock Quill Diameter / Center | 4.7" / MT #5 |
| Tailstock Quill Travel | 4.7" |
| Machine Dimensions | 235" x 96" x 91" |
| Machine Weight | 24,500 lbs. |
