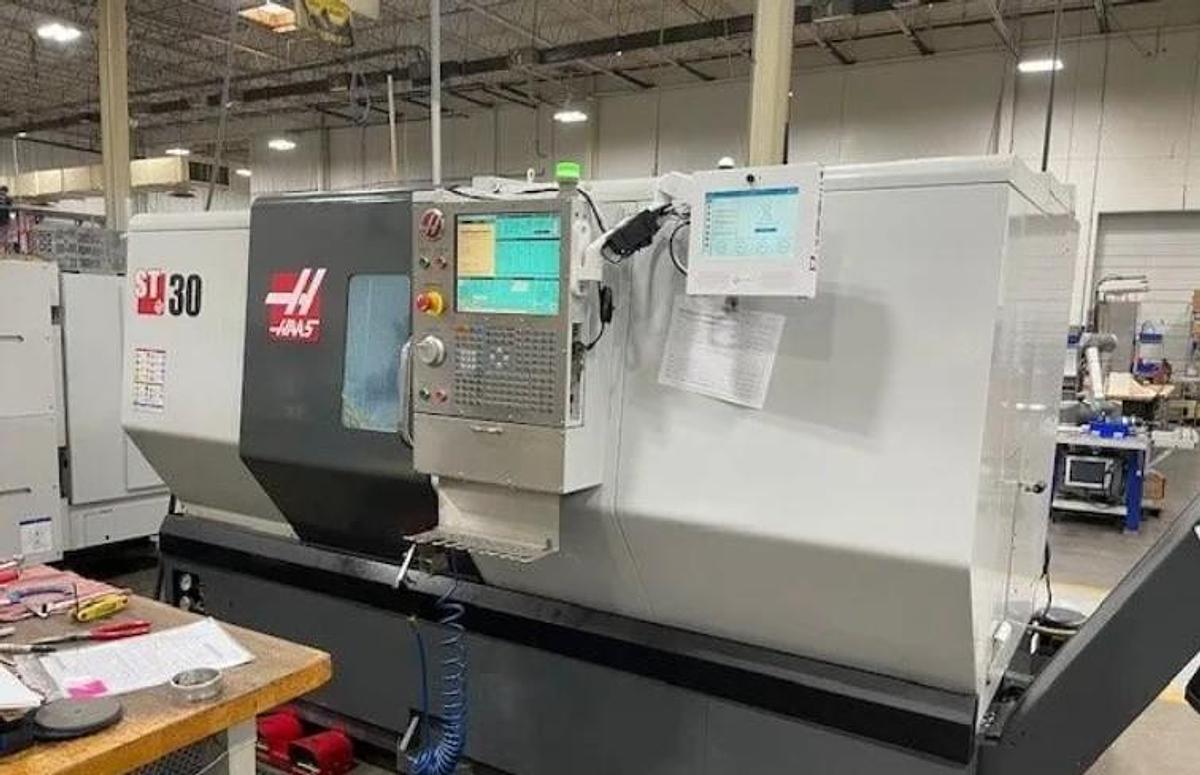

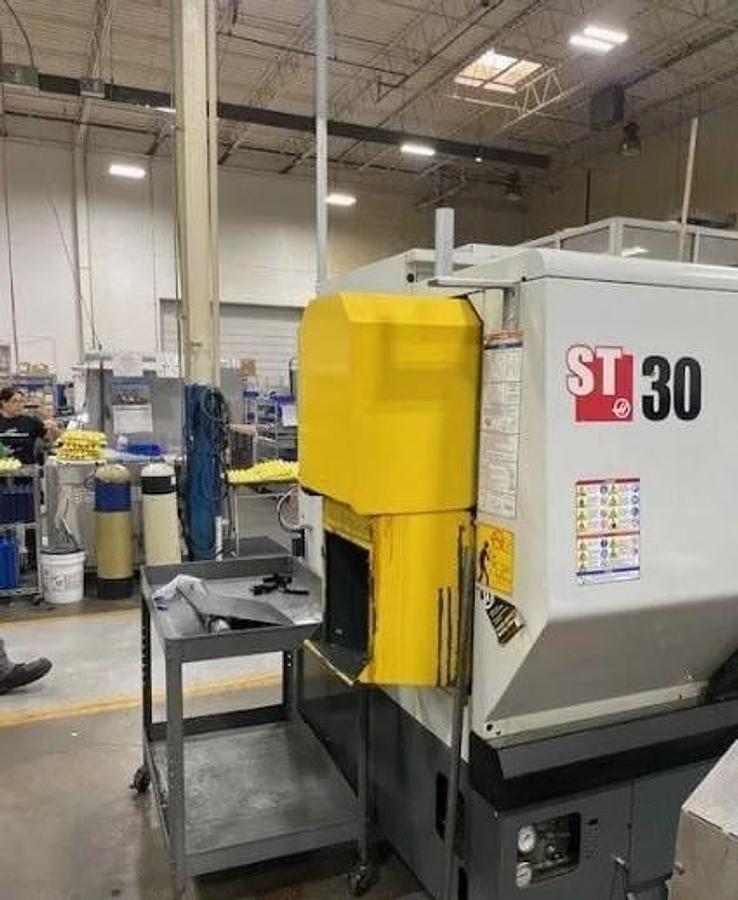

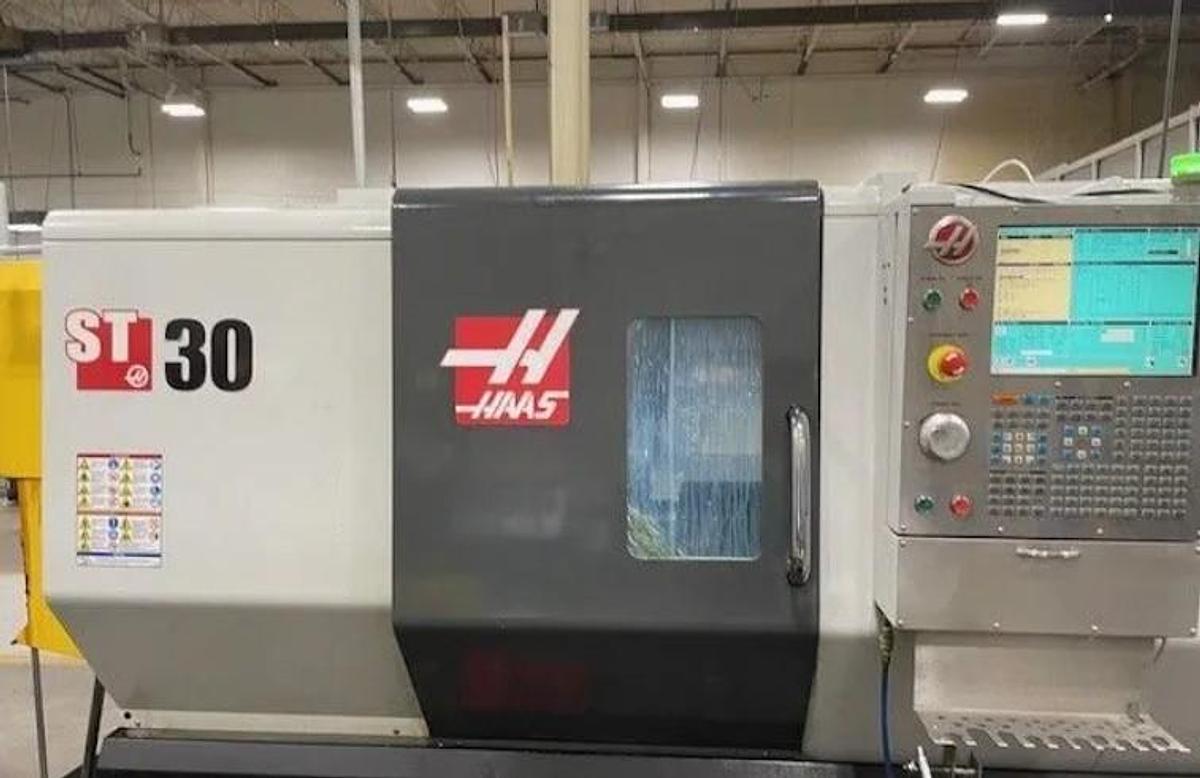

2013 Haas ST-30 with Haas Barfeed, Tailstock, Tool Presetter, Chip Conveyor, High Pressure Coolant
2013 Haas ST-30 with Haas Barfeed, Tailstock, Tool Presetter, Chip Conveyor, High Pressure Coolant
Contact us for price
Location:Ohio
or
Call (863) 439-6066
Description

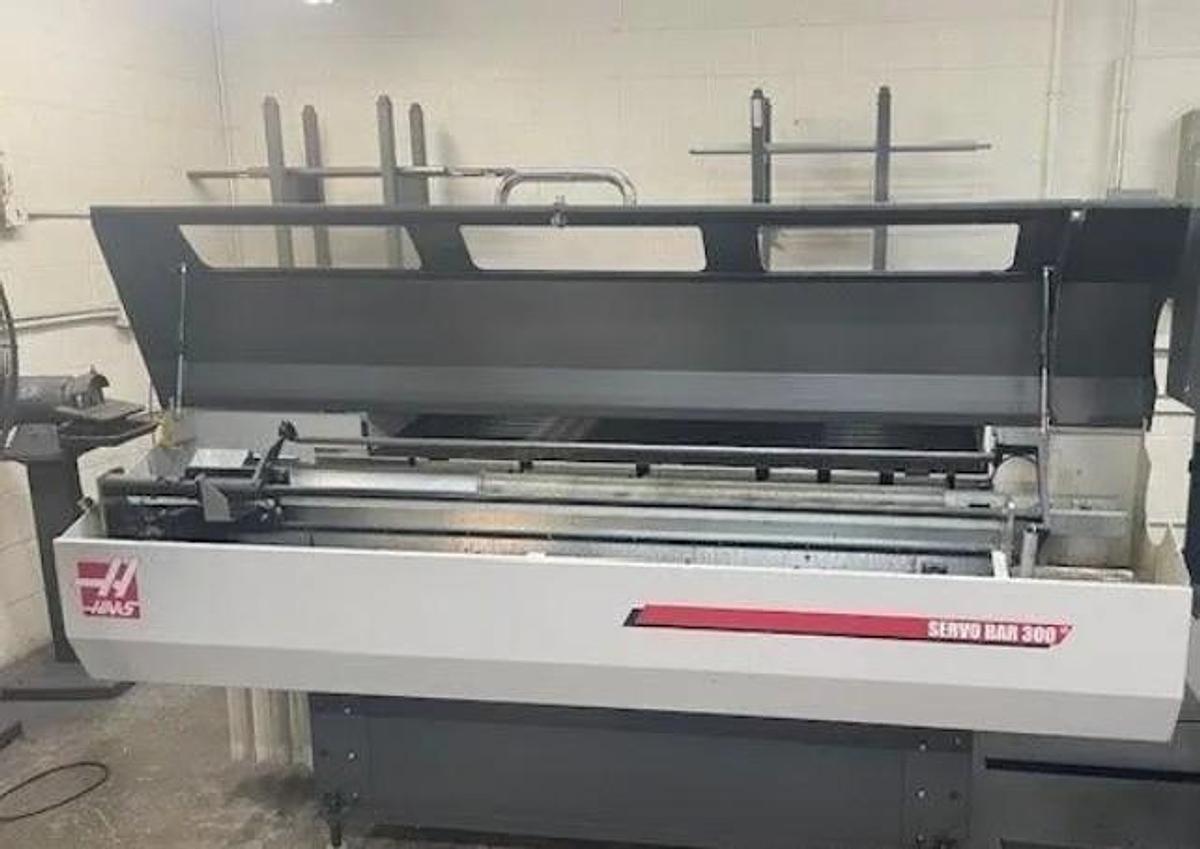

Haas Servo 300 Barfeeder
10" 3 Jaw Hydraulic Chuck

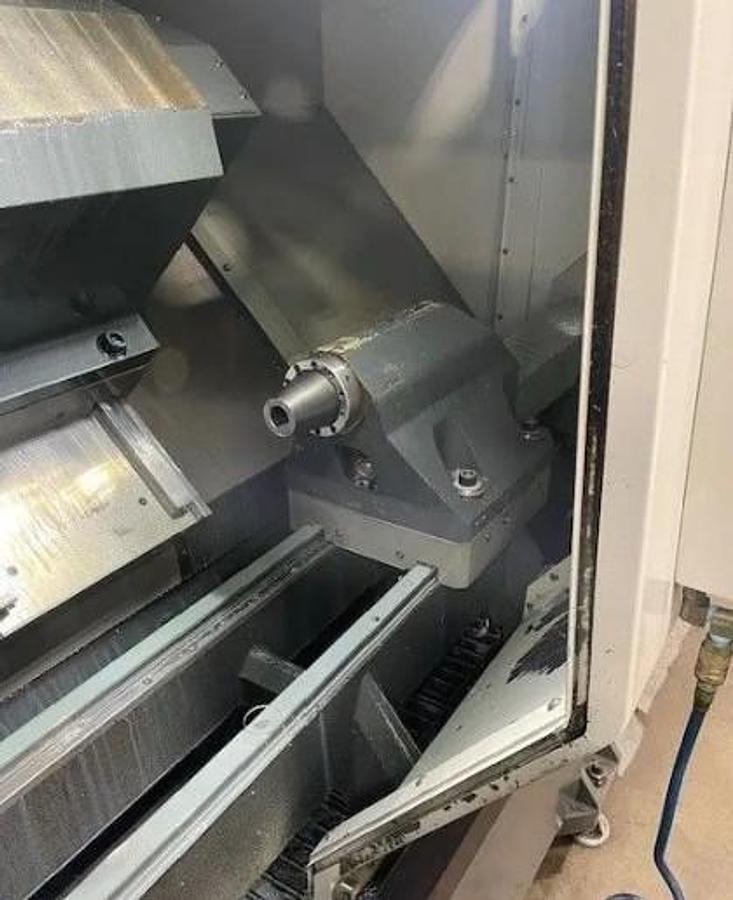

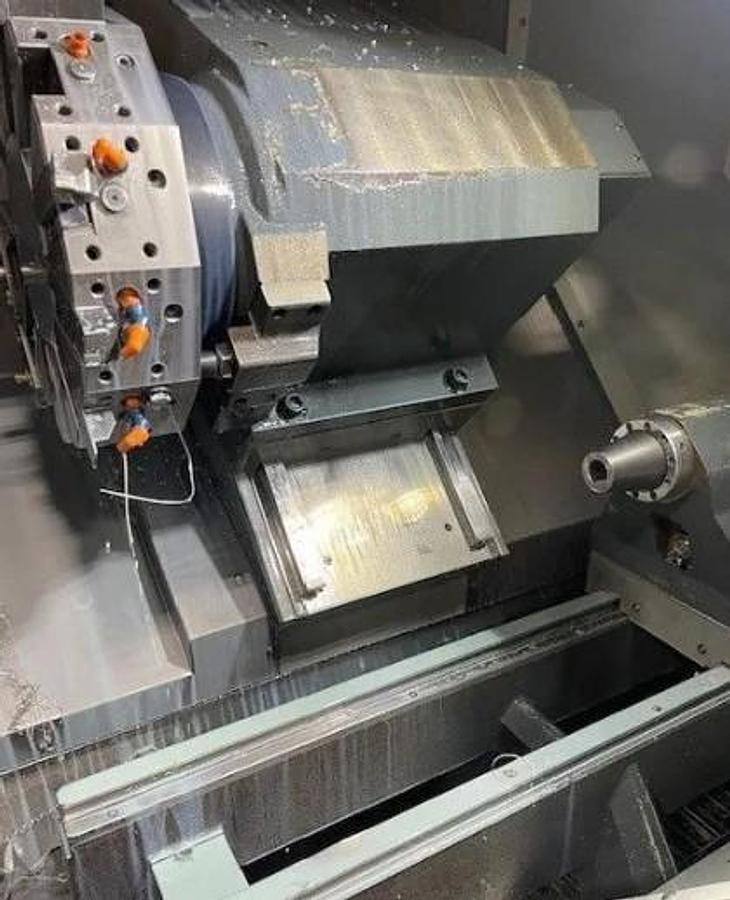

Programmable Tailstock

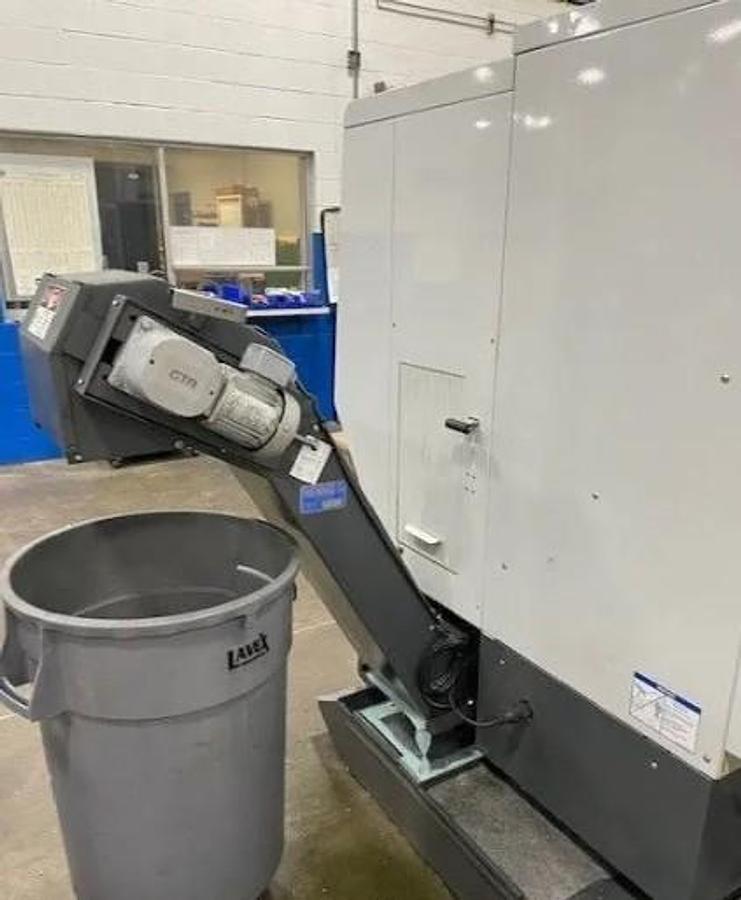

Chip Conveyor

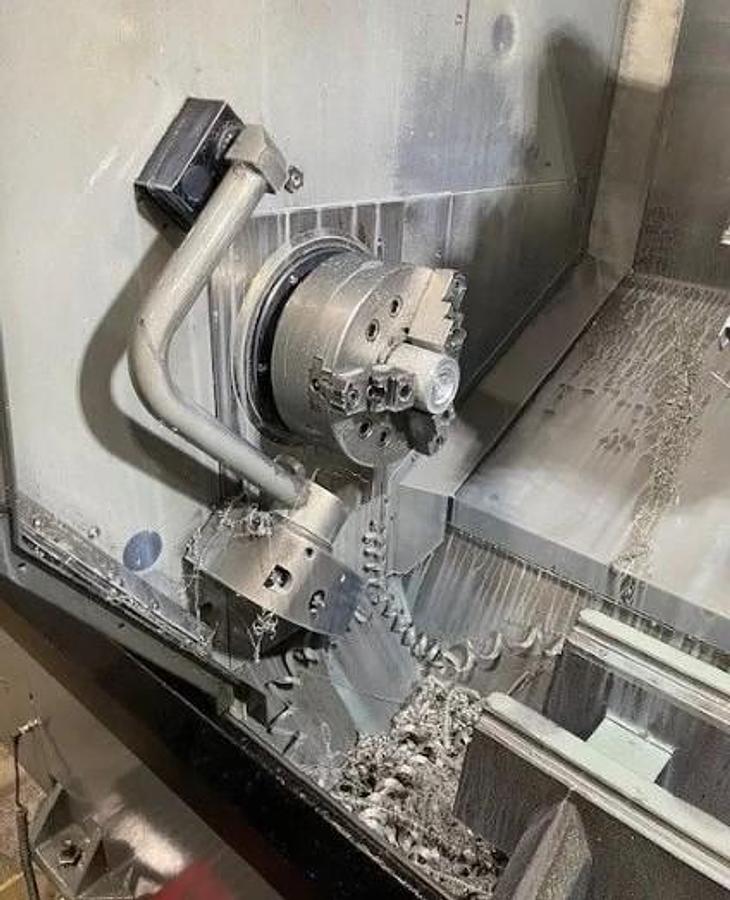

Tool Presetter
Rigid Tapping
300 PSI High Pressure Coolant
USB Port Interface
RS 232 Port Interface
All Available Tool Blocks

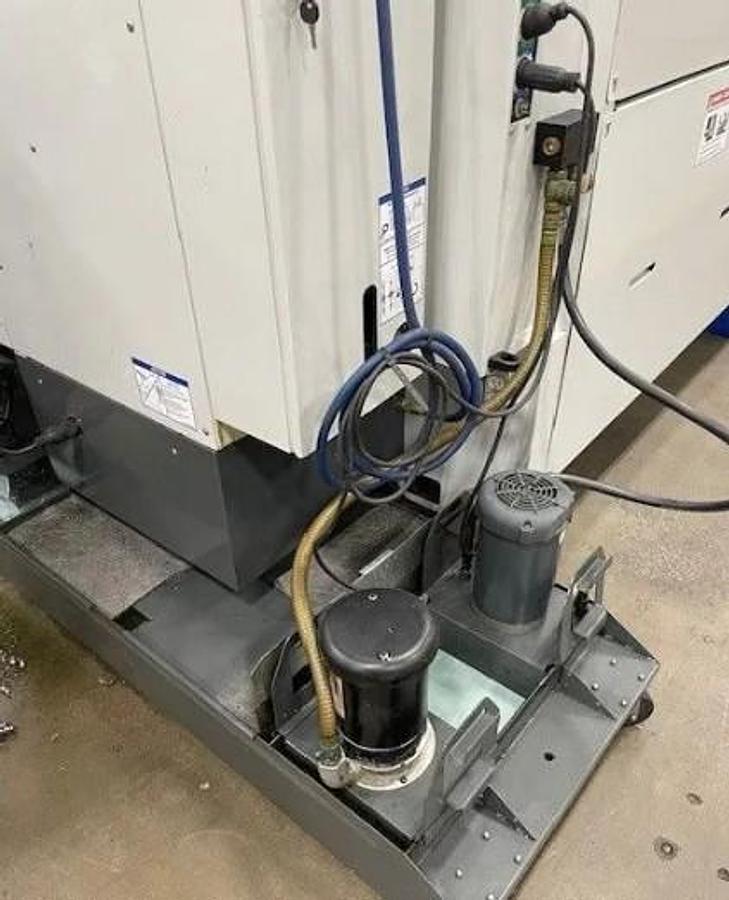

Coolant System with Tank & Pump
**Not available until late November/early December**
Specifications
| Manufacturer | Haas |
| Model | ST-30 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 120363 |
| Machine Control | Haas CNC Control |
| Chuck Size | 10" |
| Maximum Swing | 31.5" |
| Maximum Turning Diameter | 21" |
| Maximum Machining Length | 26" |
| Maximum Bar Capacity | 3" |
| X-Axis Travel | 12.5" |
| Z-Axis Travel | 26" |
| Spindle Nose / Bore / Bar Capacity | A2-6" / 3.5" / 3" |
| Spindle Speeds | 30 - 3,400 RPM |
| Spindle Motor | 30 HP |

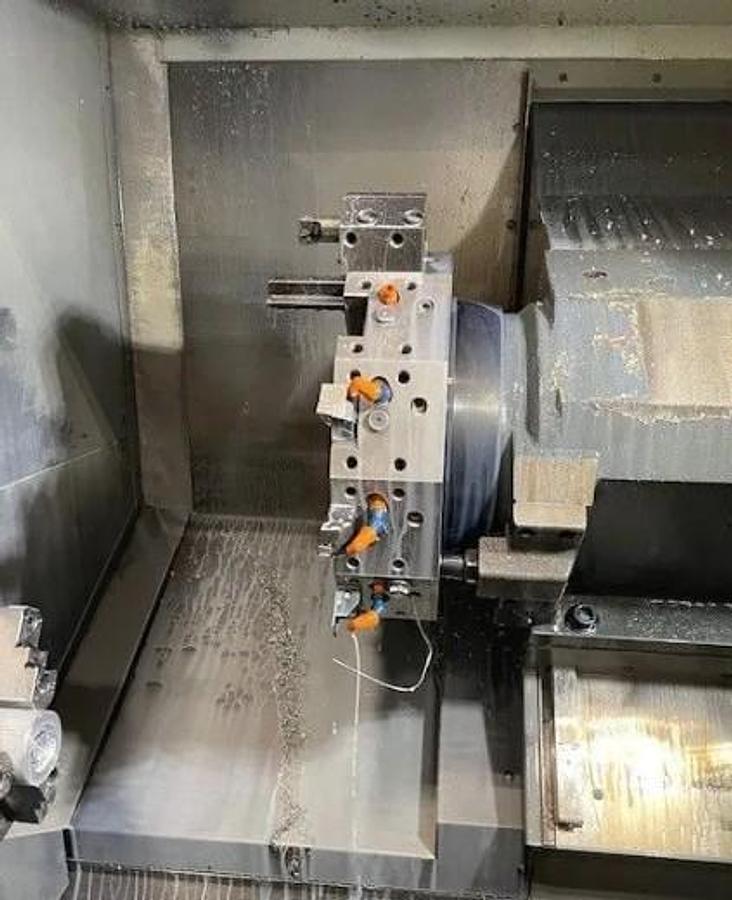

| Number of Turret Positions | 12 Position Block Turret |
| Rapid Traverse Rates X/Z | 945 ipm / 945 ipm |
| Tailstock Body Travel / Taper | 20" / MT #4 |
| Machine Dimensions | 171" x 90" x 83" |
| Machine Weight | 12,540 lbs. |
