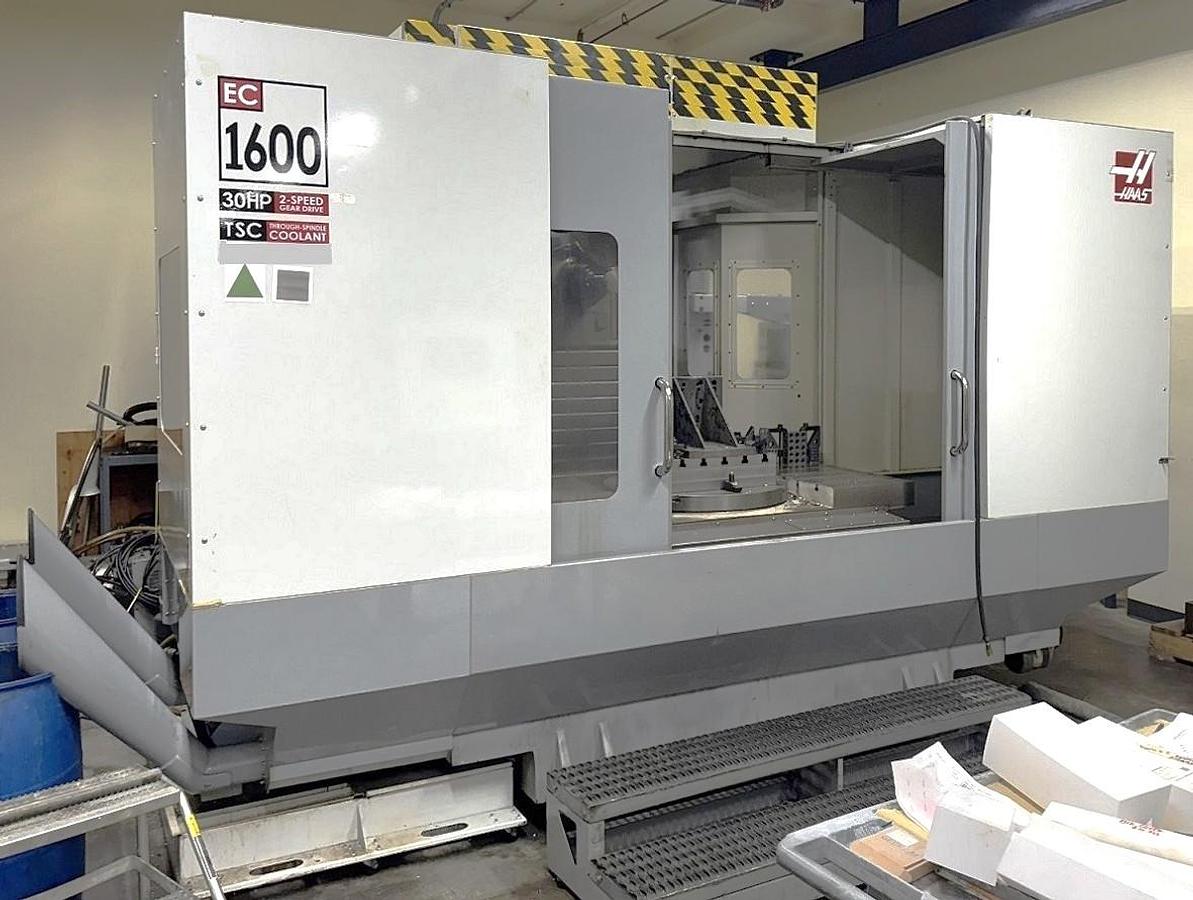

2007 Haas EC-1600 with Thru the Spindle Coolant, Built in 4th Axis Table, HRT210 Rotary Table as 5th Axis, Remote Jog Handle
2007 Haas EC-1600 with Thru the Spindle Coolant, Built in 4th Axis Table, HRT210 Rotary Table as 5th Axis, Remote Jog Handle
Contact us for price
Location:California
or
Call (863) 439-6066
Description
30" Diameter Built In Full 4th Built in Rotary Platter
4th Axis Drive & Wiring
5th Axis Drive & Wiring
Haas HRT-210 Rotary Table Used as 5th Axis
1,000 PSI Coolant thru the Spindle
Dual Auger Style Chip Removal
30 Station Side Mounted Tool Changer
2 Speed Geared Headstock
Remote Jog Handle
15" Color LCD Monitor
Memory Key Lock Switch
Coolant System with Tank & Pump
RS-232 Port Interface
Wired 195-260V Electrics
**No Tooling or Fixturing Seen in Photos Are Included**
**Unit is in plant and under power for inspection**
Specifications
| Manufacturer | Haas |
| Model | EC-1600 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 120358 |
| Table Size | 64" x 36" |
| Maximum Table Load | 10,000 lbs |
| X-axis travel | 64" |
| Y-Axis Travel | 40" |
| Z-Axis Travel | 32" |
| Spindle Taper | CAT 50 |
| Spindle Speed | 4,000 RPM |
| Spindle Motor | 30 HP - 2 Speed Geared Head |
| Tool Magazine Capacity | 30+1 Station Side Mounted ATC |
| Rapid Traverse Rates | 540 IPM |
| Maximum Tool Diameter / Length / Weight | 10" / 20" / 30 lbs |
| Machine Dimensions LxWxH | 190" x 144" x 135" |
| Machine Weight | 30,000 lbs |
